APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets

$124.99

SKU: SKUGbXeLKLDWf Categories: Networking & Cables, Networking Accessories, Technology Tag: APC Brand: APC

Description
Reviews (0)

Product Description

APC NetShelter Metered Rack PDU, 0U, 17.3kW, 208V, 3 phase, 60A, 30 C13 outlets

Metered – IEC 60309 60A 3P+PE – 30 x IEC 60320 C13 – 208 V – 17.20 kW – Overload Protection – 5.97 ft Cord Length – 0U – Vertical – Rack-mountable – Tower

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8867 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a IEC 60309 60A 3P + PE input plug with 1 83m (6ft) cord and (30) IEC 60320 C13 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU’s locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty
More from the Manufacturer

Ideal for colocation, large data centers or distributed IT sites
Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
Stay on top by defining alarm thresholds in order to avoid overloaded circuits
Zero U toolless installation
Meters power to enable optimal energy and protect circuits
Fitted with multiple outlets for distribution of electrical power

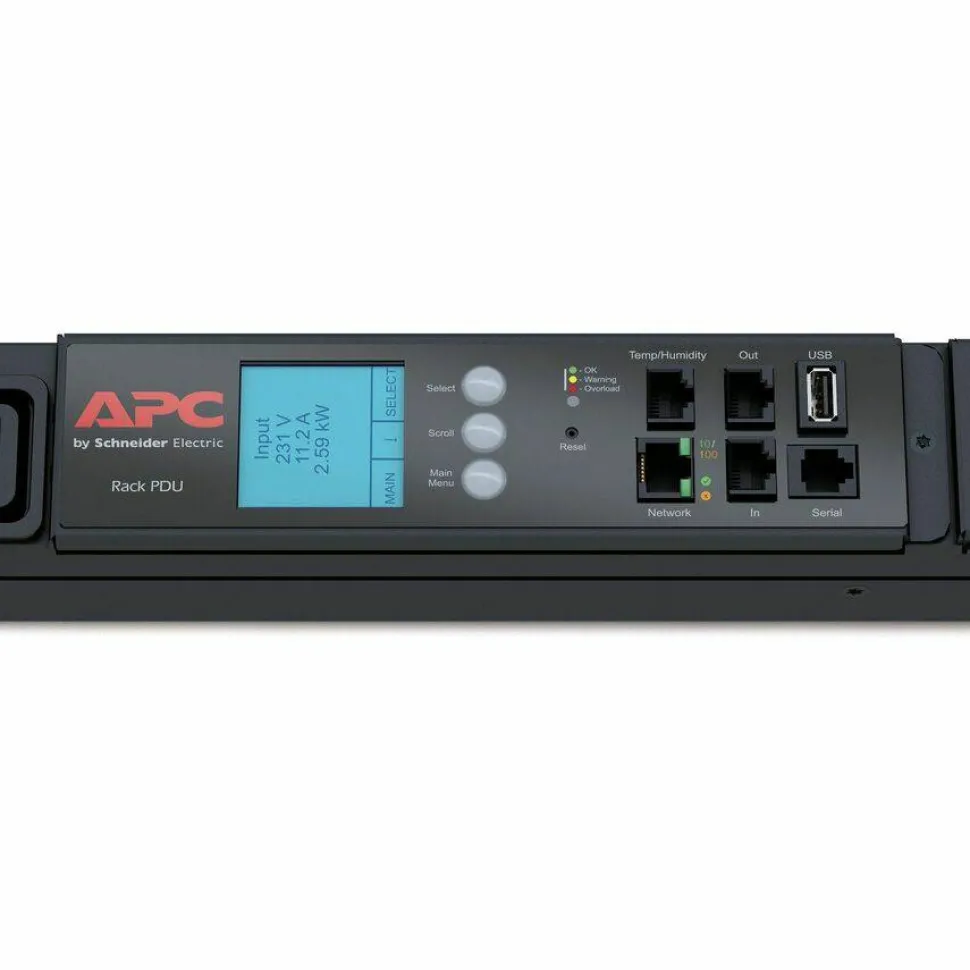

LCD to monitor current, power and voltage measurements
Uses 6′ long power cord to easily power
Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions

Product Specifications

Additional Information

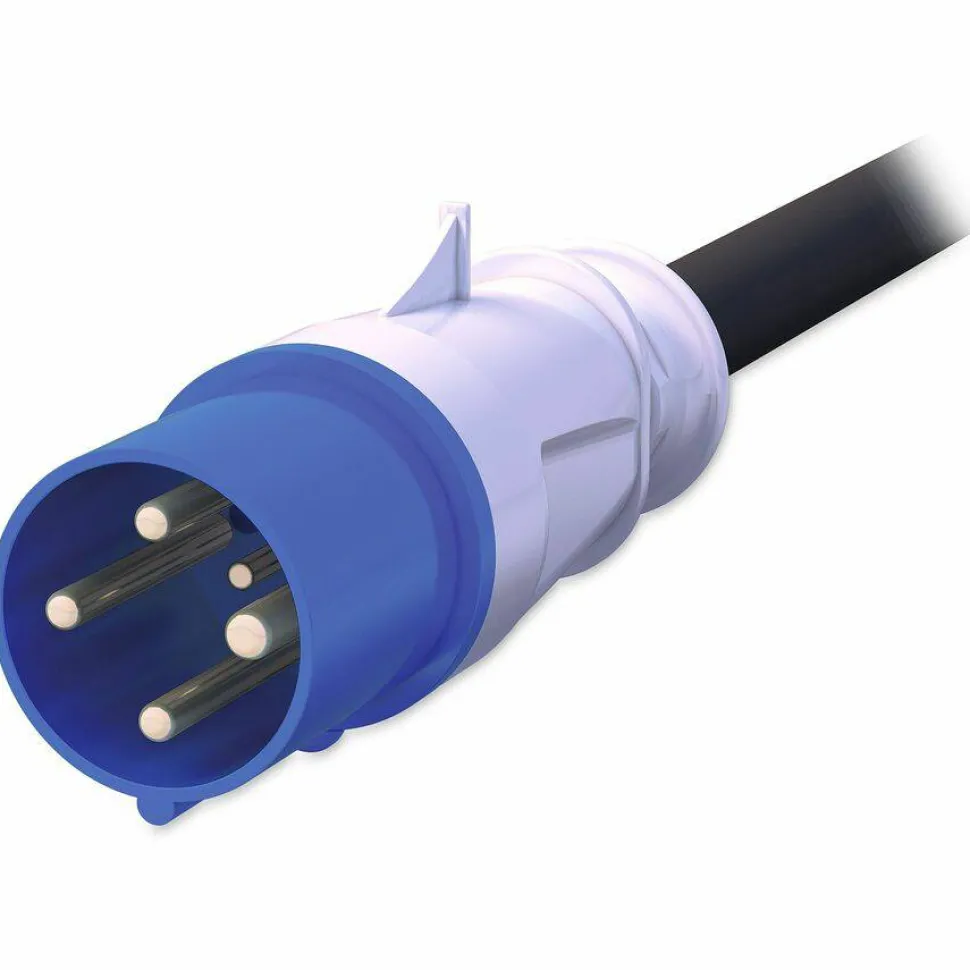

Input Connections: IEC 309 60A 3P+PE
Brand Name

APC
Certifications & Standards

cUL Listed|UL Listed|VCCI Class A
Cord Length

5.97 ft
Country of Origin

India
Depth

2″
EU RoHS Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP8867_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
End of Life Manual Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmental Profile Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
Environmentally Friendly

Yes
For Country/Region

United States
Form Factor

Tower
Halogen Content Performance

Product contains halogen above thresholds
Height

72″
Input Voltage

208 V
Limited Warranty

2 Year
Management

SNMP Telnet Protocols: Web
Manufacturer Part Number

AP8867
Mount Type

Rack-mountable
Mounting Preference

No Preference
Output Voltage

208 V AC
Package Contents

Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13 Installation Guide Rack Mounting Brackets Safety Guide Serial Configuration Cable
Packaging Contains Recycled Cardboard

Yes
Placement

Side
Plug/Connector Type

IEC 60309 60A 3P+PE
Power Rating (VA)

17.20 kVA
Product Color

Black
Product Line

Metered Rack
Product Name

Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (30) C13
Product Take Back Program

No
Product Type

PDU
Protection Type

Overload Protection
REACH Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP8867_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Rack Height

0U
Reach Compliance Date

12/10/2025
Receptacle Detail

30 x IEC 60320 C13
Receptacle Type

IEC 60320 C13
RoHS Exemption Information

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8867_ROHS_DECLARATION&p_FileName=AP8867KIT_ROHS_DECLARATION_US.pdf
Single-use Plastic (SUP) Free Shipping Packaging

No
Sustainable Packaging

No
WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width

2.2″
