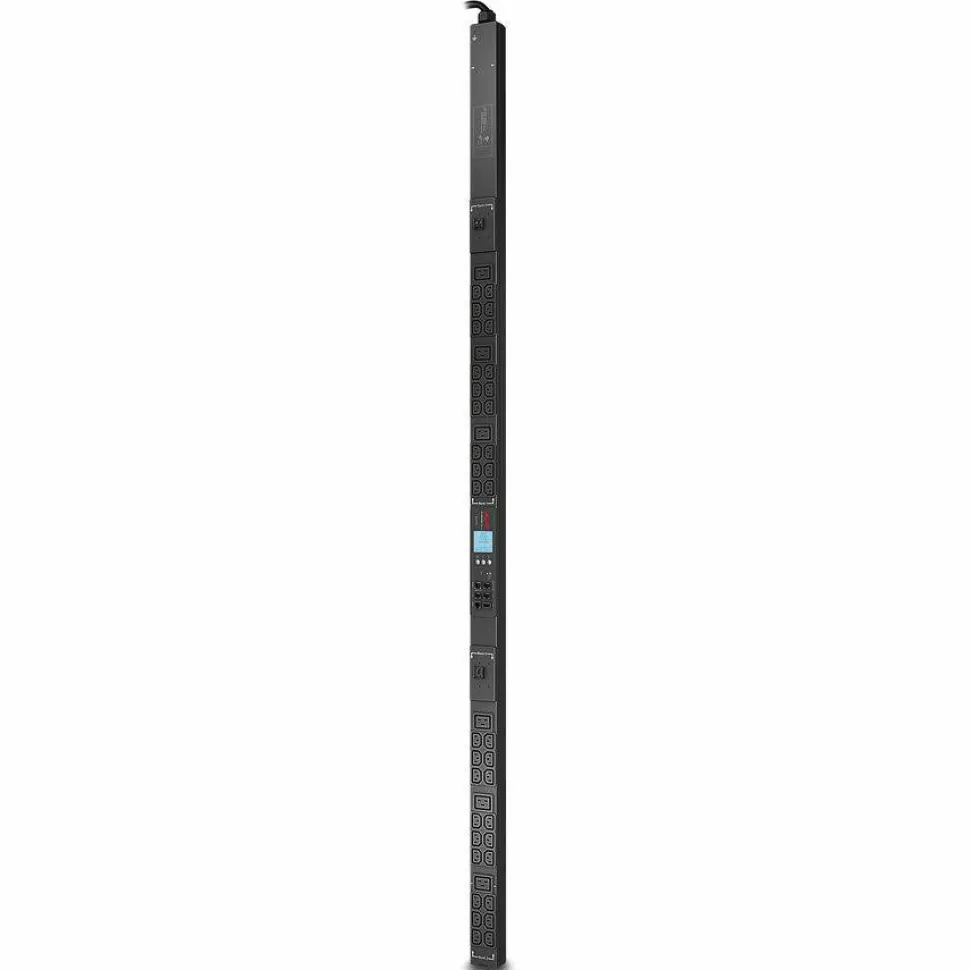

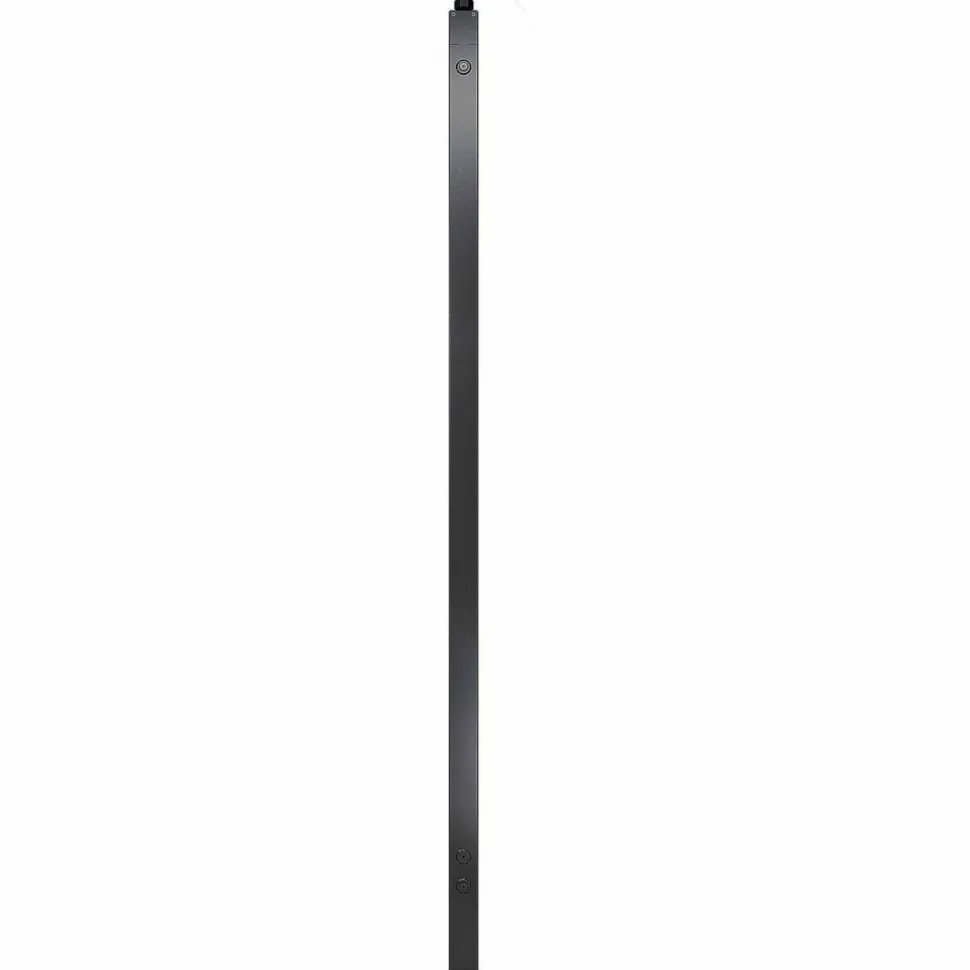

APC NetShelter Metered Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 36 C13 and 6 C19 outlets

APC NetShelter Metered Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 36 C13 and 6 C19 outlets

$128.99

SKU: SKUdT3S5Nbdzb Categories: Networking & Cables, Networking Accessories, Technology Tag: APC Brand: APC

Description
Reviews (0)

Product Description

APC NetShelter Metered Rack PDU, 0U, 5.0kW, 200V and 208V, 30A, 36 C13 and 6 C19 outlets

Metered – NEMA L6-30P – 200 V, 208 V – Overload Protection – 9.51 ft Cord Length – 0U – Vertical – Rack-mountable

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8841 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface. User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access. Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU’s locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty Enables a quick recovery from overload events and breakers are ultra low profile. Packaging Includes PDU, Installation guide, Rack mounting brackets, Safety guide, Serial configuration cable
More from the Manufacturer

Ideal for colocation, large data centers or distributed IT sites
Plan capacity and balance loads with +/- 3% metering accuracy (amps, volts, kW, kWh)
Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
Stay on top by defining alarm thresholds in order to avoid overloaded circuits
1-Year Secure Network Management Card subscription included
Interactive LCD display
Active power measurements (volts, amps, kW, kWh)
Embedded log memory
9.84′ power cord, 2-year APC warranty
Zero U toolless installation
PDU is reliable for power protection and management solutions
Monitor load level efficiently with PDU meter
With proper ventilation, your Side PDU will work efficiently

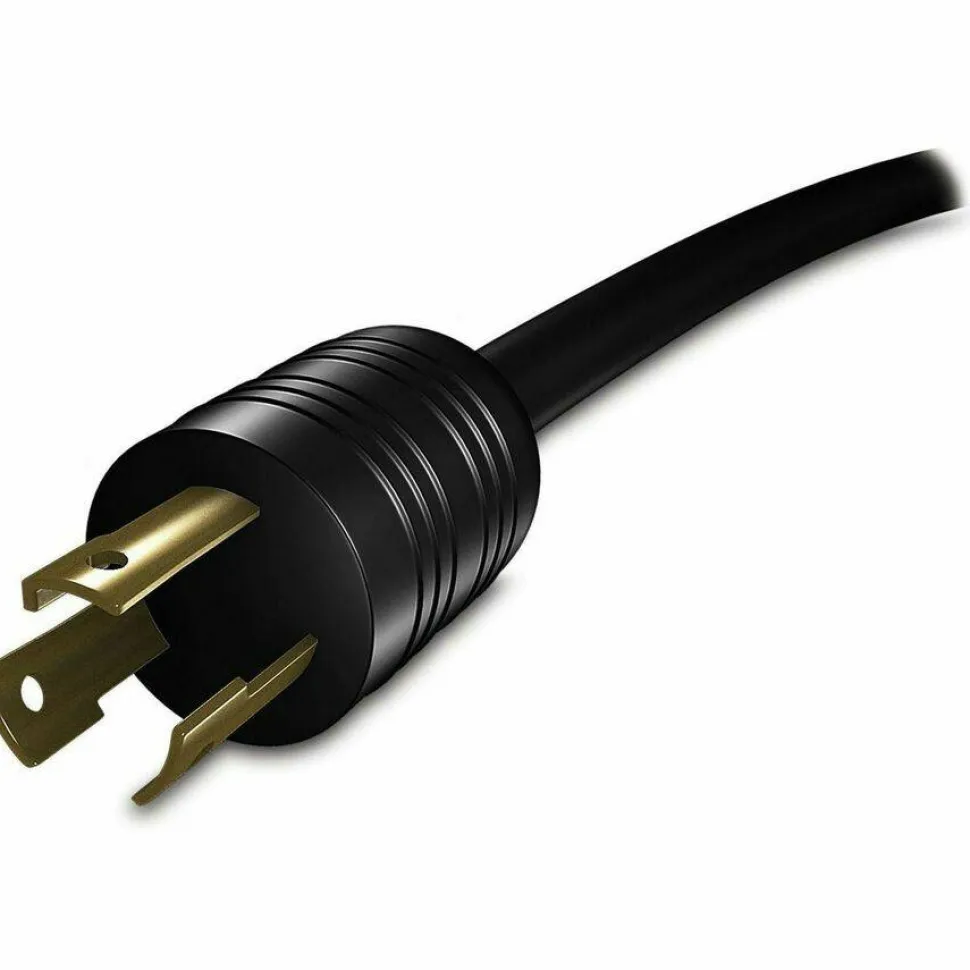

NEMA L6-30P plug/connector type for reliable, productive connectivity and optimal power output
200 V input voltage for maximum feasibility and added productivity
200 V AC output voltage for maximum dependability and added productivity

Product Specifications

Brand Name

APC
Certifications & Standards

METI Denan|PSE|VDE
Cord Length

9.51 ft
Country of Origin

India
Depth

1.7″
EU RoHS Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP8841_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
End of Life Manual Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712014_EN&p_File_name=ENVEOLI1712014_EN.pdf
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmental Profile Availability

https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712014EN&p_File_name=ENVPEP1712014_V2.pdf
Environmentally Friendly

Yes
For Country/Region

United States
Halogen Content Performance

Product contains halogen above thresholds
Height

70.5″
Input Voltage

200 V 208 V
Limited Warranty

2 Year
Management

Protocols: SNMP Telnet
Manufacturer Part Number

AP8841
Mount Type

Rack-mountable
Mounting Preference

No Preference
Output Voltage

200 V AC 208 V AC
Package Contents

Metered Rack AP8841 42-Outlets PDU Installation guide Rack mounting brackets Safety guide Serial configuration cable
Packaging Contains Recycled Cardboard

Yes
Placement

Side
Plug/Connector Type

NEMA L6-30P
Product Line

Metered Rack
Product Model

AP8841
Product Name

Metered Rack AP8841 42-Outlets PDU
Product Take Back Program

No
Product Type

PDU
Protection Type

Overload Protection
REACH Declaration URL

https://download.schneider-electric.com/files?p_Doc_Ref=AP8841_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Rack Height

0U
Reach Compliance Date

12/10/2025
RoHS Exemption Information

https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8841_ROHS_DECLARATION&p_FileName=AP8841KIT_ROHS_DECLARATION_US.pdf
Single-use Plastic (SUP) Free Shipping Packaging

No
Sustainable Packaging

No
WEEE Statement

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width

2.2″
