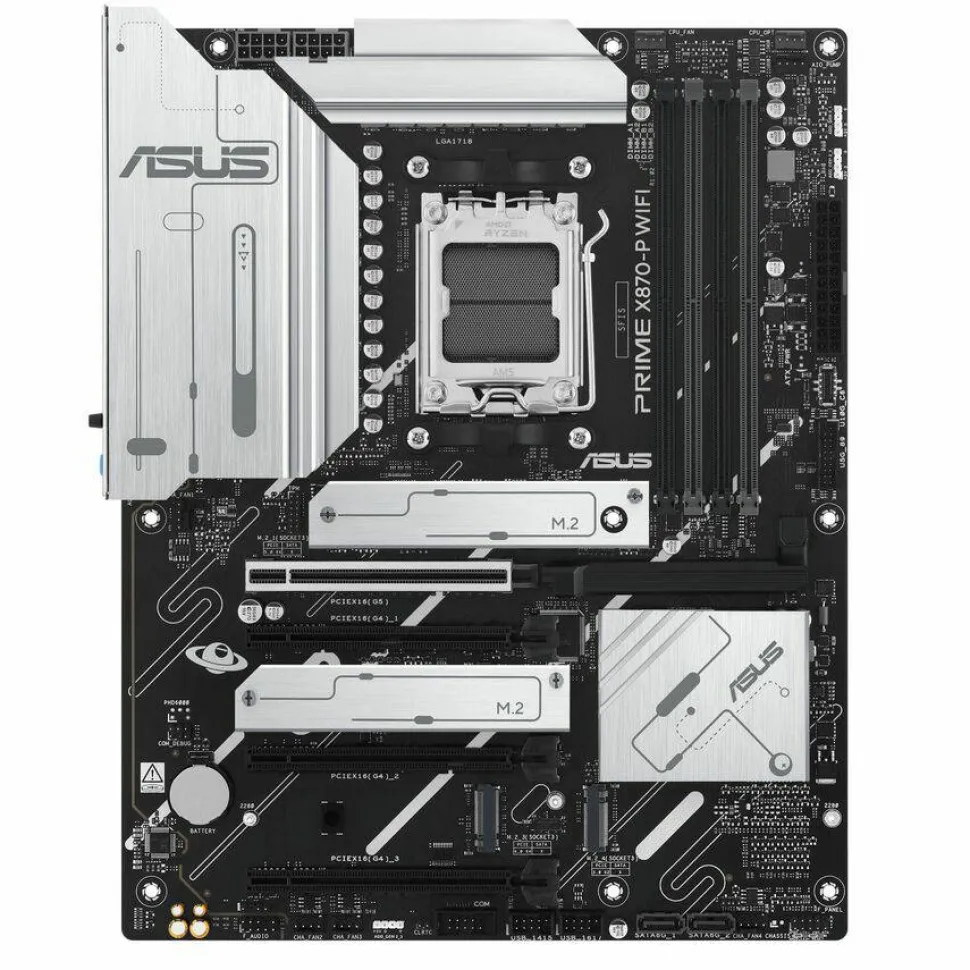

Asus Prime X870-P WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - ATX

Asus Prime X870-P WIFI Gaming Desktop Motherboard – AMD X870 Chipset – Socket AM5 – ATX

$134.99

SKU: SKUyp1GxGlPqQ Categories: Computer Memory & Upgrades, Hardware Components, Technology Tag: ASUS Brand: ASUS

Description
Reviews (0)

Product Description

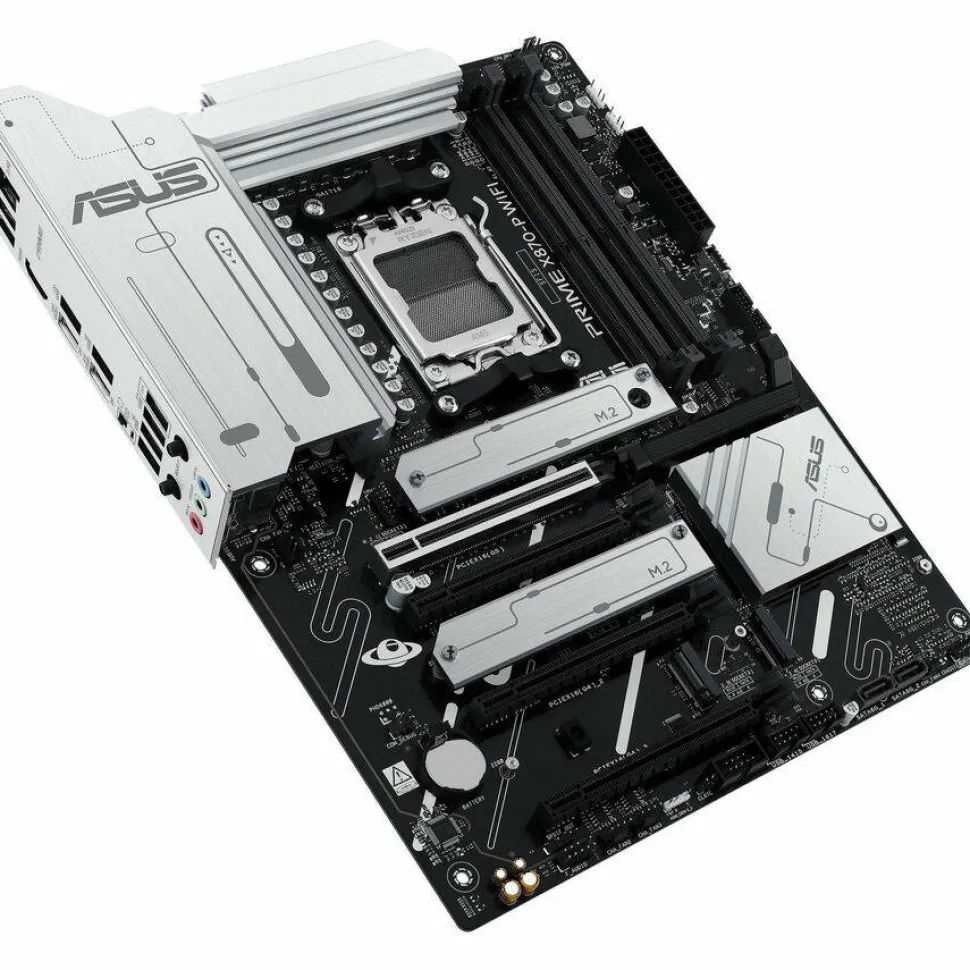

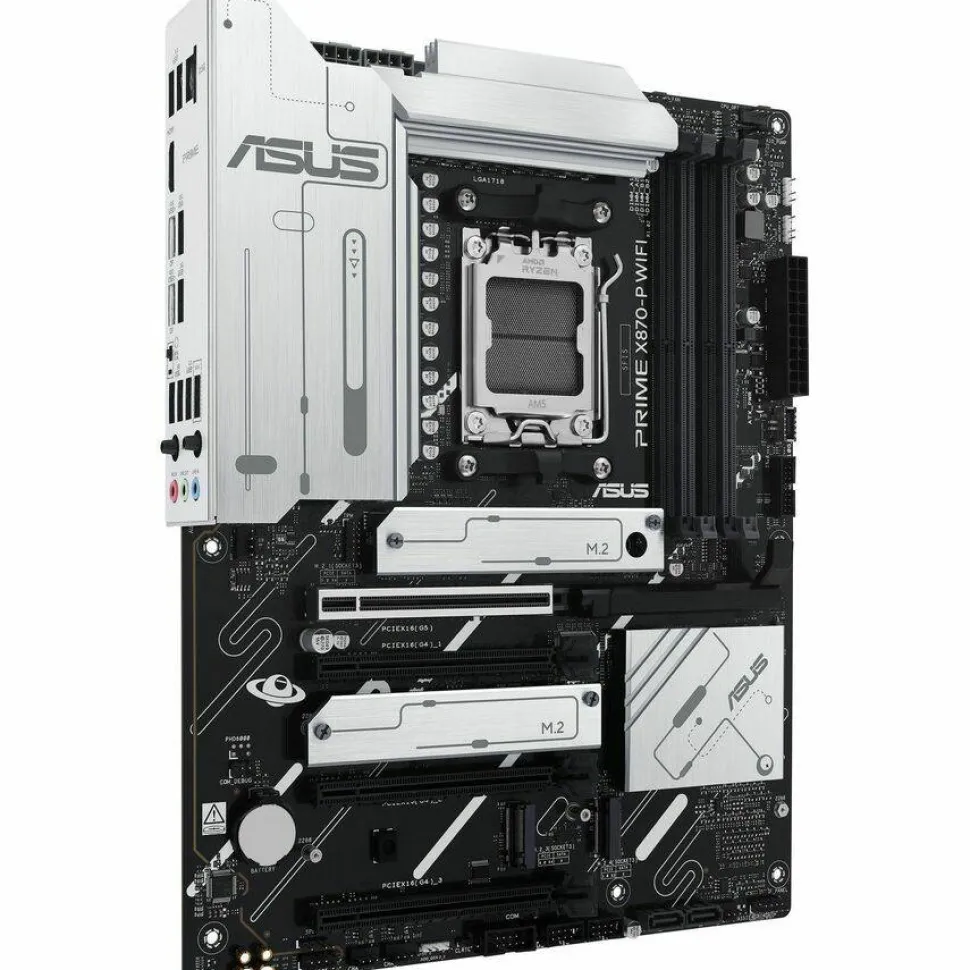

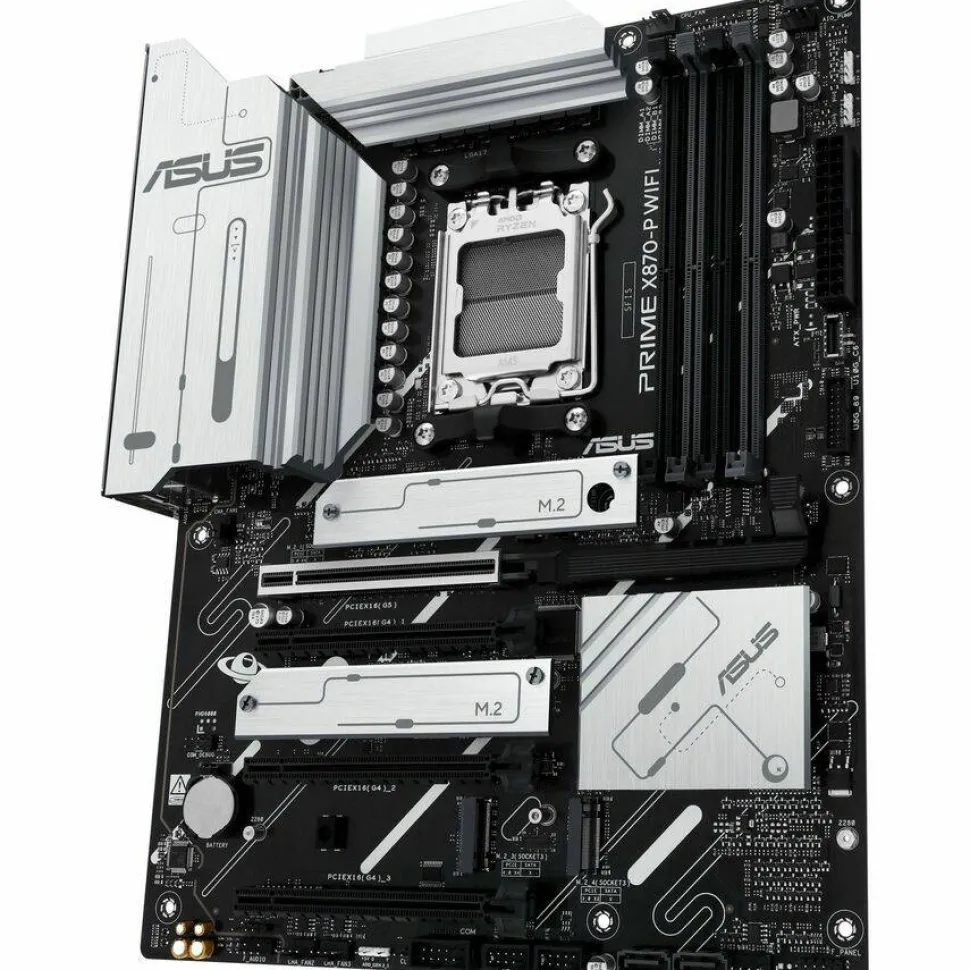

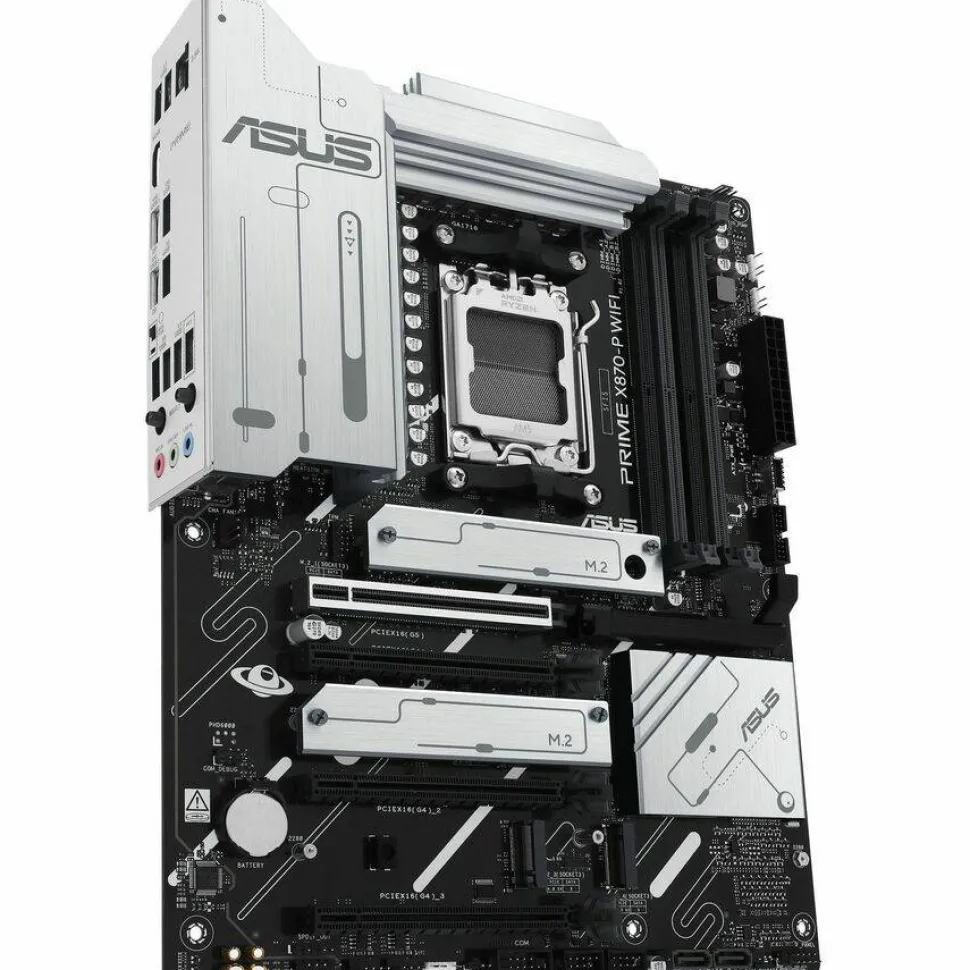

Asus Prime X870-P WIFI Gaming Desktop Motherboard – AMD X870 Chipset – Socket AM5 – ATX

Ryzen 7, Ryzen 9 Processor Supported – 192 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – 2.5Gigabit Ethernet – IEEE 802.11be – HDMI – DisplayPort – 2 x SATA Interfaces

PRIME X870-P WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Performance | AI Solutions
ASUS AI Solutions, including AI Networking II for real-time bandwidth optimization and AI Cooling II for thermal control, offer new levels of ultrafast connectivity, performance and efficient cooling.
AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.
AI Cooling II
Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.
Performance | Robust power design
Stable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features14(80A) + 2(80A) + 1(80A)power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
14
Vcore power
(80A, DrMOS)
2
SOC power
(80A, DrMOS)
1
Misc power
(80A, DrMOS)
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
Proprietary connectors augment the motherboard’s link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.
The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.
Enhanced Memory & Storage Performance | Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.3
For entry-level modules without EXPOsupport,ASUS Enhanced Memory Profile (AEMP)automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME X870-P WIFI offers extensiveAMD Extended Profiles for Overclocking (EXPO)support and a wide array of UEFI settings for further performance tweaks4.
Four M.2 slots (up to 128 Gbps)
PRIME X870-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives5.
Cooling | Cooler by design
The PRIME X870-P WIFI motherboard is engineered with multiple onboard heatsinks

Ryzen 7 processors supported for faster, dependable performance and better access to data and information
With DDR5 SDRAM get efficient data transfer rate and enhanced computer’s performance
RAID supported levels provide data reliability and fault tolerance
IEEE 802.11be wireless standard support enables a hassle-free peripheral connection
HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Product Specifications

AI-powered

Yes
Audio Channels

7.1
Bluetooth

Yes
Bluetooth Standard

Bluetooth 5.4
Brand Name

Asus
Chipset Manufacturer

AMD
Chipset Model

X870
Controller Type

Serial ATA/600
Depth

9.6″
DisplayPort

Yes
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Error Checking

ECC
Form Factor

ATX
Gigabit Ethernet

Yes
HDMI

Yes
HDMI Version

2.1
Limited Warranty

3 Year
Manufacturer Part Number

PRIMEX870-PWIFI
Maximum Memory Supported

192 GB
Memory Form Factor

DIMM UDIMM
Memory Speed Supported

8000 MHz
Memory Technology

DDR5 SDRAM
Number of M.2 Interfaces

4
Number of Memory Slots

4
Number of Network (RJ-45) Ports

1
Number of Onboard USB 2.0 Ports

4
Number of PCI Express x16 Slots

5
Number of SATA Interfaces

2
Onboard Video

CPU Dependent Video
PCI Express Standard

PCI Express 4.0 PCI Express 5.0
Package Contents

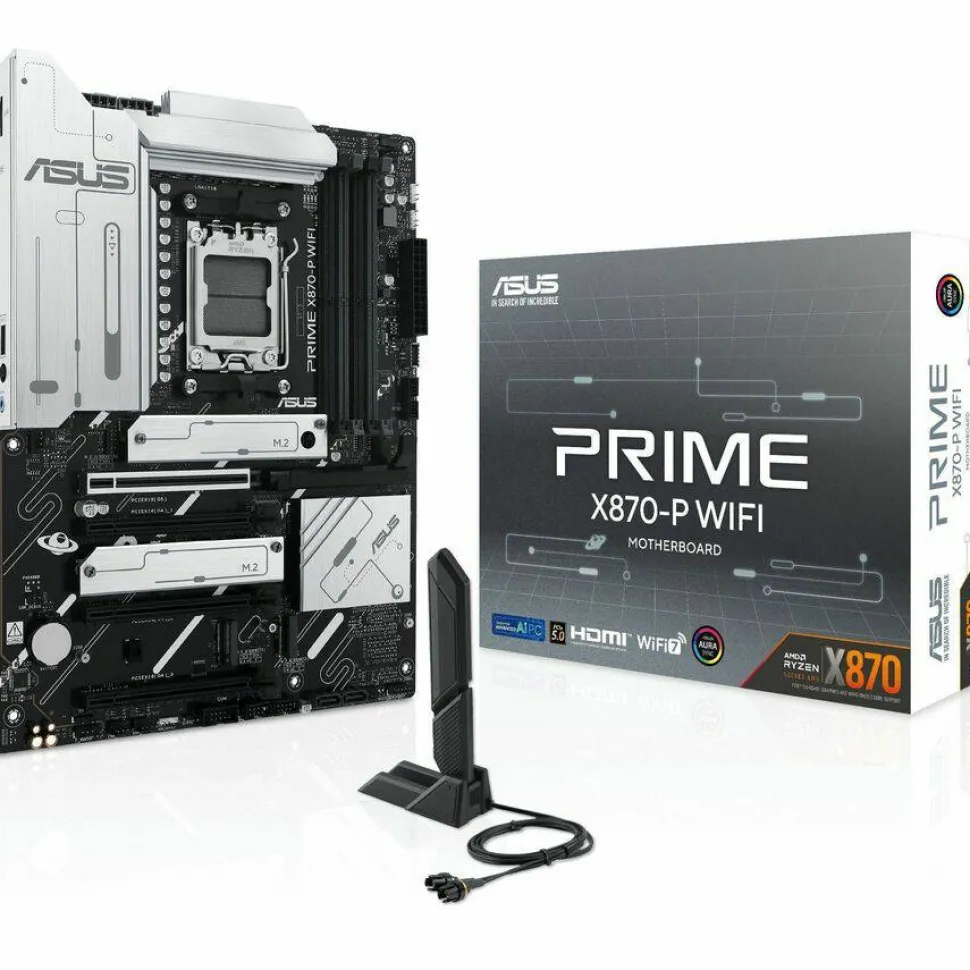

Prime X870-P WIFI Gaming Desktop Motherboard 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Quick start guide
Processor Socket

Socket AM5
Processor Supported

Ryzen 7 Ryzen 9
Product Line

Prime
Product Model

X870-P WIFI
Product Name

Prime X870-P WIFI Gaming Desktop Motherboard
Product Type

Gaming Desktop Motherboard
RAID Levels

0 1 5 10
RAID Supported

Yes
S/PDIF

Yes
Total Number of Expansion Slots

5
Total Number of Onboard USB Ports

7
Total Number of PCI Express Slots

5
Total Number of USB Ports

10
Total Processor Supported

1
VGA

Yes
Width

12″
Wireless LAN

Yes
Wireless LAN Standard

IEEE 802.11be
