ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant

ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant

$124.99

SKU: SKUVpPd4xY9yD Categories: Networking & Cables, Technology, Wireless Networking Tag: Aten Brand: Aten

Description
Reviews (0)

Product Description

ATEN HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)-TAA Compliant

1 Input Device – 492.13 ft Range – 1 x Network (RJ-45) – 1 x HDMI In – 1 x HDMI Out – 4K – 4096 x 2160 – Twisted Pair – Category 6a – Rack-mountable

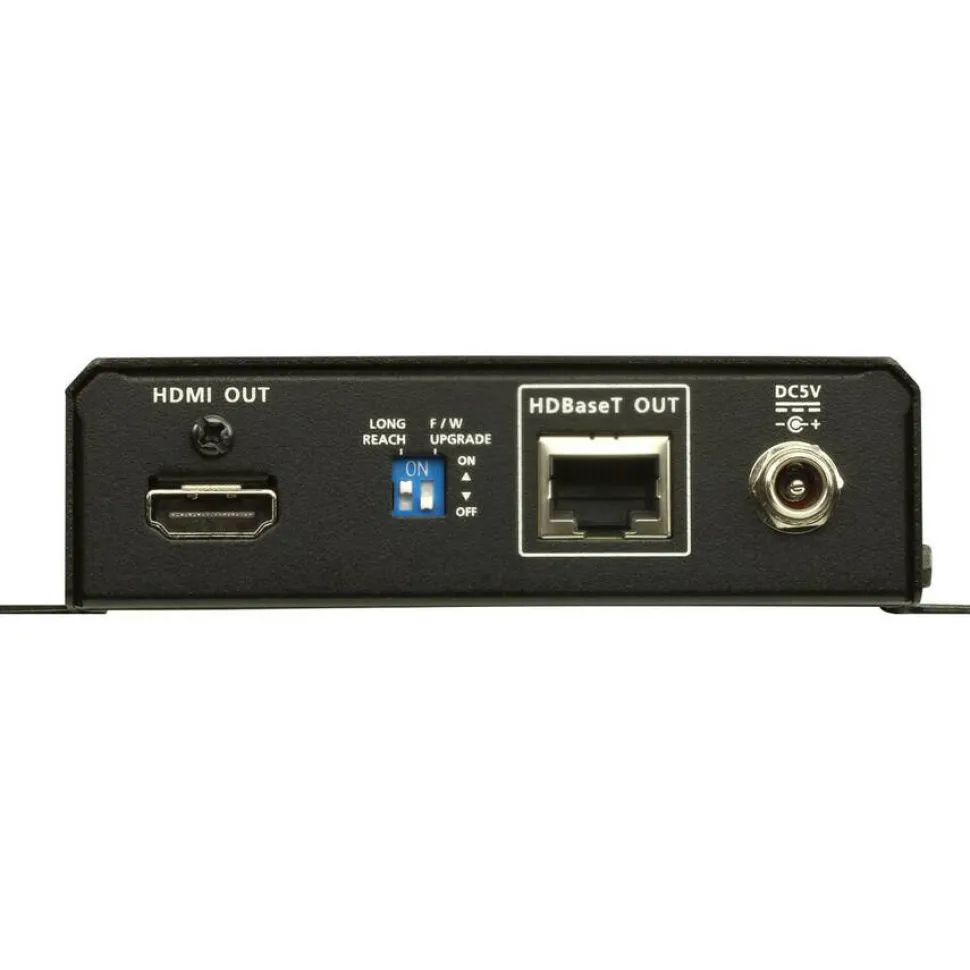

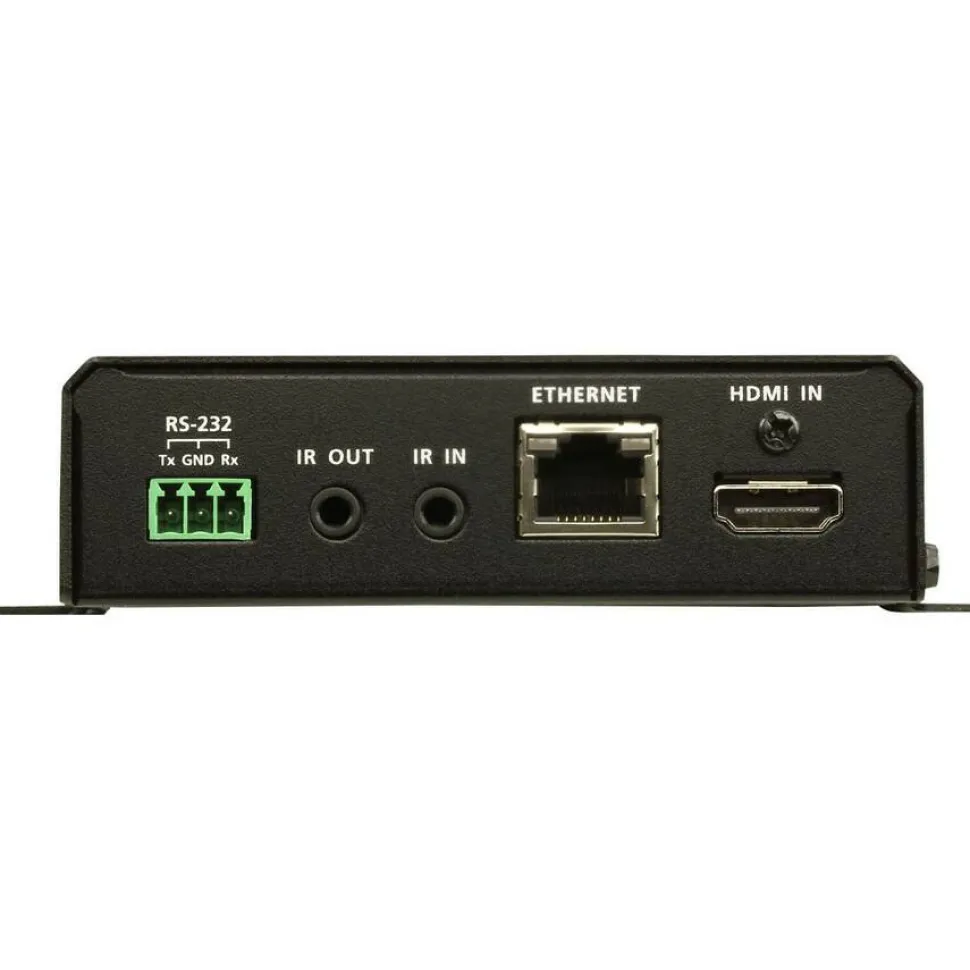

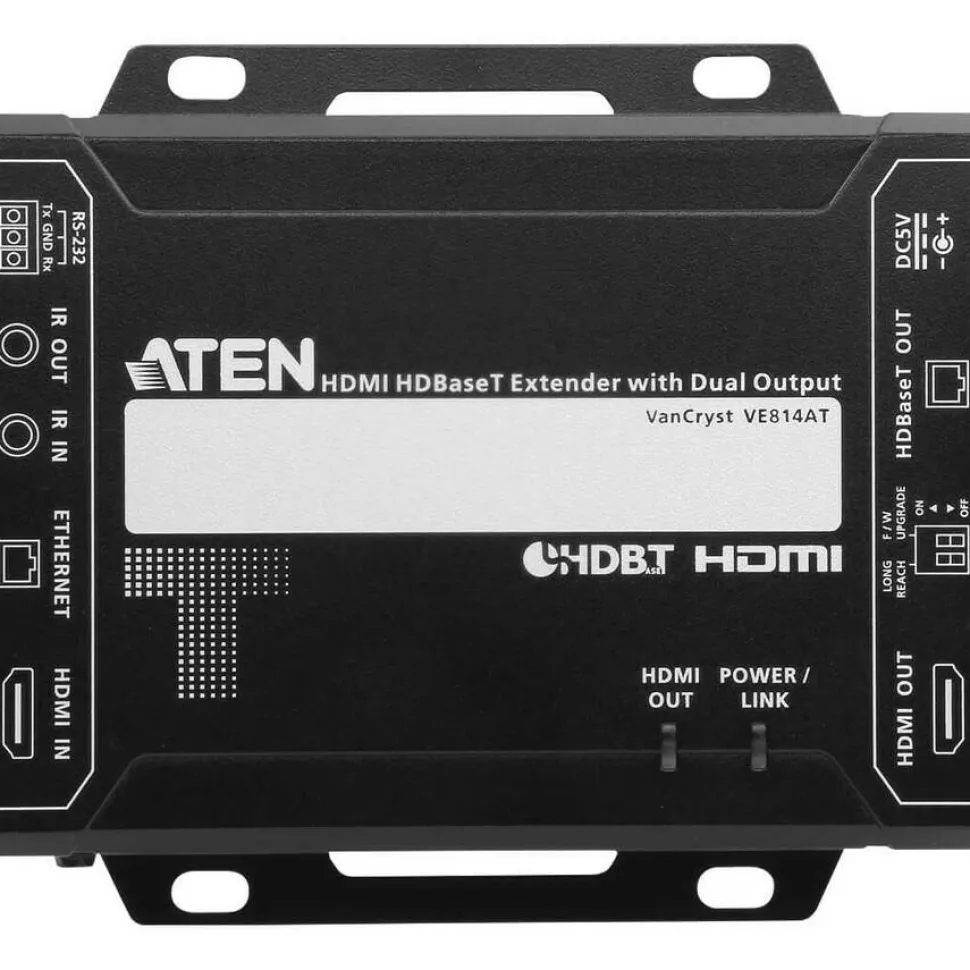

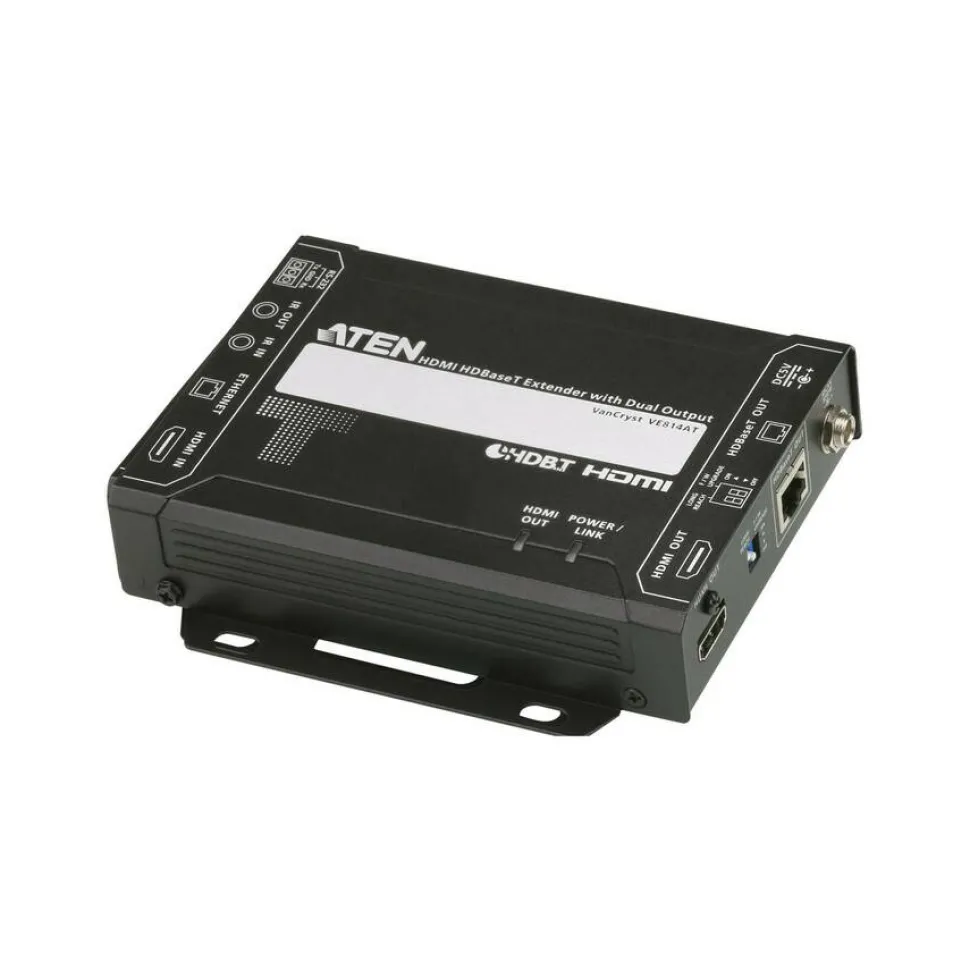

ATEN VE814AT is an HDBaseT Video Transmitter that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814AT can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant transmitter meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.
The VE814AT supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE8014AT). In addition, it supports Long Reach Mode that extends HDMI signals up to 150 m, 1080p, via a single Cat 5e/6 cable.

The VE814AT is a powerful solution for where digital signage is required, such as bars, educational spaces, and public transportation stations, allowing display of identical contents at different spots.

Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
Superior video quality:
4K up to 100 m
1080p up to 150 m when in HDBaseT Long Reach Mode
Extends Ethernet communication using the Ethernet pass-through port
Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
ATEN EDID Technology — when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Supports wide screen format
Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
4096 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
The VE814AT video extender transmitter provides plenty of freedom with wired connectivity
1 input devices supported to better accommodate your specific requirements
492.13 ft maximum operating distance for feasible operation and optimal coverage
4K graphics mode for stunning, lively video quality
Rack-mountable video extender transmitter allows maximum space utilization with easy and convenient access to the equipment

Product Specifications

Brand Name

ATEN
Connectivity Technology

Wired
Country of Origin

Taiwan
Environmental Compliance

Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly

Yes
Form Factor

Rack-mountable
Graphics Modes

4K
HDMI In

Yes
HDMI Out

Yes
Manufacturer Part Number

VE814AT
Maximum Operating Distance

492.13 ft
Maximum Video Resolution

4096 x 2160
Media Type Supported

Twisted Pair
Network (RJ-45)

Yes
Number of HDMI Inputs

1
Number of HDMI Outputs

1
Number of Input Devices Supported

1
Number of Network (RJ-45) Ports

1
Package Contents

HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A) 1 x RS-232 Terminal Block 1 x Power Adapter 1 x User Instructions
Product Line

VanCryst
Product Model

VE814AT
Product Name

HDMI HDBaseT Transmitter with Dual Output (4K@100m) (HDBaseT Class A)
Product Type

Video Extender Transmitter
Serial Port

Yes
Transmitter Depth

5.35″
Transmitter Height

1.14″
Transmitter Weight (Approximate)

15.87 oz
Transmitter Width

3.98″
Twisted Pair Cable Standard

Category 6a
