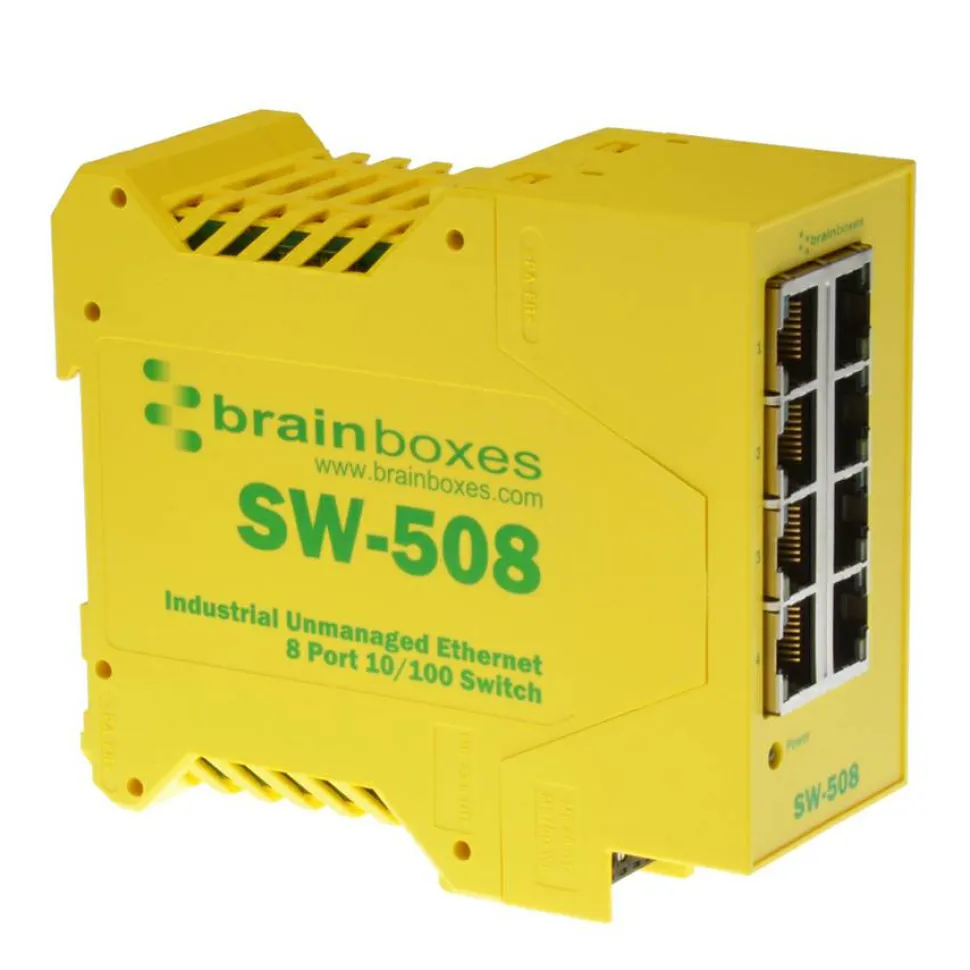

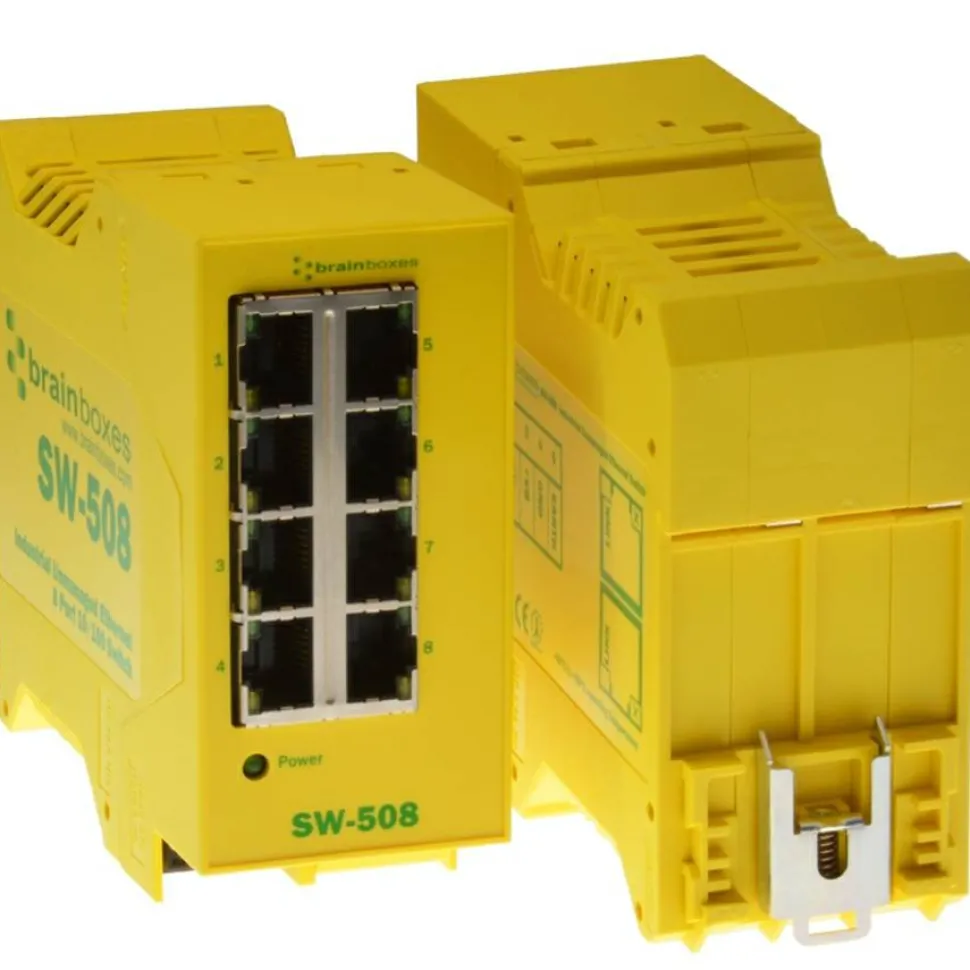

Brainboxes Industrial Ethernet 8 Port Switch DIN Rail Mountable

Brainboxes Industrial Ethernet 8 Port Switch DIN Rail Mountable

$89.99

SKU: SKUWc3wox56T7 Categories: Networking & Cables, Technology, Wired Networking Tag: Brainboxes Brand: Brainboxes

Description
Reviews (0)

Product Description

Brainboxes Industrial Ethernet 8 Port Switch DIN Rail Mountable

8 Ports – Ethernet – 10/100Base-TX – 2 Layer Supported – Twisted Pair – Rail-mountable – Lifetime Limited Warranty – TAA Compliant

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
More from the Manufacturer

8 Port Ethernet Switch

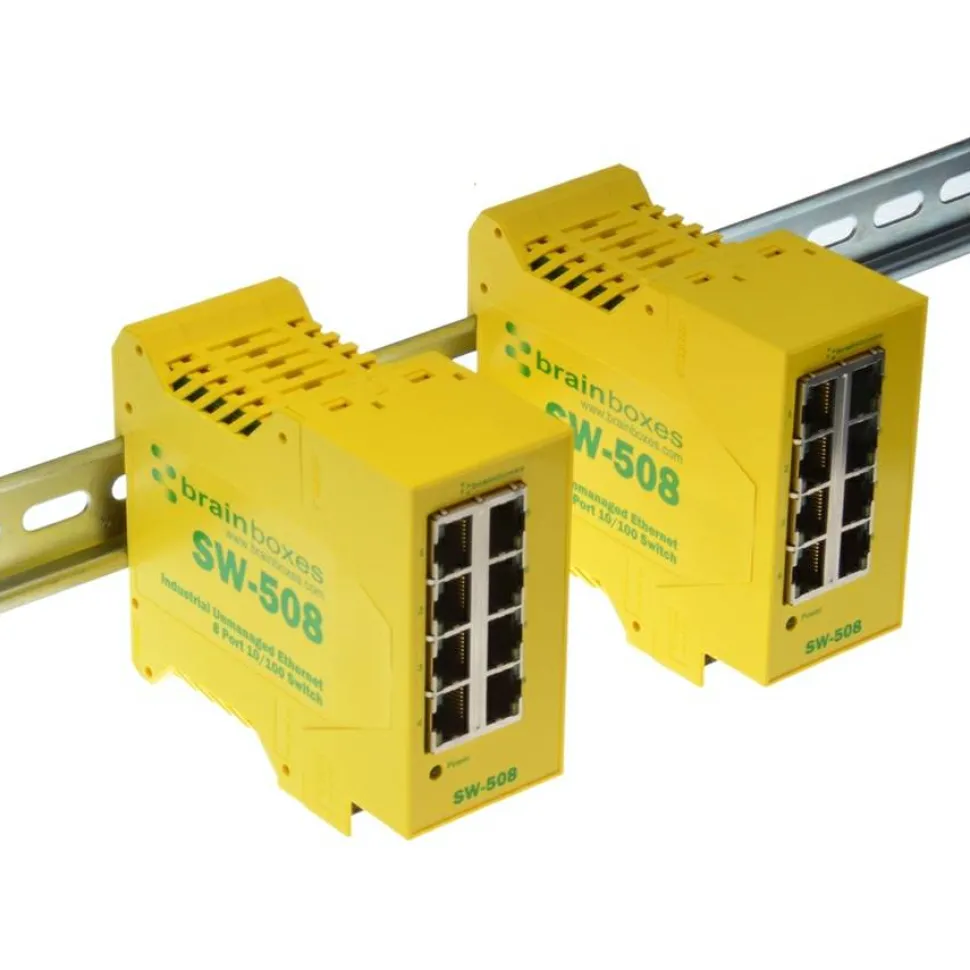

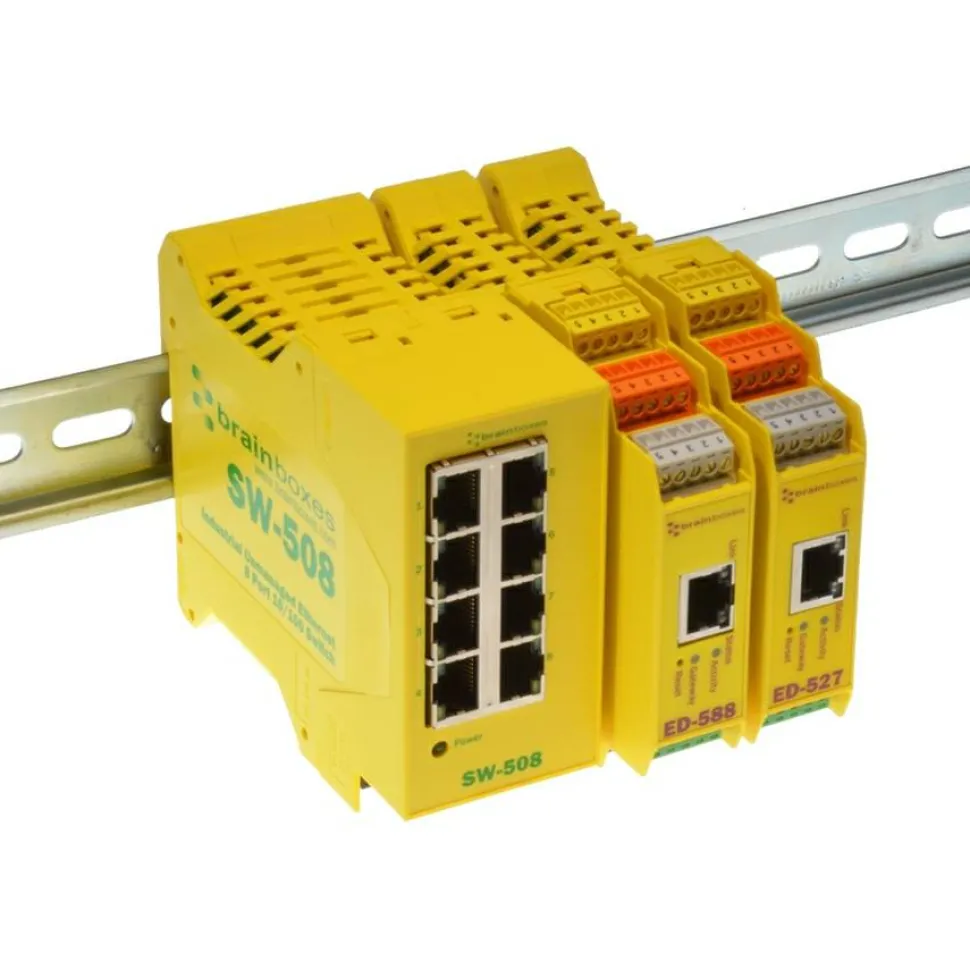

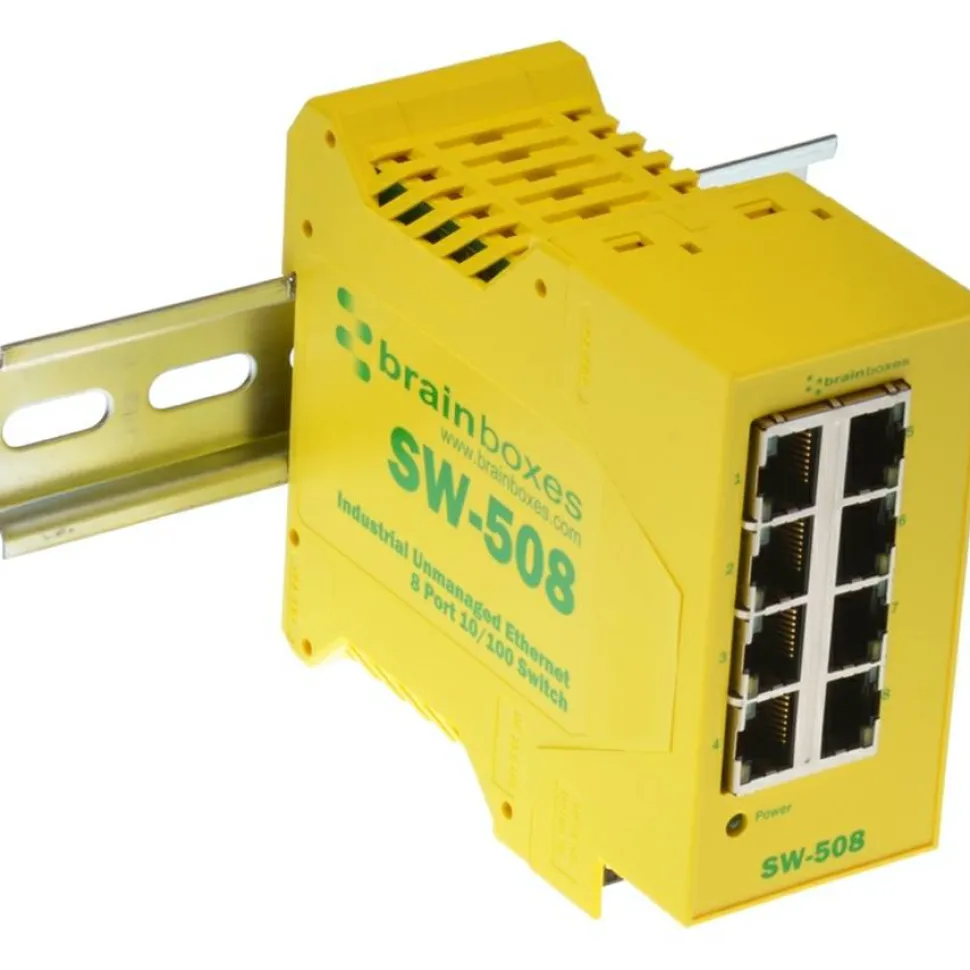

Integrated DIN Rail Mount
Redundant dual power inputs: +5V to +30V DC
Industrial operating temp range -40°C to +80°C / -40°F to +176°F
No software required
Lifetime Warranty and Support
Effectively reduces downtime with improved network performance
Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Rail-mountable form factor allows hassle-free and easy usage with increased efficiency
The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
Eachport provides Ethernet connections for fast data transfer speeds and large file transfers across your network
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Product Specifications

Brand Name

Brainboxes
Country of Origin

United Kingdom
Depth

1.8″
Environmentally Friendly

Yes
Ethernet Technology

Ethernet
Form Factor

Rail-mountable
Height

4.5″
Layer Supported

2
Limited Warranty

Lifetime
Manageable

No
Manufacturer Part Number

SW-508
Media Type Supported

Twisted Pair
Modular

No
Network Technology

10/100Base-TX
Package Contents

Quick Start Guide Industrial Ethernet 8 Port Switch DIN Rail Mountable
Power Source

Power Supply
Product Model

SW-508
Product Name

Industrial Ethernet 8 Port Switch DIN Rail Mountable
Product Type

Ethernet Switch
Stack Port

No
Total Number of Network Ports

8
Uplink Port

No
Width

3.9″
