Cooler Master MWE Gold 850 V2 Fully Modular Power Supply - 850W 80+ Gold Certified PSU, Dual EPS Connectors, Semi-Fanless Low Noise Design, Flat Black Cables, Reliable ATX Gaming PSU, 5-Year Warranty

Cooler Master MWE Gold 850 V2 Fully Modular Power Supply – 850W 80+ Gold Certified PSU, Dual EPS Connectors, Semi-Fanless Low Noise Design, Flat Black Cables, Reliable ATX Gaming PSU, 5-Year Warranty

$98.99

SKU: SKU4jQh5Qyy84 Categories: Batteries, Power & Backup, Power Equipment & Supplies, Technology Tag: Cooler Master Brand: Cooler Master

Description
Reviews (0)

Product Description

Cooler Master MWE Gold 850 V2 Fully Modular Power Supply – 850W 80+ Gold Certified PSU, Dual EPS Connectors, Semi-Fanless Low Noise Design, Flat Black Cables, Reliable ATX Gaming PSU, 5-Year Warranty

Black – ATX – 120 V AC, 230 V AC Input – 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB Output – 850 W – Active PFC – 1 +12V Rails – PCI Express Connector – 90% Efficiency – Low Noise

Power Up
The MWE Gold – V2 (Full Modular) is the next step in the evolution of Cooler Master’s entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold – V2 improves upon the original version in the places where users will see the most immediate benefit.

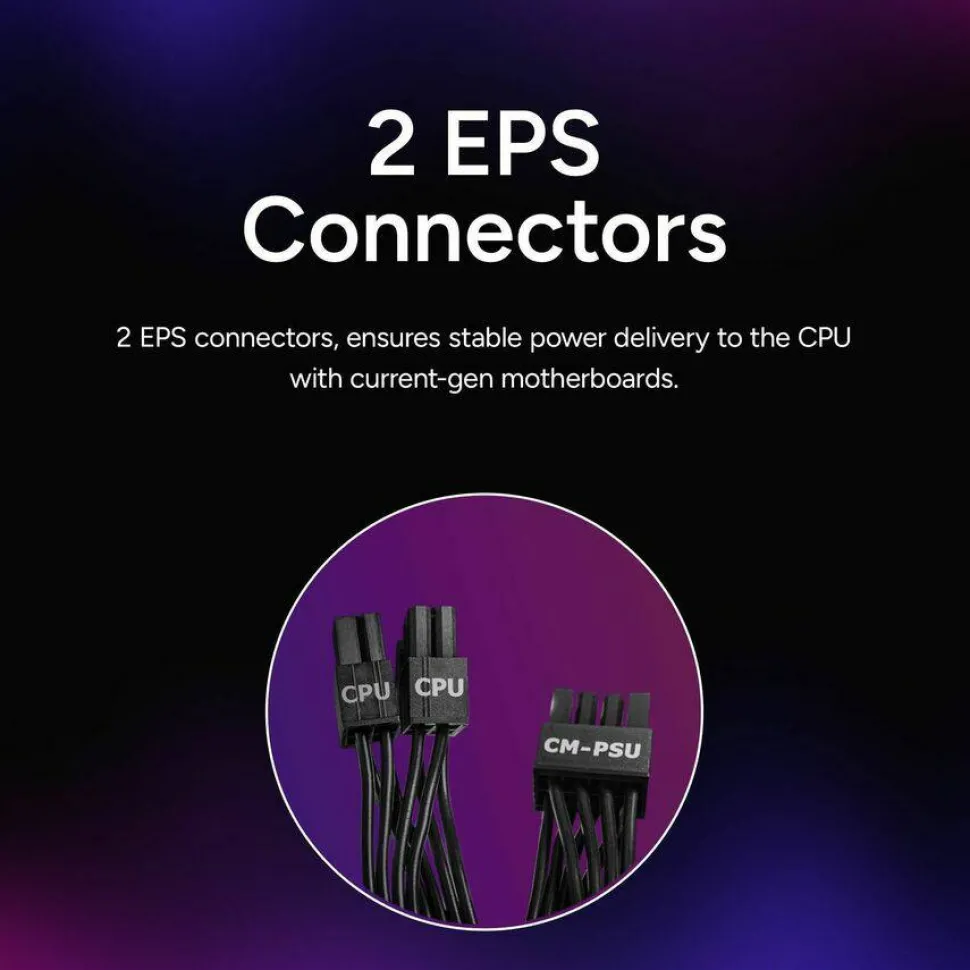

2 EPS Connectors
All MWE Gold – V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you’ll have enough connectors to use your ideal components.

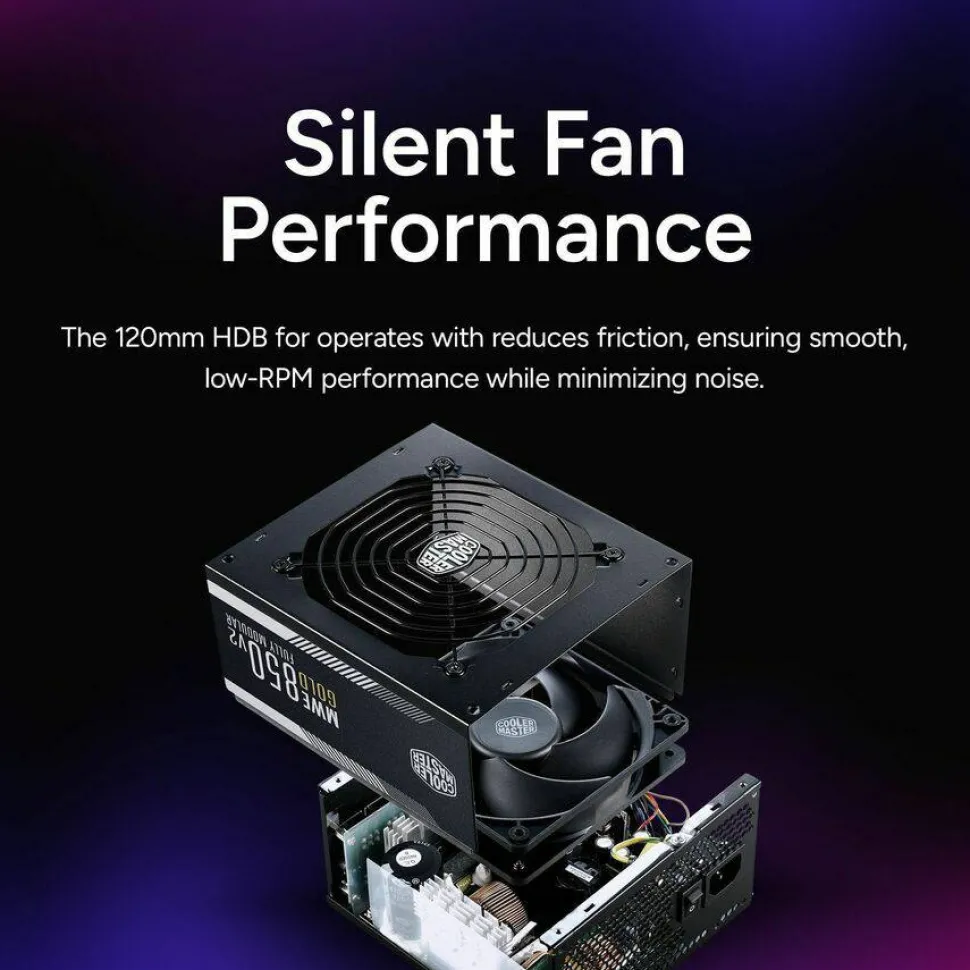

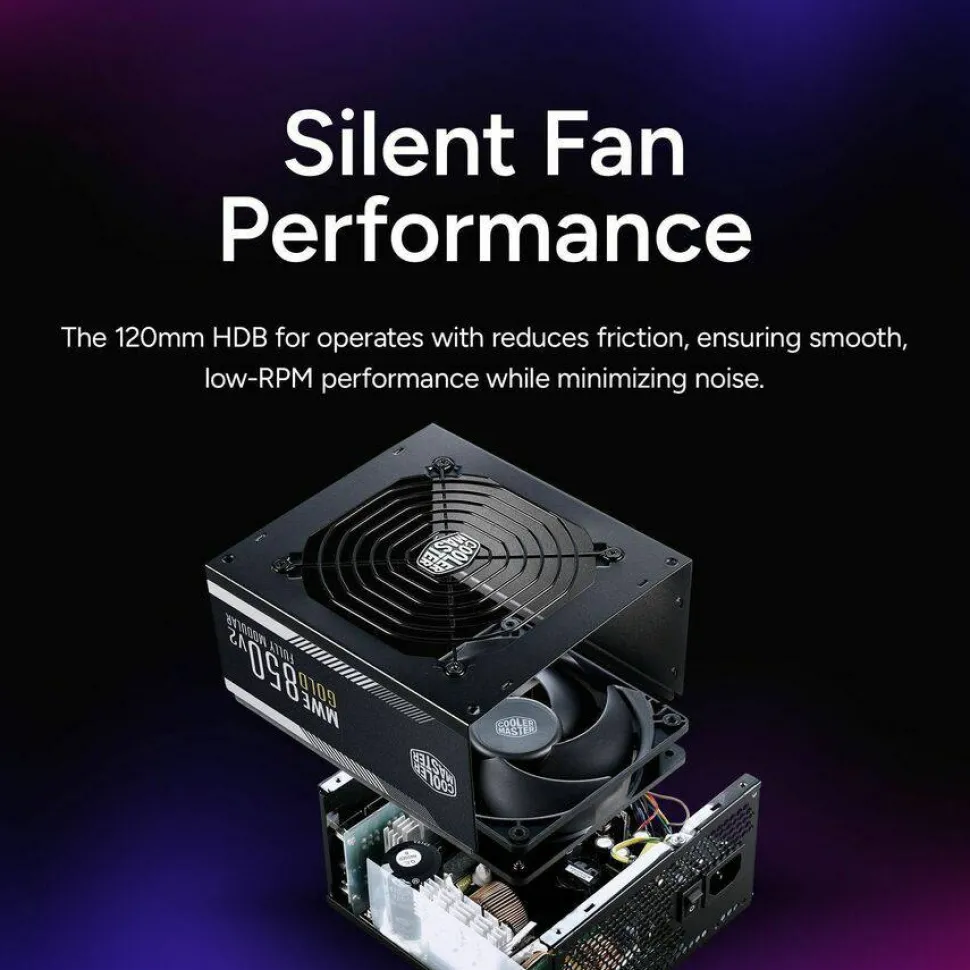

Quiet Cooling
The MWE Gold – V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.

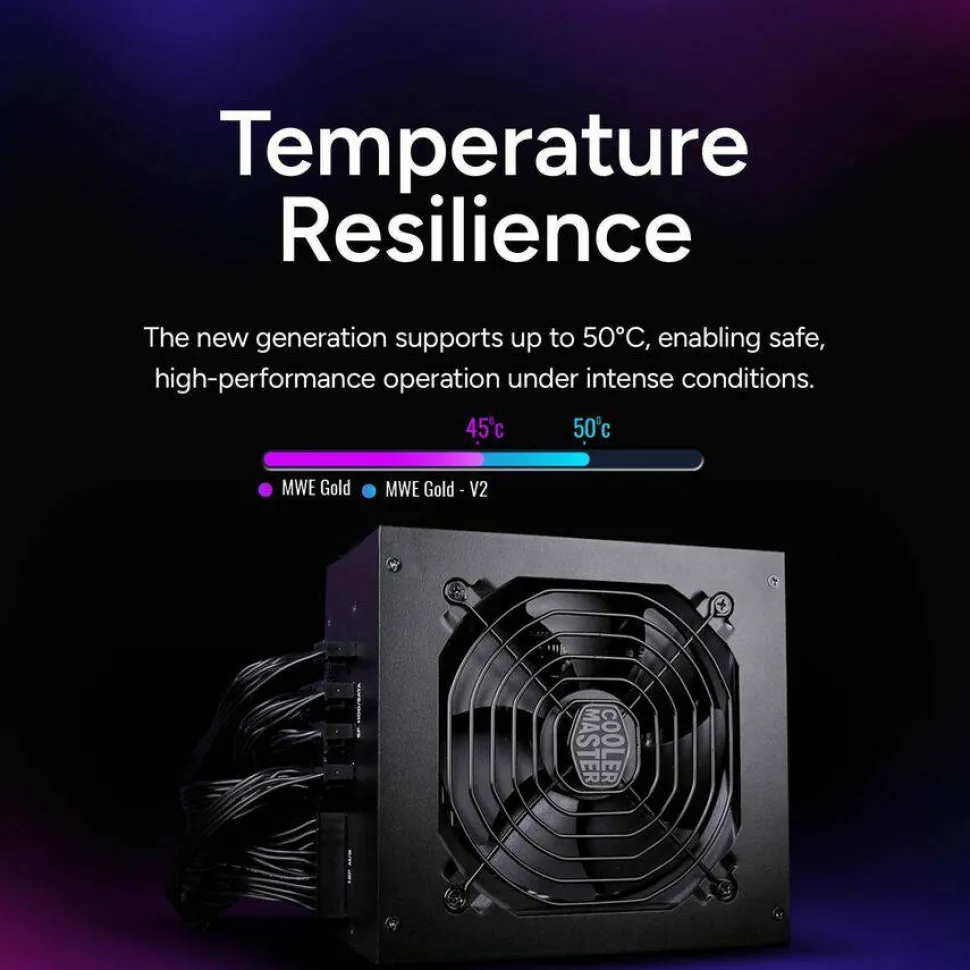

High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold – V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what’s possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system’s power supply can take the heat.

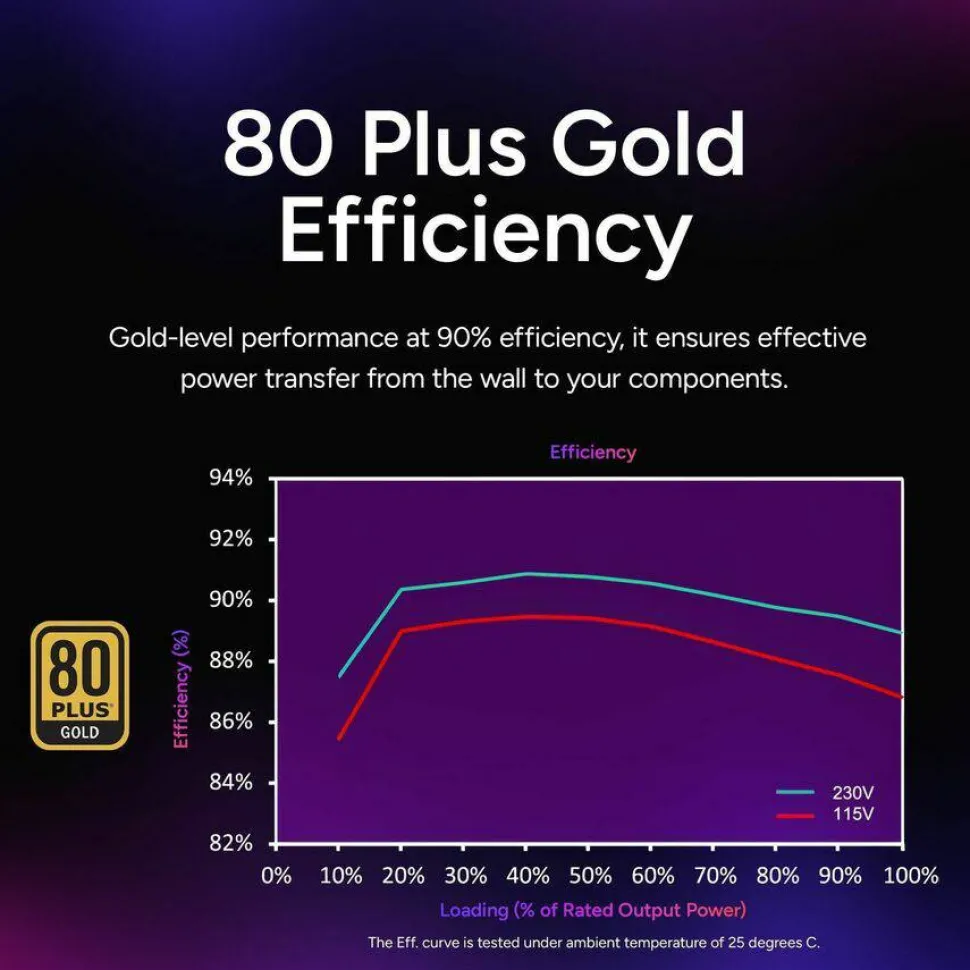

80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold – V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

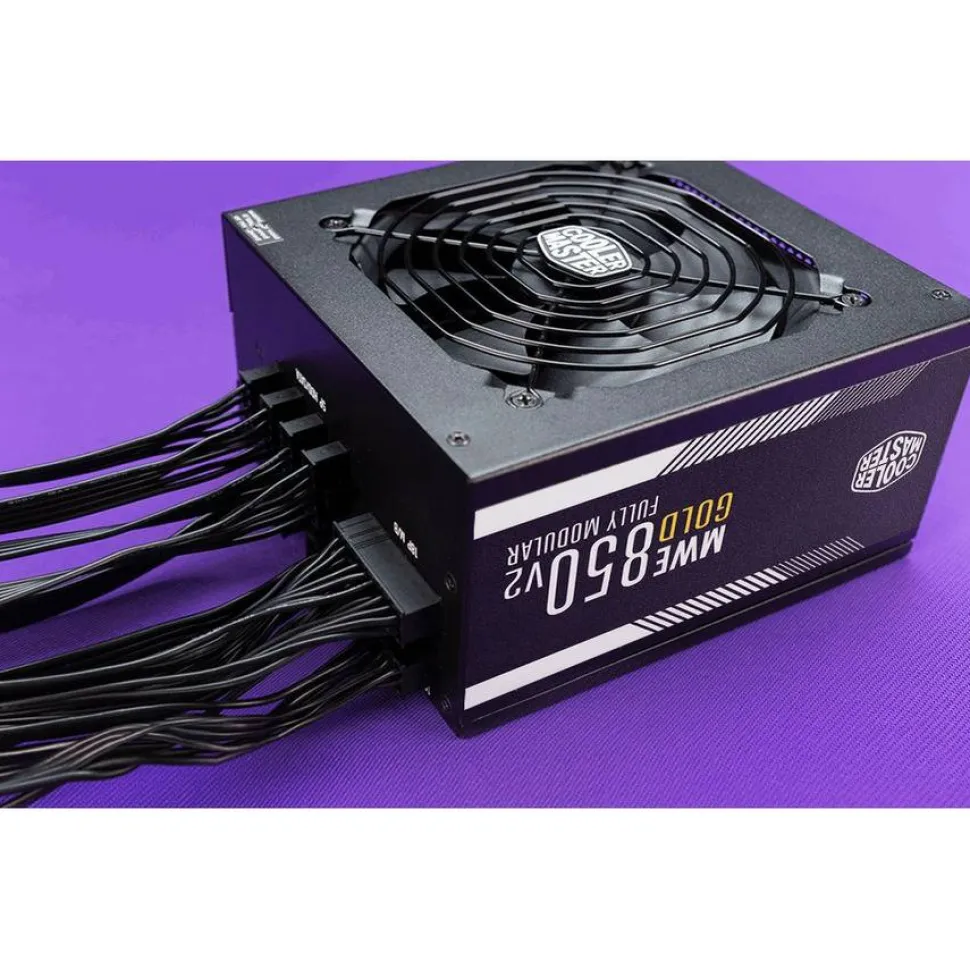

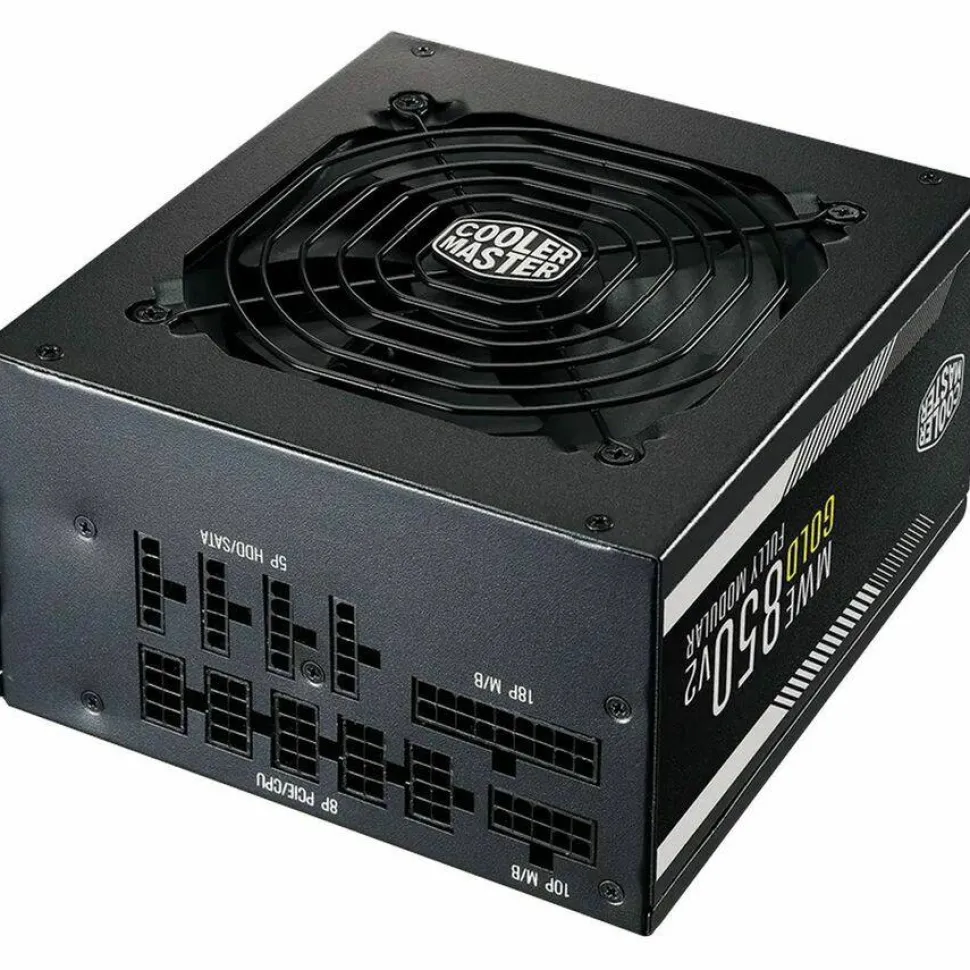

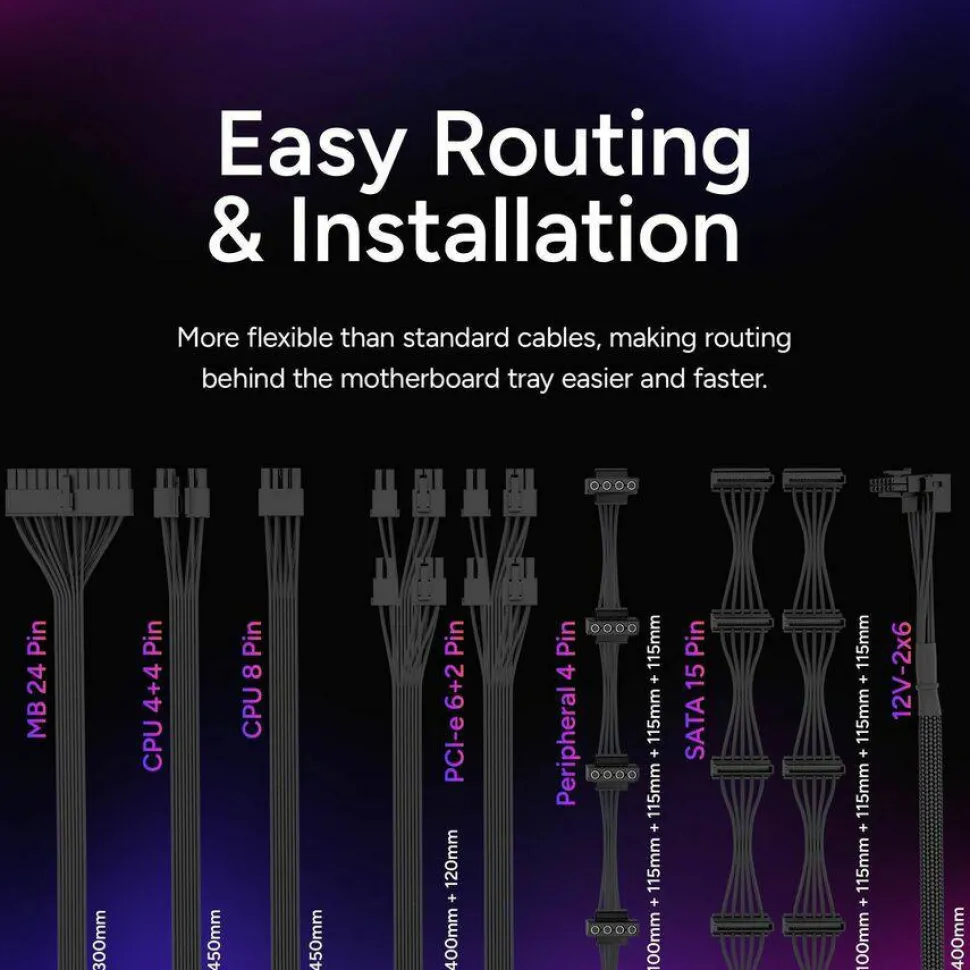

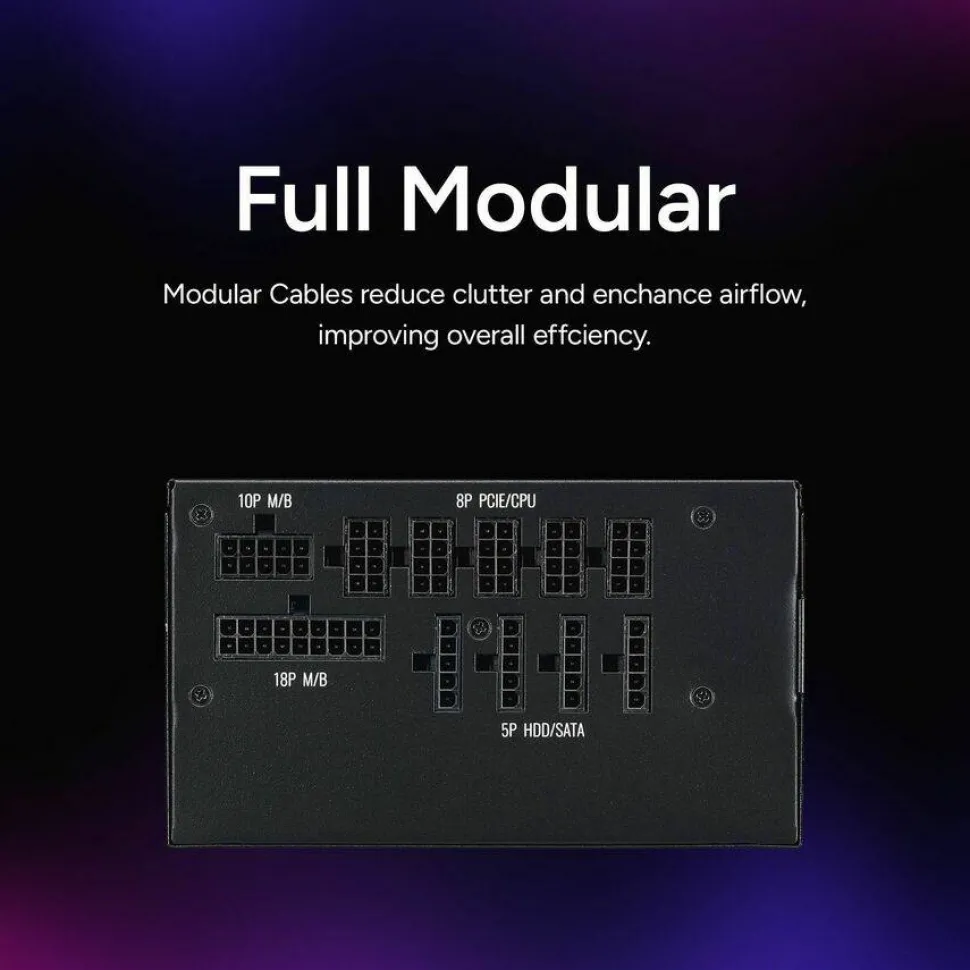

Full Modular Cabling
The full modular version of the MWE Gold – V2 comes with a set of flat black cables that can be customized to each user’s individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system’s overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
5 Year Warranty
The MWE Gold – V2 comes with a standard 5 year manufacturing warranty from the date of purchase.

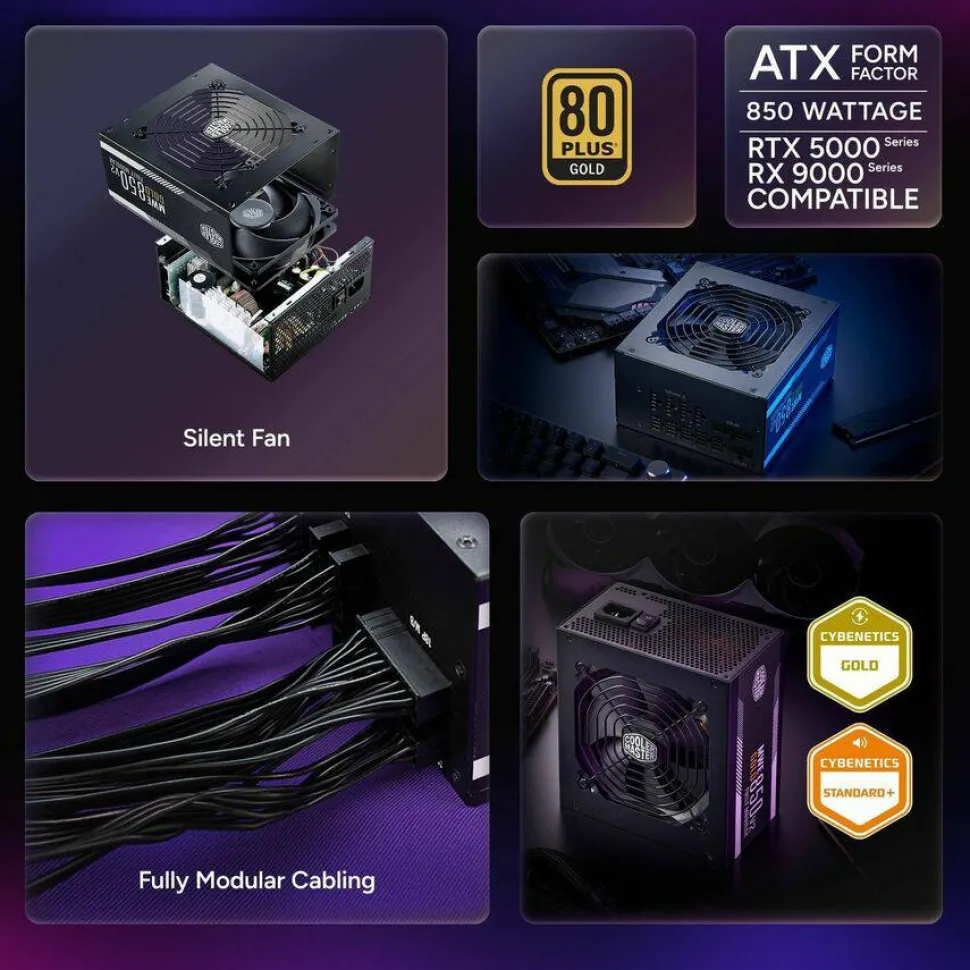

More from the Manufacturer

80 Plus Gold Efficiency
2 EPS Connectors

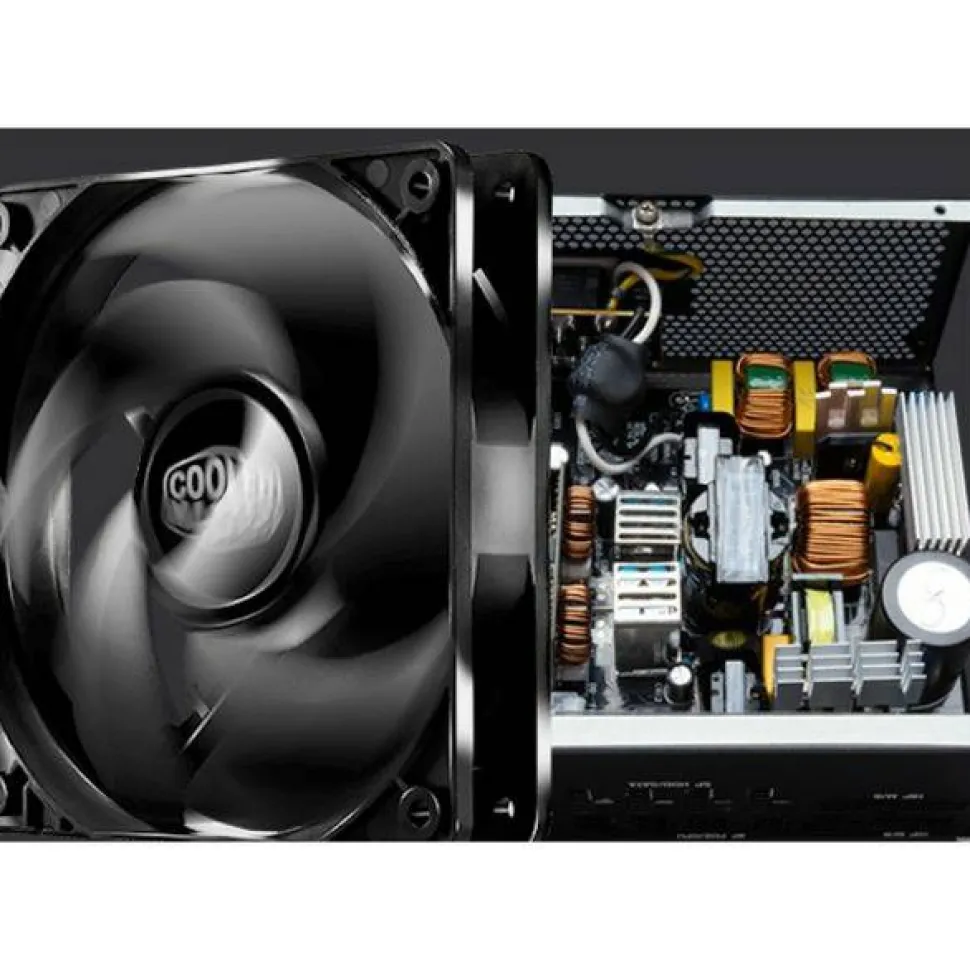

120mm HDB Fan
High Temperature Resilience
Full Modular Cabling
5 Year Warranty
Delivers 3.3 V DC to ensure that your device is always ready to use
The maximum output power of 850 W boosts up the performance

Product Specifications

Additional Information

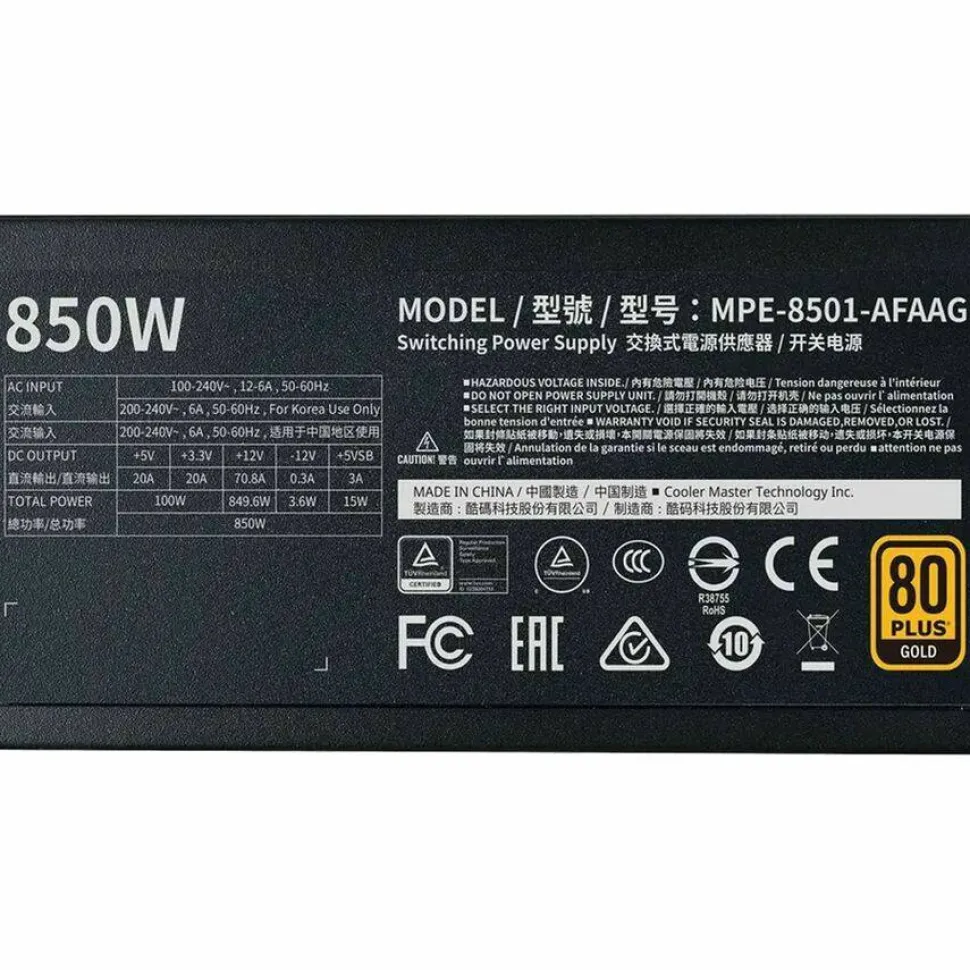

Fan Speed: 1500 rpm Noise Level: 24.9 dB(A) Power Good Signal: 100 – 150 ms Hold Up Time: >16ms at 100% Load
Brand Name

Cooler Master
Certifications & Standards

TUV CE CCC EAC RCM cTUVus FCC BSMI UKCA
Compatibility

Personal Computer
Country of Origin

China

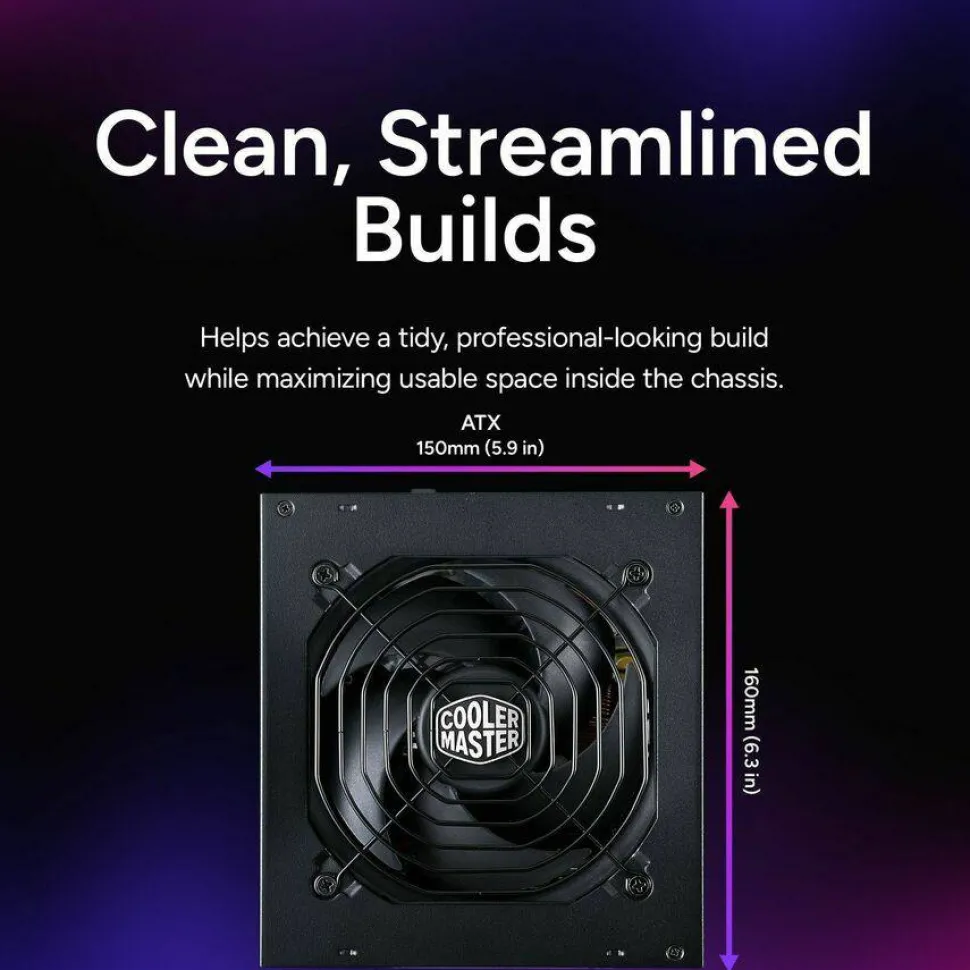

Depth

6.3″
Efficiency

90%
Energy Efficiency Certification

80 Plus Gold
Energy Efficiency Compliance

Energy-related Products Directive Lot 3 (ErP Lot 3)
Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE) China Restriction of Hazardous Substances (China RoHS) Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Environmentally Friendly

Yes
Fan Bearing Type

Hydro Dynamic Bearing
Fan Diameter

120 mm
Features

Low Noise
Form Factor

ATX
Height

3.4″
Input Frequency

50-60Hz
Input Voltage

120 V AC 230 V AC
Input Voltage Range

100 V AC – 240 V AC
Limited Warranty

5 Year
MTBF

100000 Hour
Manufacturer Part Number

MPE-8501-AFAAG-US
Maximum Operating Temperature

122°F (50°C)
Minimum Operating Temperature

32°F (0°C)
Modular

Yes
Modular Type

Fully Modular
Number of (4+4 pin) CPU Power Connectors

1
Number of (6+2 pin) PCI Express Power Connectors

4
Number of +12V Rails

1
Number of 4-pin Molex Power Connectors

4
Number of SATA Power Connectors

12
Output Power

850 W
Output Voltage

3.3 V DC 5 V DC 12 V DC -12 V DC 5 V SB
PCI Express Connector

Yes
Package Contents

MWE Gold 850 – V2 Full Modular 2 x EPS Connectors
Power Factor Correction (PFC)

Active
Product Model

MPE-7501-AFAAG
Product Name

MWE Gold 850 – V2 Full Modular
Protection Type

Over Current Over Voltage Under Voltage Over Power Over Temperature Short Circuit
Width

5.9″
