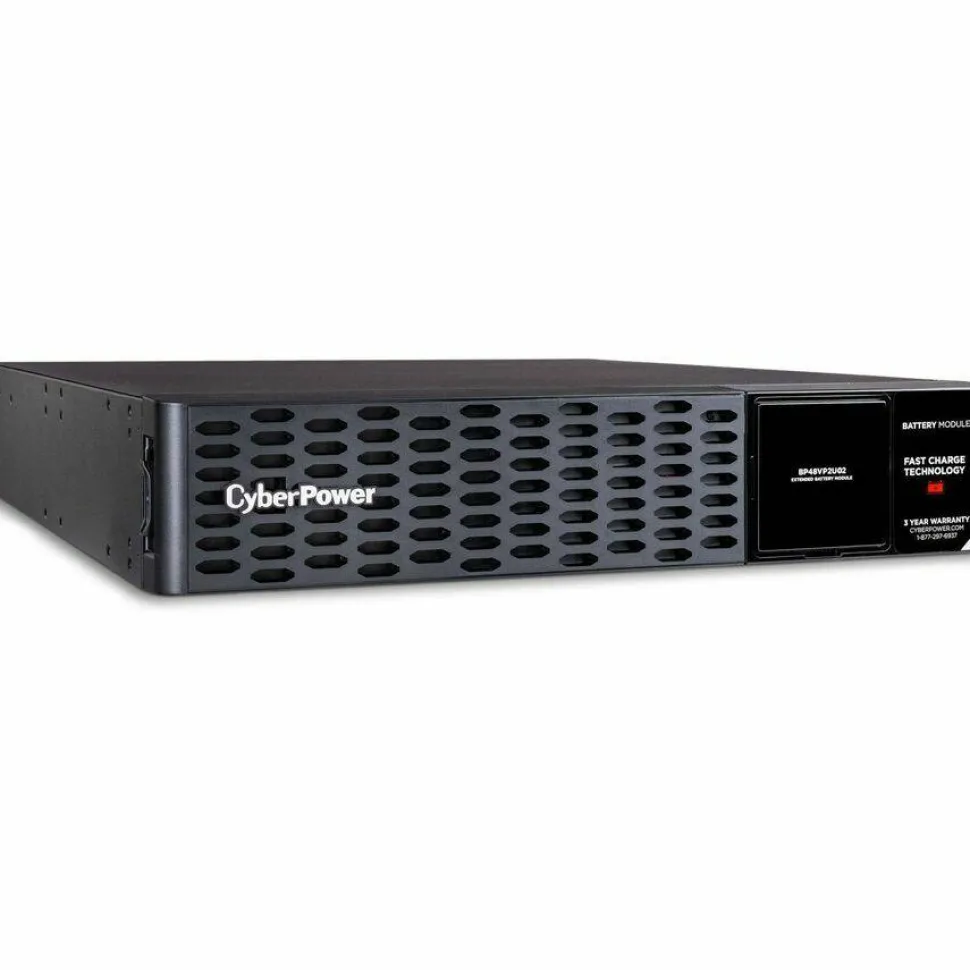

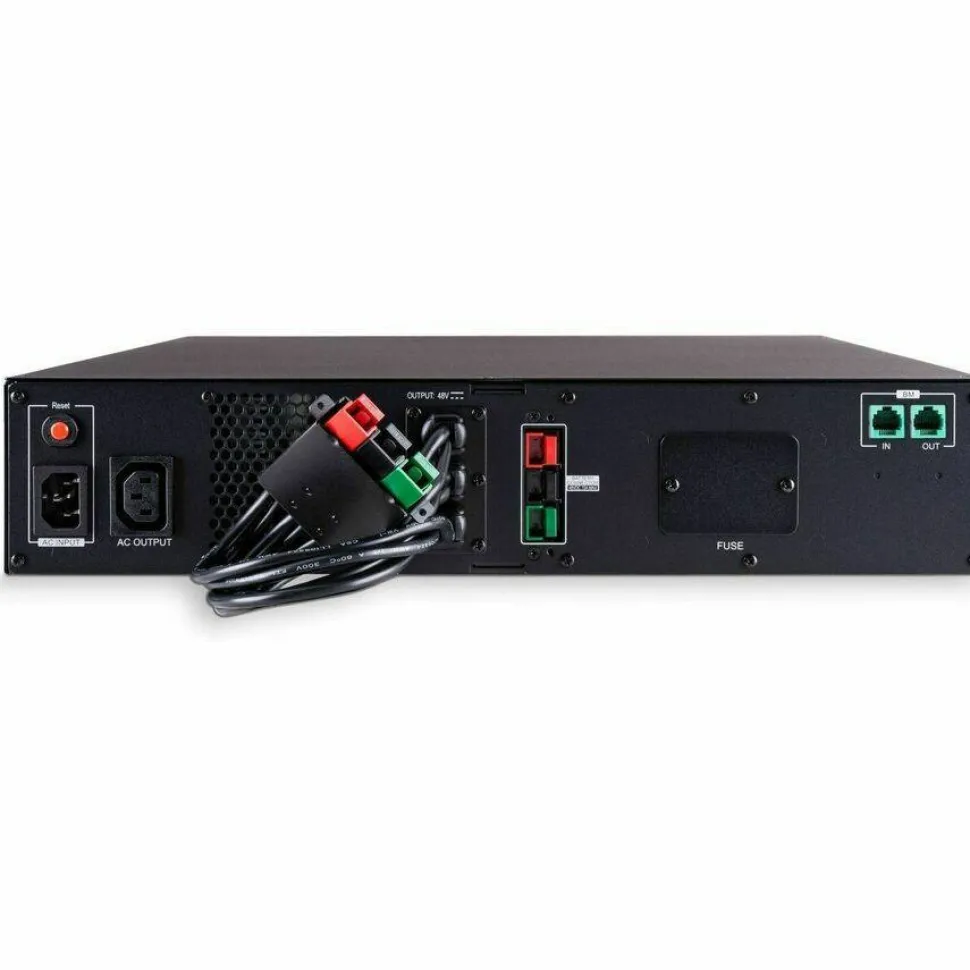

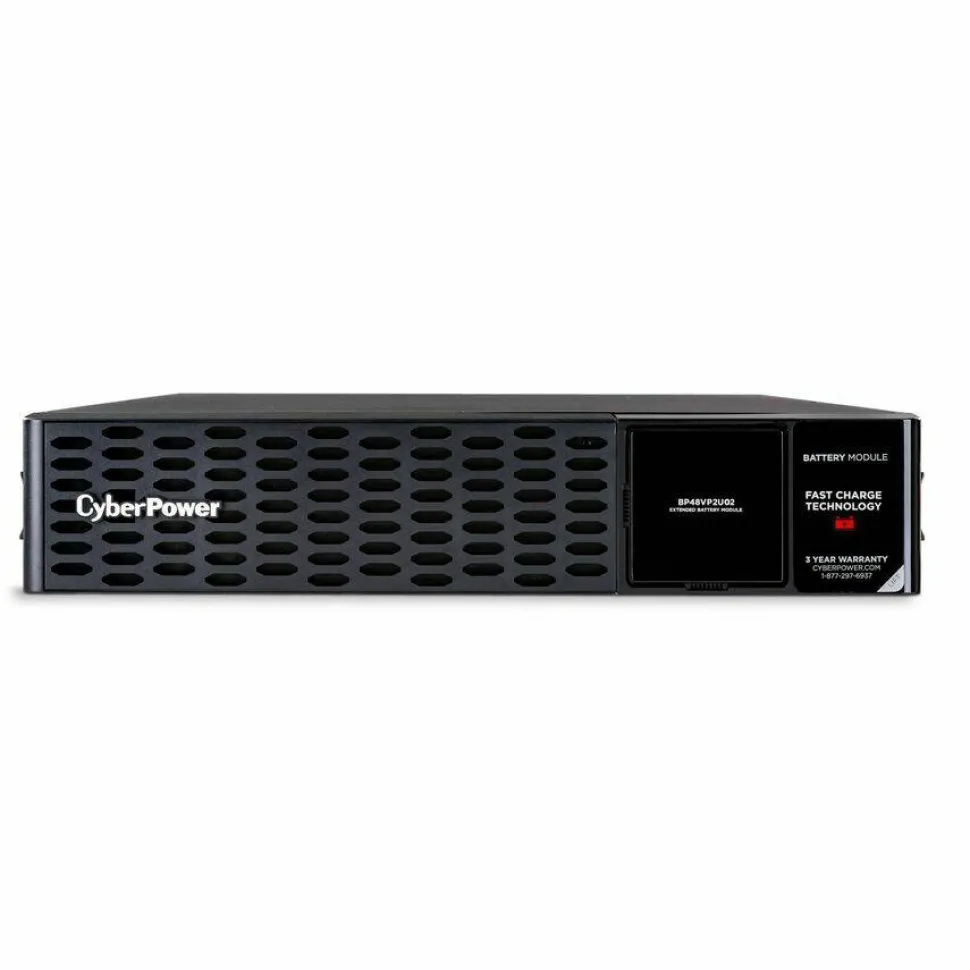

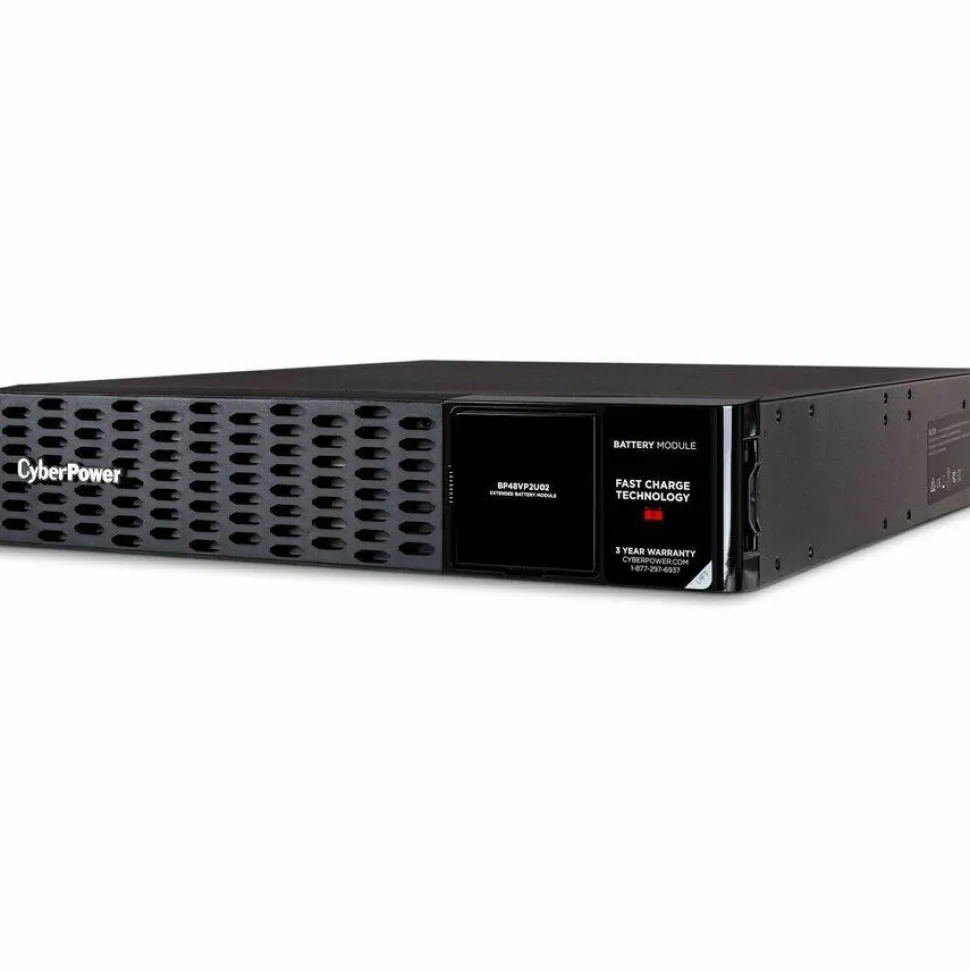

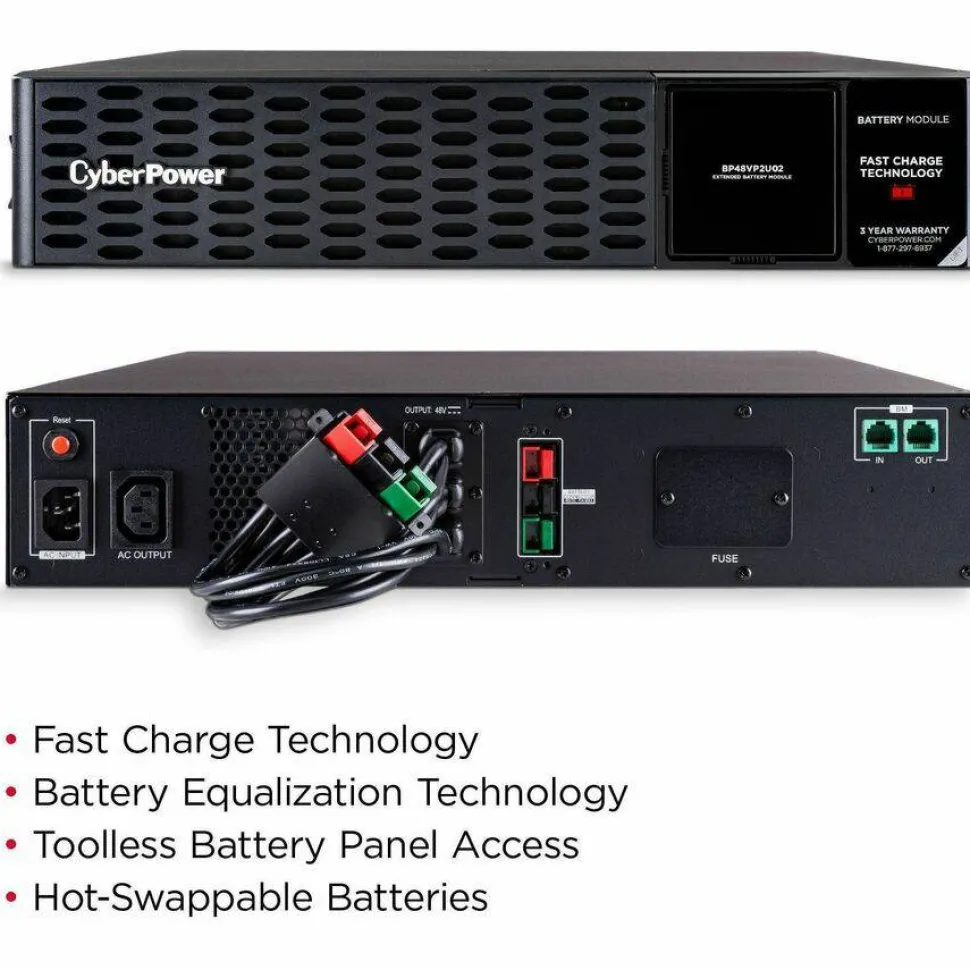

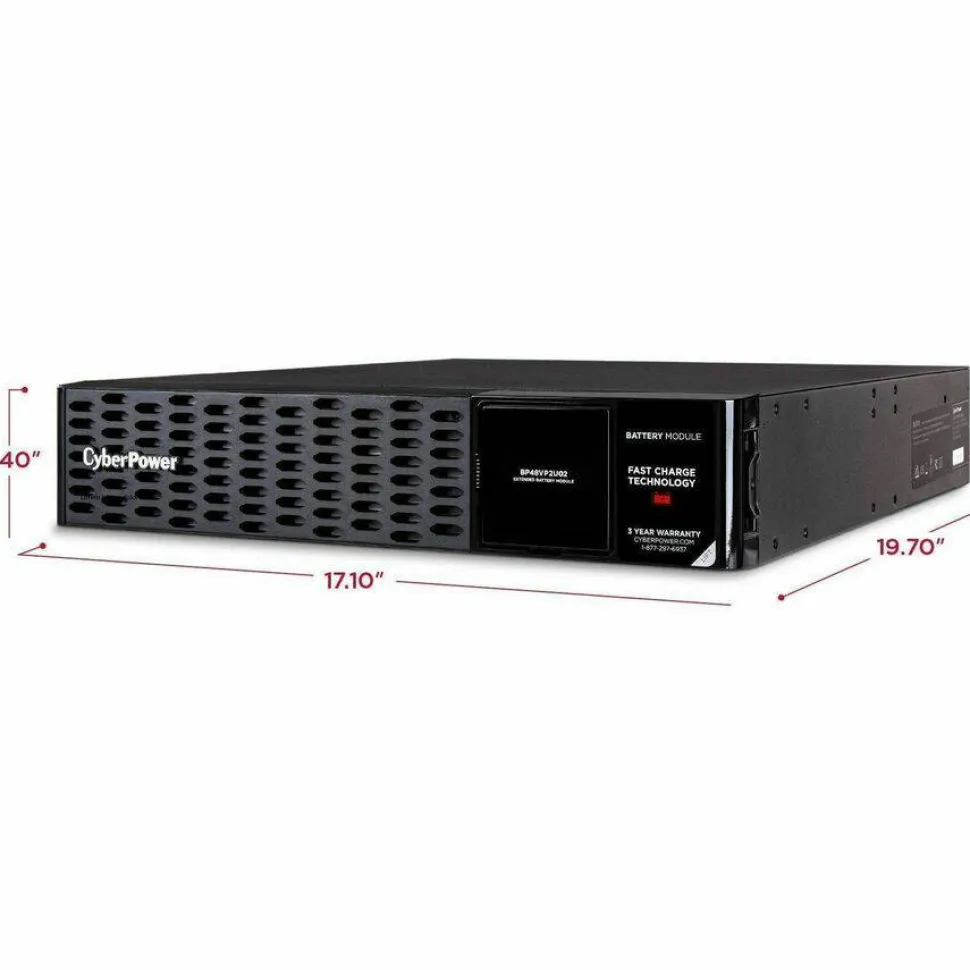

CyberPower BP48VP2U02 Extended Battery Modules

Product Specifications

• Additional Information
  Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 8 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions – (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions – (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions – (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.03 Weight (lb) : 66.2 Shipping Dimensions – (WxHxD) (cm) : 55.88 x 26.67 x 62.23 (cm) Shipping – Dimensions (WxHxD, in) : 22.0 x 10.5 x 24.5 (in) Shipping – Dimensions (WxHxD, mm) : 558.8 x 266.7 x 622.3 (mm) Shipping – Weight (kg) : 36.47 Shipping – Weight (lb) : 80.4 Circuit Breaker : 70 A Input Frequency Range : 50 Hz – 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC – 240 VAC Nominal Input Voltage : 120 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 – 10000 ft (0 – 3048 m) Operating Relative Humidity : 0 – 95 % (non-condensing) Operating Temperature : 32 – 104 °F (0 – 40 °C) Storage Elevation : 0 – 50000 ft (0 – 15239 m) Storage Relative Humidity : 0 – 95% (non-condensing) Storage Temperature : 5 – 113 °F (-15 – 45 °C) Models : PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. Environmental : RoHS Compliant Safety : CE, RCM , UL1778, cUL, FCC Class B, VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
• Battery Capacity
  9000 mAh
• Battery Chemistry
  Lead Acid
• Battery Size
  12V
• Brand Name
  CyberPower
• Certifications & Standards
  CE RCM UL1778 cUL FCC Class B VCCI
• Compatibility
  PR1500LCDRTXL2U PR1500RTXL2U PR2000RTXL2U PR2200LCDRTXL2U PR2200RTXL2U PR3000LCDRTXL2U PR3000RTXL2U OR1500LCDRTXL2U PR1000LCDRTXL2UA CyberPower UPS Models: PR1500RTXL2UC PR1500RTXL2UCN PR2000RTXL2UC PR2000RTXL2UCN PR2200RTXL2UC PR2200RTXL2UCN PR3000RTXL2UC PR3000RTXL2UCN OR2200LCDRTXL2U
• Country of Origin
  China
• Depth
  19.7″
• Environmental Compliance
  Restriction of Hazardous Substances (RoHS)
• Environmentally Friendly
  Yes
• Form Factor
  Rack/Tower
• Height
  3.4″
• Hot Swappable
  Yes
• Input Voltage
  120 V
• Limited Warranty
  3 Year
• Manufacturer Part Number
  BP48VP2U02
• Maximum Battery Recharge Time
  6 Hour
• Maximum Operating Temperature
  104°F (40°C)
• Minimum Operating Temperature
  32°F (0°C)
• Output Voltage
  48 V DC
• Product Color
  Black
• Product Condition
  New
• Product Model
  BP48VP2U02
• Product Name
  BP48VP2U02 Extended Battery Modules
• Product Series
  Extended Battery Modules
• Product Type
  External Battery Pack
• Rack Height
  2U
• Width
  17.1″
