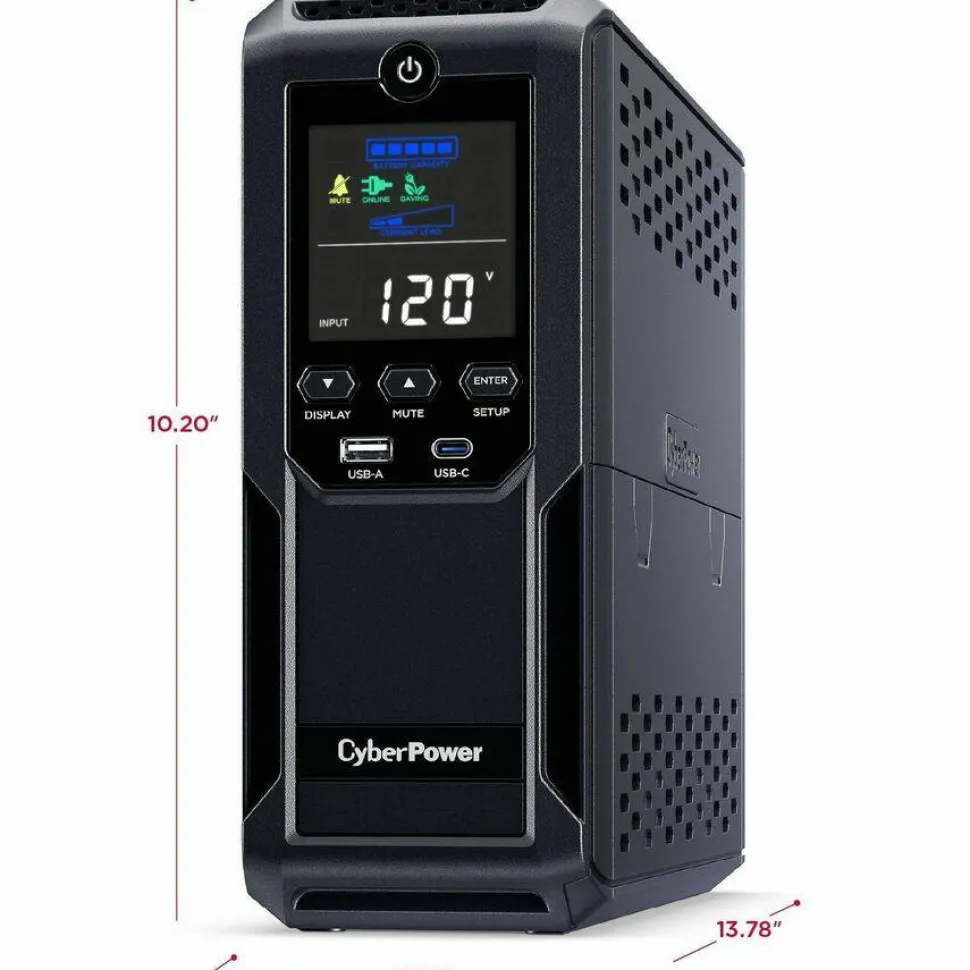

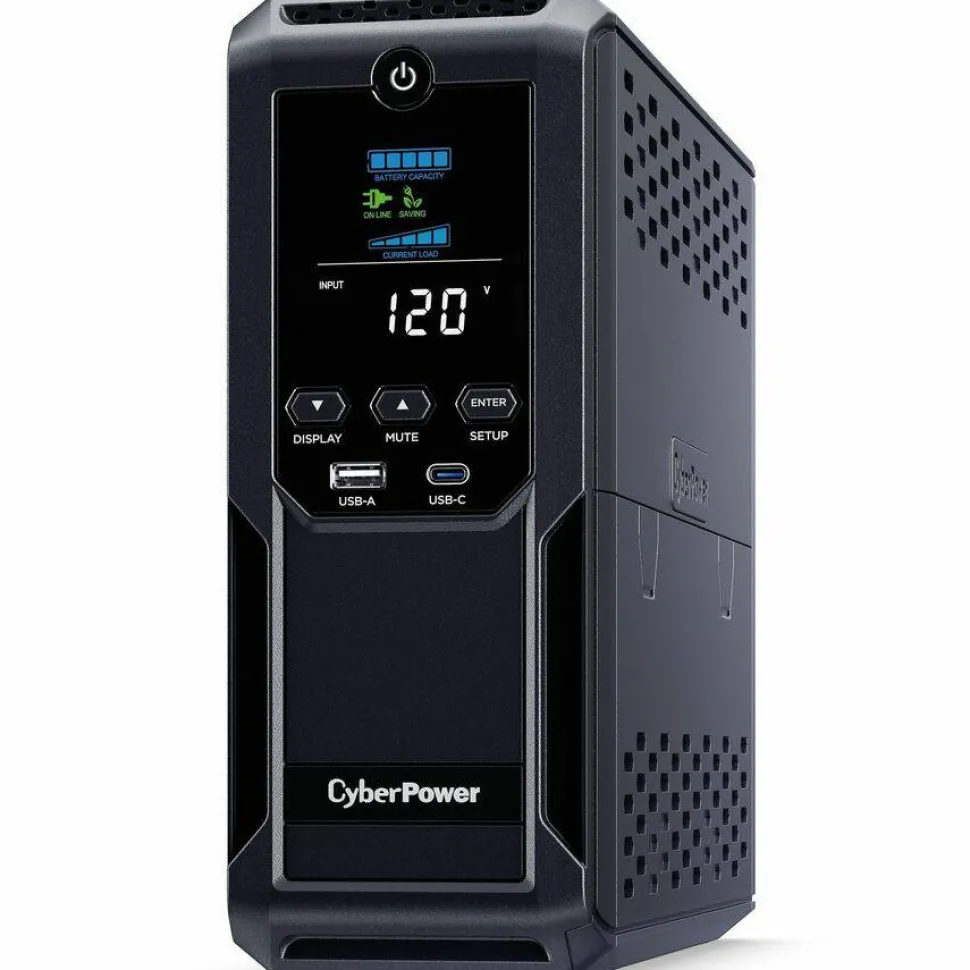

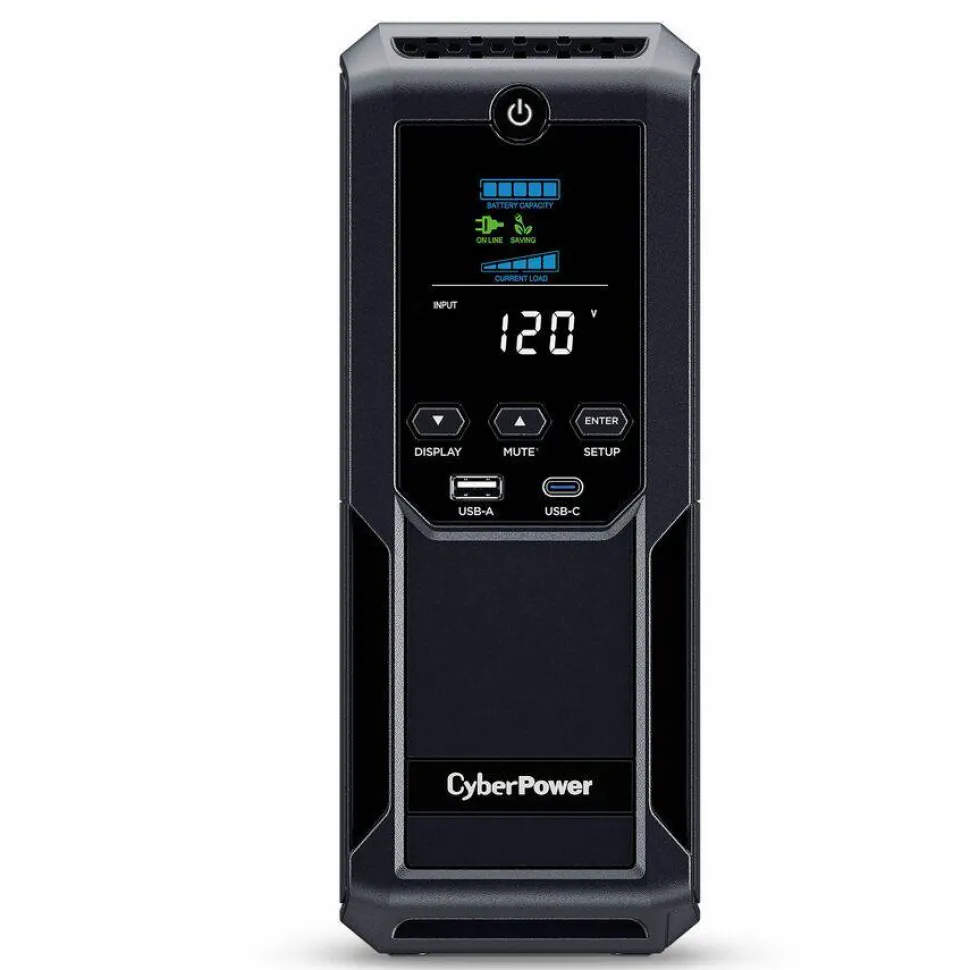

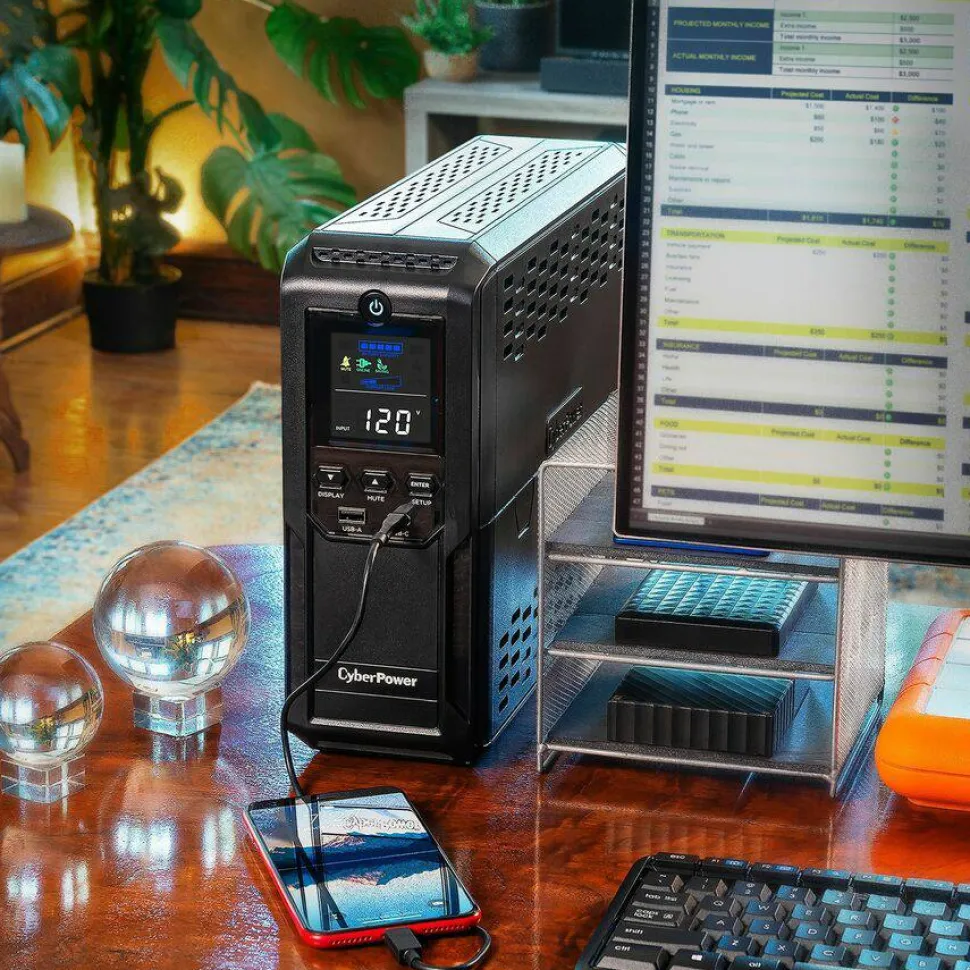

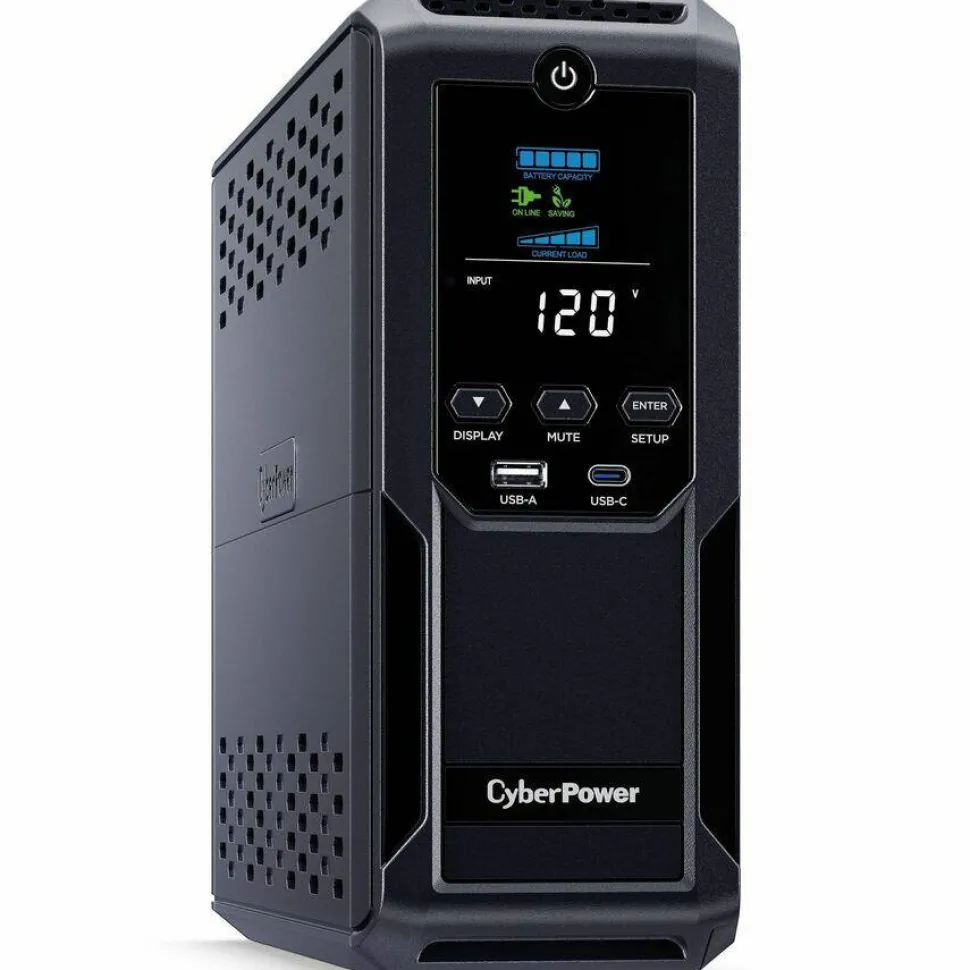

CyberPower CP1350AVRLCD3 Intelligent LCD UPS Systems

Product Specifications

• AVR
  Yes
• Additional Information
  Energy Star Certified : Yes UPS Topology : Line Interactive Battery Quantity : 2 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Replacement Battery Cartridge : RB1290X2E Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 4 min Runtime at Half Load : 14 min Typical Recharge Time : 8 Hours User Replaceable Battery : Yes Physical Dimensions – (WxHxD) (cm) : 10.01 x 25.91 x 35.0 (cm) Physical Dimensions – (WxHxD) (in) : 3.94 x 10.2 x 13.78 (in) Physical Dimensions – (WxHxD) (mm) : 100 x 259 x 350 (mm) Weight (kg) : 10.8 Weight (lb) : 23.8 Shipping Dimensions – (WxHxD) (cm) : 18.42 x 36.2 x 44.45 (cm) Shipping – Dimensions (WxHxD, in) : 7.25 x 14.25 x 17.5 (in) Shipping – Dimensions (WxHxD, mm) : 184.15 x 361.95 x 444.5 (mm) Shipping – Weight (kg) : 11.07 Shipping – Weight (lb) : 24.4 Circuit Breaker : 15 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz – 63 Hz Input Plug Type : NEMA 5-15P Nominal Input Voltage : 120 VAC Plug Style : Right Angle – 45° Offset Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets – Battery & Surge Protected : 6 Outlets – Surge-Only Protected : 6 Outlets – Total : 12 Outlet Type COMPUTED : 12 – NEMA 5-15R Output Power Factor : 0.6 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : 4 ms USB Charge Port Type COMPUTED : 1 Type A USB Charge Port Voltage COMPUTED : 5 VDC USB Charge Port Watts COMPUTED : 20 Watts VA : 1350 VA Watts : 815 W Coax Protection RG6 COMPUTED : 1 in EMI/RFI Filtration COMPUTED : Yes Network Protection RJ45 : 1-in / 1-Out (10/100/1000) Surge Suppression (Joules) : 1500 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Color : Black Form Factor : Mini-Tower Material of Construction : Plastic Operating Elevation : 0 – 10000 ft (0 – 3048 m) Operating Relative Humidity : 0 – 95 % (non-condensing) Operating Temperature : 32 – 104 °F (0 – 40 °C) Storage Elevation : 0 – 50000 ft (0 – 15239 m) Storage Relative Humidity : 0 – 95% (non-condensing) Storage Temperature : 5 – 113 °F (-15 – 45 °C) Environmental : RoHS Compliant Safety : UL1778 CEG Amount : $500000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U2A Product Warranty : 3 Year Limited Warranty Energy Saving : GreenPower UPS™ Bypass Technology
• Alarm
  Battery Mode
• Battery Capacity
  9000 mAh
• Battery Chemistry
  Lead Acid
• Battery Size
  12V
• Brand Name
  CyberPower
• Country of Origin
  Philippines
• Dataline Protection
  Coax RG-6 RJ-45
• Depth
  13.78″
• EMI/RFI Noise Filter
  Yes
• Environmental Compliance
  Restriction of Hazardous Substances (RoHS)
• Environmentally Friendly
  Yes
• Form Factor
  Mini-tower
• Height
  10.20″
• Input Frequency
  63 Hz
• Input Voltage
  120 V AC
• Limited Warranty
  3 Year
• Load Capacity (VA)
  1350 VA
• Load Capacity (Watt)
  815 W
• Manufacturer Part Number
  CP1350AVRLCD3
• Maximum Operating Elevation
  10000 ft
• Maximum Operating Temperature
  104°F (40°C)
• Maximum Storage Elevation
  50000 ft
• Number of Batteries
  2
• Number of Battery & Surge Outlets
  6
• Number of Surge-only Outlets
  6
• Operating Humidity
  0% – 95%
• Output Frequency
  60 Hz
• Output Voltage
  120 V AC
• Overload Protection
  Yes
• Plug/Connector Type
  NEMA 5-15P
• Product Color
  Black
• Product Model
  CP1350AVRLCD3
• Product Name
  CP1350AVRLCD3 Intelligent LCD UPS Systems
• Product Series
  Intelligent LCD UPS
• Product Type
  Line-interactive UPS

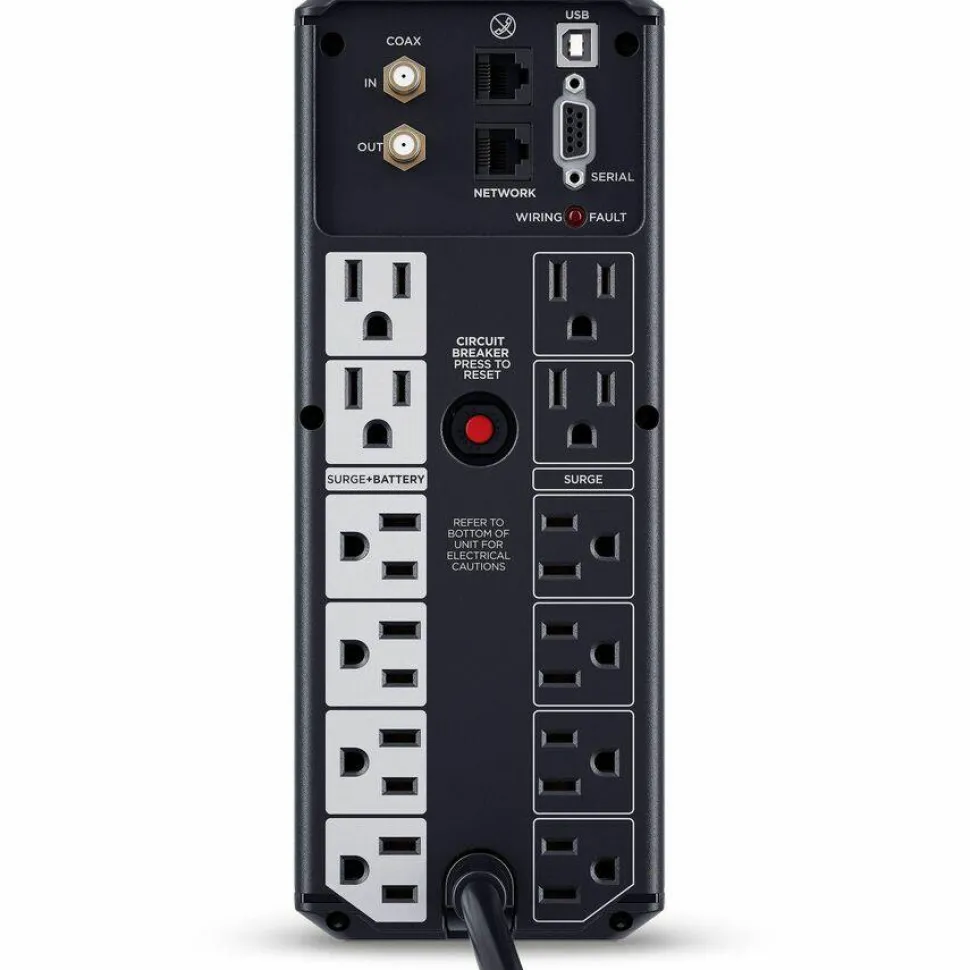

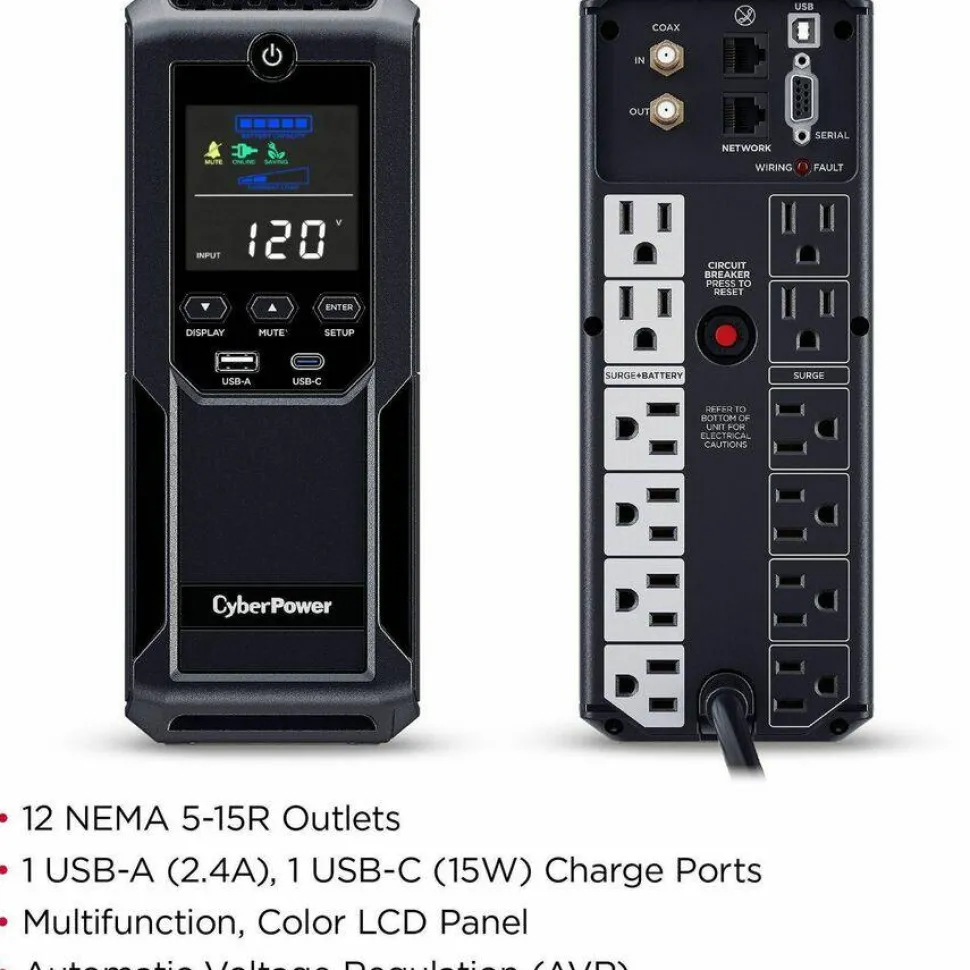

• Receptacle Detail
  1 x USB Type A 1 x USB Type C 12 x NEMA 5-15R
• Receptacle Type
  NEMA 5-15R USB Type A USB Type C
• Replaceable Battery
  Yes
• Serial Port
  Yes
• Status Indicators
  LED Indicators: Power On
• Storage Relative Humidity
  0% – 95%
• Storage Temperature
  5°F (-15°C) – 113°F (45°C)
• Surge Energy Rating
  1500 J
• Transfer Time
  4 ms
• Typical Battery Recharge Time
  8 Hour
• USB (HID Compliant) Port
  Yes
• Waveform Type
  Simulated Sine Wave
• Width
  3.94″
