CyberPower M1100XL Medical UPS Systems

$134.89

SKU: SKUyLVxT1qKox Categories: Batteries, Power & Backup, Power Backup & Safety, Technology Tag: CyberPower Brand: CyberPower

Description
Reviews (0)

Product Description

CyberPower M1100XL Medical UPS Systems

1100VA/880W, 120 VAC, NEMA 5-15P-HG, Mini-Tower, 6 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty

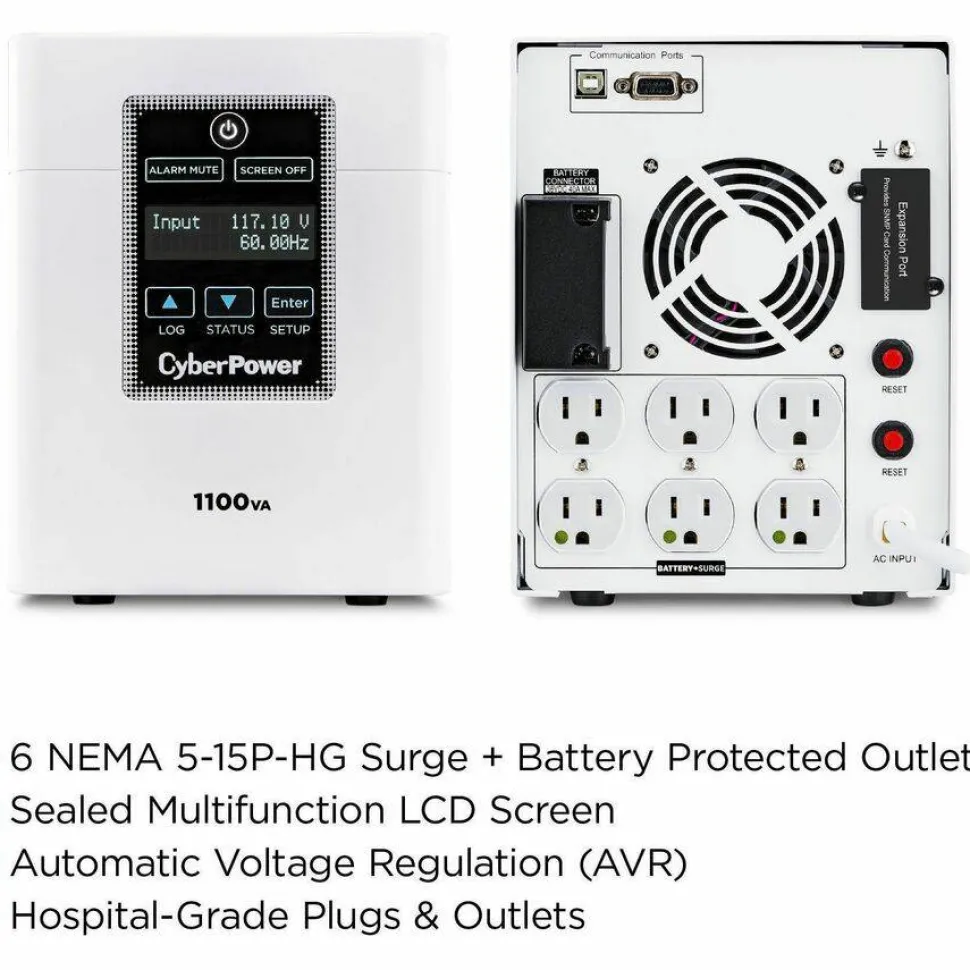

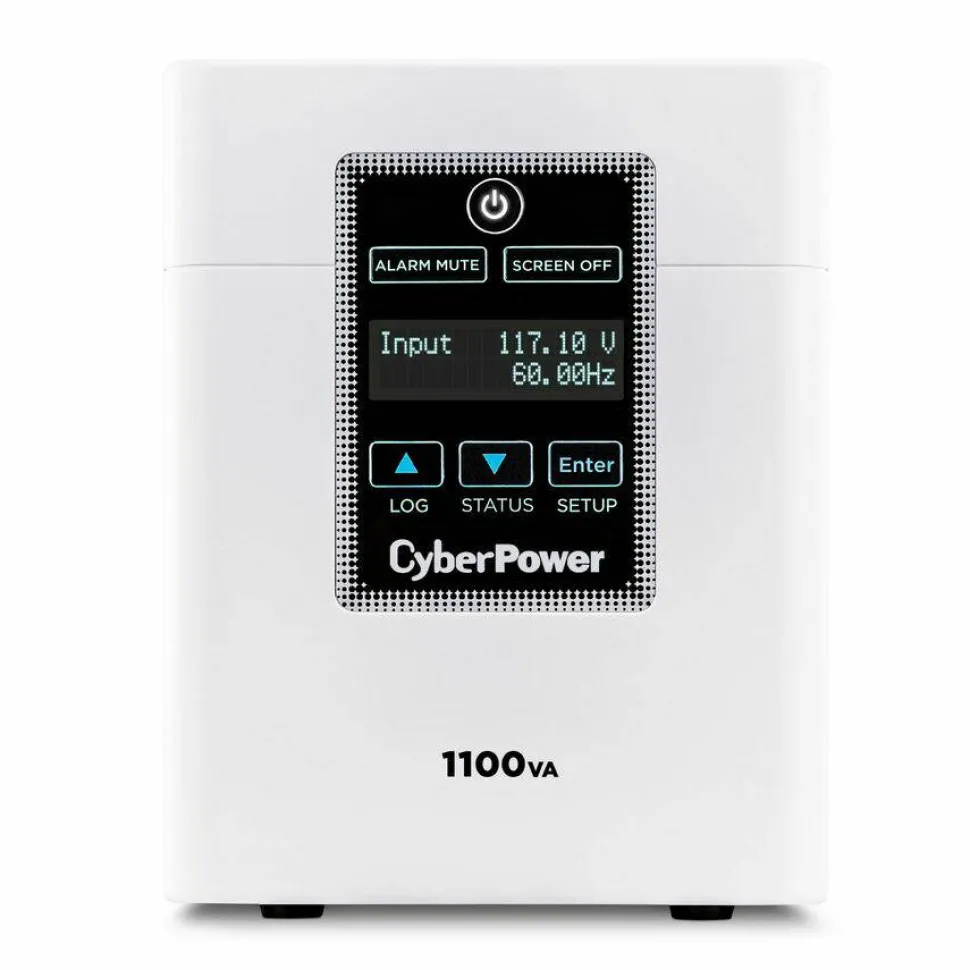

The CyberPower M1100XL medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M1100XL has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M1100XL also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.

Capacity: 1100VA / 880W
Topology: Line Interactive
Waveform: Simulated Sine Wave
Output: 120 VAC

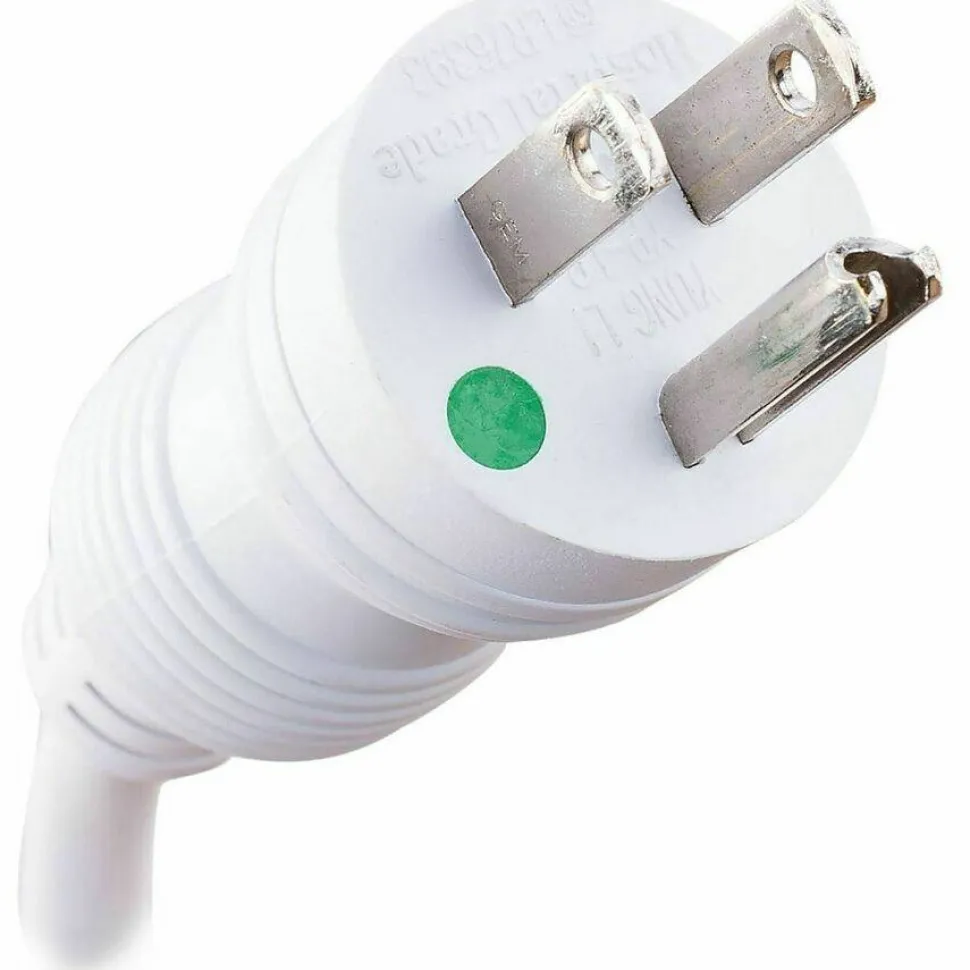

Plug type & cord: NEMA 5-15P-HG, 6 ft. cord

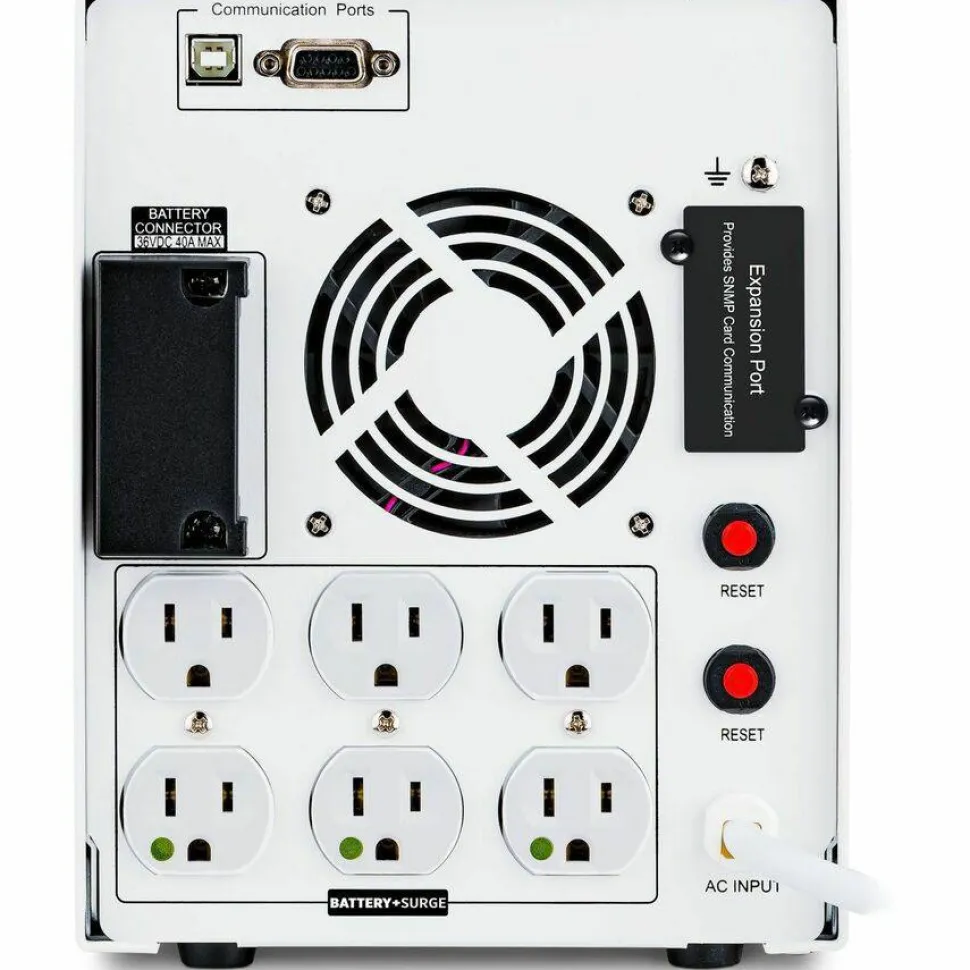

Outlet types: 6 × NEMA 5-15R-HG
Communication ports: USB
Management software: PowerPanel Business Edition
Warranty: 3 year
Connected Equipment Guarantee: $400,000
Experience higher efficiency with lower energy cost
Prevent critical data loss by staying powered during a blackout with up to 880 W load capacity
Keep your sensitive devices powered with a backup of up to 10 minute at full load
1100 VA load capacity – work without any interruption during power outages
Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
3 batteries for maximum feasibility and added productivity
12V battery size for better reliance and optimal performance
9000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
8 Hour typical battery recharge time for better convenience and prolonged, productive usage
Replaceable battery for reliable output for prolonged usage with maximum efficiency

Product Specifications

Additional Information

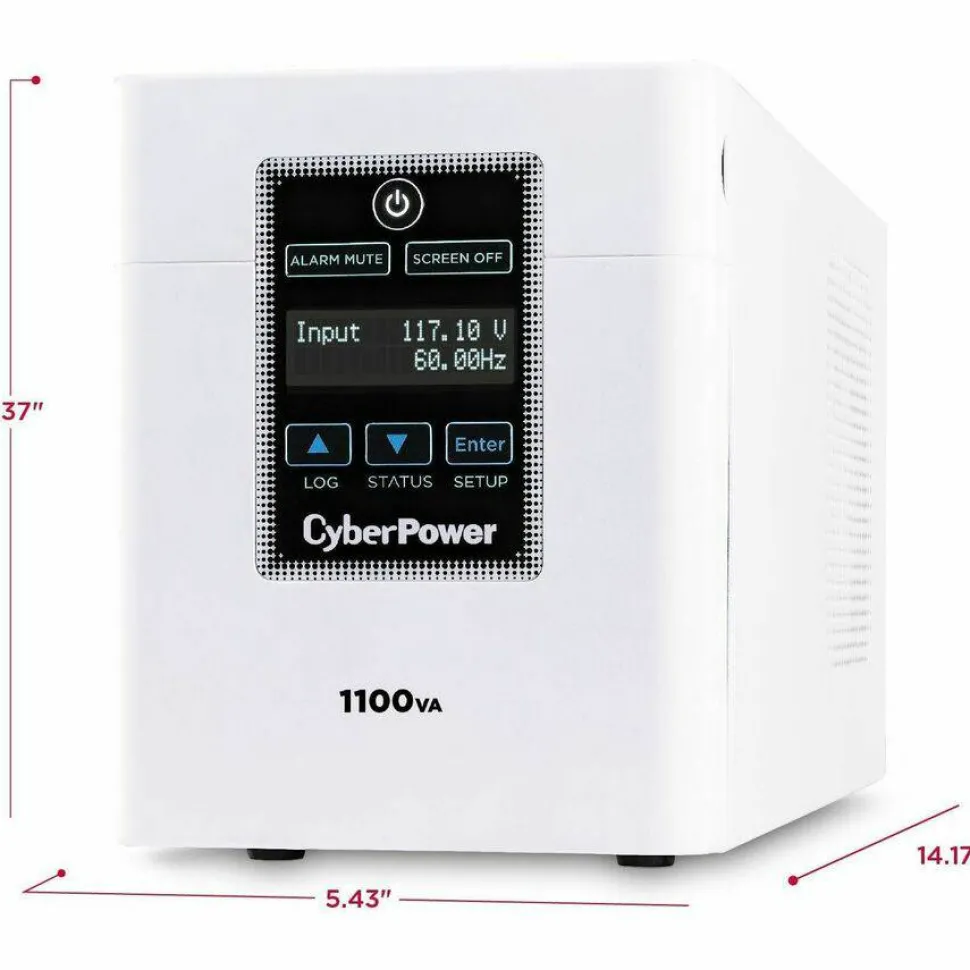

UPS Topology : Line Interactive Battery Quantity : 3 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Hot Swappable : Yes Replacement Battery Cartridge : RB1290X3B Replacement Battery Cartridge Quantity : 1 Runtime at Full Load : 10 min Runtime at Half Load : 25 min Typical Recharge Time : 8 Hours (0% to 90% charged) User Replaceable Battery : Yes Physical Dimensions – (WxHxD) (cm) : 17.02 x 22.1 x 43.18 (cm) Physical Dimensions – (WxHxD) (in) : 6.7 x 8.7 x 17 (in) Physical Dimensions – (WxHxD) (mm) : 170 x 221 x 432 (mm) Weight (kg) : 24.49 Weight (lb) : 54 Shipping Dimensions – (WxHxD) (cm) : 31.6 x 35.99 x 57.91 (cm) Shipping – Dimensions (WxHxD, in) : 12.44 x 14.17 x 22.8 (in) Shipping – Dimensions (WxHxD, mm) : 315.98 x 359.92 x 579.12 (mm) Shipping – Weight (kg) : 10.34 Shipping – Weight (lb) : 22.8 Adjustable Voltage Range : 88 – 150 VAC Circuit Breaker : 10 A Cord Length : 6 ft (1.8 m) Input Frequency Range : 57 Hz – 63 Hz Input Plug Type : NEMA 5-15P-HG Input Voltage Range : 90 VAC – 150 VAC Nominal Input Voltage : 120 VAC Automatic Voltage Regulation : Single Boost On AC WaveForm : Sine Wave On Battery Frequency : 60 Hz ± 1% On Battery Voltage : 120 VAC ± 5% On Battery Waveform : Simulated Sine Wave Outlets – Battery & Surge Protected : 6 Outlets – Total : 6 Outlet Type COMPUTED : 6 – 5-15R-HG Output Power Factor : 0.8 Overload Protection : Internal Circuitry Limiting Typical Transfer Time : < 10 ms USB Charge Port : No VA : 1100 VA Watts : 880 W EMI/RFI Filtration COMPUTED : Yes Surge Suppression (Joules) : 1445 J Audible Alarms : Battery Mode HID Compliant USB Port : Yes LCD : Multifunction LCD LED Indicators : Power On Management Cable : USB Cable Serial Port : 1 Serial SNMP / HTTP Remote Monitoring : Yes – with optional RMCARD205 Software (Free Download) : PowerPanel Business Color : White Form Factor : Mini-Tower Form Factors Supported : Direct Plug Material of Construction : Metal Operating Elevation : 0 – 10000 ft (0 – 3048 m) Operating Relative Humidity : 0 – 95 % (non-condensing) Operating Temperature : 32 – 104 °F (0 – 40 °C) Storage Temperature : 5 – 113 °F (-15 – 45 °C) Environmental : RoHS Compliant Safety : UL1778 Leakage Current (Max Shock Potential) : Output Isolation Transformer : Hospital Grade Load Isolation Transformer CEG Amount : $400000 Connected Equipment Guarantee : Lifetime Extended Warranty Option : WEXT5YR-U4A Product Warranty : 3 Year Limited Warranty Energy Saving : GreenPower UPS™ Bypass Technology
Alarm

Battery Mode
Application/Usage

Healthcare Lab Equipment Medical Hospital
Backup/Run Time (Half Load)

25 Minute
Battery Capacity

9000 mAh
Battery Characteristics

Sealed
Battery Chemistry

Lead Acid
Battery Size

12V
Brand Name

CyberPower
Certifications & Standards

UL1778 (USA)
Circuit Breaker

Yes
Cord Length

6 ft
Country of Origin

China
Depth

17″
Directly Connected Equipment Guarantee

$400000 Lifetime
Display

LCD
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Features

Audible Alarm
Form Factor

Mini-tower
Height

8.70″
Hot Swappable

Yes
Input Frequency

57 Hz 63 Hz
Input Voltage

120 V AC
Input Voltage Range

90 V AC – 150 V AC
Limited Warranty

3 Year
Load Capacity (VA)

1100 VA
Load Capacity (Watt)

880 W
Manufacturer Part Number

M1100XL
Maximum Operating Temperature

104°F (40°C)
Minimum Operating Temperature

32°F (0°C)
Number of Batteries

3
Output Frequency

60 Hz
Output Voltage

120 V AC
Overload Protection

Yes
Package Contents

M1100XL Medical Grade 1100VA/880W UPS User Manual USB A+B Type Cable Serial Cable
Plug/Connector Type

NEMA 5-15P-HG
Product Model

M1100XL
Product Name

M1100XL Hospital/Medical UPS Systems
Product Series

Hospital/Medical Power
Product Type

Line-interactive UPS
Receptacle Detail

6 x NEMA 5-15R-HG
Receptacle Type

NEMA 5-15R-HG
Serial Port

Yes
Status Indicators

LED Indicators Power On
Surge Energy Rating

1445 J
Surge Suppression

Yes
Transfer Time

10 ms
Typical Battery Recharge Time

8 Hour
USB

Yes
Waveform Type

Simulated Sine Wave
Width

6.70″
