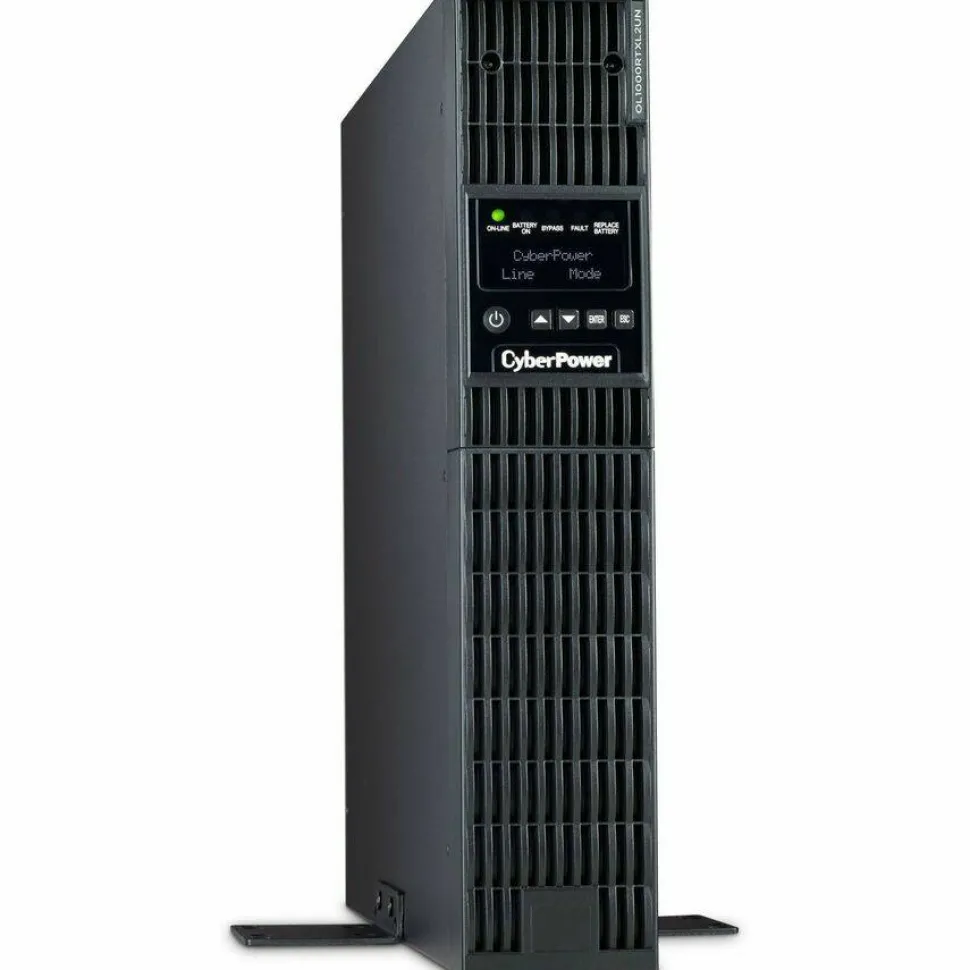

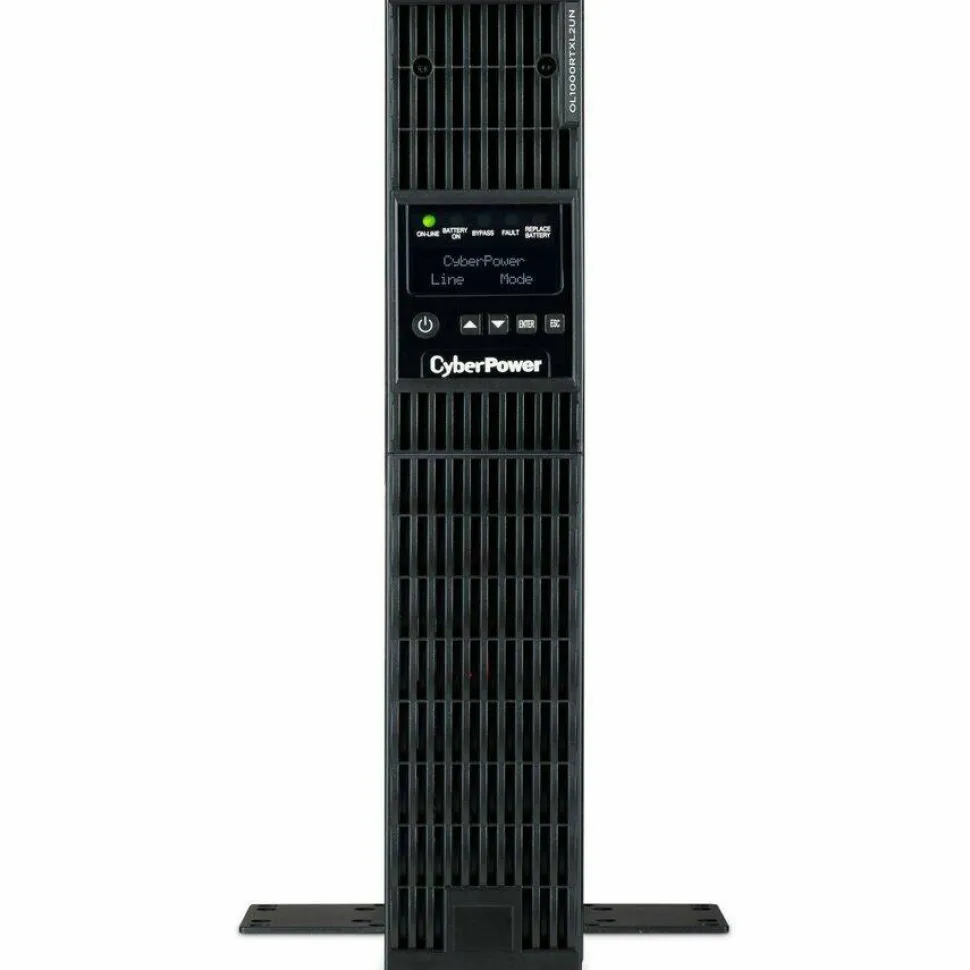

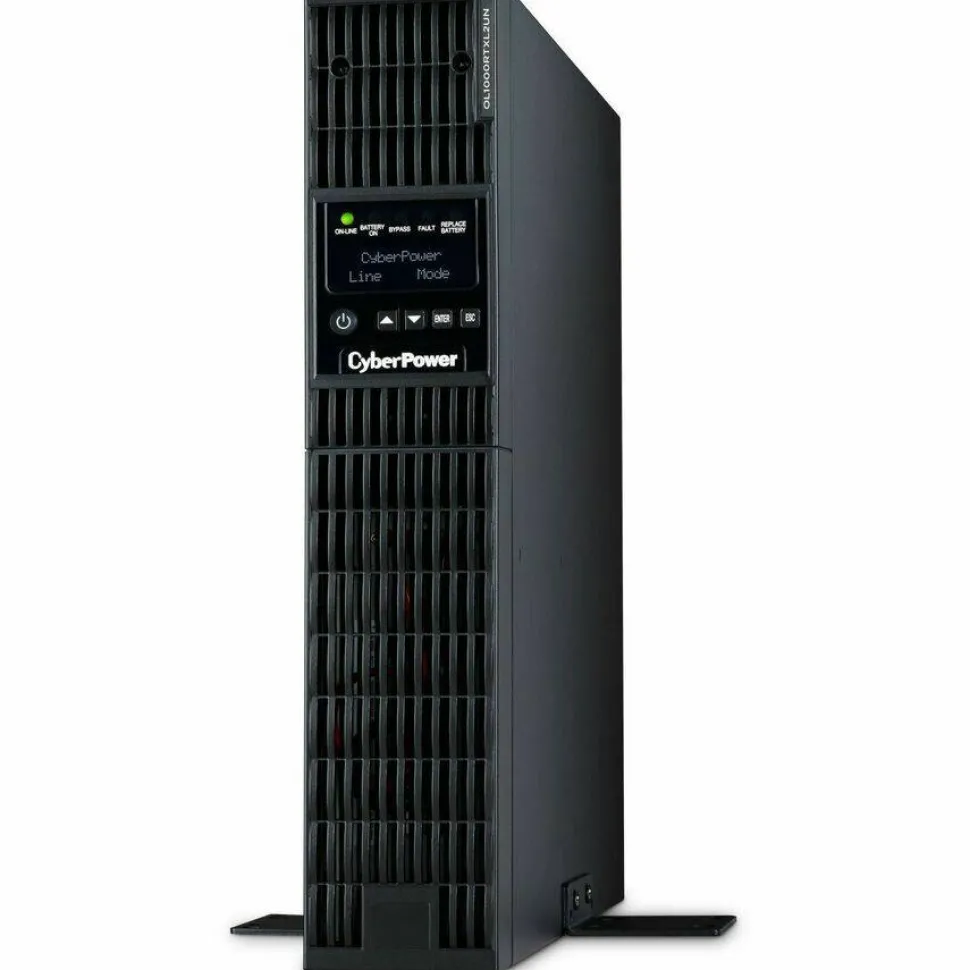

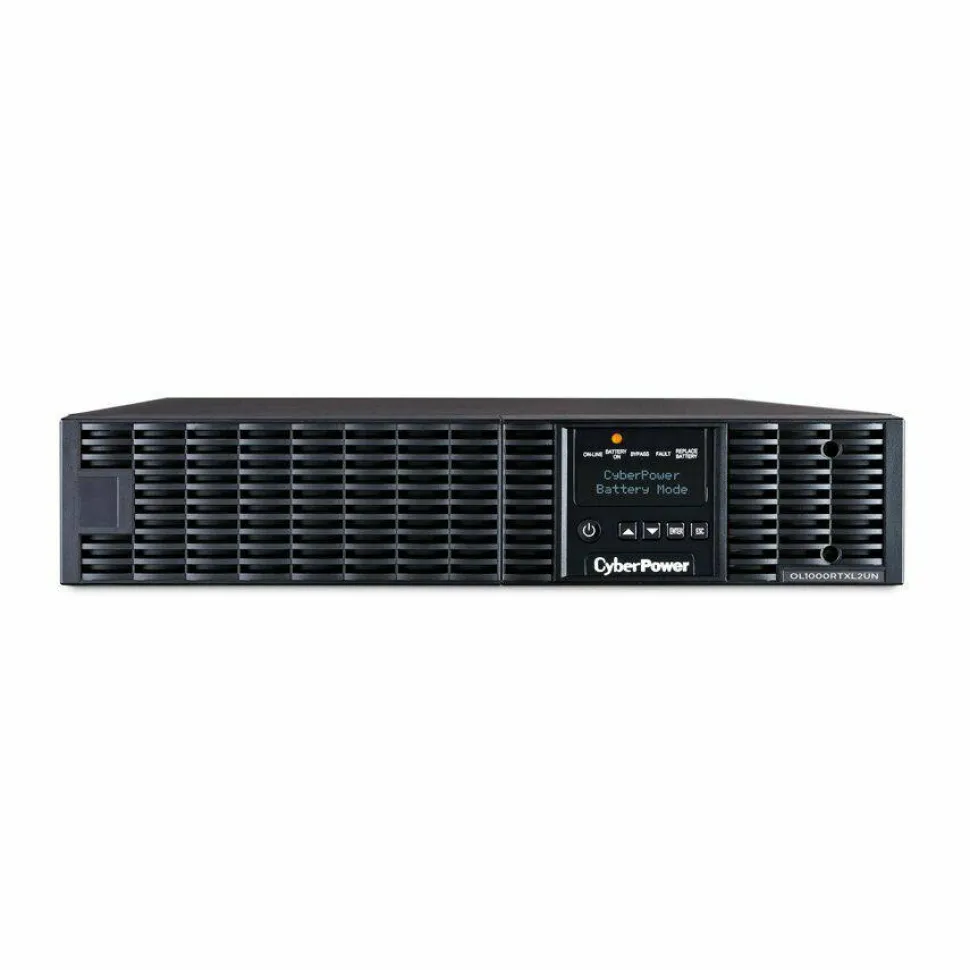

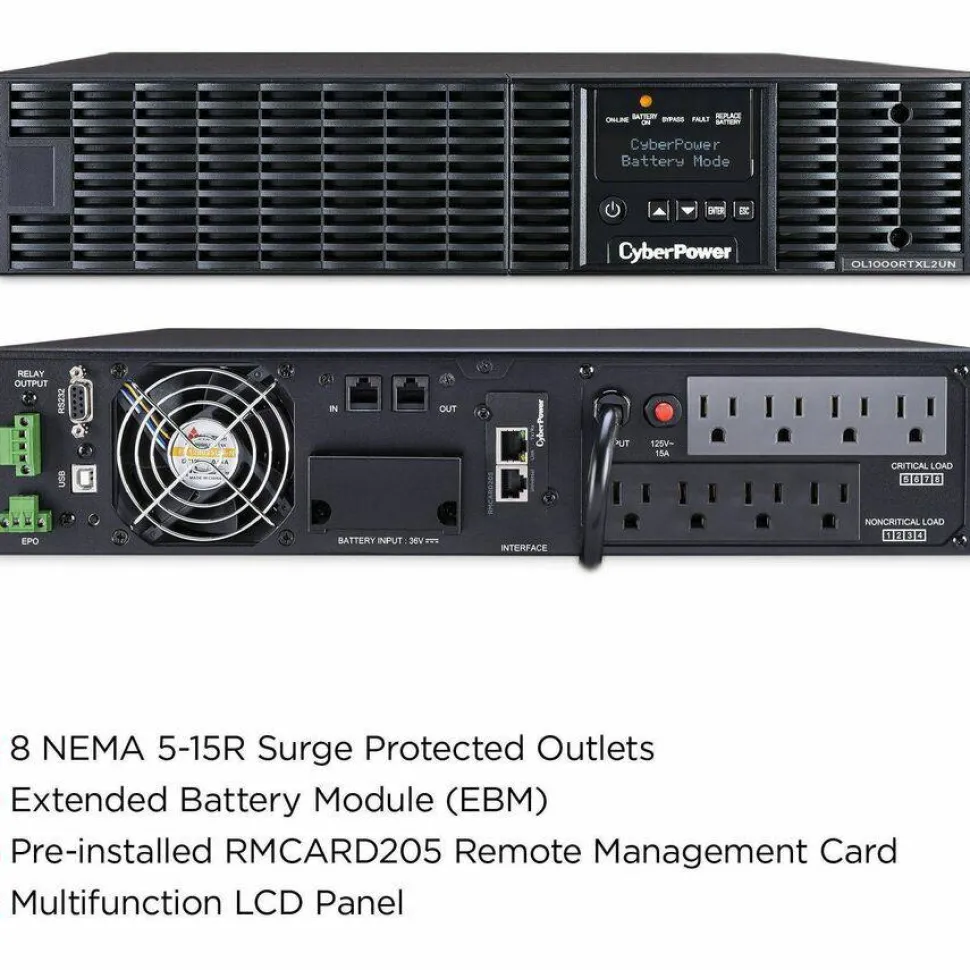

CyberPower OL1000RTXL2UN Smart App Online UPS Systems

1000VA/900W, 100 – 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty

Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.
More from the Manufacturer

Capacity: 1000 VA / 900 W
Power Factor (PF): 0.9
Topology: Double-Conversion
Waveform: Sine Wave
Output: 100, 110, 115, 120, 125 V ± 2% (configurable)
Plug type & cord: NEMA 5-15P, 10 ft. cord

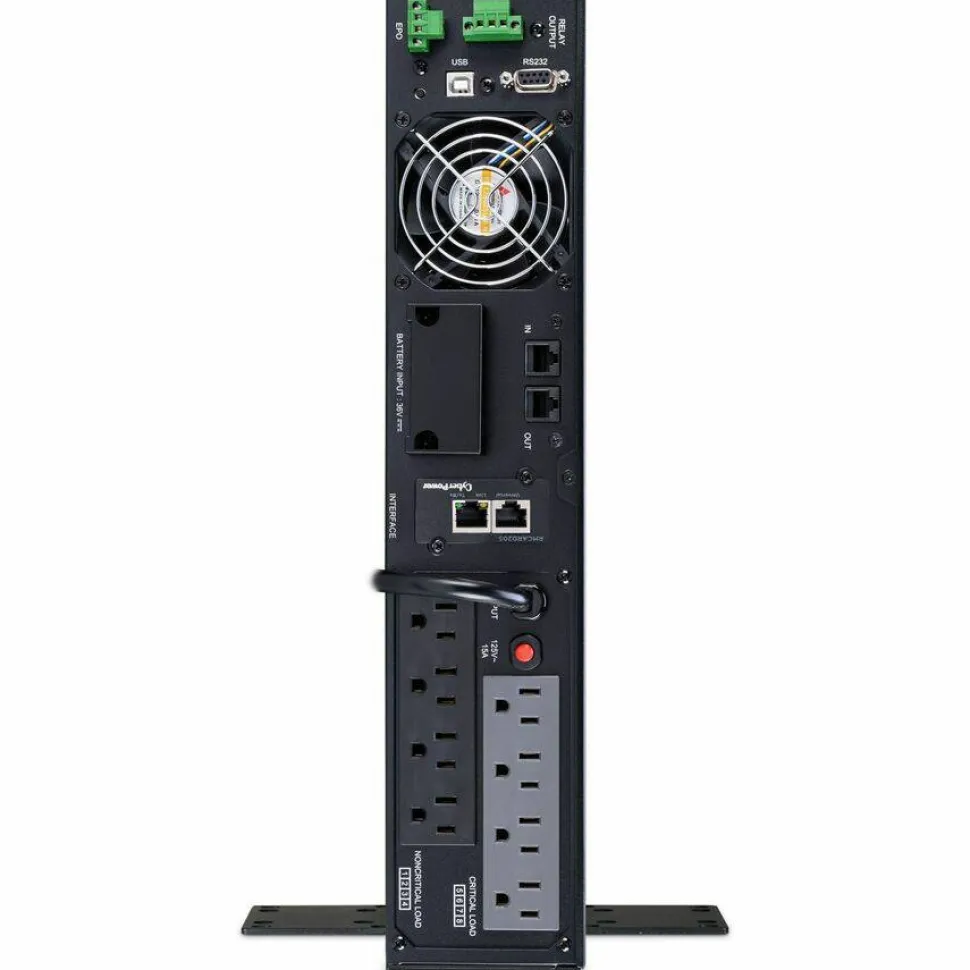

Outlet types: 8 × NEMA 5-15R
Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
Data line surge protection: Telephone, Network
Management software: PowerPanel Business Edition
Warranty: 3 year
Gives you a high level of protection by isolating the equipment from raw utility power
Keep your sensitive devices powered with a backup of up to 7.40 minute at full load

Product Specifications

Additional Information

Dry Contacts: Yes Rotatable LCD Control Panel Option: Yes Upgradeable firmware: Yes Overload Protection: Line Mode: 105% ~ 125% Load – 1 min Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection Management Cable: USB Cable Removable LCD Control Panel Option: Yes – Requires DB26 cable (not included) Serial Port: 1 Serial Material of Construction: Metal Mounting Hardware: Yes ECO Mode Thermal Dissipation: 108 BTU/hr Software (Free Download): PowerPanel Business USB Charge Port: No
Alarm

Battery Mode
Application/Usage

Mission Critical Equipment Generator
Backup/Run Time (Full Load)

8 Minute
Backup/Run Time (Half Load)

21 Minute
Battery Capacity

9000 mAh
Battery Chemistry

Lead Acid
Battery Size

12V
Brand Name

CyberPower
Certifications & Standards

UL1778
Cord Length

10 ft
Country of Origin

Taiwan
Dataline Protection

RJ-11 RJ-45

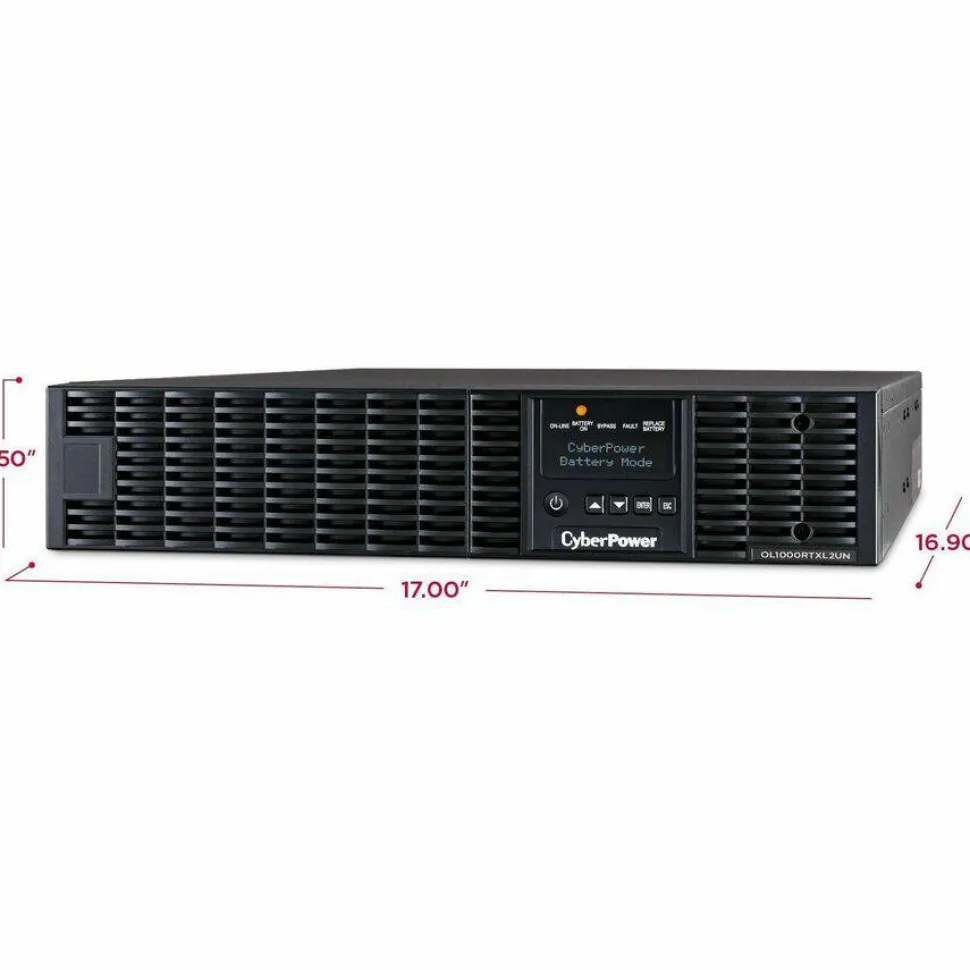

Depth

16.9″
Directly Connected Equipment Guarantee

$400000 Lifetime
Display

LCD
EMI/RFI Noise Filter

Yes
EPO Port

Yes
Energy Saving

ECO Mode Efficiency >94%
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Form Factor

Rack/Tower
Height

3.5″
Input Frequency

70 Hz 40 Hz
Input Voltage

120 V AC 230 V AC
Input Voltage Range

100 V AC – 125 V AC 60 V AC – 69 V AC
Limited Warranty

3 Year
Load Capacity (VA)

1000 VA
Load Capacity (Watt)

900 W
Manufacturer Part Number

OL1000RTXL2UN
Maximum Operating Elevation

10000 ft
Maximum Operating Temperature

104°F (40°C)
Maximum Storage Elevation

50000 ft
Network (RJ-45)

Yes
Network Management

SNMP Manageable Dry Contact Relay Card
Number of Batteries

3
Output Frequency

60 Hz 50 Hz
Output Voltage

125 V AC 100 V AC 110 V AC 115 V AC 120 V AC
Overload Protection

Yes
Package Contents

Smart App Online OL1000RTXL2UN 1000VA Rack/Tower UPSUser Manual Registration Card 2 x Rackmount Rails 2 x Rackmount Ears 2 x Hanging Brackets Phone Line Usb Communication Cable Serial Interface Cable (RS-232) 8 x M5x7l Black Flat Head Screws 12 x M5x12l Black Pan Head Screws 6 x M5x6l Silver Pan Head Screws 8 x Plastic Washers 12 x Screw Hole Dust Covers 12 x Rubber Pads And A Software Download Card
Plug/Connector Type

NEMA 5-15P
Product Color

Black
Product Model

OL1000RTXL2UN
Product Name

OL1000RTXL2UN Smart App Online UPS Systems
Product Series

Smart App Online UPS
Product Type

Dual Conversion Online UPS
Protection Type

Short Circuit
Rack Height

2U
Receptacle Detail

8 x NEMA 5-15R
Receptacle Type

NEMA 5-15R
Replaceable Battery

Yes
Serial Port

Yes
Software Included

PowerPanel Business
Sound Emission (A-Weighted)

55 dB(A)
Status Indicators

Power On (White)
Storage Relative Humidity

0% – 95%
Surge Energy Rating

1780 J
Thermal Dissipation

80.30 W
Transfer Time

0 ns
Typical Battery Recharge Time

4 Hour
USB

Yes
USB (HID Compliant) Port

Yes
Waveform Type

Sine Wave
Width

17″
