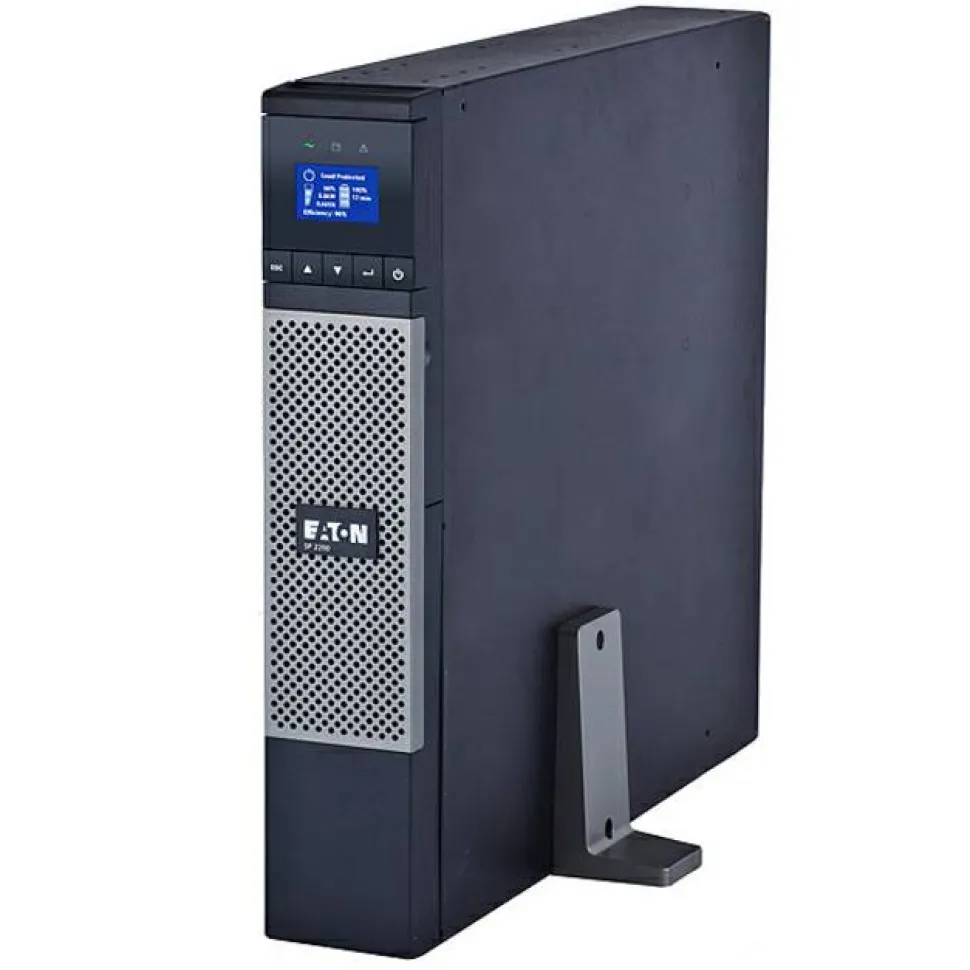

Eaton 5P 1950VA 1920W 120V Line-Interactive UPS – 8 NEMA 5-20R Outlets, Cybersecure Network Card Option, Tower

$120.89

SKU: SKUcsrFMUFCTi Categories: Batteries, Power & Backup, Power Backup & Safety, Technology Tag: Eaton Brand: Eaton

Description
Reviews (0)

Product Description

Eaton 5P 1950VA 1920W 120V Line-Interactive UPS – 8 NEMA 5-20R Outlets, Cybersecure Network Card Option, Tower

Battery Backup -Tower – 3 Minute Stand-by – 110 V AC Input – 132 V AC Output – 8 x NEMA 5-20R

1.95kVA/1.92kW/120V Battery Backup for Network Closets and Small Data Centers

This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P2200 protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.

Reliable Battery Backup Keeps You Operational Through Power Outages

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.

Optional Gigabit Network Interface Offers 24/7 Remote Access

The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.

NEMA 5-20R Outlets Protect Your Connected Components

Eight managed 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

LCD Interface Keeps You Informed at a Glance

The five-button graphical LCD provides useful information about the UPS itself, load status,
events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

Advanced Communications Ports Allow for Automatic Saves and Shutdowns

RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment. By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.

Keeps equipment running during outages to allow time for file saves and safe shutdown
Provides 20% more wattage compared to traditional UPS systems to protect devices
Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
5-button graphical LCD offers critical UPS data and load status at a glance
Optional NETWORK-M2 Gigabit network card enables full remote access and control
Experience higher efficiency with lower energy cost
Keep your sensitive devices powered with a backup of up to 3 minute at full load
Prevent critical data loss by staying powered during a blackout with up to 1920 W load capacity
1950 VA load capacity provides sufficient backup during power failures
Lead Acid battery chemistry for your convenience and better usability
NEMA 5-20P plug/connector type for maximum usability with added reliability
NEMA 5-20R receptacle type offers ease of operation with maximum efficiency
110 V AC input voltage for better reliance and maximum dependability
132 V AC output voltage for optimal performance with maximum feasibility
Tower form factor requires minimal configuration and can be easily customized and upgraded to ensure maximum efficiency

Product Specifications

Battery Chemistry

Lead Acid
Brand Name

Eaton
Bypass Switch

Optional
Certifications & Standards

UL1778 UL497A cUL UL FCC Part 15 subpart B Class A
Country of Origin

Philippines
Depth

20.55″
Form Factor

Tower
Height

3.39″
Hot Swappable

Yes
Input Voltage

110 V AC
Limited Warranty

3 Year
Load Capacity (VA)

1950 VA
Load Capacity (Watt)

1920 W
Manufacturer Part Number

5P2200
Output Voltage

132 V AC
Package Contents

5P 1950 VA Tower UPS User Manual CD Tower Pedestals Intelligent Power Software Suite CD Quick Start Guide RS-232 Serial Cable USB Cable Phillips Head Screw Driver
Plug/Connector Type

NEMA 5-20P
Product Name

5P 1950 VA Tower UPS
Product Series

5P
Product Type

Line-interactive UPS
Receptacle Detail

8 x NEMA 5-20R
Receptacle Type

NEMA 5-20R
Serial Port

Yes
Software Included

Eaton Intelligent Power Software Suite
Transfer Time

4 ms
USB

Yes
Width

17.36″
