Eaton Tripp Lite Series 1000VA 750W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, 2U Rack/Tower

Eaton Tripp Lite Series 1000VA 750W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring – 10 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, 2U Rack/Tower

$126.99

SKU: SKUyxmkc1DpvU Categories: Batteries, Power & Backup, Power Backup & Safety, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

Eaton Tripp Lite Series 1000VA 750W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring – 10 NEMA 5-15R Outlets (Surge and Battery Backup), LCD, 5-15P Plug, 2U Rack/Tower

2U Desktop/Tower/Rack – AVR – 8 Hour Recharge – 2 Minute Stand-by – 120 V AC Input – 120 V AC Output – Single Phase – Sine Wave, Pulse-width Modulated Sine Wave – USB – LCD Display – 10 x NEMA 5-15R Receptacle(s) – 10 x Battery/Surge Outlet – Network Card

Features | 1000VA/750W/120V Battery Backup for Small Network Servers and Network Workstations

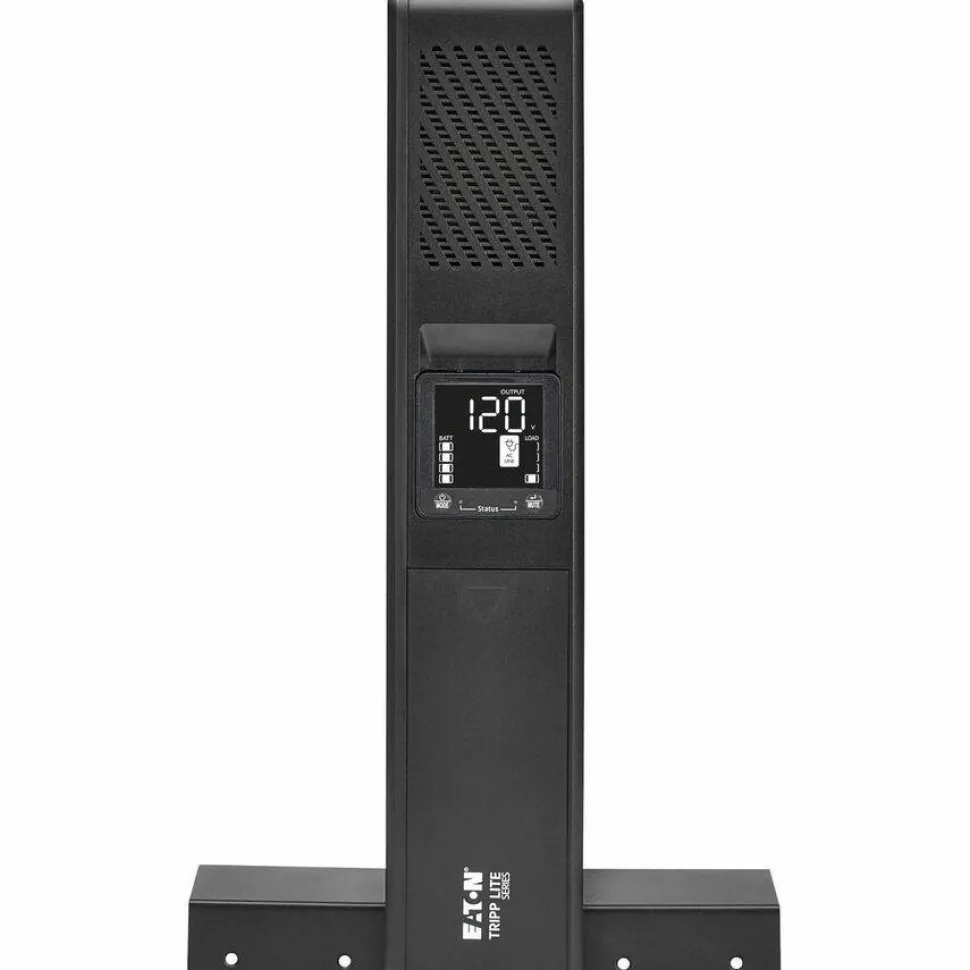

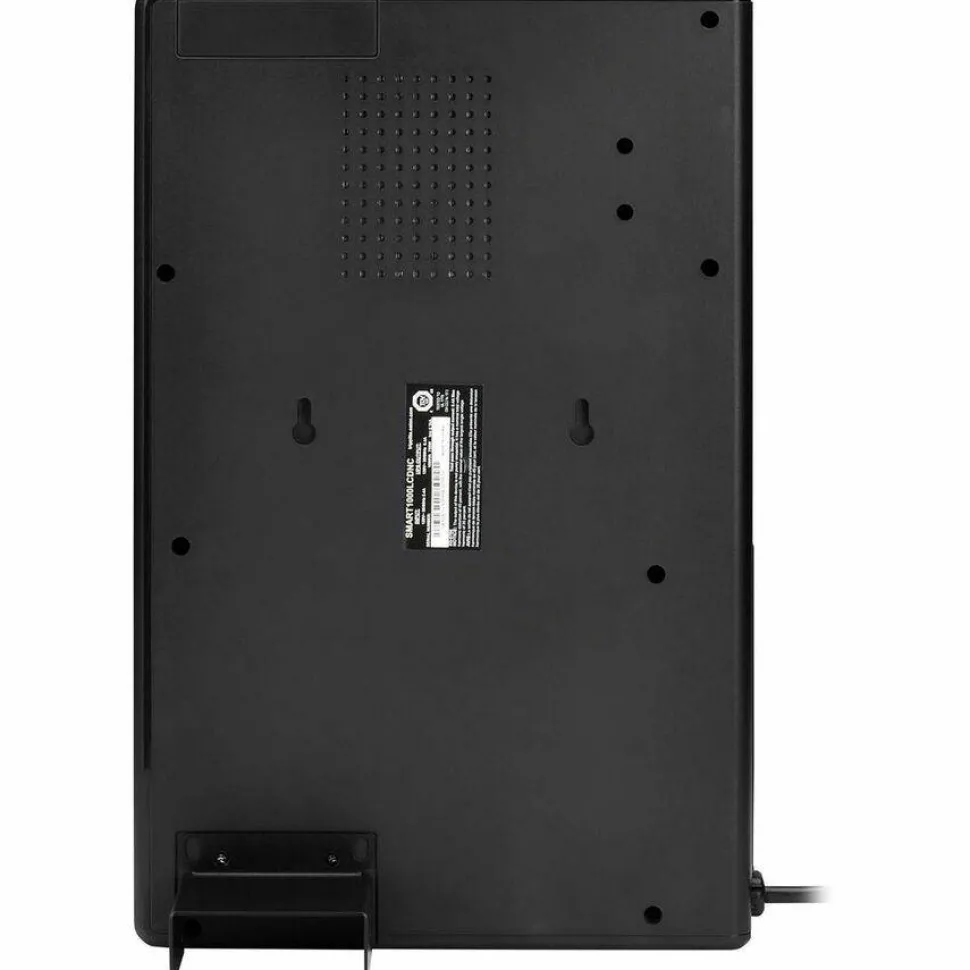

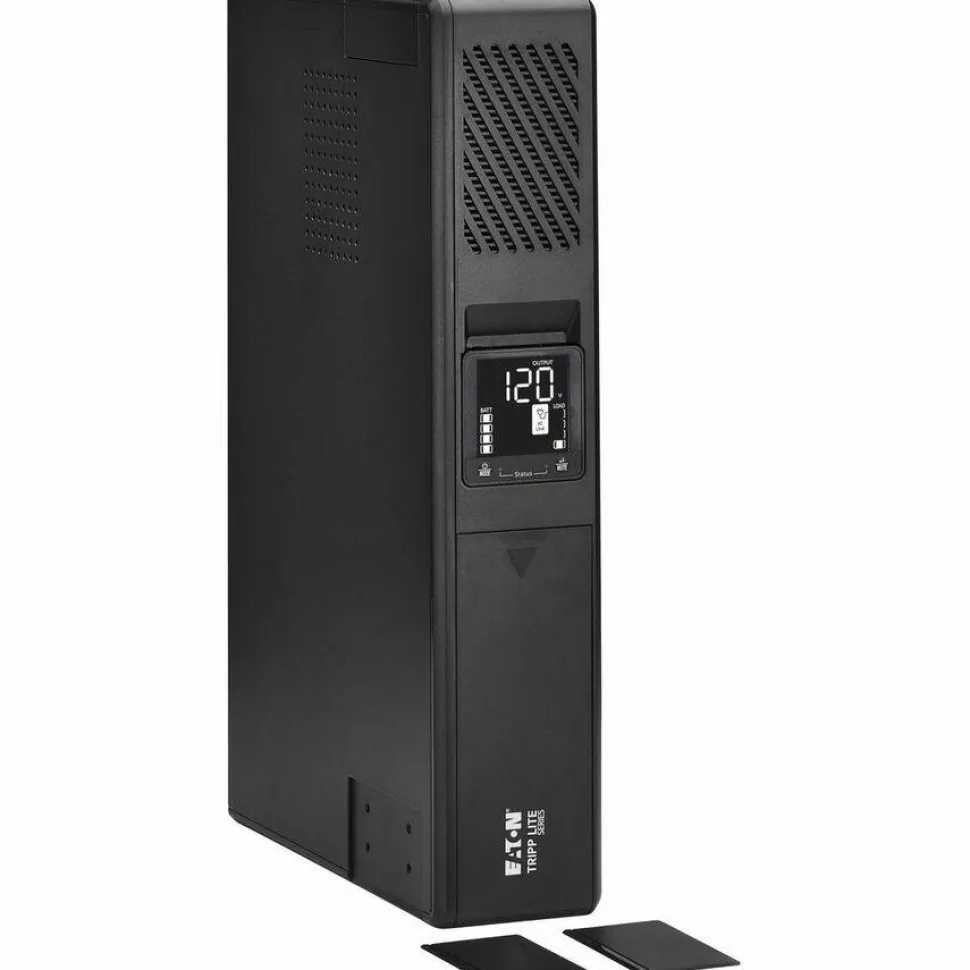

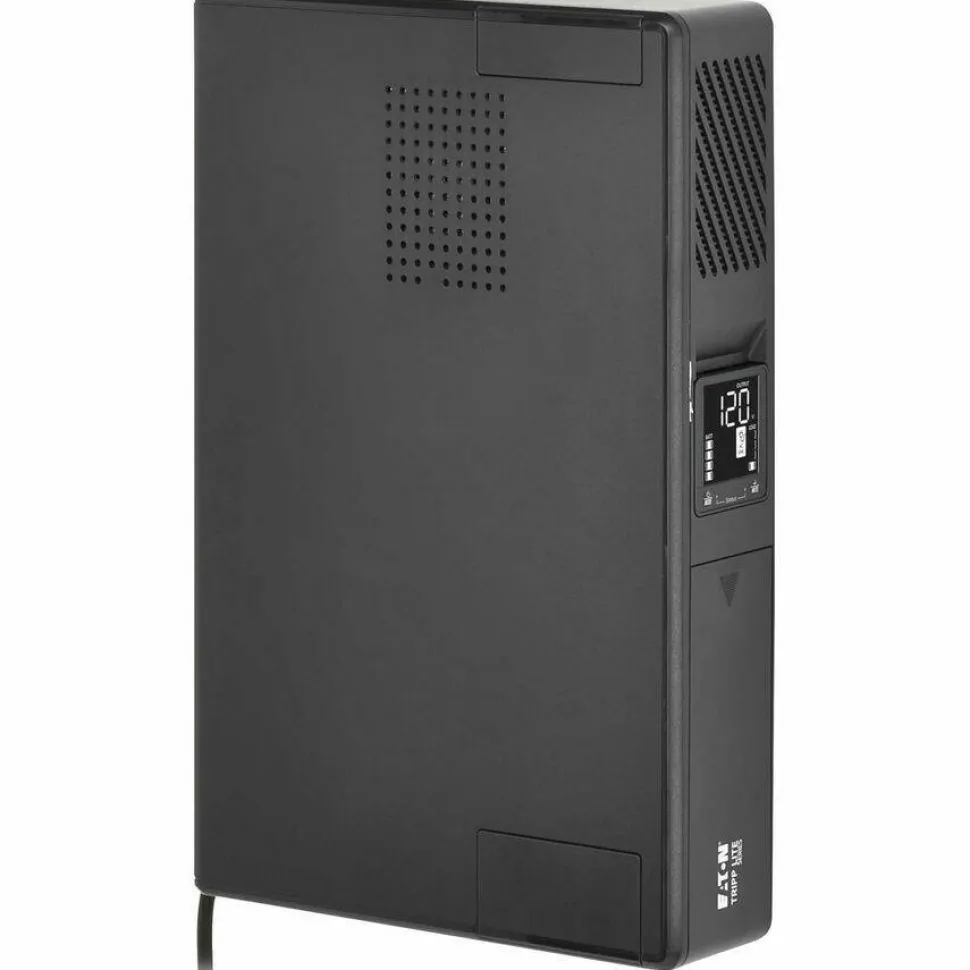

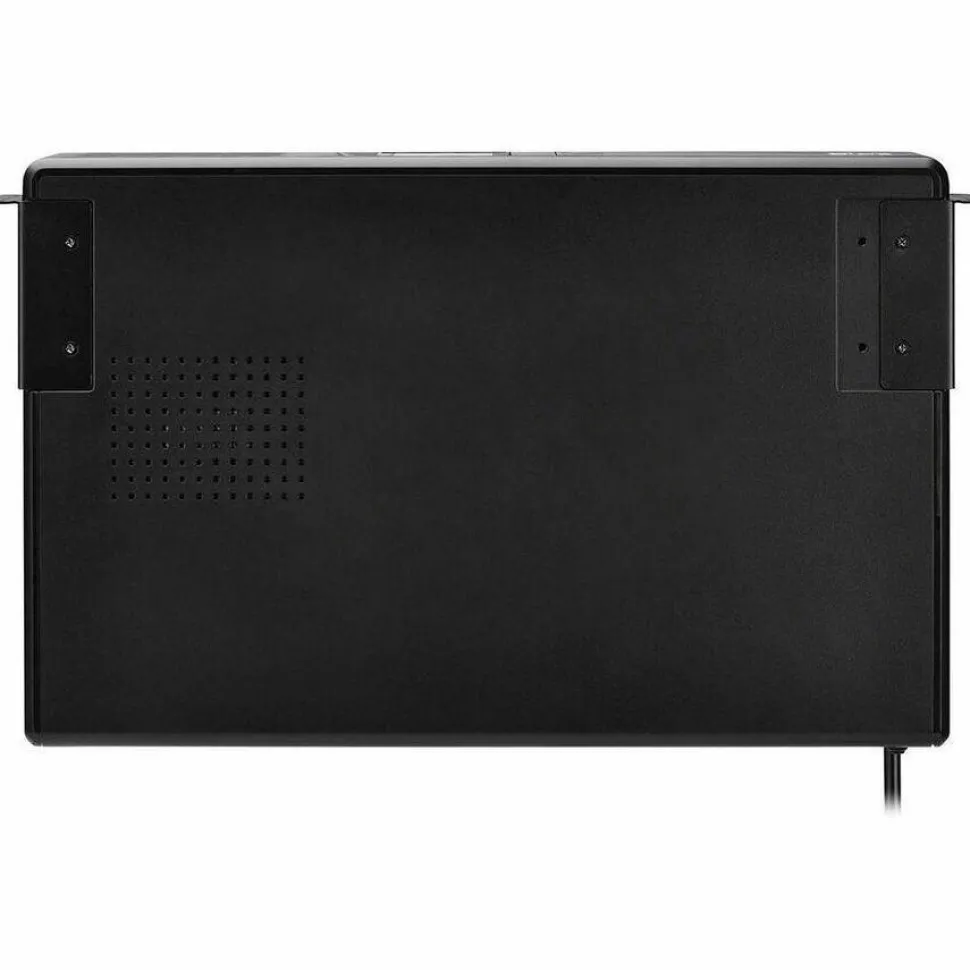

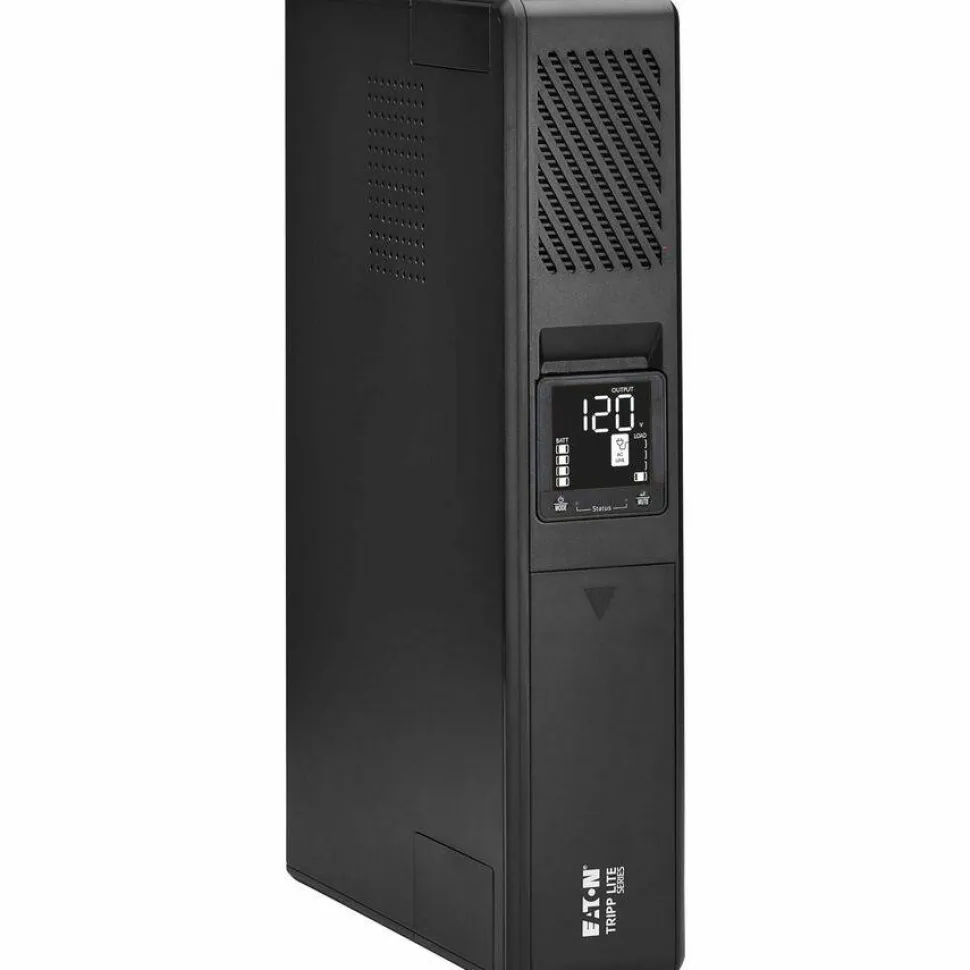

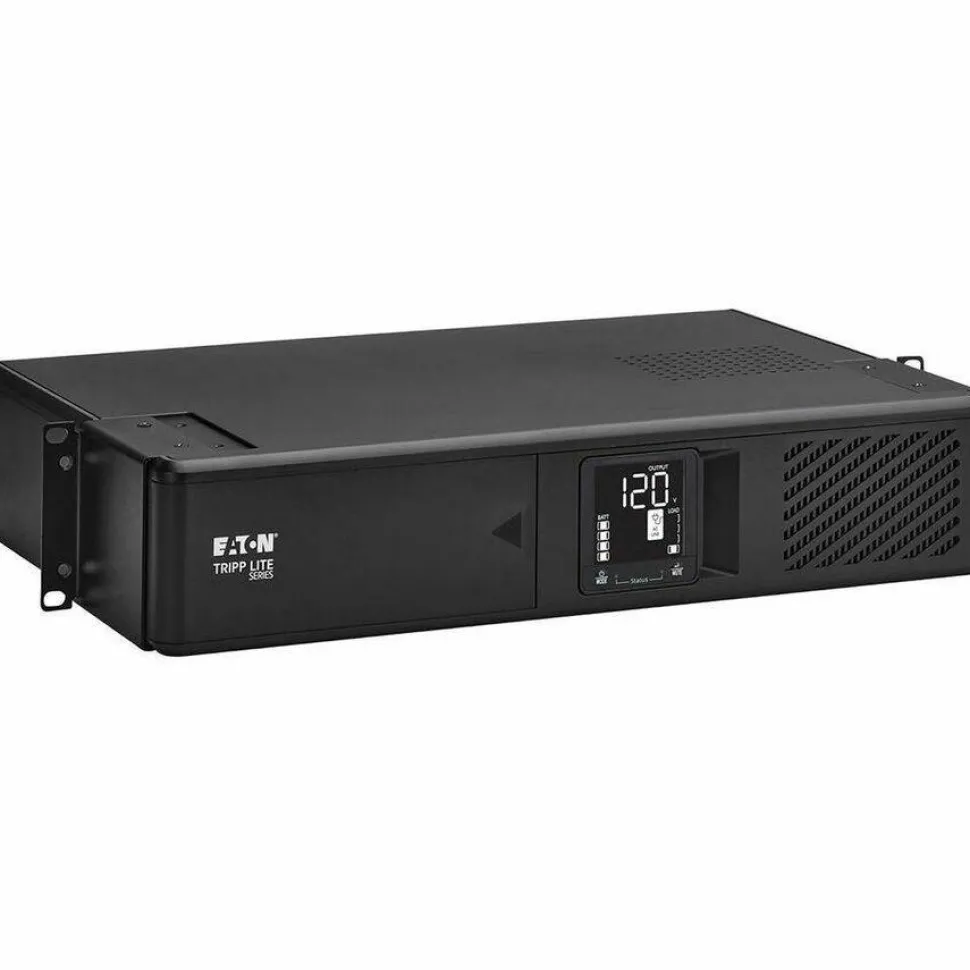

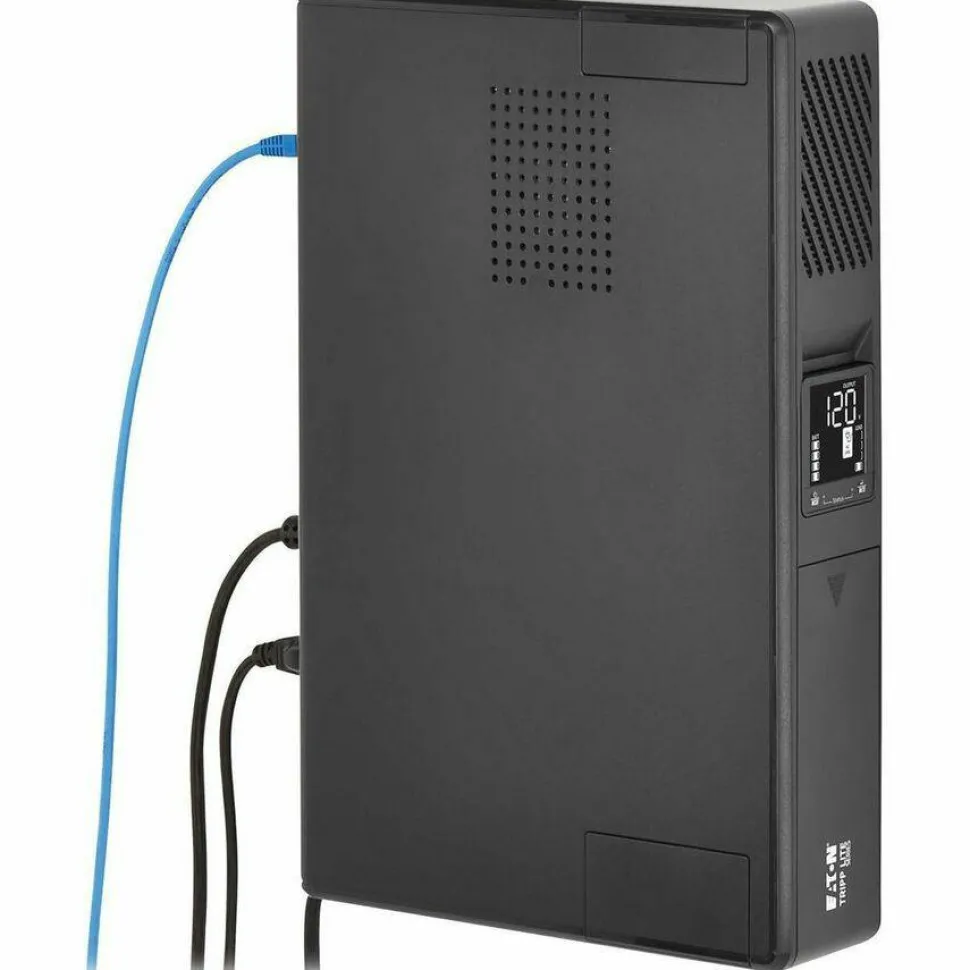

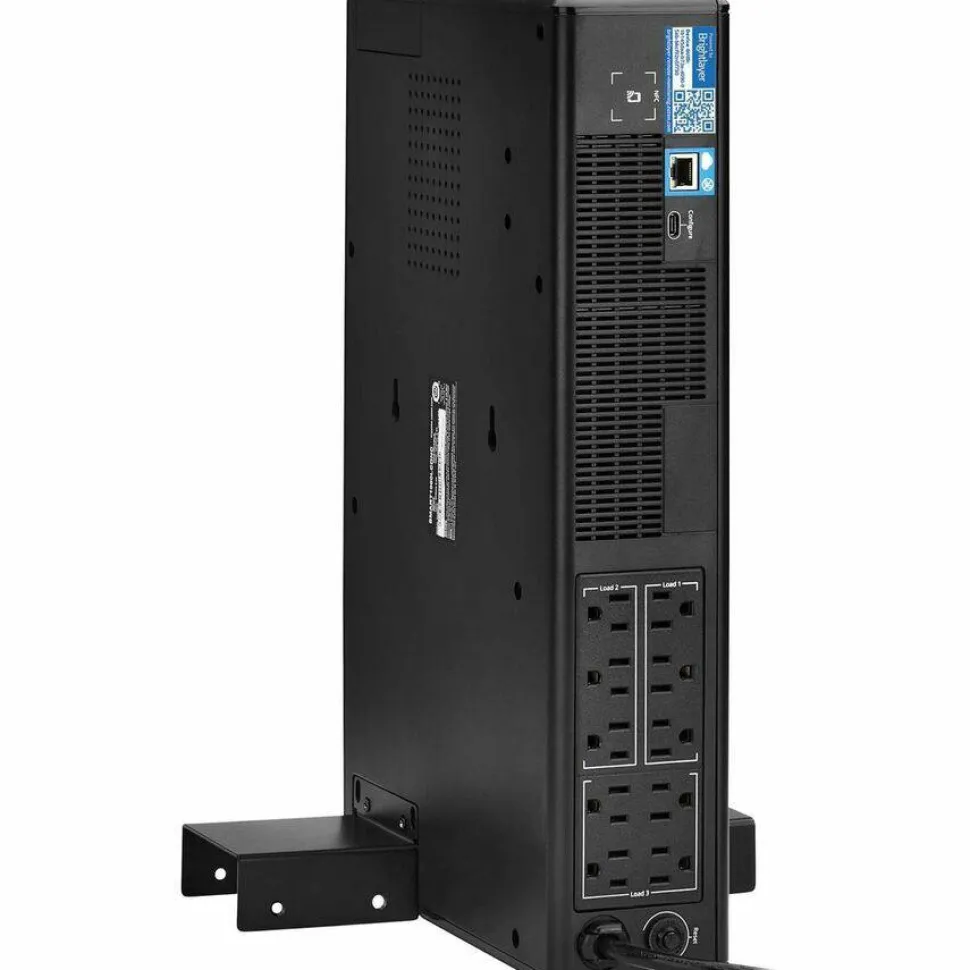

The SMART1000LCDNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It’s recommended for home, office and retail use, as well as network closets in both local and remote locations.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton’s cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit’s NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1000LCDNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1000LCDNC restarts automatically, regardless of battery charge level, saving you a costly site visit.

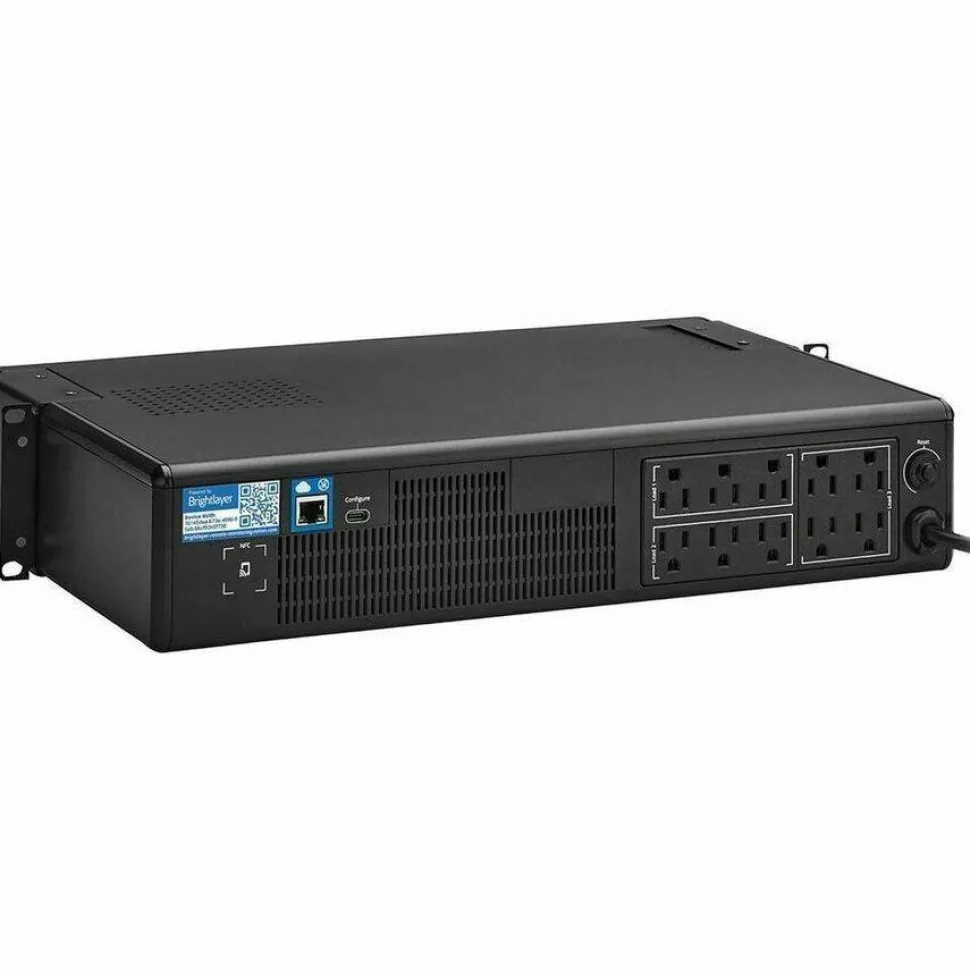

NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components

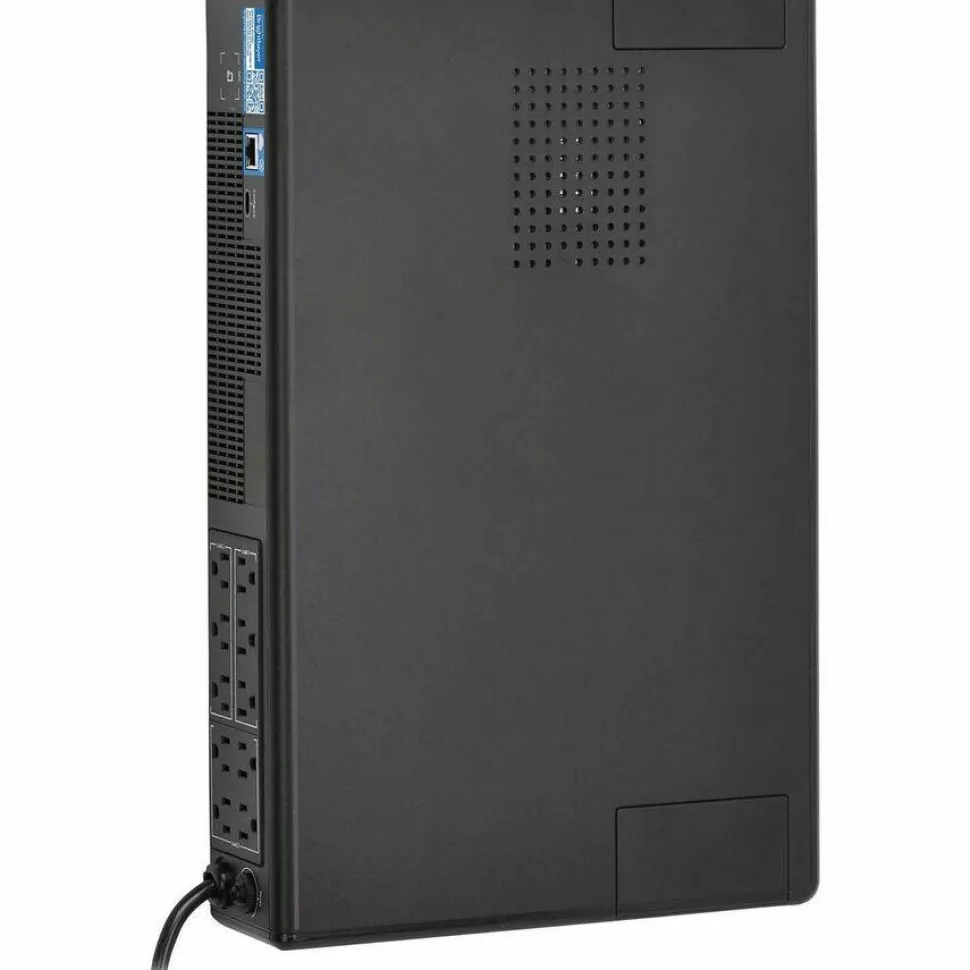

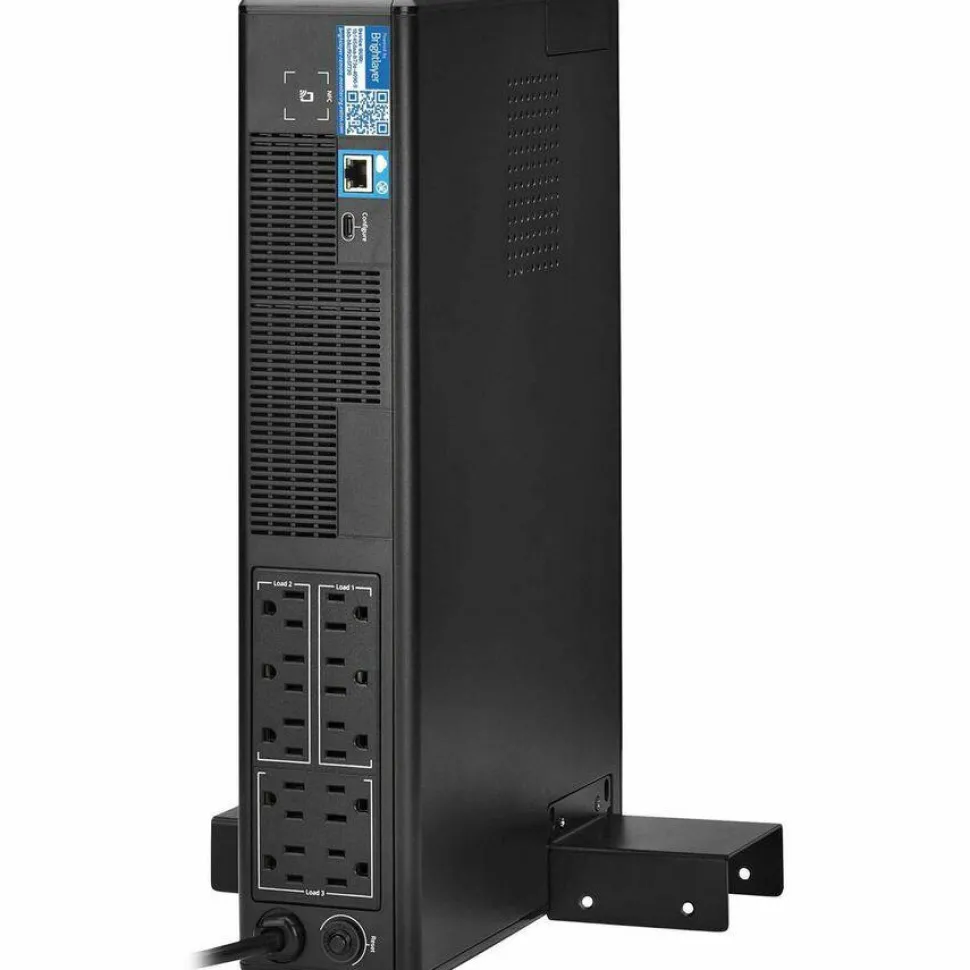

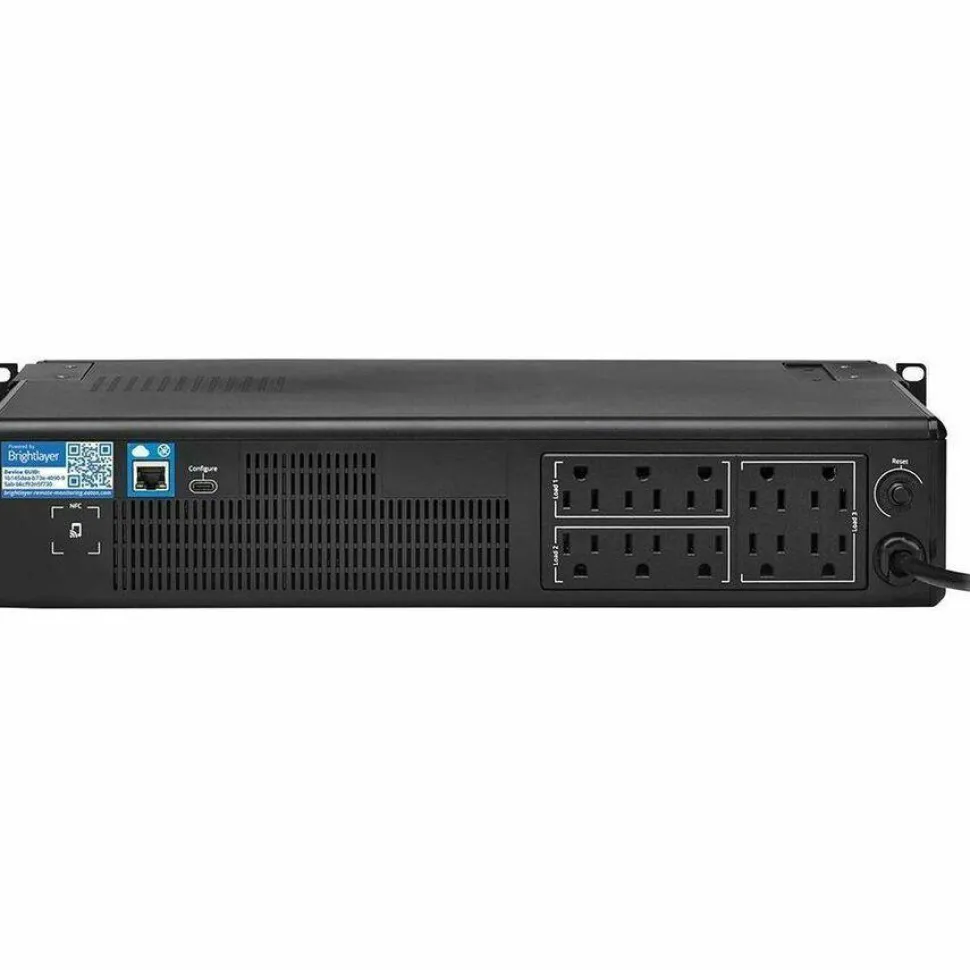

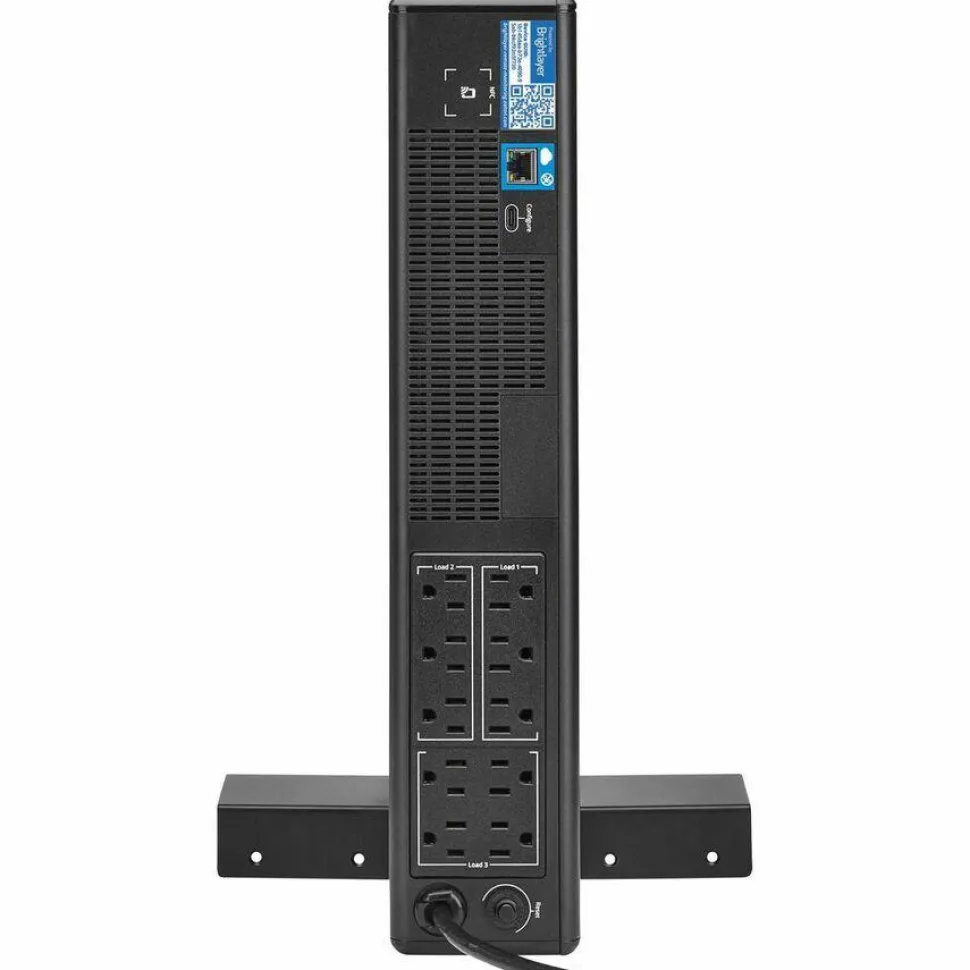

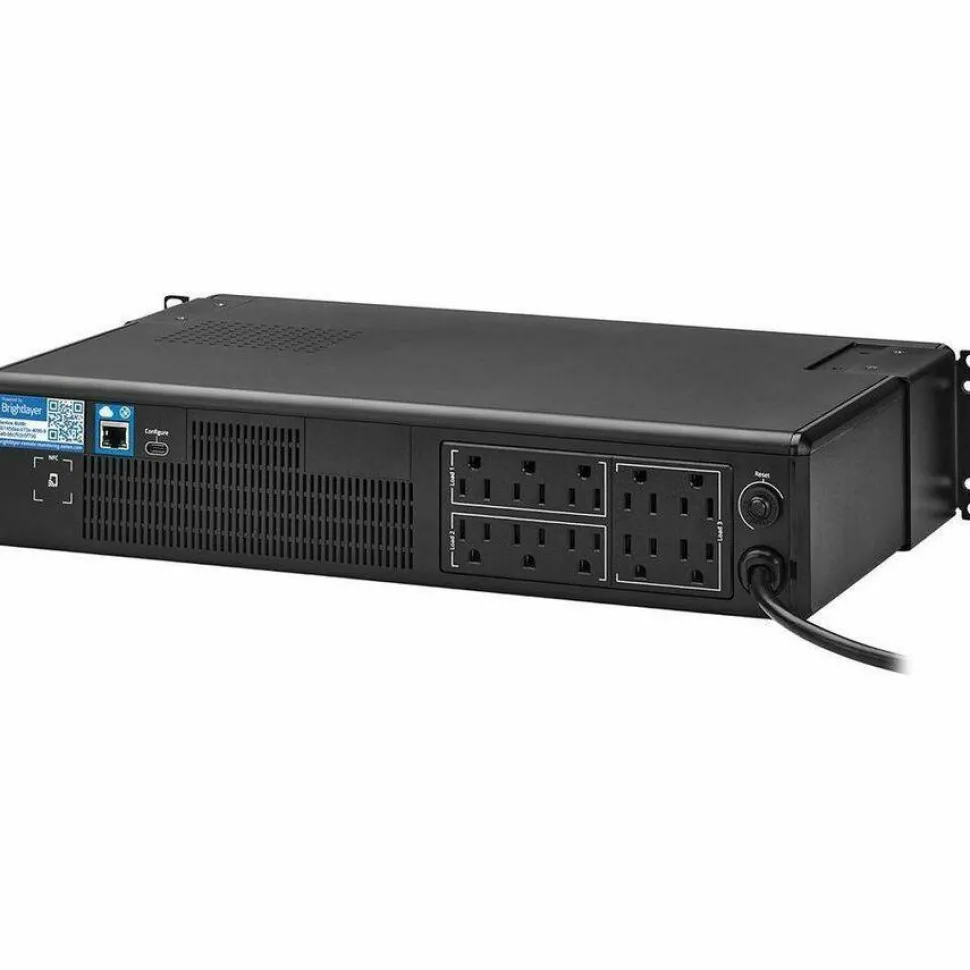

Ten 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera, router, network switch, server and other electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART1000LCDNC can correct brownouts as low as 97V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.

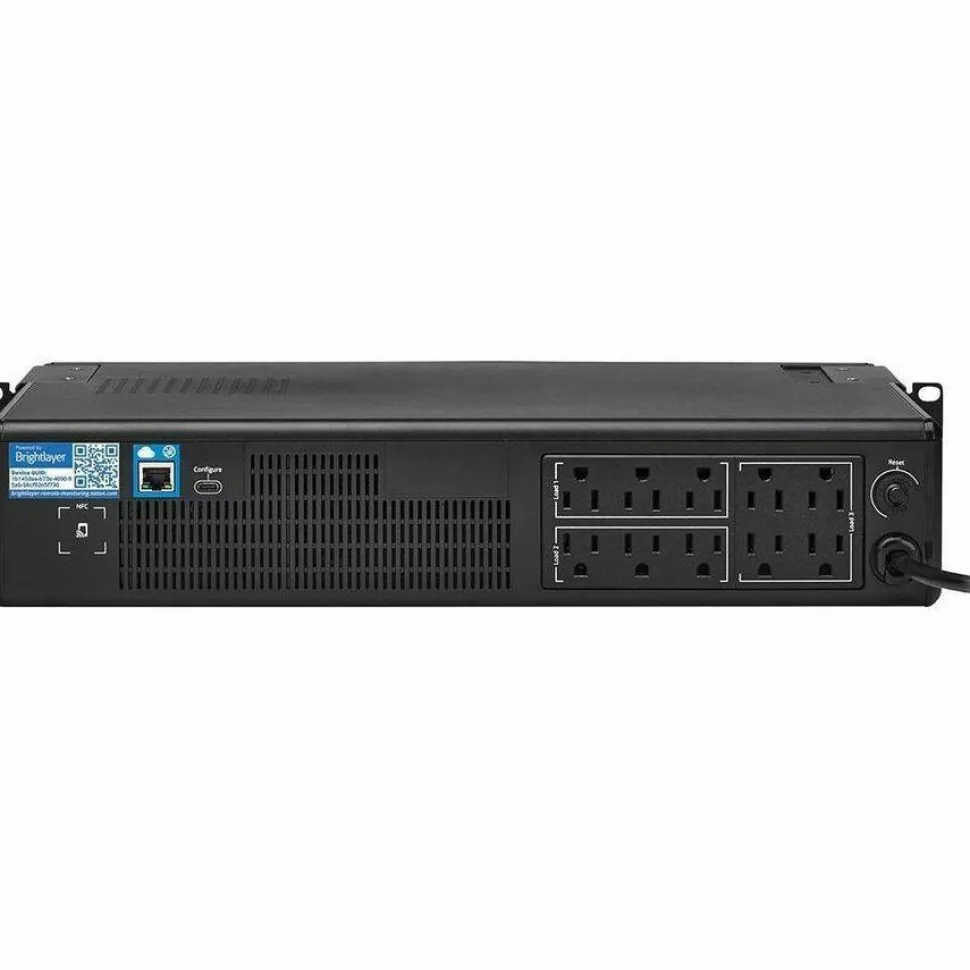

Communications Ports

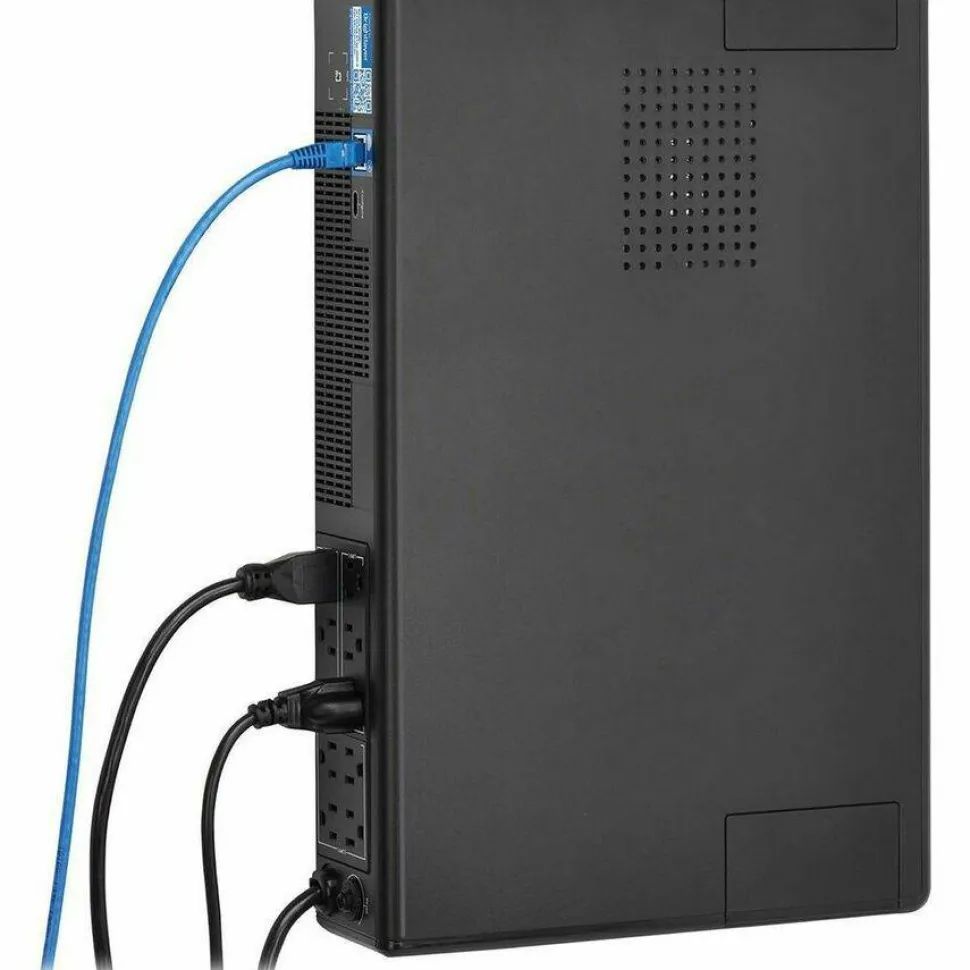

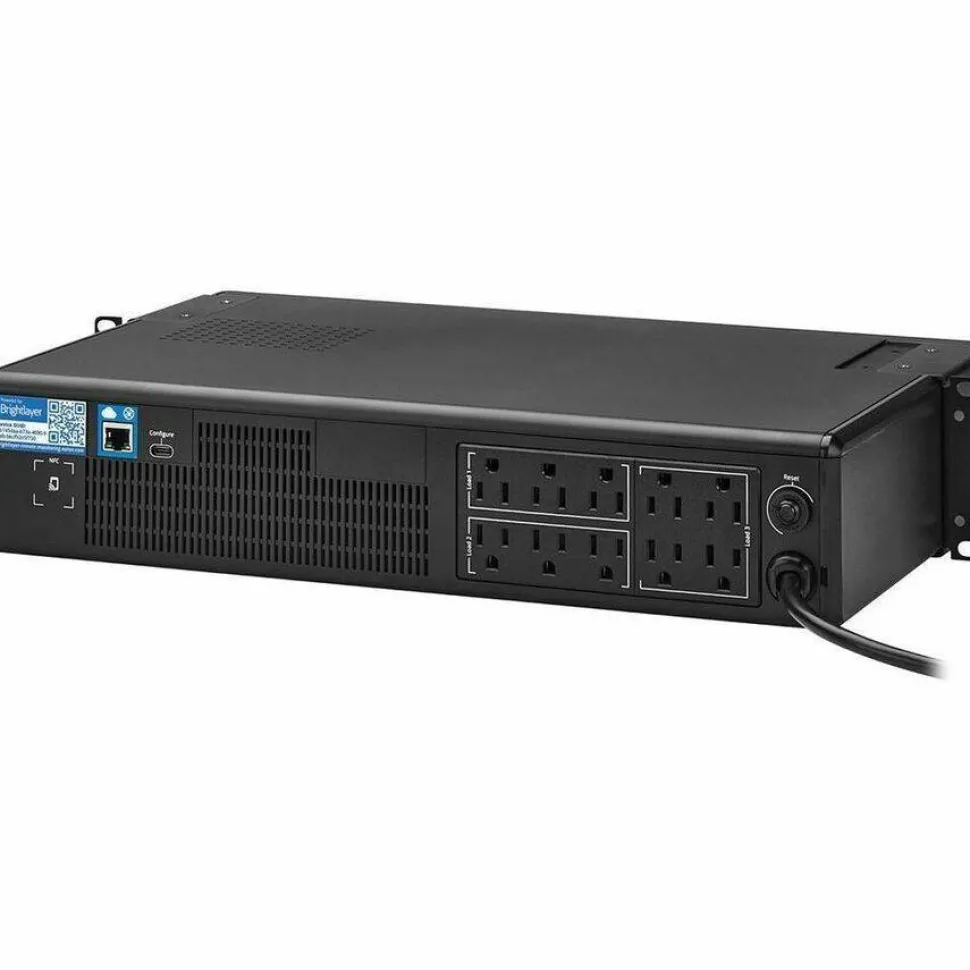

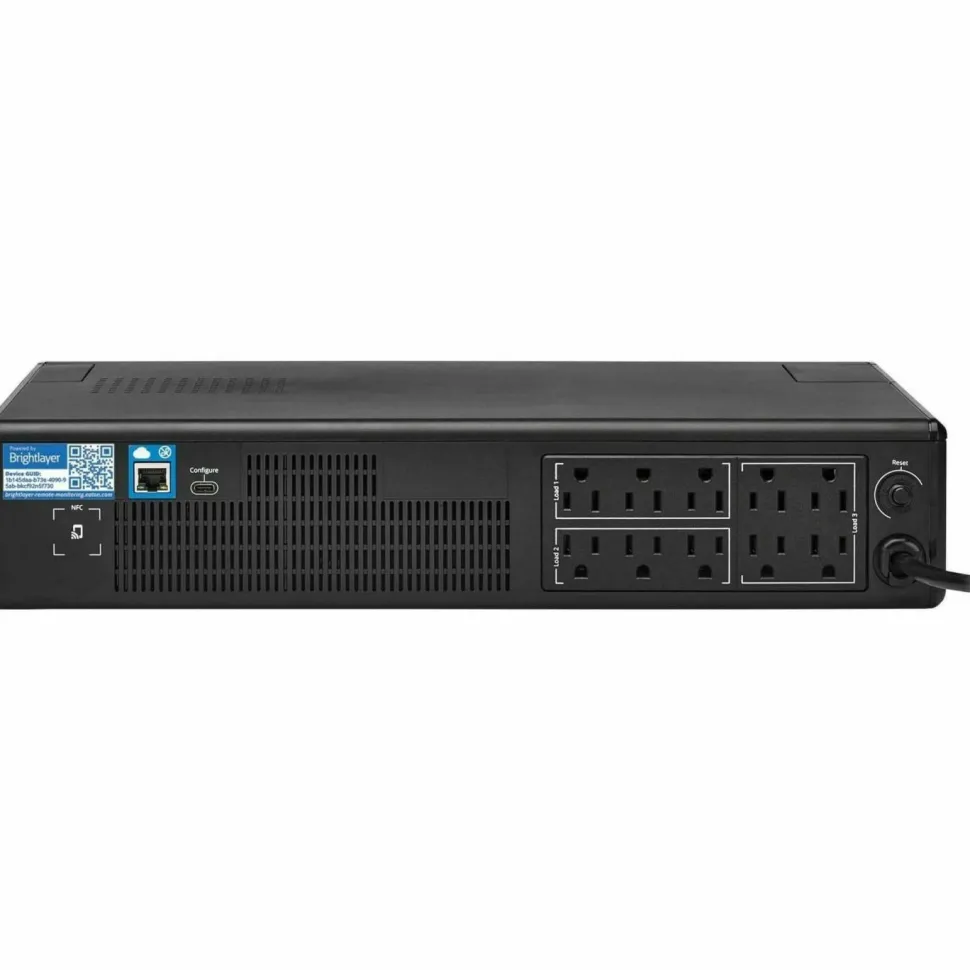

An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters.

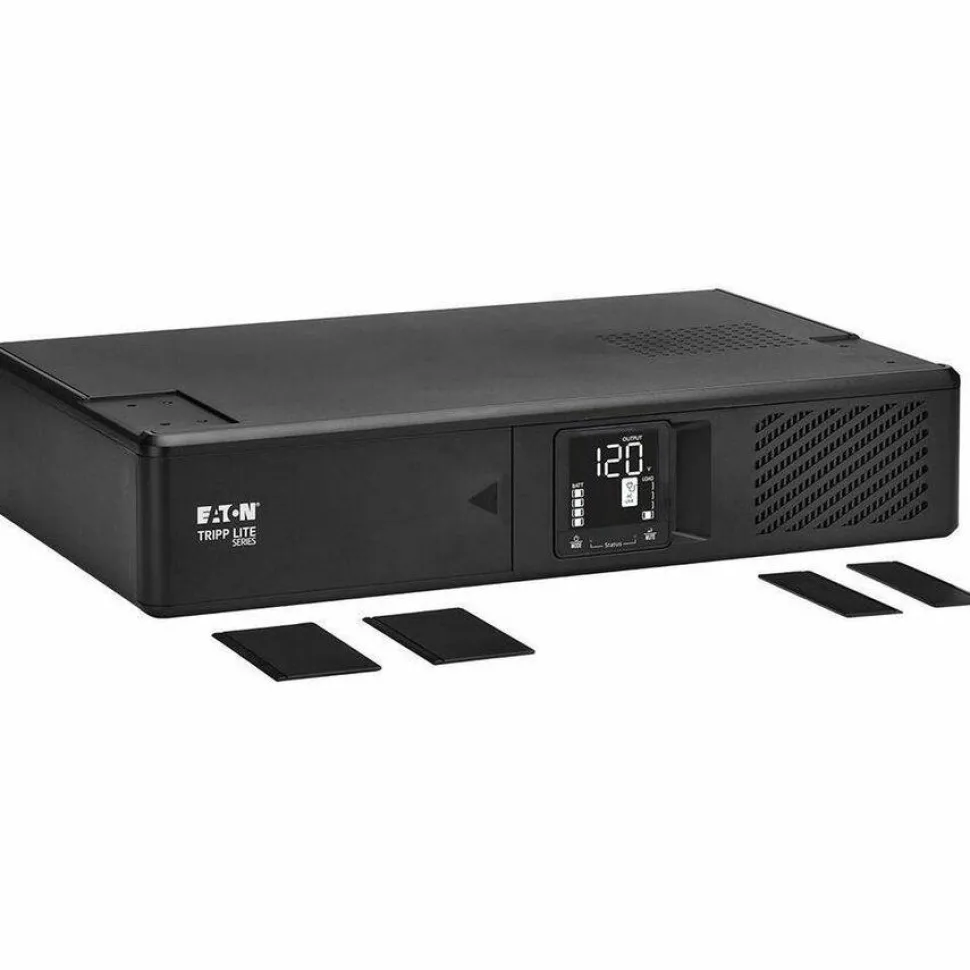

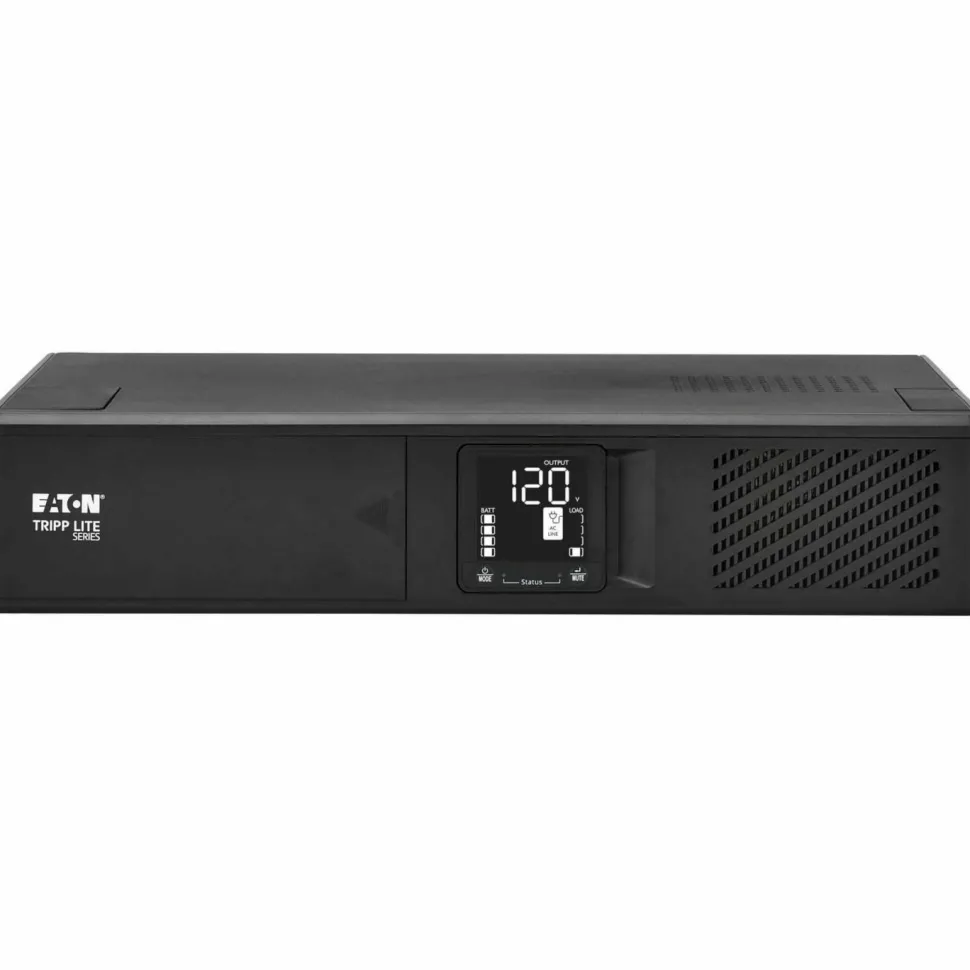

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7

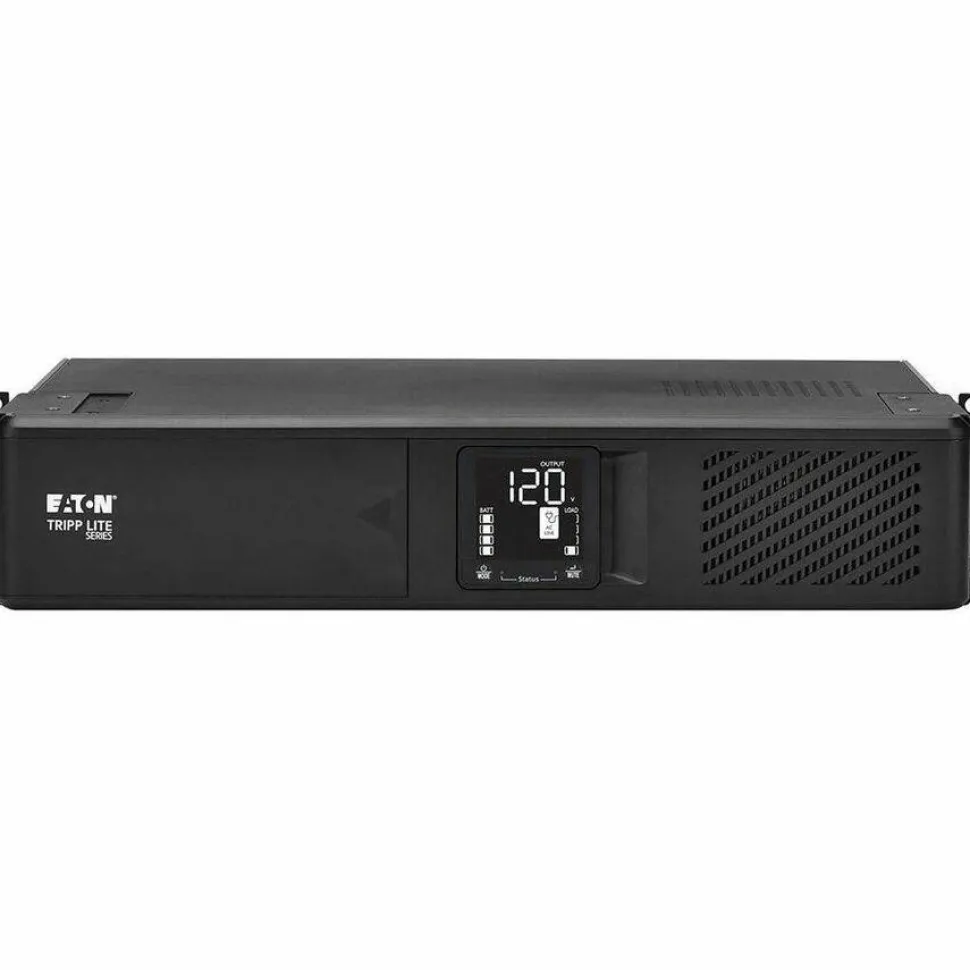

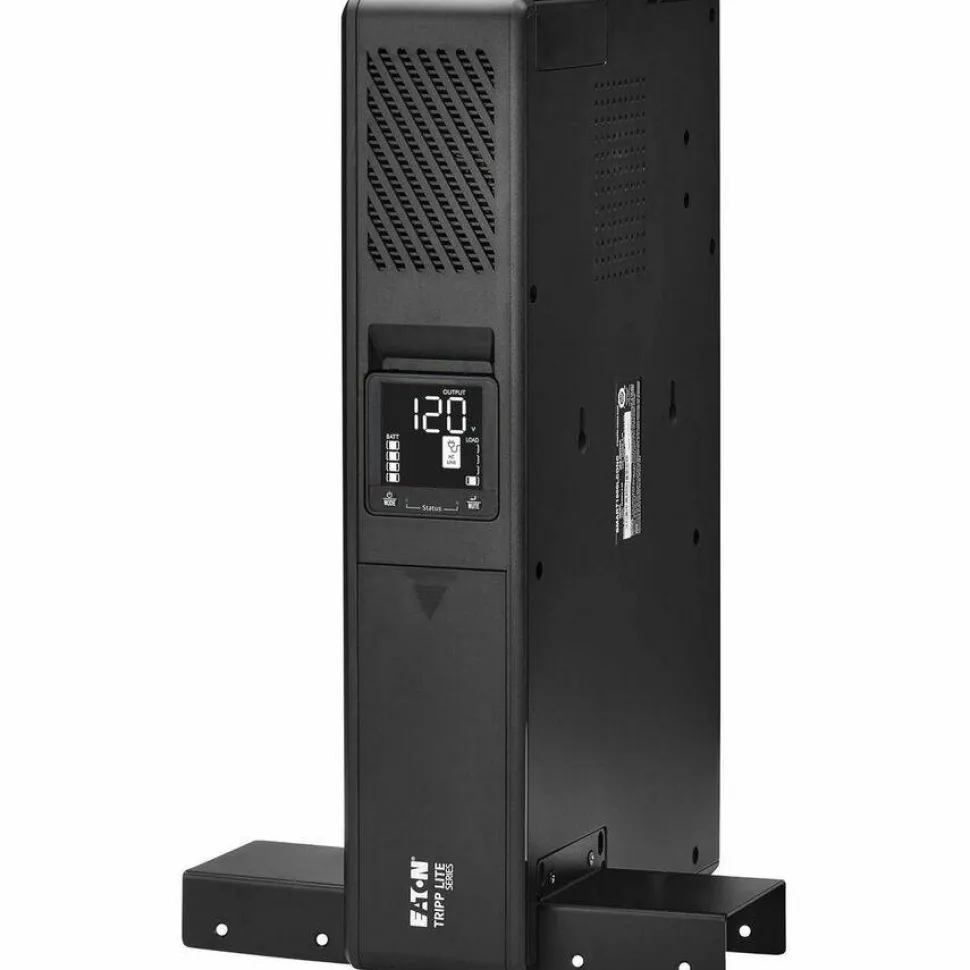

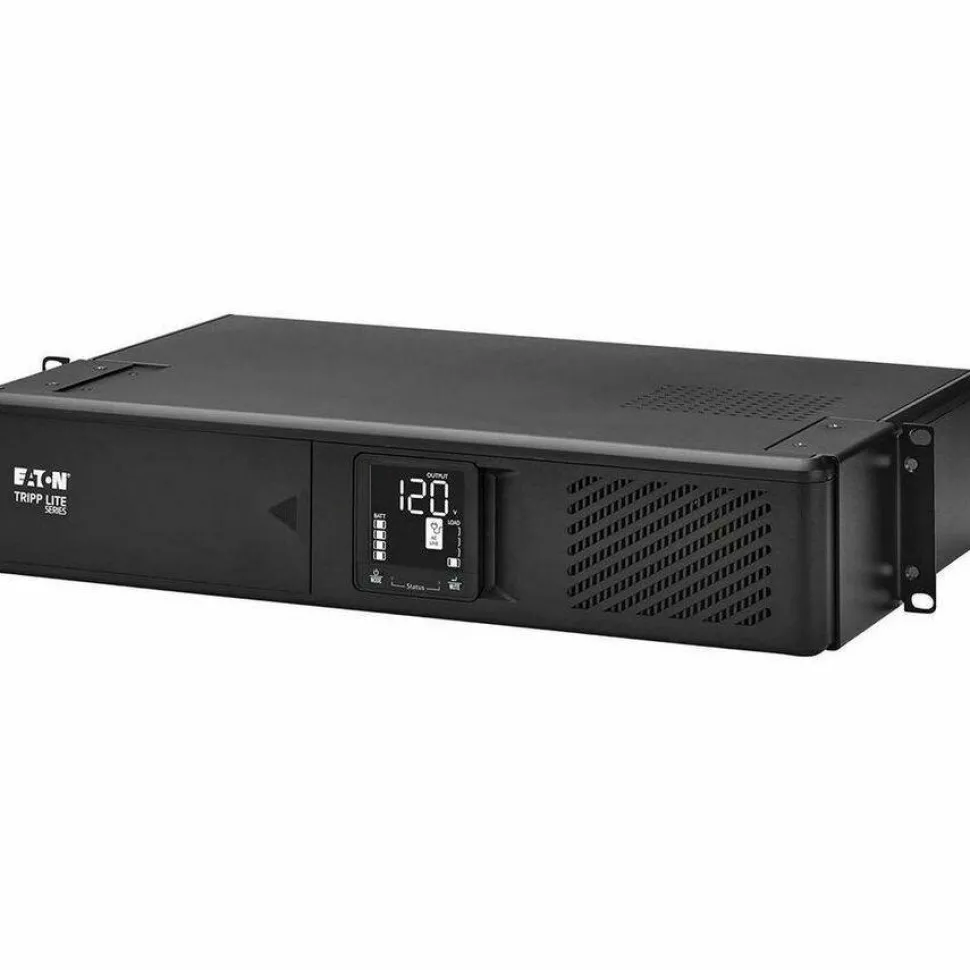

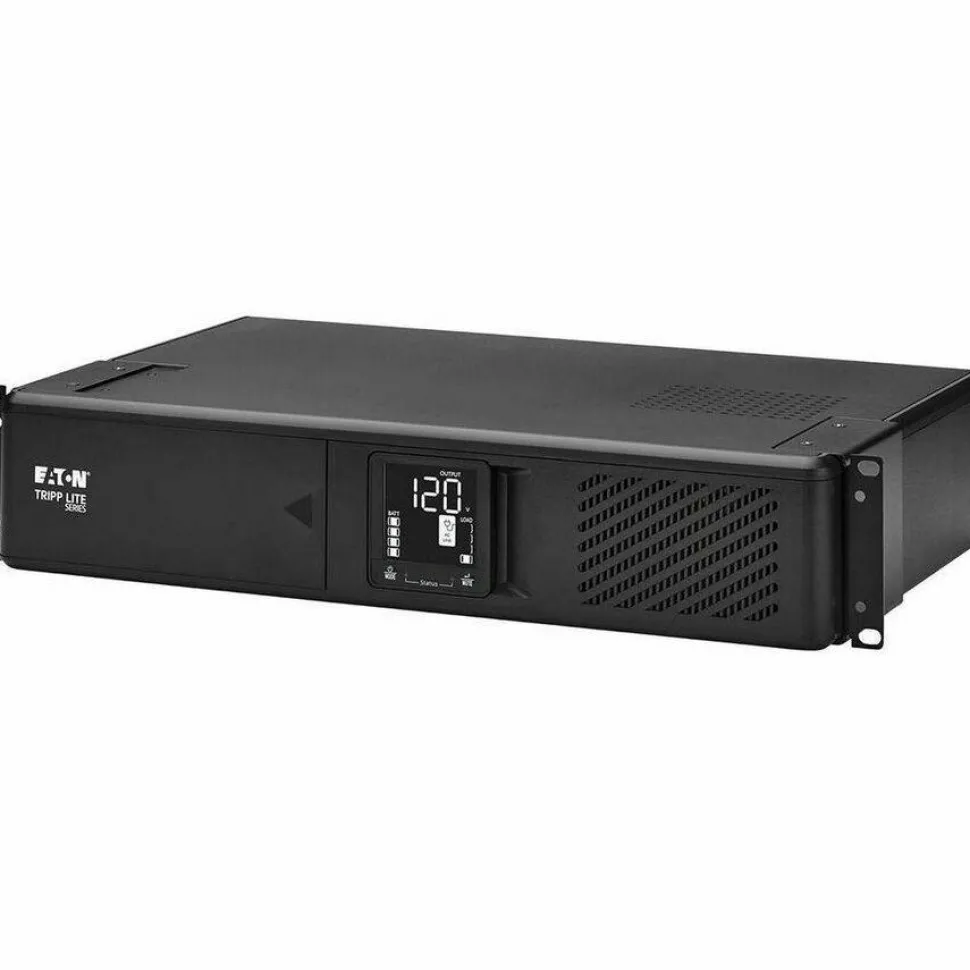

The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms.
Easy Preventative Maintenance and Initial Troubleshooting
The SMART1000LCDNC’s self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker on the rear of the UPS helps prevent dangerous system overloads.

Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
Cloud-connected UPS sets up in minutes to start protecting your devices
Create account with two-factor authentication for an additional layer of security
NFC technology allows easy configuration of network settings from your mobile device
Switchable load banks let you shut down or reboot devices using the mobile app
Restarts automatically when AC power is restored, even when battery level is low or absent
3-year limited warranty
$250,000 Ultimate Lifetime Insurance
Works adequately in situations where the supply is prone to sags and surges
Keep your sensitive devices powered with a backup of up to 2 minute at full load
Prevent critical data loss by staying powered during a blackout with up to 750 W load capacity
1000 VA load capacity – work without any interruption during power outages
Overload protection feature usually operates on an inverse time curve where the stable time becomes less as the current increases
8 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
Replaceable battery for optimal performance with maximum charged dependability
Lead Acid battery chemistry delivers energy to the retail through an easily controlled reaction
NEMA 5-15P plug/connector type for convenient usage with added dependability
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency

Product Specifications

Alarm

Power Failure Low Battery
Application/Usage

Retail POS Hospital Home Office Desktop High-end System Network Home Network Server Workstation Computer Monitor CCTV Camera Router Network Switch Electronic Device
Backup/Run Time (Full Load)

2 Minute
Backup/Run Time (Half Load)

7 Minute
Battery Characteristics

Valve-regulated
Battery Chemistry

Lead Acid
Brand Name

Tripp Lite series
Certifications & Standards

CAN/CSA C22.2NOM (Mexico)UL 1778FCC Part 15 Class B (USA)
Circuit Breaker

Yes
Cord Length

5 ft
Country of Origin

Vietnam
Depth

11″
Directly Connected Equipment Guarantee

$250000 Lifetime
Display

LCD
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Features

Audible Alarm Cold Start Function
Form Factor

Desktop/Tower/Rack
Height

3.43″
Hot Swappable

Yes
Input Current

8.40 A
Input Frequency

50 Hz 60 Hz
Input Voltage

120 V AC
Input Voltage Range

97 V AC – 145 V AC
Limited Warranty

3 Year
Load Capacity (VA)

1000 VA
Load Capacity (Watt)

750 W
Manufacturer Part Number

SMART1000LCDNC
Maximum Operating Temperature

104°F (40°C)
Minimum Operating Temperature

32°F (0°C)
Network (RJ-45)

Yes
Network Management

Network Card
Output Frequency

50 Hz 60 Hz
Output Voltage

120 V AC
Overload Protection

Yes
Package Contents

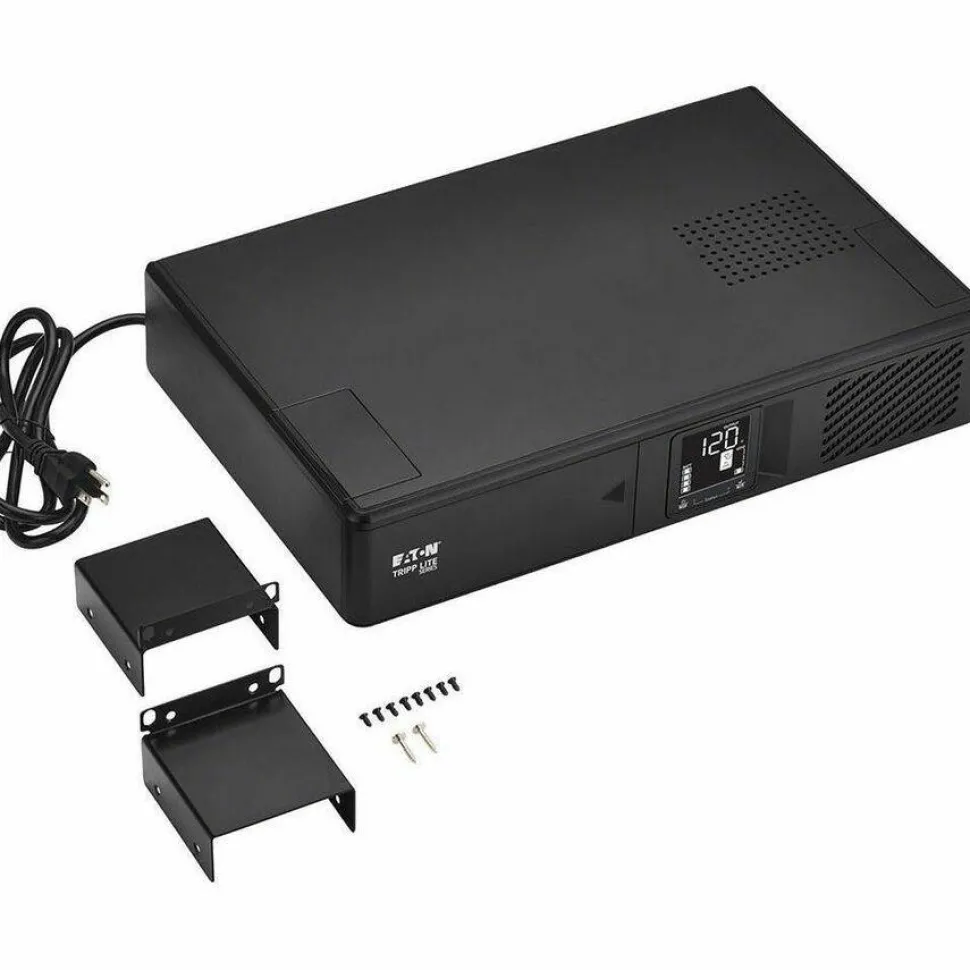

SMART1000LCDNC 1000VA Desktop/Tower/Rack UPSMounting HardwareQuick Start Guide
Phase

Single Phase
Plug/Connector Type

NEMA 5-15P
Product Model

SMART1000LCDNC
Product Name

SMART1000LCDNC 1000VA Desktop/Tower/Rack UPS
Product Type

Line-interactive UPS
Rack Height

2U
Receptacle Type

NEMA 5-15R
Status Indicators

Front Panel LCD Display:UPS status Input VoltageOutput VoltageEstimated Runtime (minutes)Output Load PercentageOutput Load WattageBattery VoltageGraphical 4-Bar Battery Charge level 4 bar load Level UPS status AC Powered Battery operationAlarm muted (icon flashing)Alarm disabled (icon steady on) LED Indicators:AC operationBattery chargingUPS fault
Surge Energy Rating

380 J
Surge Suppression

Yes
Thermal Dissipation

12 W
USB

Yes
Waveform Type

Sine Wave Pulse-width Modulated Sine Wave
Width

17.20″
