Kensington SD5600T Docking Station

$128.89

SKU: SKUZfwVgNUwU2 Categories: Computer Accessories, Laptop Accessories, Technology Tag: Kensington Brand: Kensington

Description
Reviews (0)

Product Description

Kensington SD5600T Docking Station

for Monitor, Notebook – Charging Capability – Memory Card Reader – SD, microSD – 170 W – USB Type C – 2 Displays Supported – 4K @ 60Hz, 4K @30Hz, FHD @ 60Hz, QHD @ 60Hz – 3840 x 2160, 1920 x 1080, 2560 x 1440 – 7 x USB Ports – 6 x USB Type-A Ports – USB Type-A – 1 x USB Type-C Ports – USB Type-C – Network (RJ-45) – HDMI – DisplayPort – Black, Silver – Wired – Gigabit Ethernet – Windows 10, Mac OS X 10.15 Catalina – 96W – Desktop

Universal compatibility
Perfect for hot-desking and mixed deployment environments, the universally compatible SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS. Now compatible with Thunderbolt 4 laptops at Thunderbolt 3 features.
Thunderbolt 3 technology

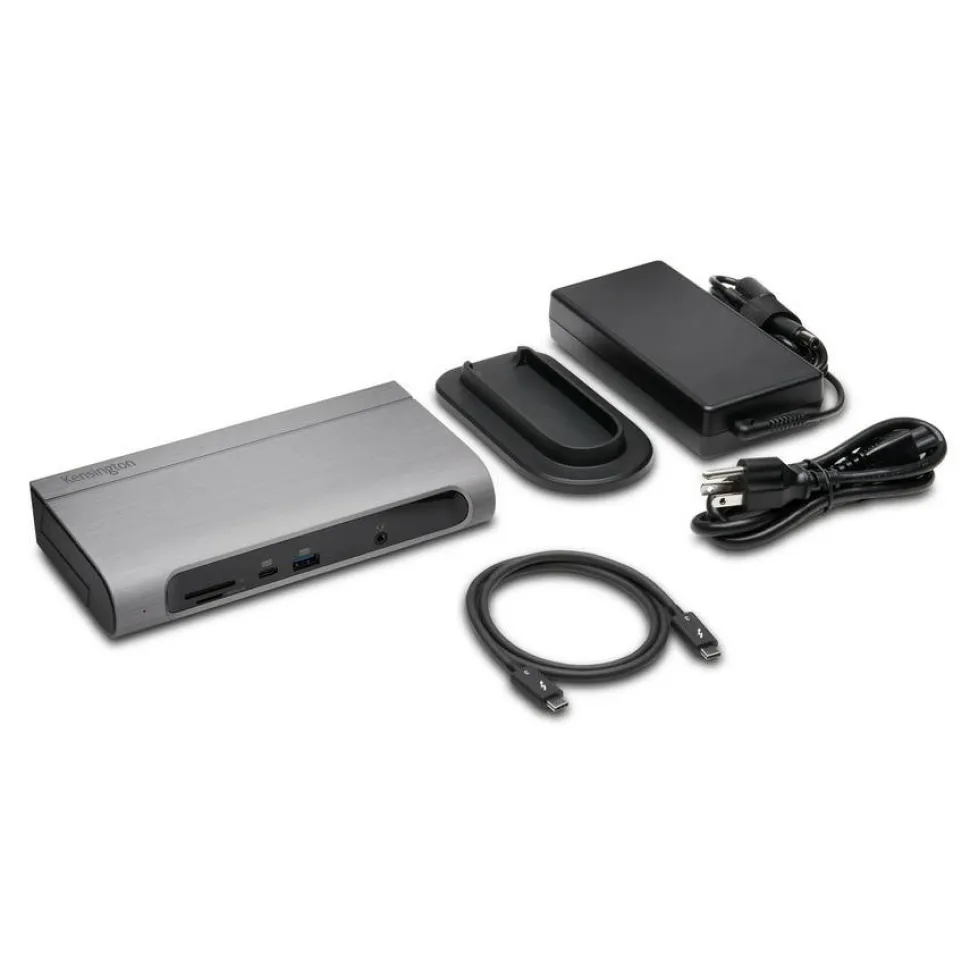

Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included 0.8m (2.6 ft.) Thunderbolt 3 cable, for a quick and powerful plug and play experience.
Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices

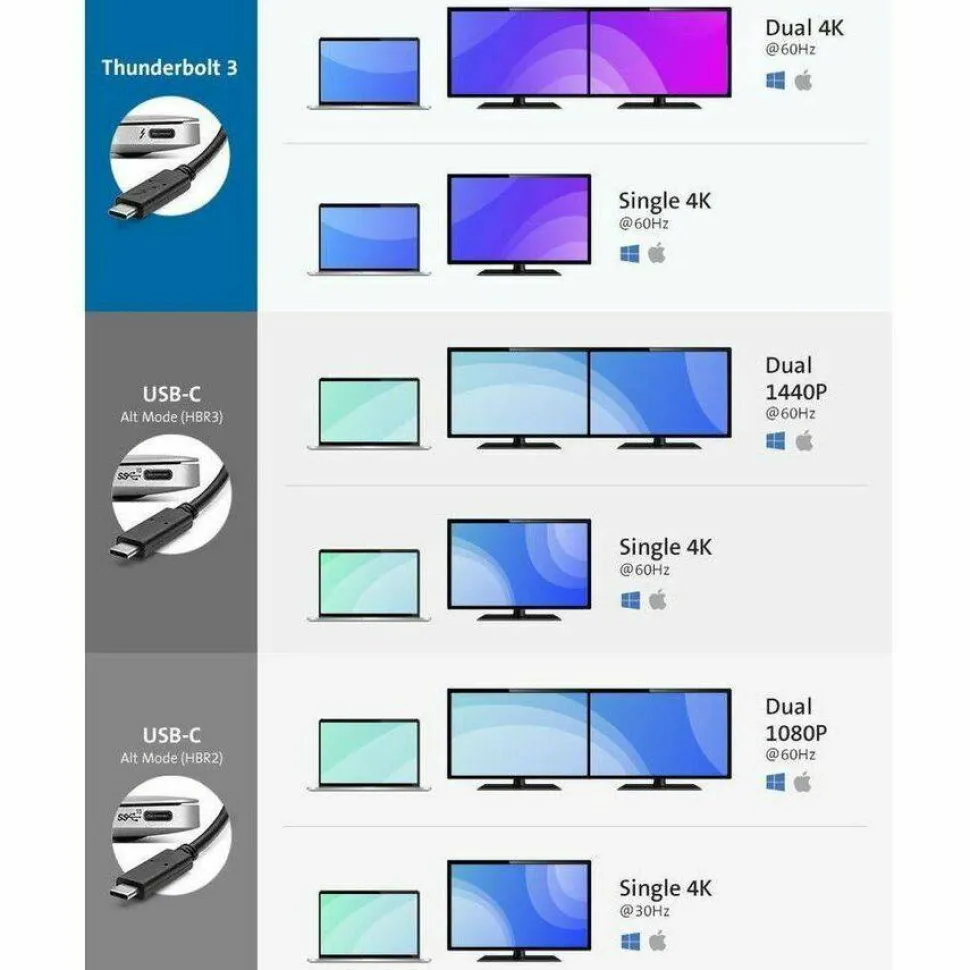

Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 30Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST).
100W Power Delivery
Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro.

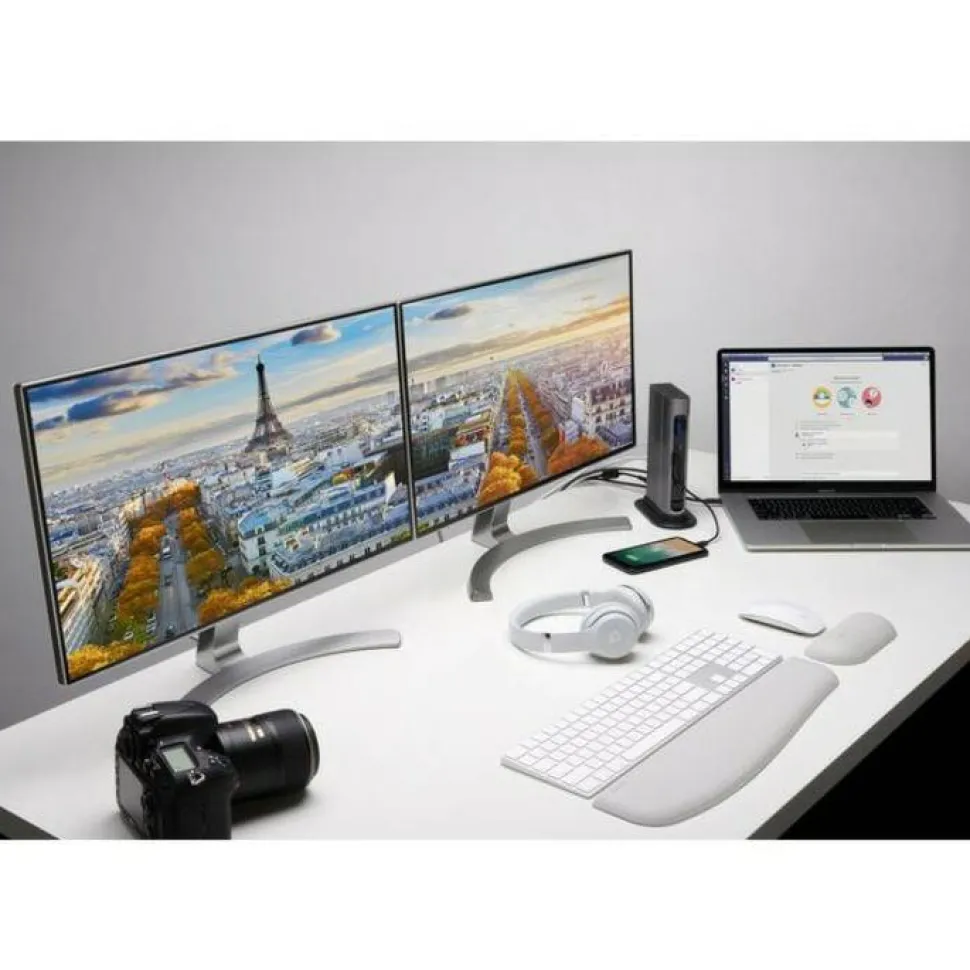

Productive desktop setup

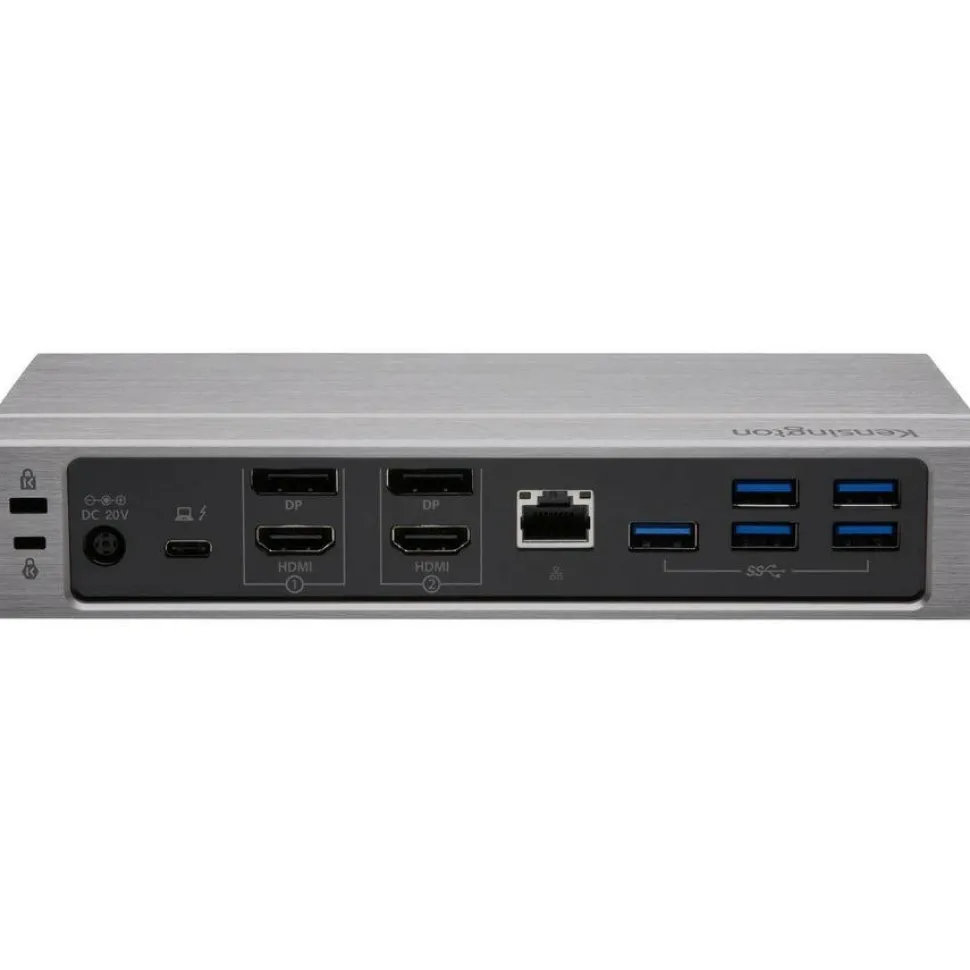

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.

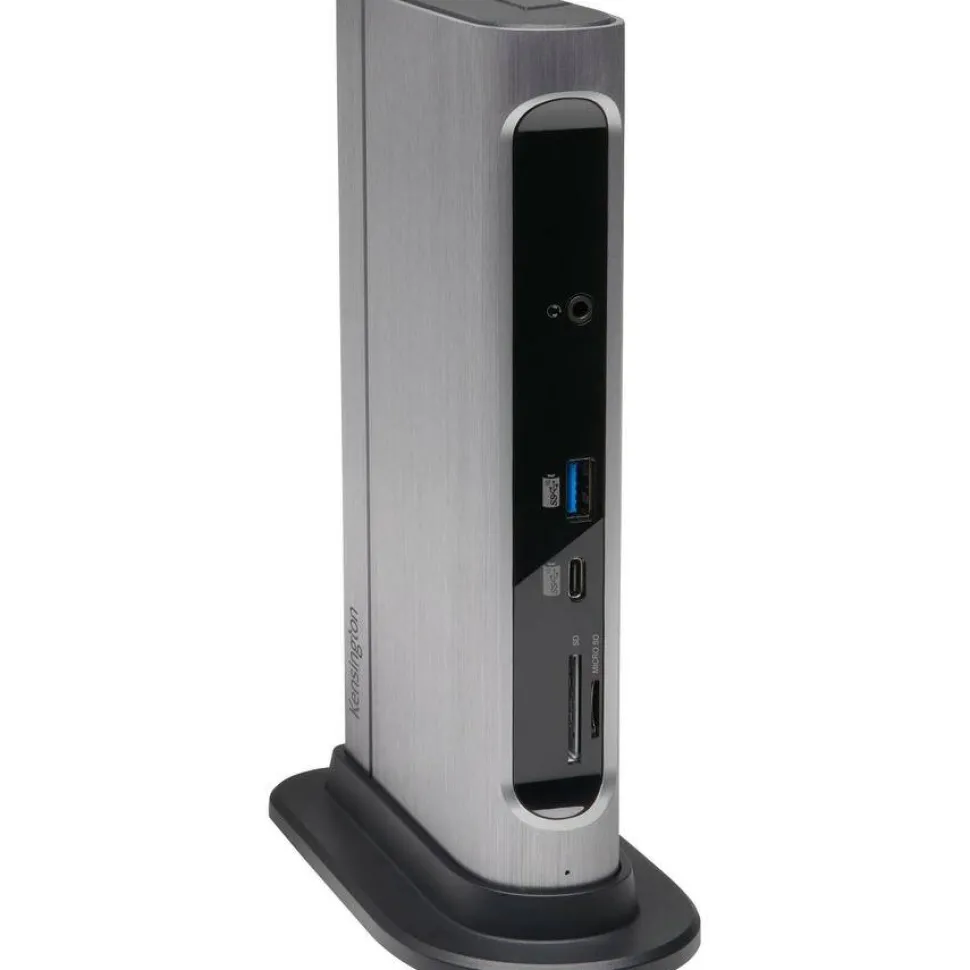

Flexible mounting options

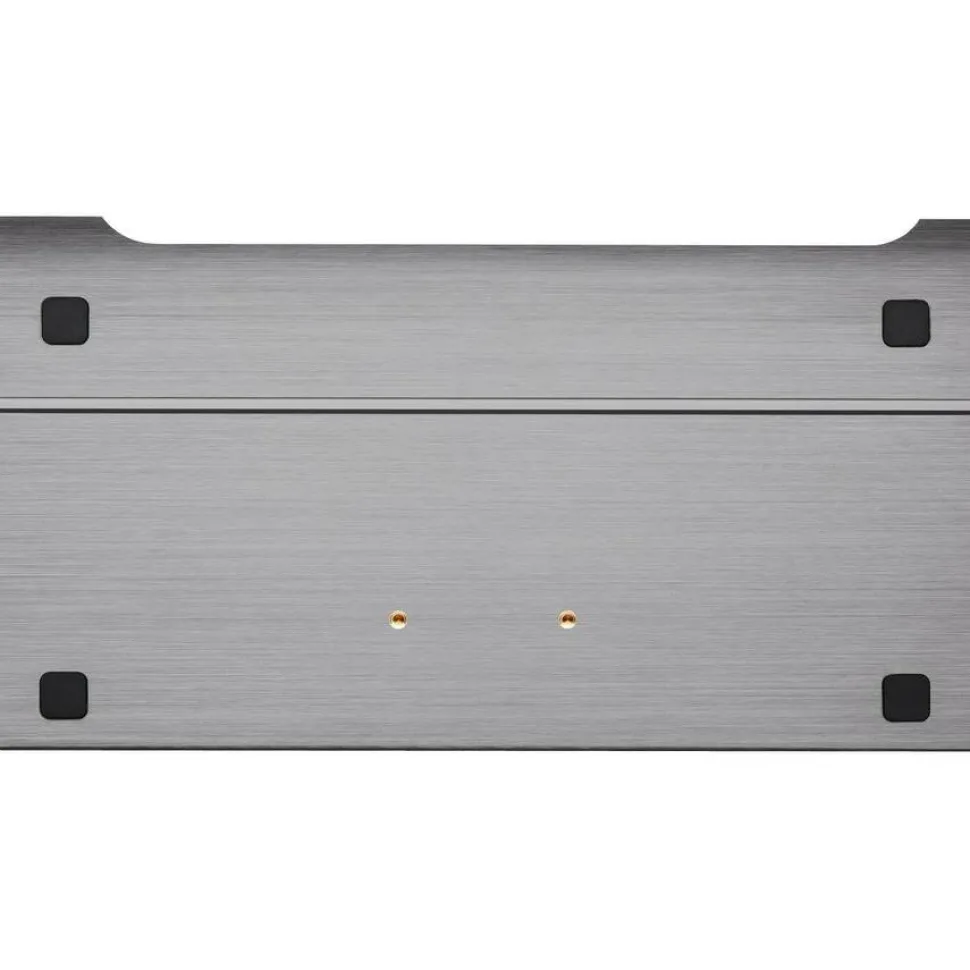

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).
Built-in SD and Micro SD card readers
UHS II SD 4.0 card readers enable ultra-fast file transfer.
Free Kensington DockWorks™ software and three-year warranty
For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you’re covered by Kensington.
The SD5600T Thunderbolt™ 3 and USB-C™ Dual 4K Hybrid Docking Station – 100W PD – Win/Mac is the ultimate docking station for maximum productivity and compatibility. Features include universal compatibility, the flexibility to select between HDMI 2.0 and DP 1.2, horizontal or vertical placement options, built-in SD and Micro SD card readers, seven USB ports (two with charging), one Gigabit Ethernet port and one audio combo jack. Three-year warranty.
Best for: Thunderbolt 3, Thunderbolt 4 and USB-C Laptops and Monitors that support up to 4K
Connection Technology: Thunderbolt 3 & USB-C (Thunderbolt 4 laptops supported at Thunderbolt 3 features)
Power Delivery: Supports USB-C PD 3.0 (100W of laptop charging)
Compatibility: Windows 10 and macOS X 10.14 or later
No. of monitors supported: 2
Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2

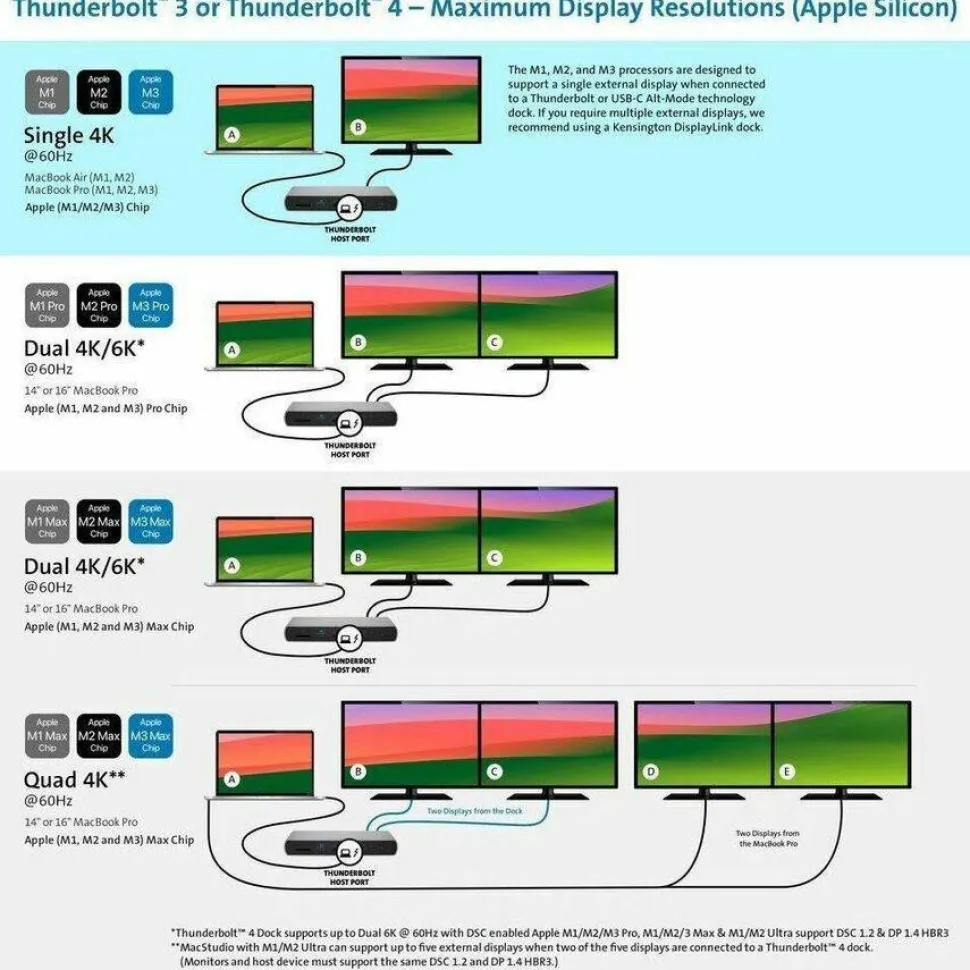

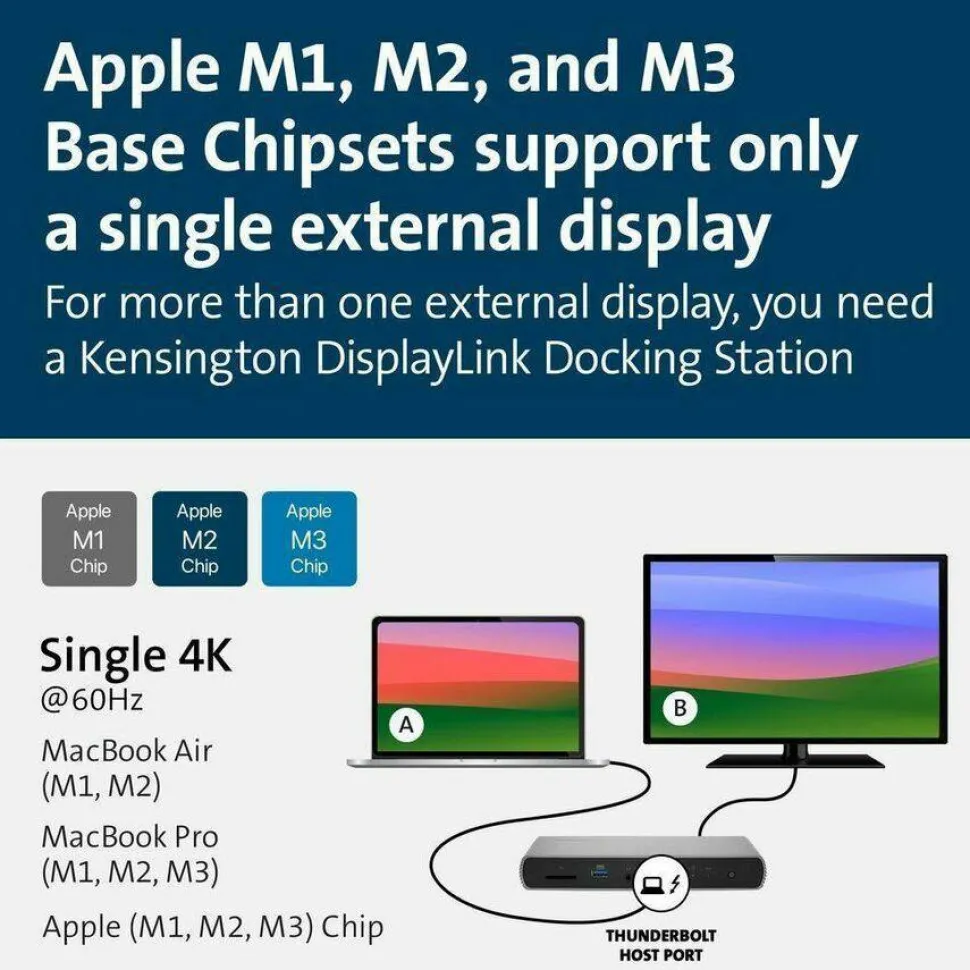

Apple M1 – While this docking station will work with the M1 MacBook, only a single video output is supported. For multi-monitor support on your M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (e.g.: SD4700P, SD4750P, SD4780P or SD4900P) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974)
More from the Manufacturer

Wired connectivity technology is highly feasible, offers maximum usability
Charging capability puts less strain on the charging port to allow prolonged usability
USB Type C host interface allows quick transmission of data at a higher rate for your convenience
Monitor device supported for your convenience and better usability
Plug & Play feature for maximum usage productivity with added dependability
Desktop form factor for your docking station takes up far less physical space, thus providing maximum space efficiency
Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
Power Adapter power source type for your docking station provides maximum energy feasibility and added surveillance productivity
The HDMI supports digital audio/video output to a wide assortment of HD gadgets
7 USB ports allows quick transmission of data at a higher rate for your convenience

Product Specifications

Additional Information

Software: For Thunderbolt mode in a Windows laptop, please make sure the Intel Thunderbolt software is installed and set to turn on Additional Software Information: DockWorks (Windows 10, macOS 10.15+) USB-C Power Delivery: 5V/ 9V/ 12V/ 15V/ 20V @ 3A (up to 96W, 20V @ 5A) Enclosure: Aluminum Anodizing Fine Brushed Finish: PC+ABS Bottom: Metal Base Plate: Sheetmetal VESA Mount Compatible: Yes Power Adapter Rating Input: 100-240V; 1.8A / Output: 20V DC 8.5A (170W) Relative Humidity: 55% operating temperature @ 77°F (25°C) Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -0.4 to 140°F (-18 to 60°C) Certification & Compliance FCC IC CE RCM VCCI CB ACCO RSL Maximum Resolution Supported TB3 mode: Single Monitor: 4K @ 60Hz Dual Monitors: 4K @ 60Hz USB-C Alt mode: Single Monitor: 4K @ 30Hz (HBR2) Single Monitor: 4K @ 60Hz (HBR3) Dual Monitors: 1080p @ 60Hz (HBR2) Dual Monitors: 1440p @ 60Hz (HBR3)
Brand Name

Kensington
Charging Capability

Yes
Compatibility

All laptops with Thunderbolt 3 or USB-C ports
Connectivity Technology

Wired
Country of Origin

Thailand
Depth

4.09″
Device Supported

Monitor Notebook
DisplayPort

Yes
Ethernet Technology

Gigabit Ethernet
Features

Plug & Play
Form Factor

Desktop
HDMI

Yes
HDMI Version

2.0
Height

1.45″
Host Interface

USB Type C
Limited Warranty

3 Year
Manufacturer Part Number

K34009NA
Memory Card Reader

Yes
Memory Card Supported

SD microSD
Network (RJ-45)

Yes
Number of DisplayPort Outputs

2
Number of Displays Supported

2
Number of HDMI Outputs

2
Operating System Supported

Windows 10 Mac OS X 10.15 Catalina
Package Type

Bulk
Product Color

Black Silver
Product Model

SD5600T
Product Name

SD5600T Docking Station
Product Type

Docking Station
System Requirements

Memory: 8GB or above GPU: Intel HD Graphics 620 or above CPU: Intel Core™ i5 6th Generation or above
Total Number of USB Ports

7
Width

7.76″
