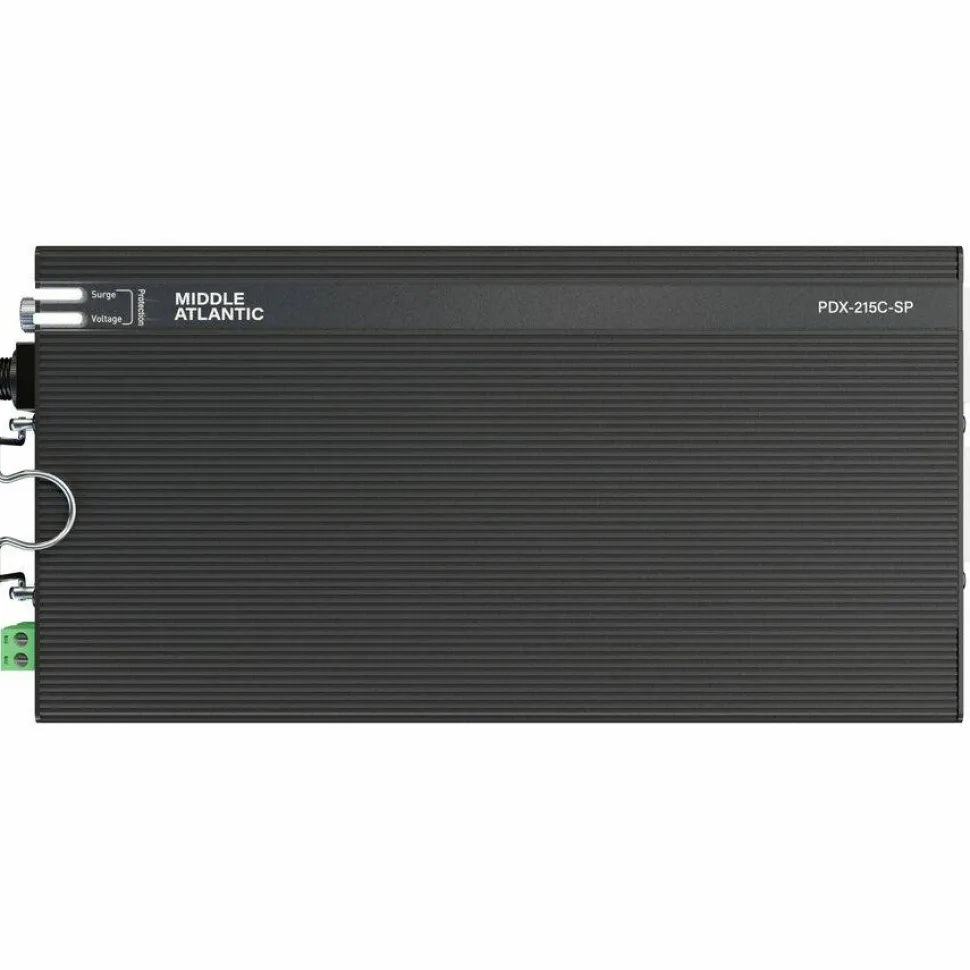

Middle Atlantic NEXSYS Compact Power Distribution Unit – 15 Amp, 2 Outlet Rack Mount PDU – Series Surge Protection

$120.99

SKU: SKUQFXzMfMN2g Categories: Networking & Cables, Networking Accessories, Technology Tag: Middle Atlantic Brand: Middle Atlantic

Description
Reviews (0)

Product Description

Middle Atlantic NEXSYS Compact Power Distribution Unit – 15 Amp, 2 Outlet Rack Mount PDU – Series Surge Protection

NEMA 5-15P – 2 x NEMA 5-15R – 120 V AC – 0U – Rack-mountable, Wall-mountable – Rack

The Middle Atlantic PDX-215C-SP is a compact NEXSYS PDU designed for ‘behind-the-display’ applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes Series stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).

15A with (2) NEMA 5-15R Outlets
Oh Snap! It’s Compact!
The compact design of this NEXSYS PDU is perfect for “behind-the-display” applications, especially digital signage.
It’s very flexible.
The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
Easily attach both mounting solutions to a Lever Lock plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
Enhanced Series Surge Protection
Industry’s fastest patented non-degrading surge technology
Protects equipment without contaminating system ground
Industry-leading 12 year warranty
100% MOV-free design – unlike any competitive offering
Worried about the under/over voltage? Don’t.
With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.
If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
IEC Inlet:
Allows for cleaner cable management by selecting your desired length of power cord.
A standard 2′ cord is included with all models
Tired of blocked outlets?
You pay for 2 outlets and we think you should be able to use all 2 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.
PDU distributes AC power to multiple servers and balances the load on the servers
NEMA 5-15R receptacle type to ensure maximum usability and reliable power output
NEMA 5-15P plug/connector type for efficient connectivity and feasible power output
120 V AC input voltage for optimal performance with maximum usability
120 V AC output voltage for optimal performance with maximum feasibility

Product Specifications

Brand Name

Middle Atlantic
Country of Origin

Malaysia
Depth

9″
Features

Compact
Form Factor

Rack
Height

1.7″
Input Current

15 A
Input Voltage

120 V AC
Limited Warranty

12 Year
Manufacturer Part Number

PDX-215C-SP
Mount Type

Rack-mountable Wall-mountable
Output Voltage

120 V AC
Package Contents

NEXSYS Compact Power Series Surge Protection – PDX-215C-SP Clamp L-brackets Standard 2′ Cord
Plug/Connector Type

NEMA 5-15P
Product Line

NEXSYS
Product Model

PDX-215C-SP
Product Name

NEXSYS Compact Power Distribution Unit – 15 Amp, 2 Outlet PDU
Product Type

PDU
Protection Type

Surge Protection
Rack Height

0U
Receptacle Detail

2 x NEMA 5-15R
Receptacle Type

NEMA 5-15R
Width

4.6″
