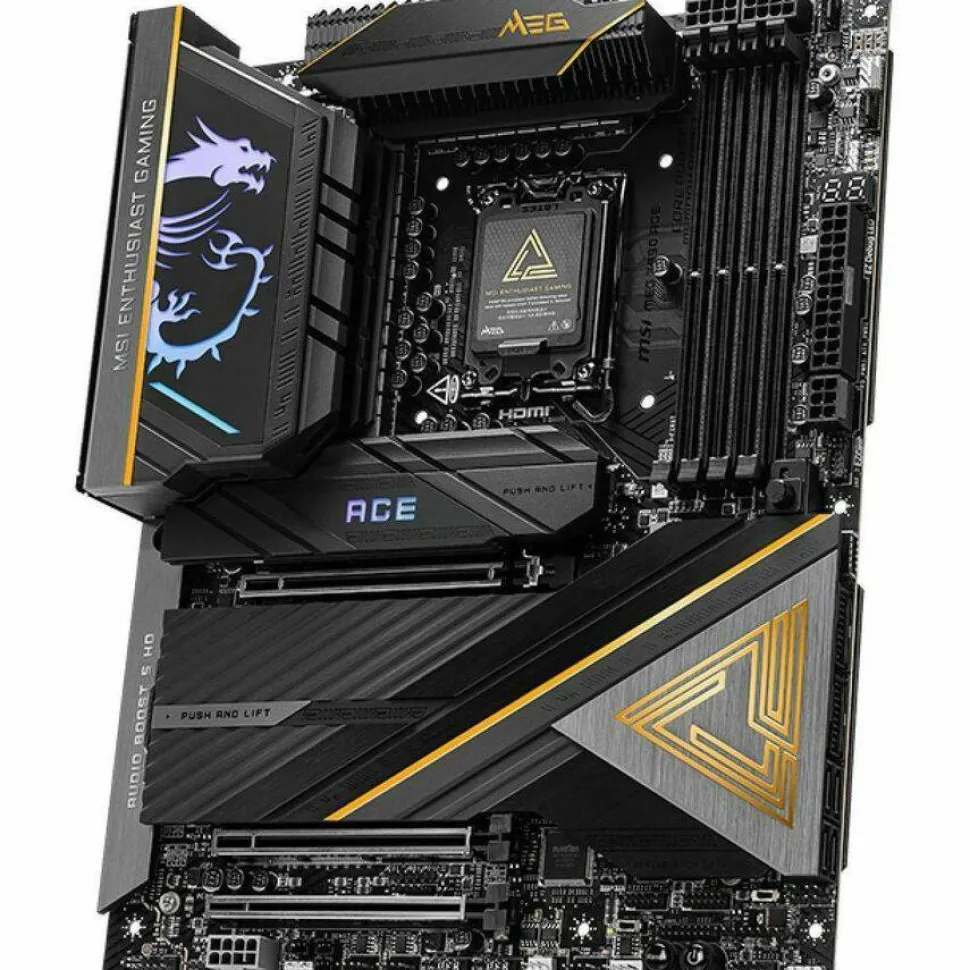

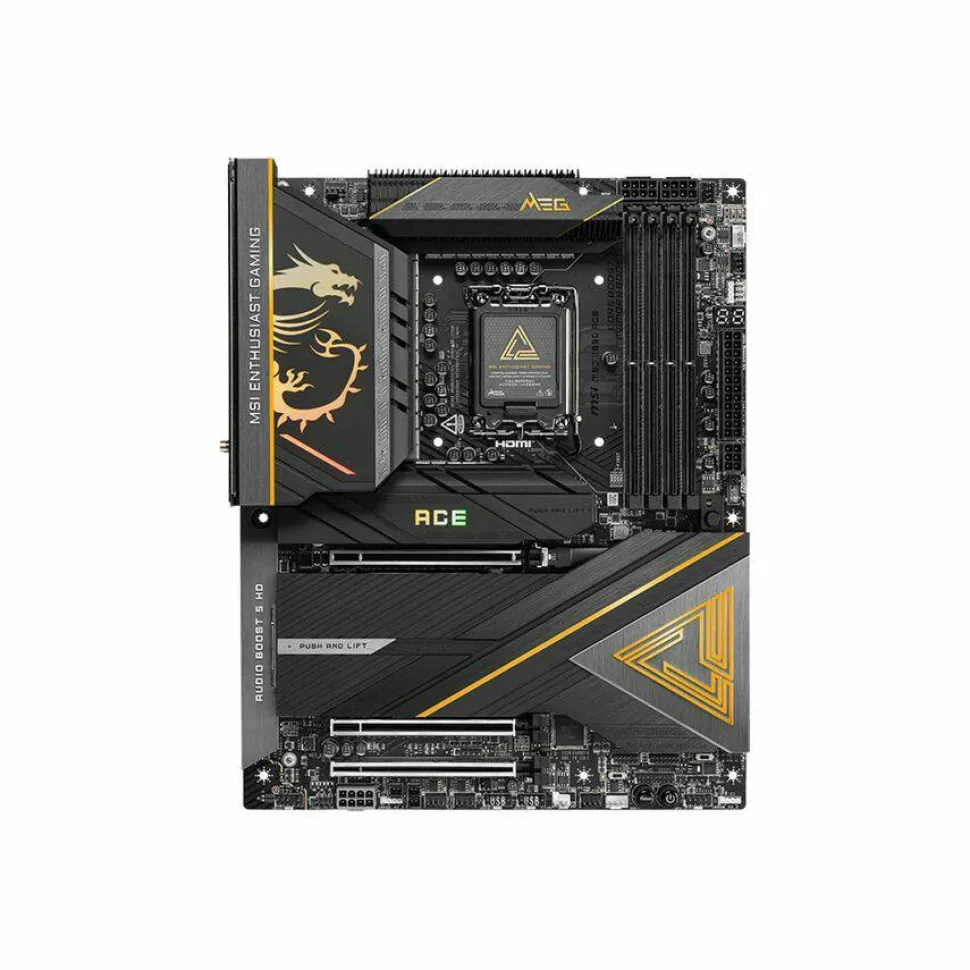

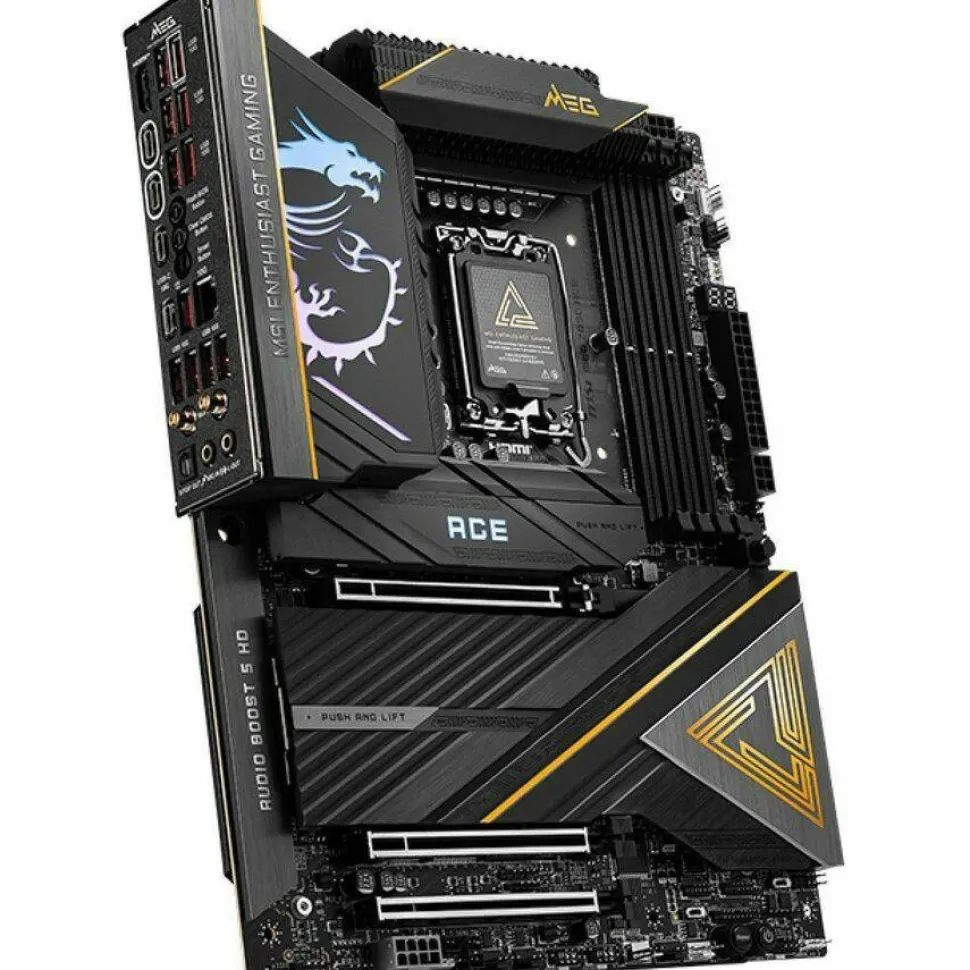

MSI MEG Z890 ACE ATX Motherboard LGA 1851 for Intel Core Ultra series 2 CPU with DDR5 RAM supports

MSI MEG Z890 ACE ATX Motherboard LGA 1851 for Intel Core Ultra series 2 CPU with DDR5 RAM supports

$97.99

SKU: SKUsTt2Nzk9a0 Categories: Computer Memory & Upgrades, Hardware Components, Technology Tag: MSI Brand: MSI

Description
Reviews (0)

Product Description

MSI MEG Z890 ACE ATX Motherboard LGA 1851 for Intel Core Ultra series 2 CPU with DDR5 RAM supports

Core Ultra Processor Supported – 256 GB DDR5 SDRAM Maximum RAM – DIMM, UDIMM – 4 x Memory Slots – Gigabit Ethernet – IEEE 802.11 a/b/g/n/ac/ax/be – HDMI – DisplayPort – 4 x SATA Interfaces

Furnished premium aesthetics with its dark black finish and pale gold embellishes. Developed to unlock the full gaming potential of the Intel Core Ultra processor by combining elite hardware system support and premium durability, the MEG Z890 ACE is an outstanding ATX of Z890 platform for extreme settings in terms of overclocking the processor, DDR5 memory, and graphics card at the highest level.
The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.
With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.
EZ PCIe Release
An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
Dual BIOS Switch
Switching to backup BIOS ROM in one second while the main BIOS ROM got wrong.
EZ LED Switch
Tuning off all LEDs connected to motherboard by just one click.
Pre-Installed I/O Shield
The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.
EZ MOUNTING
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
EZ ANTENNA
MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.
EZ Conn header (JAF_2)
MSI’s EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don’t have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.
EZ FRONT PANEL CABLE
This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.
EZ DRIVER INSTALLATION
MSI Driver Utility Installer automatically detects and presents suitable drivers and utilities once connected to the internet, install them with just a few clicks.
USB Drive includes the utilities and drivers for setup process. It can also be the USB drive to store BIOS files for BIOS update.
EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
EZ DIGI-DEBUG LED
Displays the error code for troubleshooting. Also functions as temperature monitor!
EZ MEMORY DETECTION LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.

Support IntelCore Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)

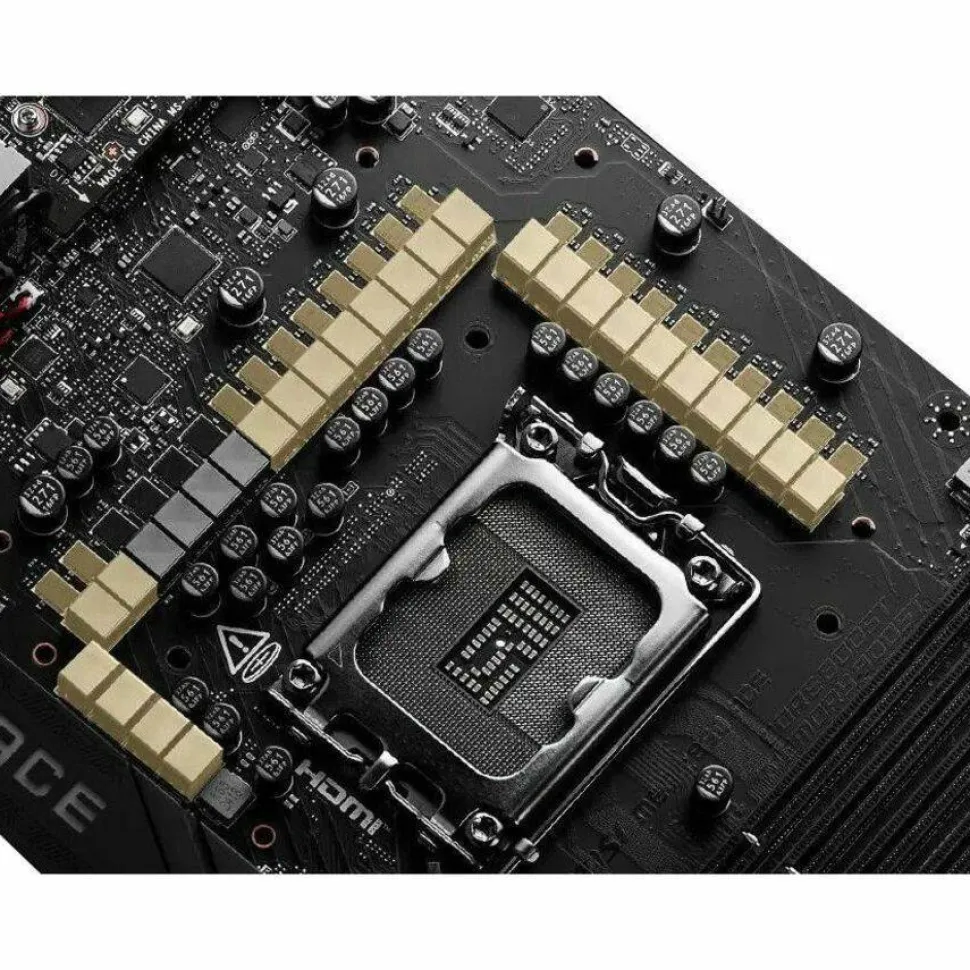

Ultra Performance: 24+2+1+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material.
Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
EZ DIY: EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.

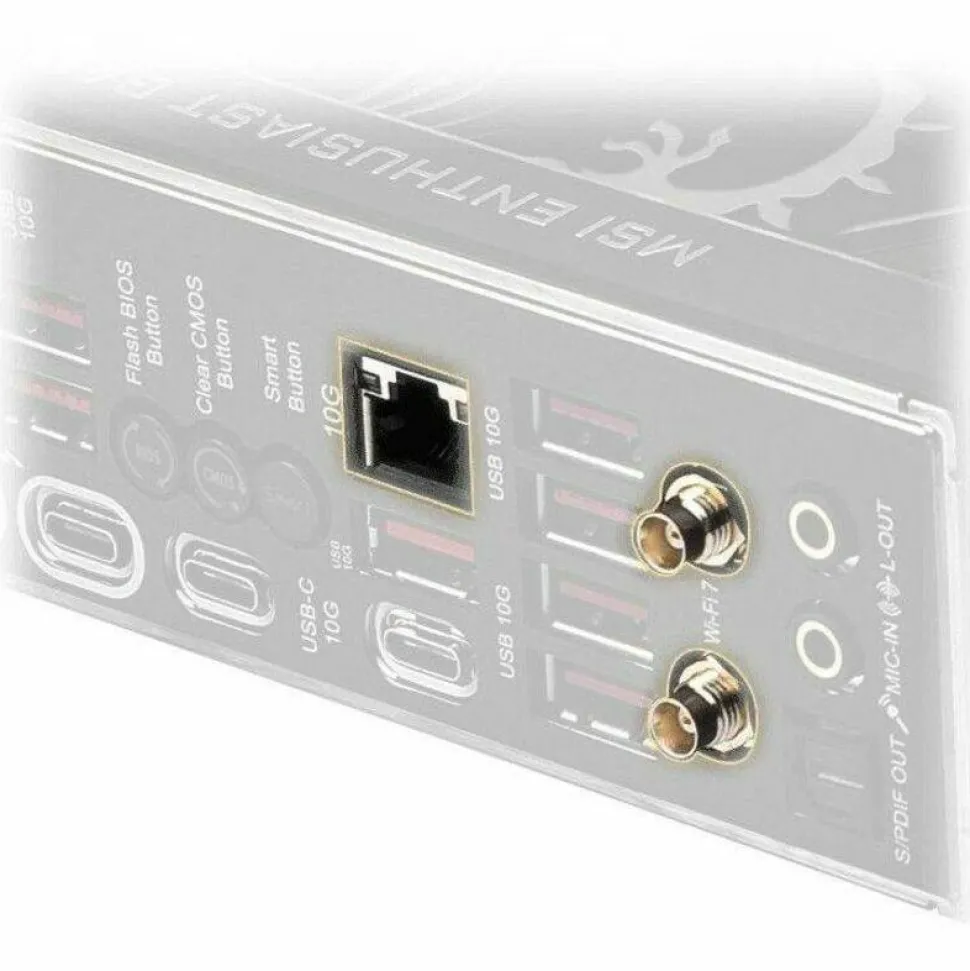

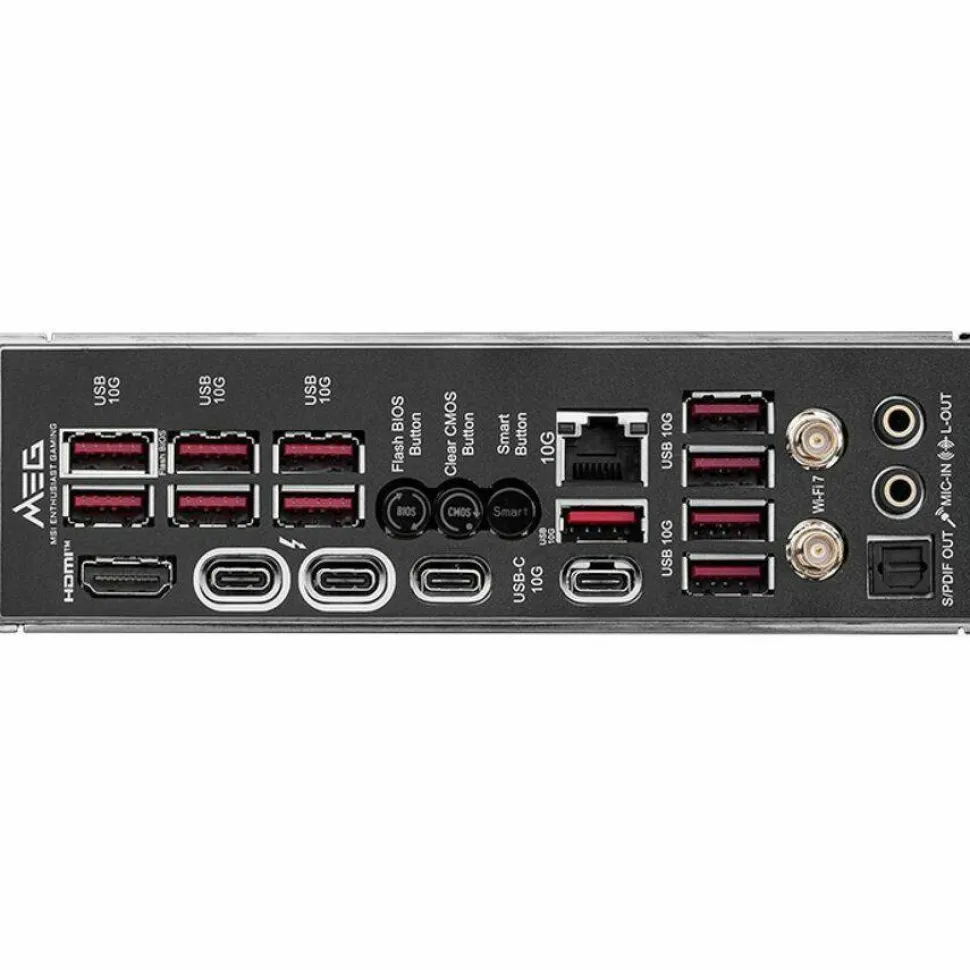

Ultra Connect: Dual Thunderbolt 4 ports, 10G LAN, and Full-speed IntelKiller Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission.

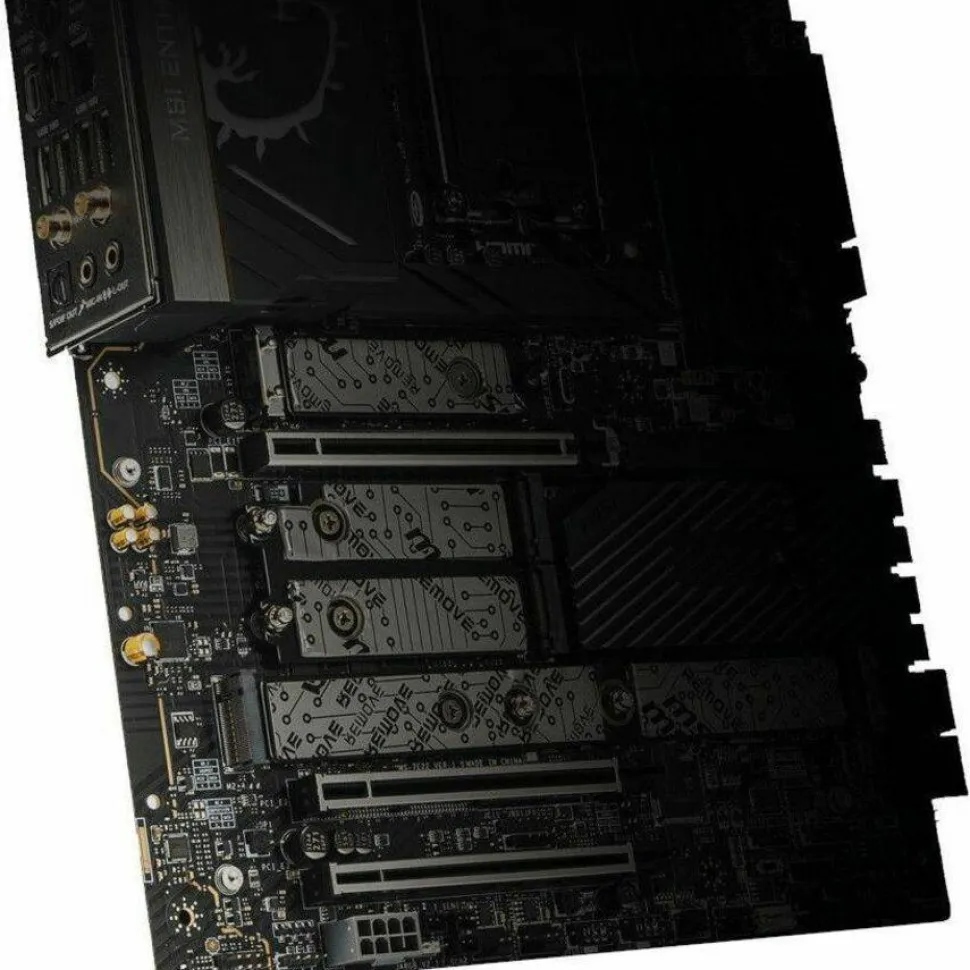

Lightning Fast Game Experience: PCIe 5.0 slots, Onboard 5x M.2 Connectors with Lightning Gen 5 Solution, Front USB 20G with 60W USB Power Delivery.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Core Ultra processors supported for enhanced, dependable system performance with maximum usability
With DDR5 SDRAM get efficient data transfer rate and enhanced computer’s performance
Supported 0 RAID levels provide data reliability and fault tolerance
Wireless support reduces the number of cables required to connect peripherals
HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
Thunderbolt host interface lets you move data between your devices and your computer with unprecedented speed
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX gaming desktop motherboard

Product Specifications

10Gigabit Ethernet

Yes
AI-powered

Yes
Additional Warranty Information

3 Year Limited Warranty
Audio Channels

7.1
Bluetooth

Yes
Bluetooth Standard

Bluetooth 5.4
Brand Name

MSI
Chipset Manufacturer

Intel
Chipset Model

Z890
Controller Type

Serial ATA/600
Depth

9.6″
DisplayPort

Yes
Form Factor

ATX
Gigabit Ethernet

Yes
HDMI

Yes
HDMI Version

2.1
Limited Warranty

3 Year
Manufacturer Part Number

Z890ACE
Maximum Memory Supported

256 GB
Memory Form Factor

DIMM UDIMM
Memory Speed Supported

9200 MHz 7200 MHz 6400 MHz 4800 MHz
Memory Technology

DDR5 SDRAM
Number of M.2 Interfaces

5
Number of Memory Slots

4
Number of Network (RJ-45) Ports

1
Number of Onboard USB 2.0 Ports

4
Number of PCI Express x16 Slots

3
Number of SATA Interfaces

4
Onboard Video

CPU Dependent Video
PCI Express Standard

PCI Express 5.0 PCI Express 4.0

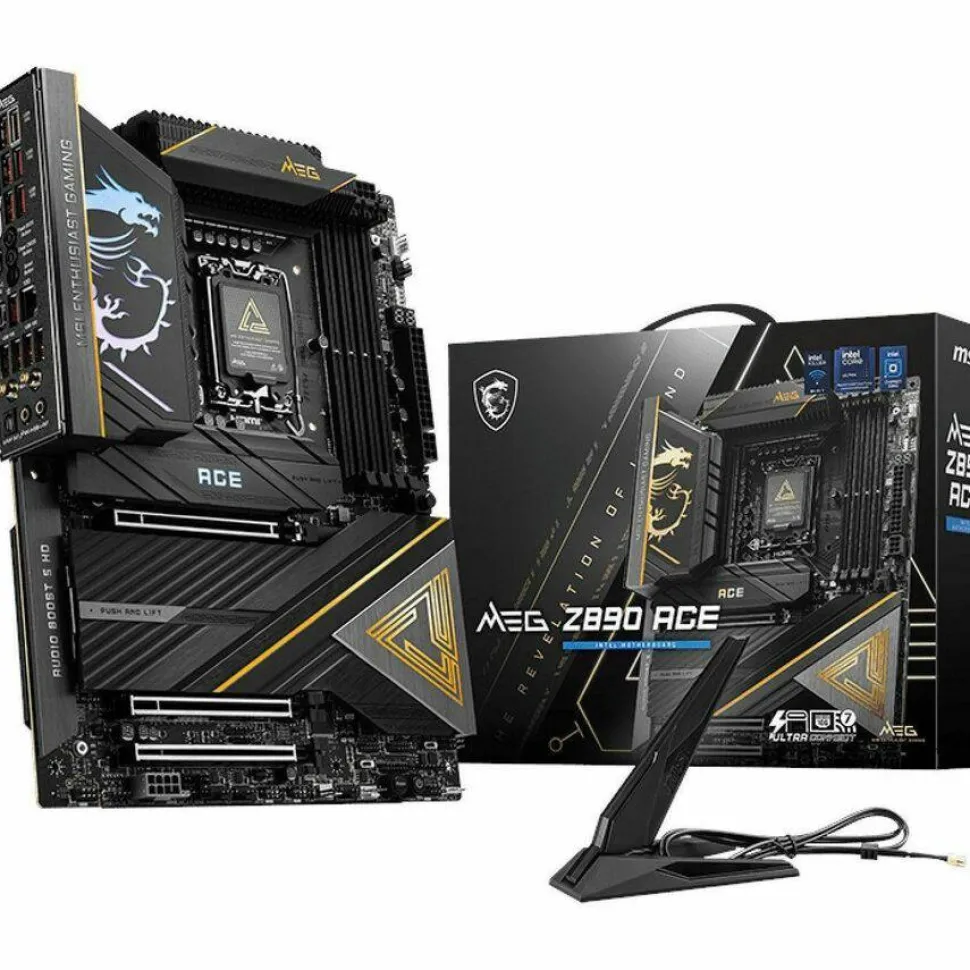

Package Contents

MEG Z890 ACE Gaming Desktop Motherboard Quick Installation Guide SATA Cable Cable Stickers Wi-FI Antenna
Processor Socket

Socket LGA-1851
Processor Supported

Core Ultra
Product Line

MEG
Product Model

Z890 ACE
Product Name

MEG Z890 ACE Gaming Desktop Motherboard
Product Type

Gaming Desktop Motherboard
RAID Levels

0 1 5 10
RAID Supported

Yes
S/PDIF

Yes
Thunderbolt

Yes
Total Number of Expansion Slots

3
Total Number of Onboard USB Ports

9
Total Number of PCI Express Slots

3
Total Number of USB Ports

13
Total Processor Supported

1
Width

12″
Wireless LAN

Yes
Wireless LAN Standard

IEEE 802.11 a/b/g/n/ac/ax/be
