StarTech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot, TAA

StarTech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot, TAA

$36.99

SKU: SKUACkTuHrFbw Categories: Drives & Media, Media Storage, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

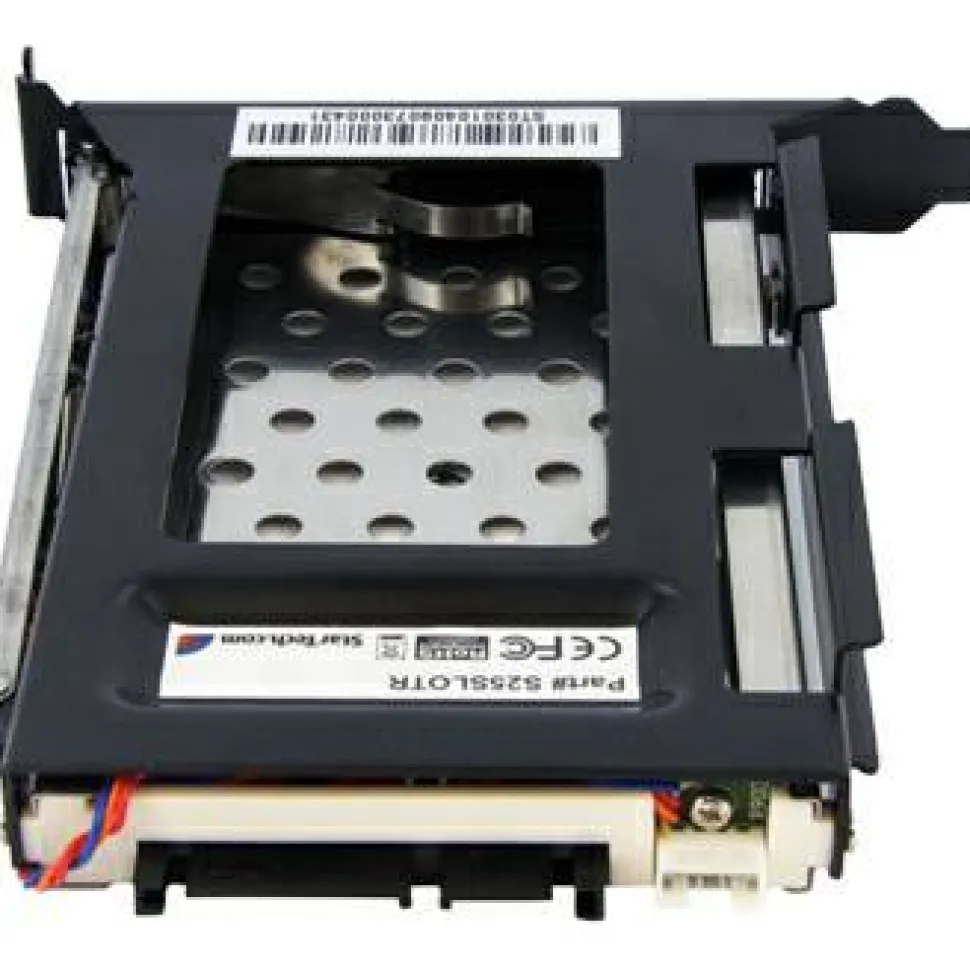

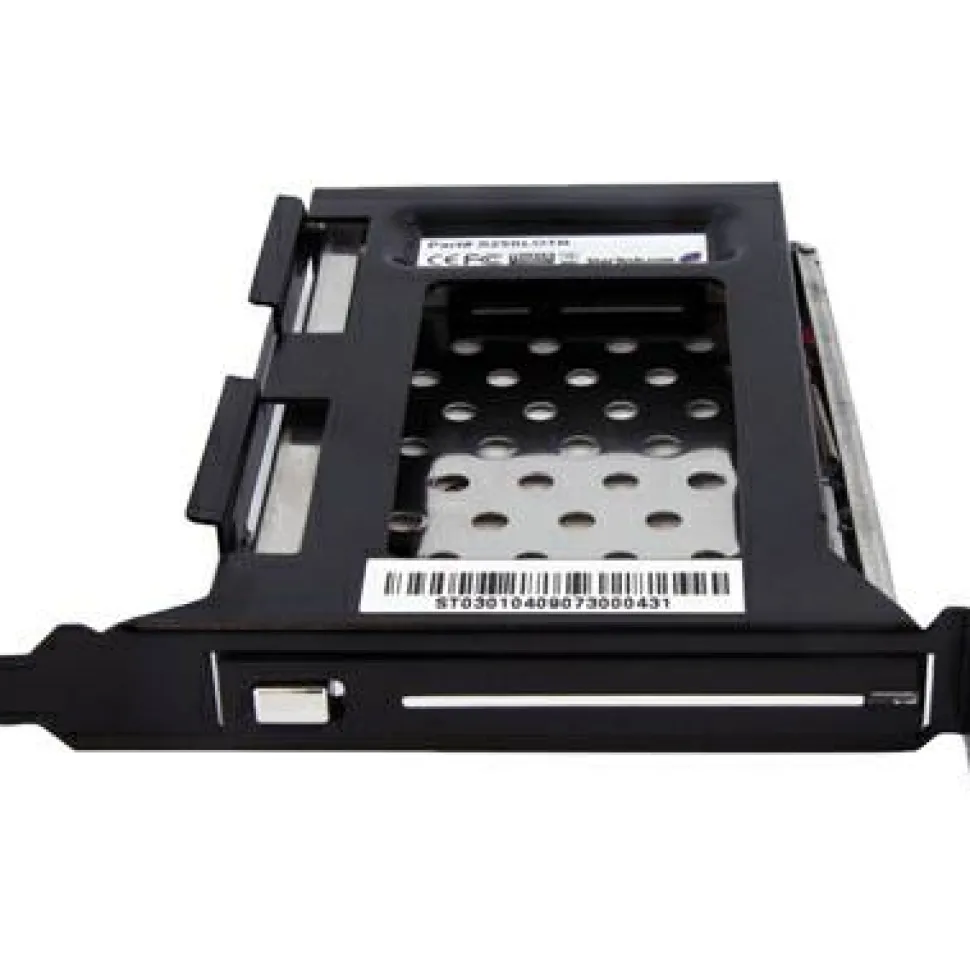

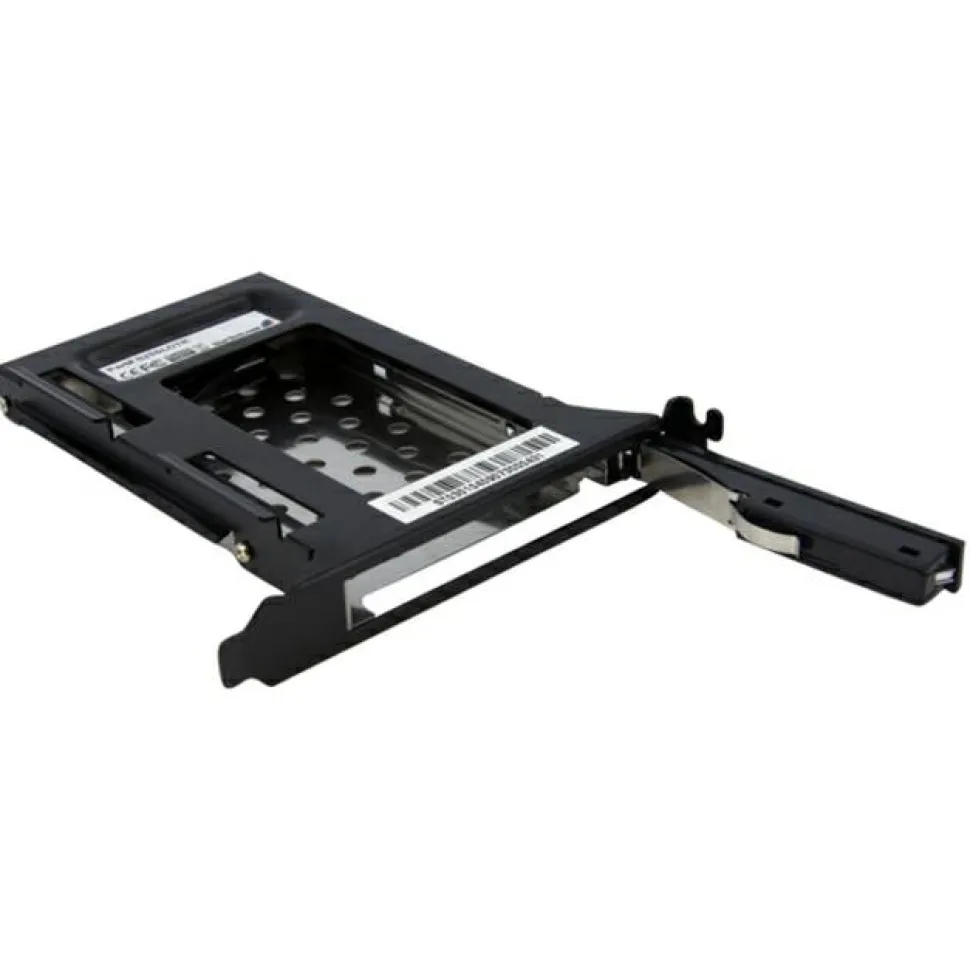

StarTech 2.5in SATA Removable Hard Drive Bay for PC Expansion Slot, TAA

Use an available expansion card slot to install a hot swappable 2.5in hard drive

The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5″ SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn’t require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5″ SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
More from the Manufacturer
More from the Manufacturer

Fits a 2.5″ SATA drive into a rear full profile expansion card slot
Trayless design: drive is not mounted into a tray or enclosure
Latching drive door
50,000+ insertion rating
Vented aluminum and steel construction
Door mounted Power/Activity LED indicator
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Supports 2.5″ form factor SATA hard drives (HDD) and solid state drives (SSD)
Plug-and-Play and Hot-Swap compatible

Product Specifications

Additional Information

Backed by a StarTech.com 2-year warranty and free lifetime technical support Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack Utilize a free expansion card slot to add a removable 2.5″ SATA hard drive bay
Brand Name

StarTech.com
Certifications & Standards

CE FCC
Controller Type

Serial ATA/600
Country of Origin

Taiwan
Depth

5.7″
Drive Interface

SATA/600
Environmental Compliance

Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly

Yes
Form Factor

Internal
Height

4.7″
Host Interface

Serial ATA/600
Limited Warranty

2 Year
Manufacturer Part Number

S25SLOTR
Number of 2.5″ Bays

1
Number of Hard Drives Installed

No
Number of Hard Drives Supported

1
Number of Solid State Drive Installed

No
Number of Solid State Drive Supported

1
Number of Total Expansion Bays

1
Package Contents

2.5in SATA Removable HDD Bay for PC Slot 1 x 20in SATA Cable 1 x LP4 SATA Breakout Cable 1 x Hard Drive Protective Film 1 x Mounting Screws 1 x Instruction Manual
Product Color

Black
Product Material

Aluminum Steel
Product Name

2.5in SATA Removable HDD Bay for PC Slot
Product Type

Drive Slot Adapter
Width

0.8″
Wireless LAN

No
