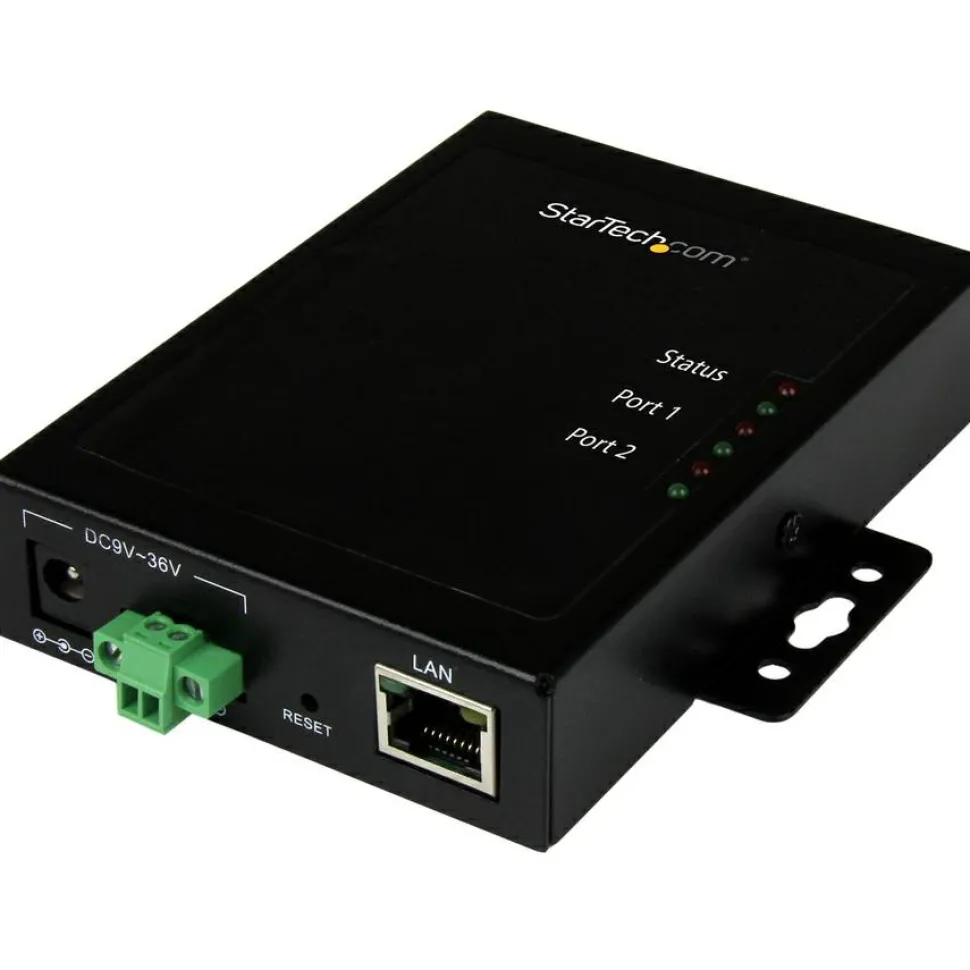

StarTech 2 Port Serial-to-IP Ethernet Device Server, RS232, Metal and Mountable, Serial Device Server, TAA

StarTech 2 Port Serial-to-IP Ethernet Device Server, RS232, Metal and Mountable, Serial Device Server, TAA

$128.89

SKU: SKUKxA2fMMRUw Categories: Network Storage, Networking & Cables, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech 2 Port Serial-to-IP Ethernet Device Server, RS232, Metal and Mountable, Serial Device Server, TAA

Connect configure and manage two remote RS232 serial devices over an IP network – 2 Port Serial-to-IP Ethernet Device Server – RS232 – Metal and Mountable – Serial Device Server – RS232 Serial-Over-IP – Serial-to-Ethernet Converter – Wall-mountable

This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings. Flexible installation, in a range of environments If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments. Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations. Backup power keeps your devices connected With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter. Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed. Completely customizable This highly customizable device server is easy to configure to suit your application. For easy setup, Windows users can use the provided Virtual COM port software, or the versatile Web-based interface. The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols. The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

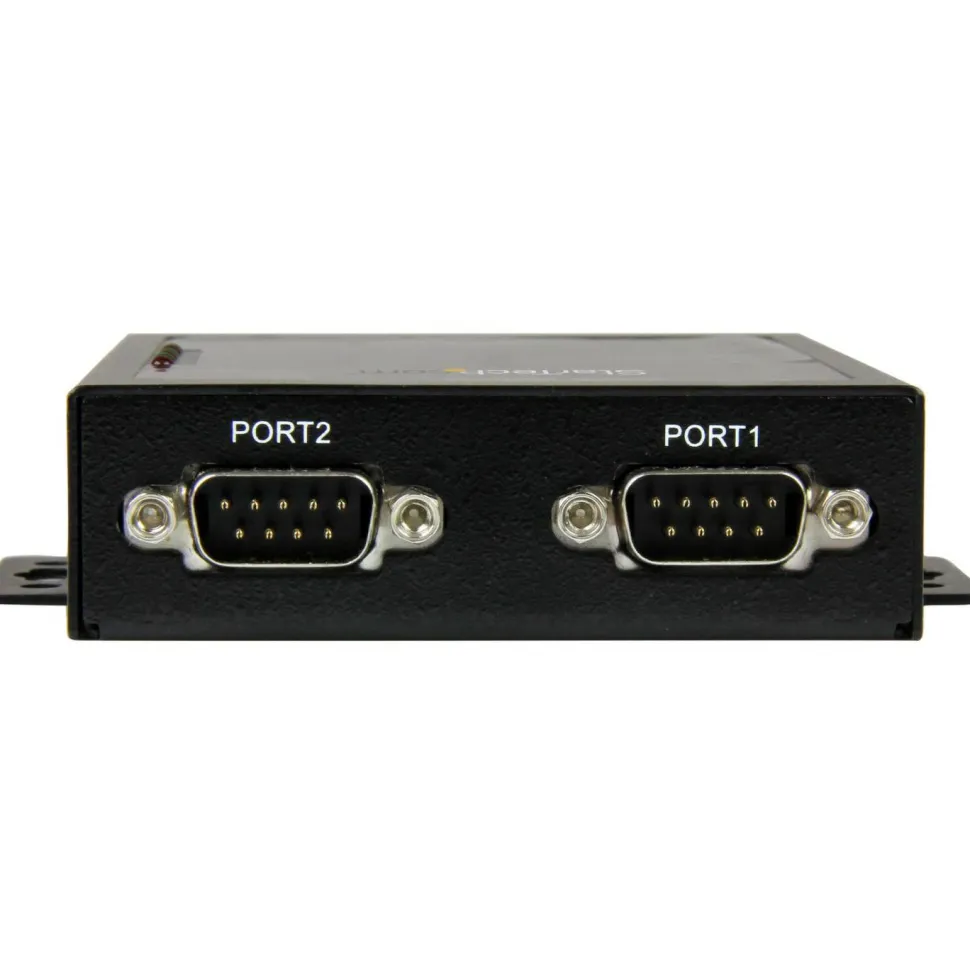

Two RS232 (DB9) serial ports, integrated into a durable, metal housing that’s ideal for industrial environments
Built-in mounting brackets let you easily install the device server to a wall or surface

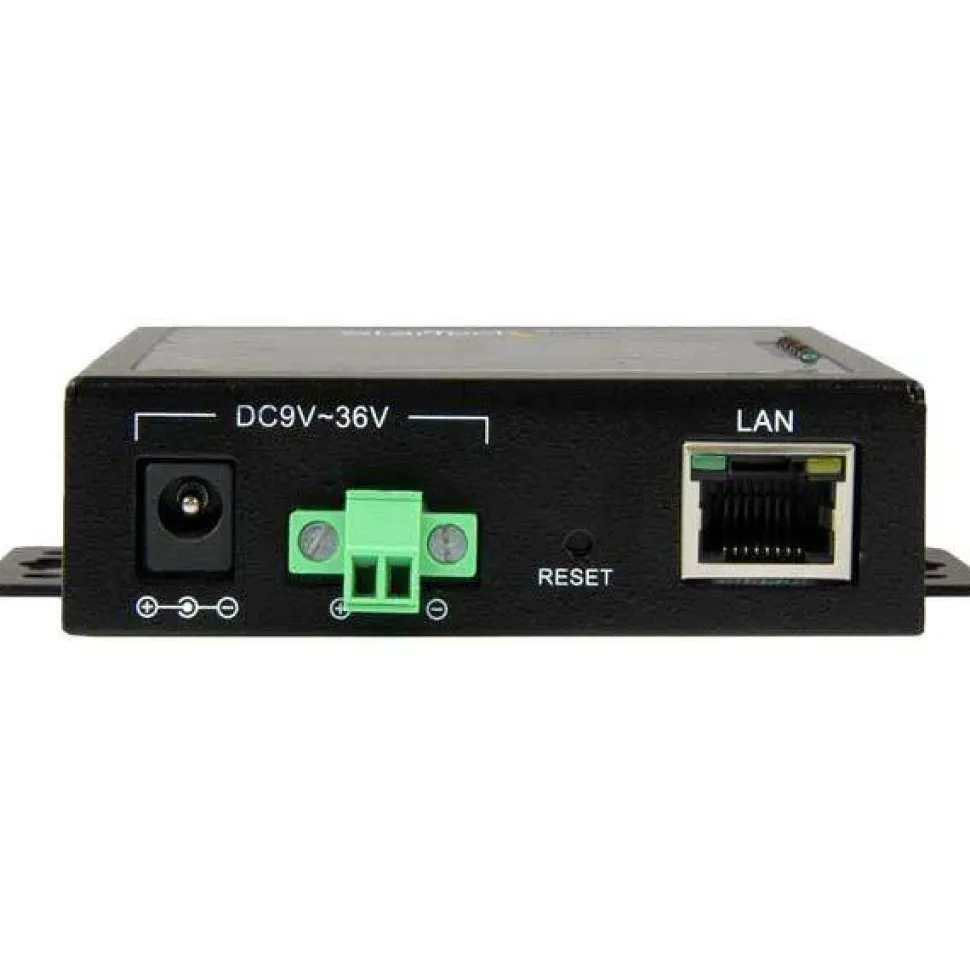

Redundant power input using the provided power adapter, or 9~36V DC terminal block input
Extended operating temperature range – 0°C to 85°C (32°F to 185°F)
Up to 460.8Kbps serial baud rate
Remote management and customization using the provided Windows based VCOM software or the Web interface
Supports Telnet, ICMP, IP, TCP, UDP, DHCP, HTTP, and BOOTP protocols
15kV Air and 8kV contact ESD (Electrostatic Discharge) Protection
10/100Mbps RJ45 port that supports IEEE 802.3 (10BASE-T) and IEEE 802.3u (100BASE-TX) protocols

Product Specifications

Brand Name

StarTech.com
Compatibility

Virtual COM software – Windows Only: Windows Vista, 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2016, 2019 Note: The device server’s hardware is compatible with Mac OS and Linux; however, the provided Virtual COM software is not compatible with these operating systems. When used with a Mac or Linux operating system, the device server can only be configured using the Web-GUI.
Country of Origin

Taiwan
Depth

4.4″
Environmentally Friendly

Yes
Ethernet Technology

Fast Ethernet
Form Factor

Wall Mountable
Height

0.9″
Input Voltage

12 V DC
Limited Warranty

2 Year
Manufacturer Part Number

NETRS2322P
Media Type Supported

Coaxial Twisted Pair
Network (RJ-11)

No
Network (RJ-45)

Yes
Network Standard

10/100Base-TX
Number of Network (RJ-45) Ports

1
Number of Serial Ports

2
Package Contents

2-Port Serial-to-IP Ethernet Device Server – RS232 – Metal and Mountable 1 x Terminal bBlock (2-wire) 1 x Universal Power Adapter (NA/EU/UK/AU) 1 x Software CD 1 x Quick Start Guide
Parallel Port

No
Phone Line (RJ-11)

No
PoE (RJ-45) Port

No
Product Color

Black
Product Name

2-Port Serial-to-IP Ethernet Device Server – RS232 – Metal and Mountable
Product Type

Device Server
Serial Port

Yes
Width

3.2″
Wireless LAN

No
