StarTech 4 Port PCI Express PCIe Serial Combo Card, 2 x RS232 2 x RS422 / RS485, TAA
$119.99
Product Description
StarTech 4 Port PCI Express PCIe Serial Combo Card, 2 x RS232 2 x RS422 / RS485, TAA
Add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot – pcie rs485 – pci express rs485 – pcie rs485 – pci express rs422 – pcie rs422

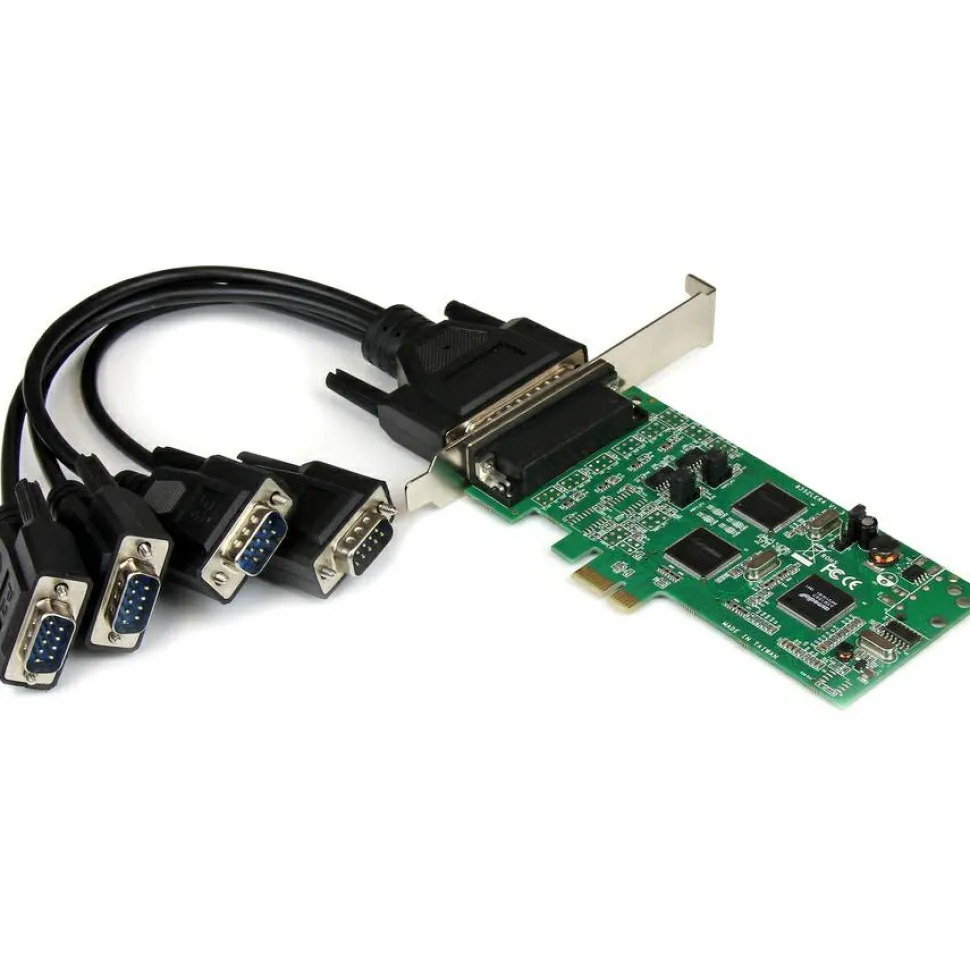

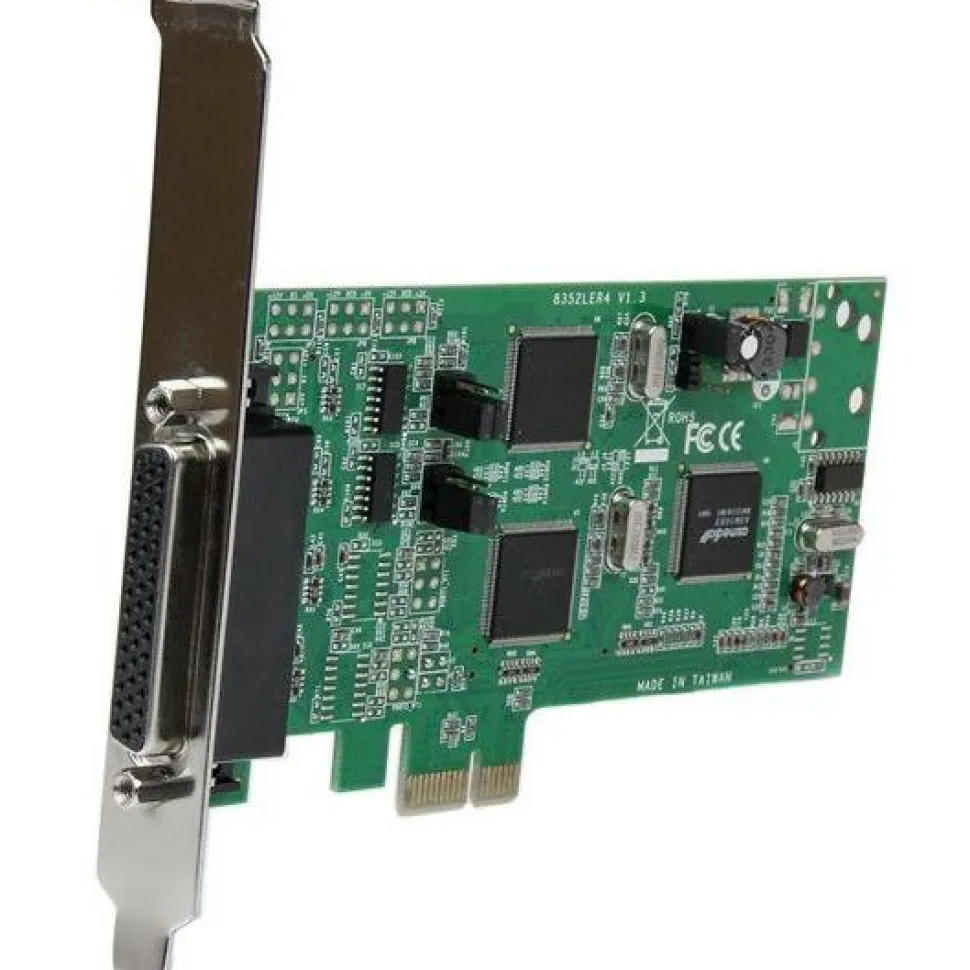

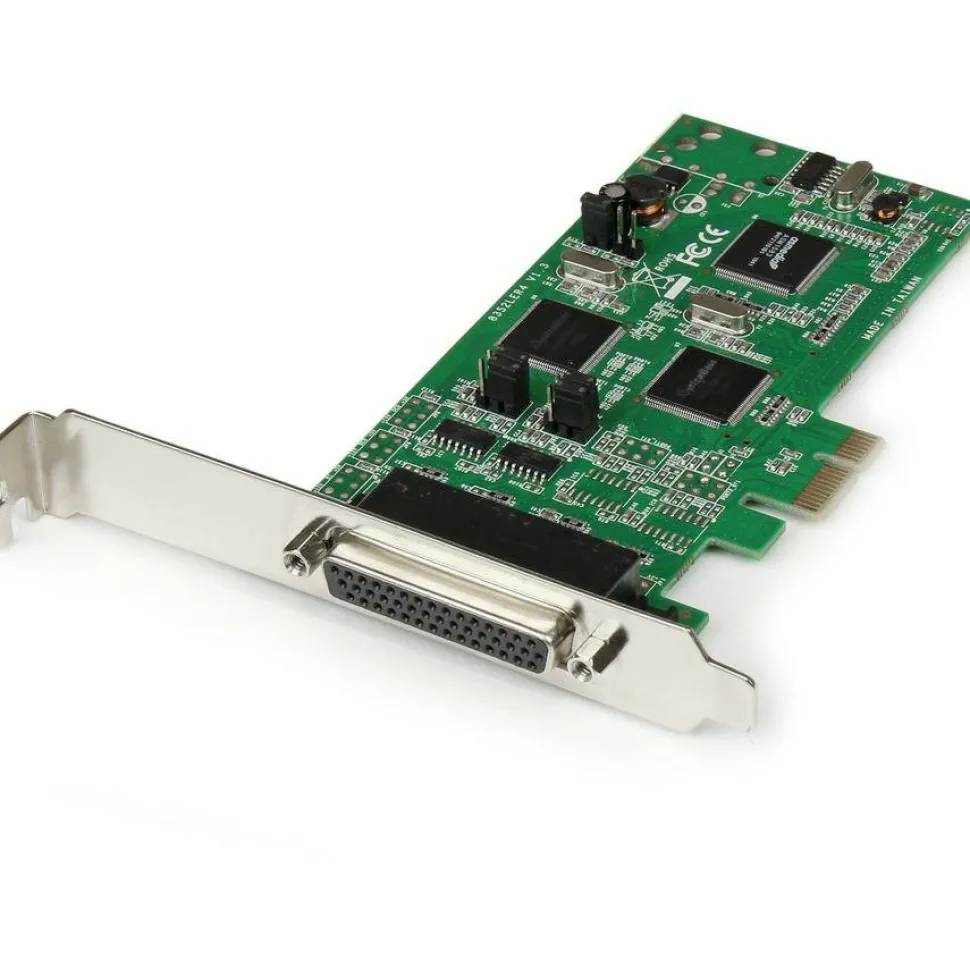

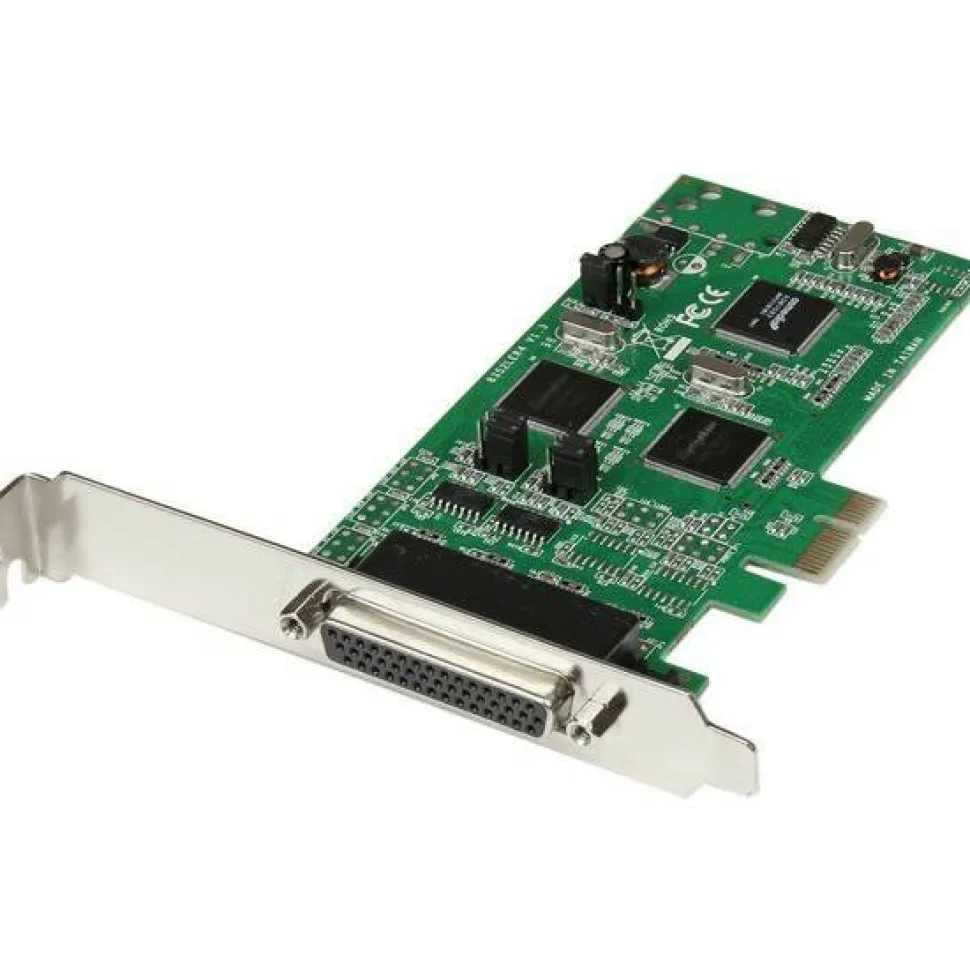

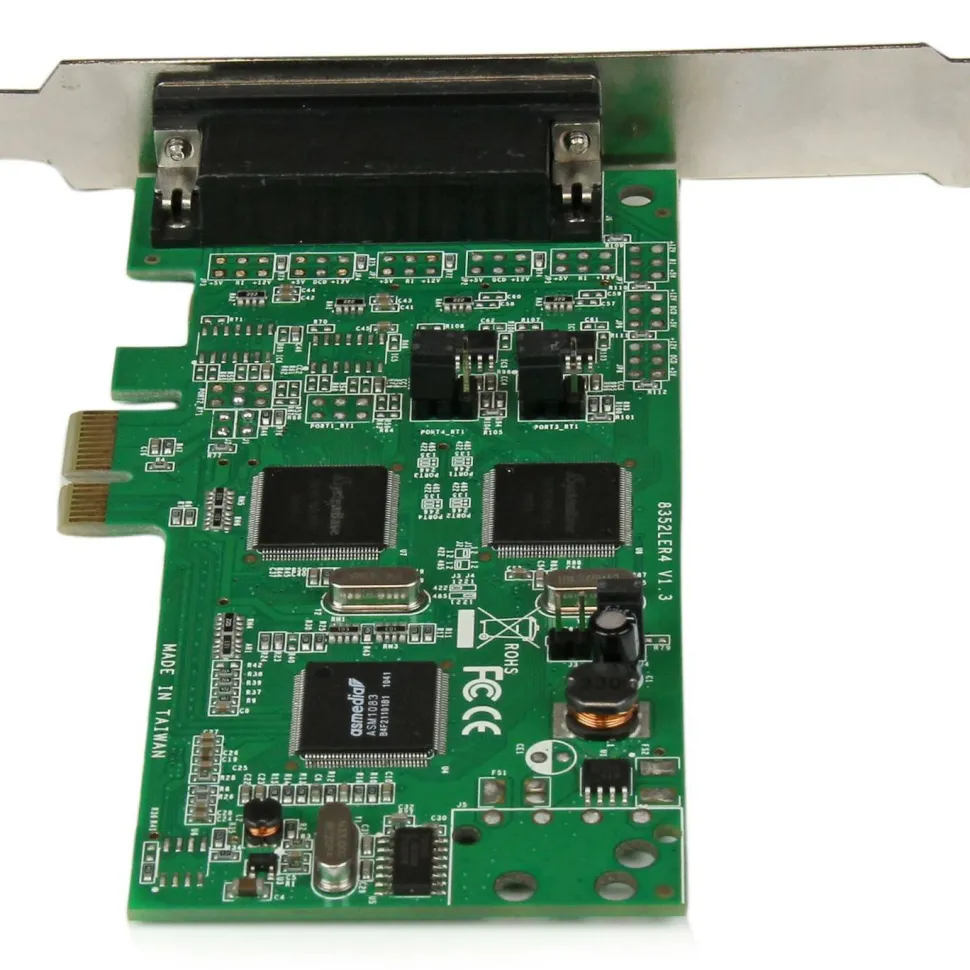

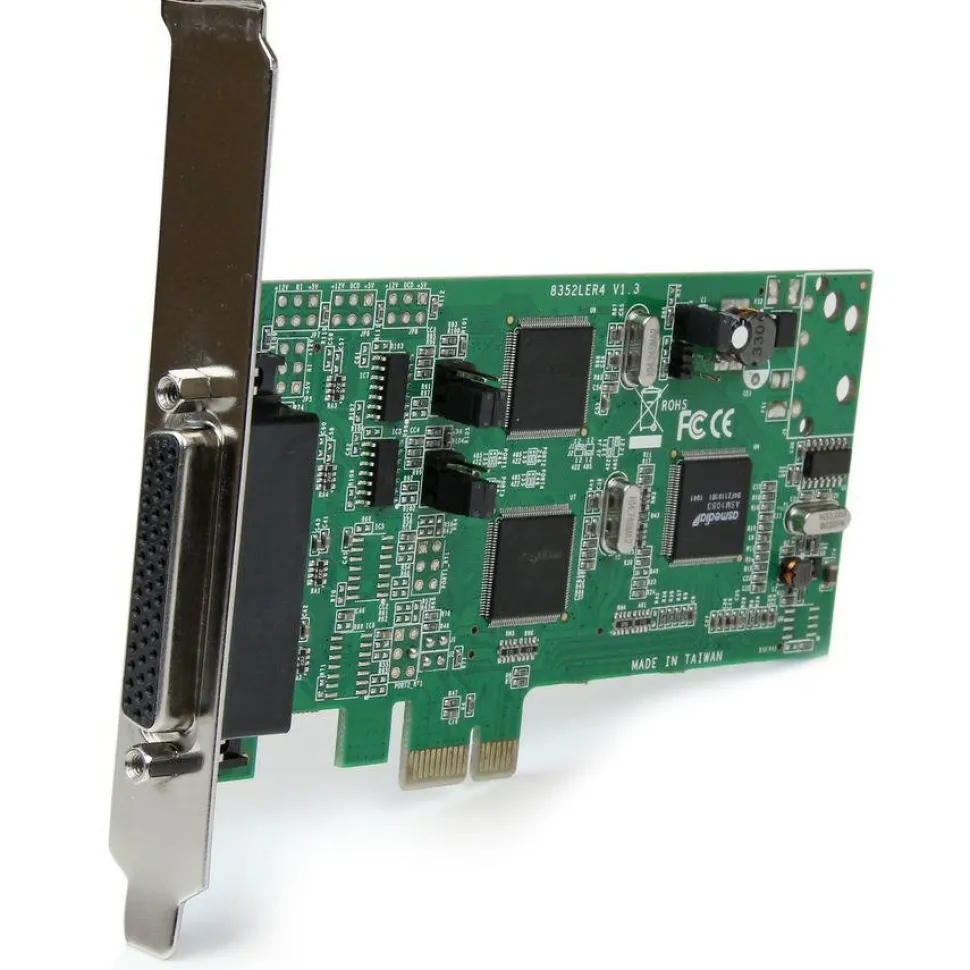

The PEX4S232485 4 Port PCI Express PCIe Serial Combo Card – 2 x RS232 2 x RS422 / RS485 lets you add two RS232, and two RS422/485 serial ports to your PC through a PCI-Express expansion slot.
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.

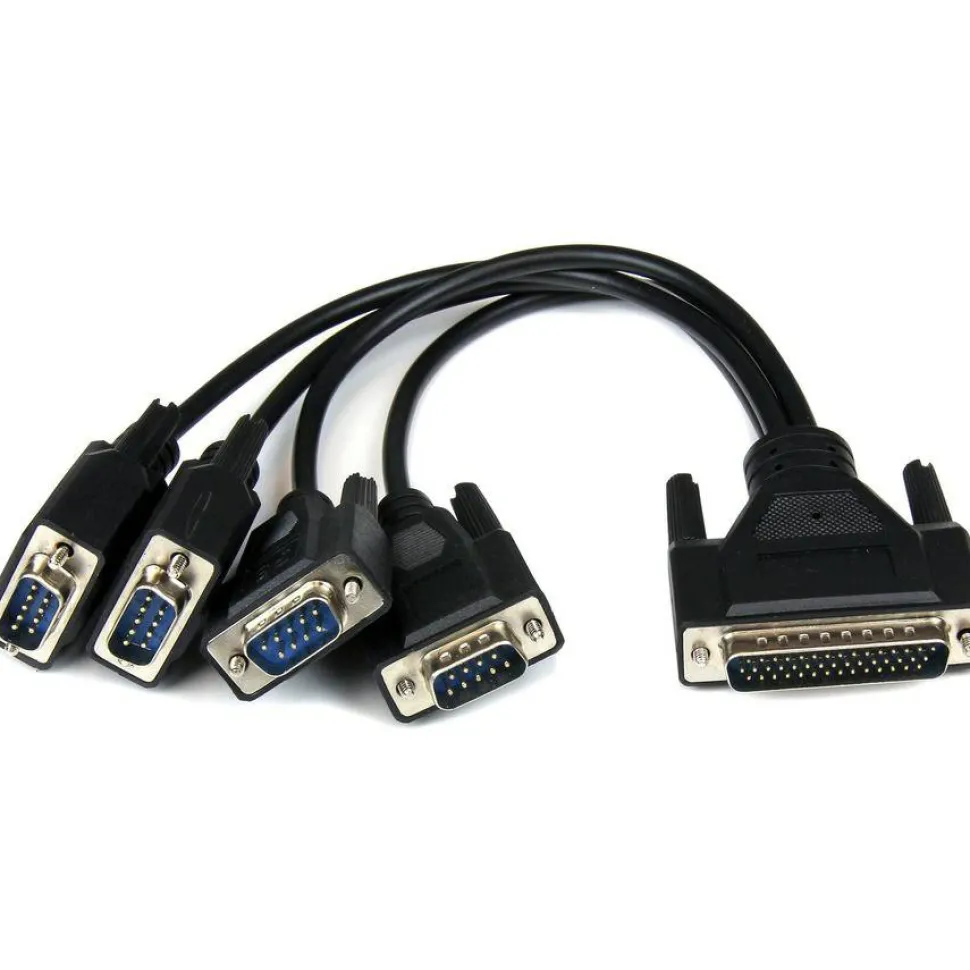

A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
This PCI express serial card is a single card solution that is compatible with nearly any serial communication protocol, supporting RS-232, RS-422, RS-485 2-wire or RS-485 4-wire operating modes.
A flexible solution for adding serial ports to full-sized, or small form factor systems, the 4-port serial card includes both low and full profile brackets while the included breakout cable helps to avoid cluttered connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer
- 4 port (2 x RS232, 2 x RS422/485) serial combo card
- RS232 data transfer rates up to 460 Kbps
- Supports 2-Wire / 4-Wire RS485 modes
- 256-byte deep FIFO per transmitter and receiver

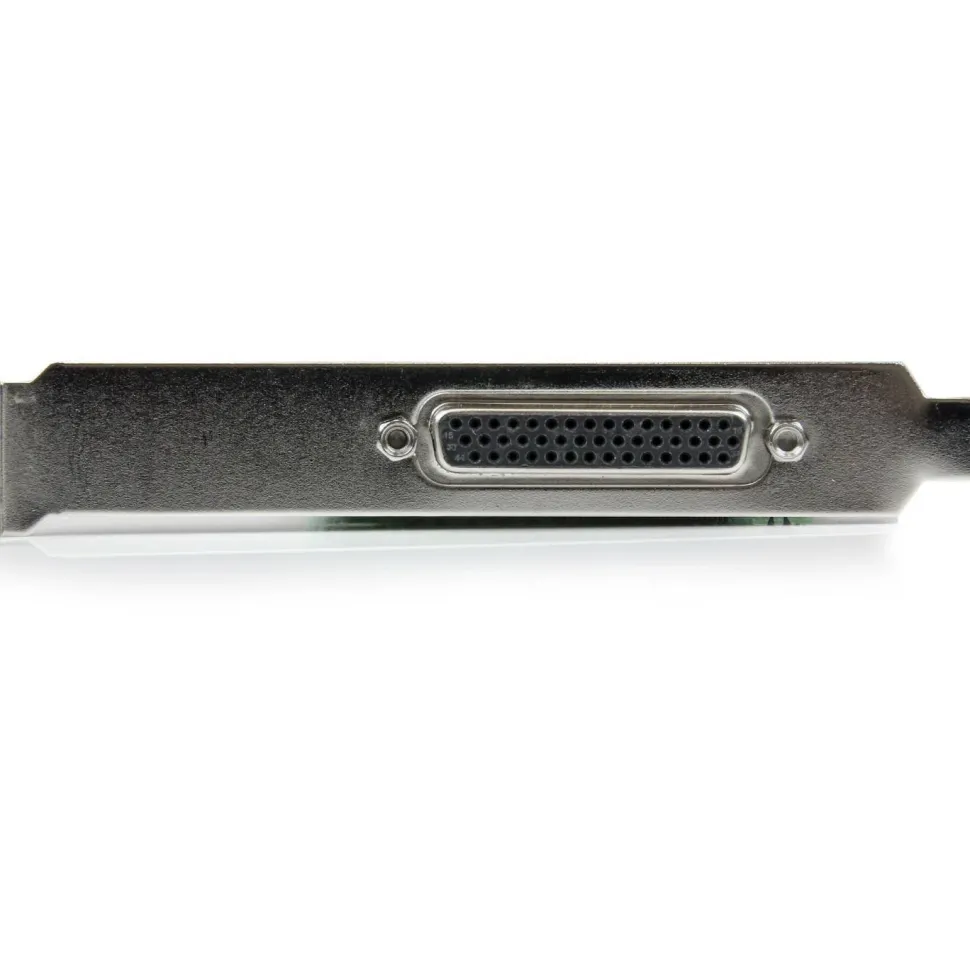

- Standard and low-profile bracket included
- Compliant with PCI-Express Specification 1.0a
- Supports PCI Power Management 1.1
Product Specifications
- Brand NameStarTech.com
- Country of OriginTaiwan
- EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/pex4s232485_rohs.pdf
- End of Life Manual AvailabilityYes
- Environmental CertificationEU RoHS
- Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Environmentally FriendlyYes
- Form FactorPlug-in Card
- Height2.7″
- Host InterfacePCI Express x1
- Limited WarrantyLifetime
- Manufacturer Part NumberPEX4S232485
- Maximum Data Transfer Rate3.59 Mbit/s
- Package Contents1 x Low Profile Bracket 1 x Driver CD 4 Port PCI Express PCIe Serial Combo Card – 2 x RS232 2 x RS422 / RS485 1 x Breakout Cable 1 x Instruction Manual
- Platform SupportedPC
- Ports Expandability4 x DB-9 RS-232/422/485 – Serial, Via Cable
- Product Name4 Port PCI Express PCIe Serial Combo Card – 2 x RS232 2 x RS422 / RS485
- Product TypeMultiport Serial Adapter
- REACH Declaration URLhttps://media.startech.com/cms/pdfs/pex4s232485_rohs.pdf
- REACH free of SVHCYes
- WEEE Statementhttps://media.startech.com/cms/pdfs/pex4s232485_weee.pdf
- Width0.6″
