StarTech 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card w/2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2), TAA

StarTech 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card w/2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2), TAA

Original price was: $142.00.Current price is: $96.89.

SKU: SKUXK4xUrAaWm Categories: Networking & Cables, Technology, Wired Networking Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card w/2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2), TAA

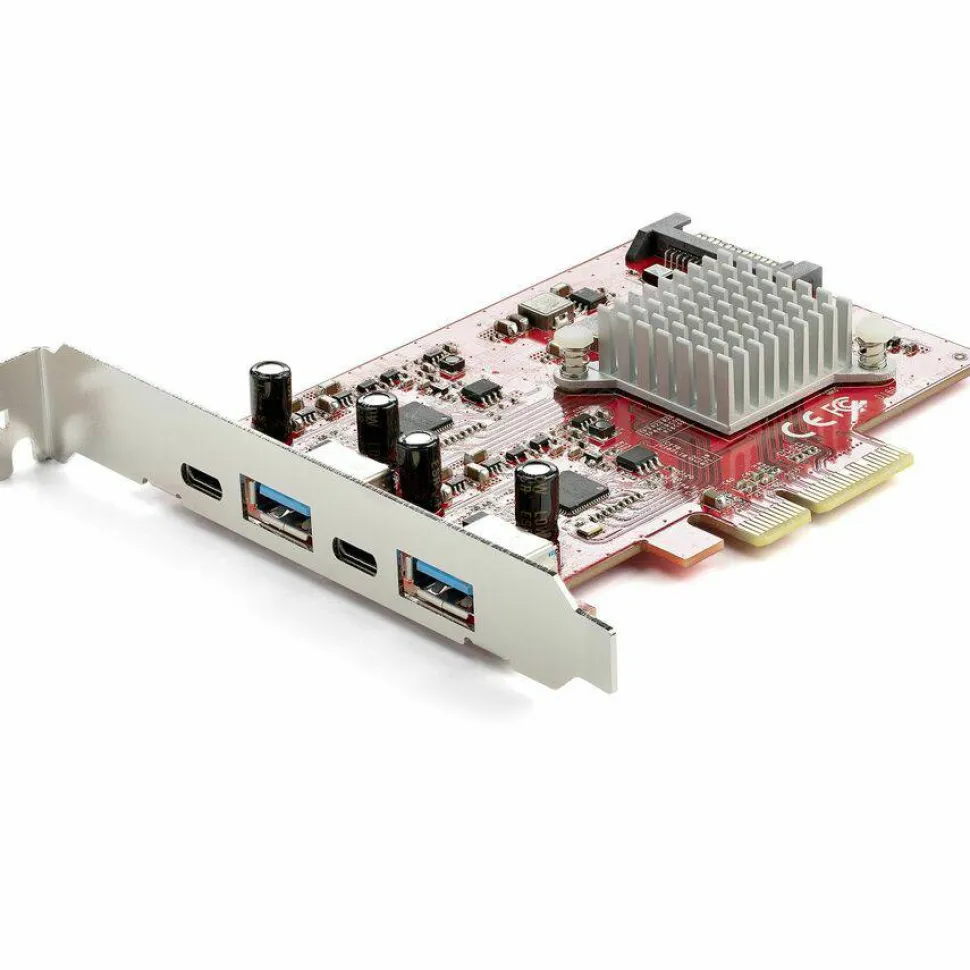

4 Port USB PCIe Card (USB 3.1 Gen 2) – 2x ASM3142 controllers up to 20Gbps total – PCI Express expansion card; 10Gbps 2x USB-A/2x USB-C – Multiple INs – For USB/USB Type-C devices/SSD/NVMe – Optional SATA power – PCI-e 3.0 x4 slot; Full profile

This 4-port USB 3.2 Gen 2×1 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).
By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.
Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2×1 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2×1 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:

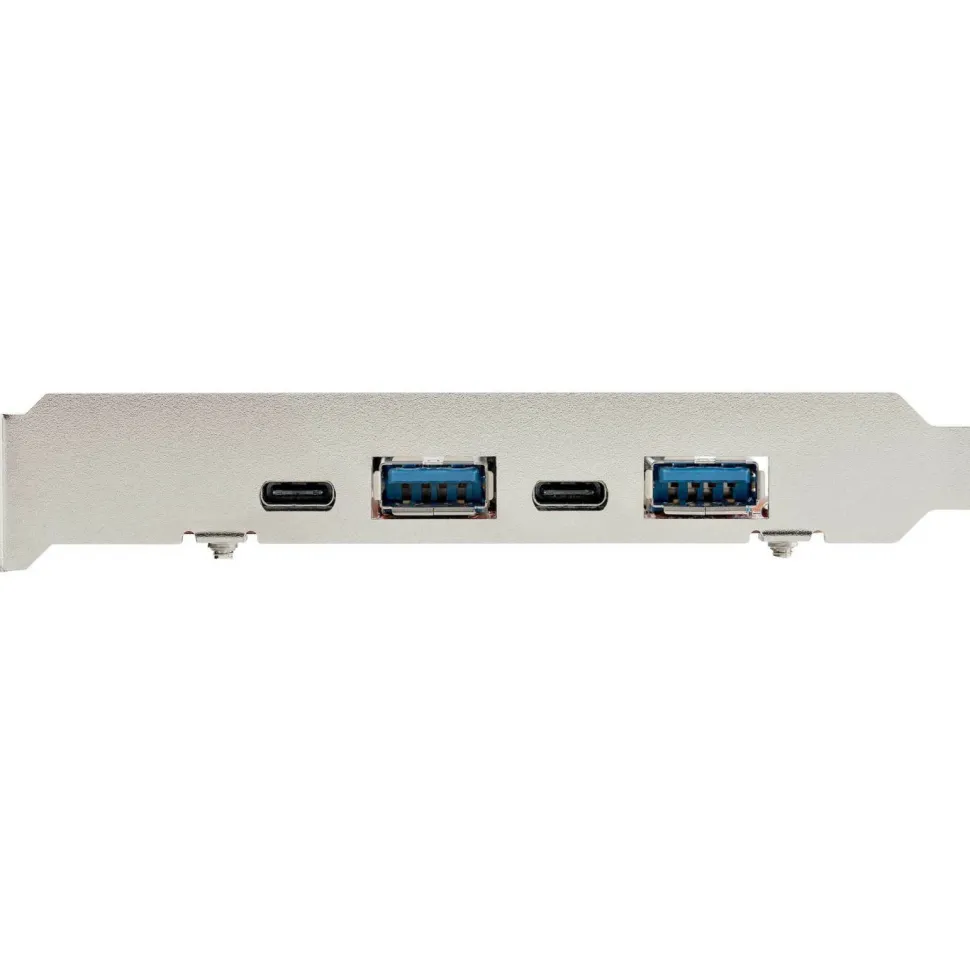

Two external USB-C port (USB 10Gbps)
Two external USB-A ports (USB 10Gbps)

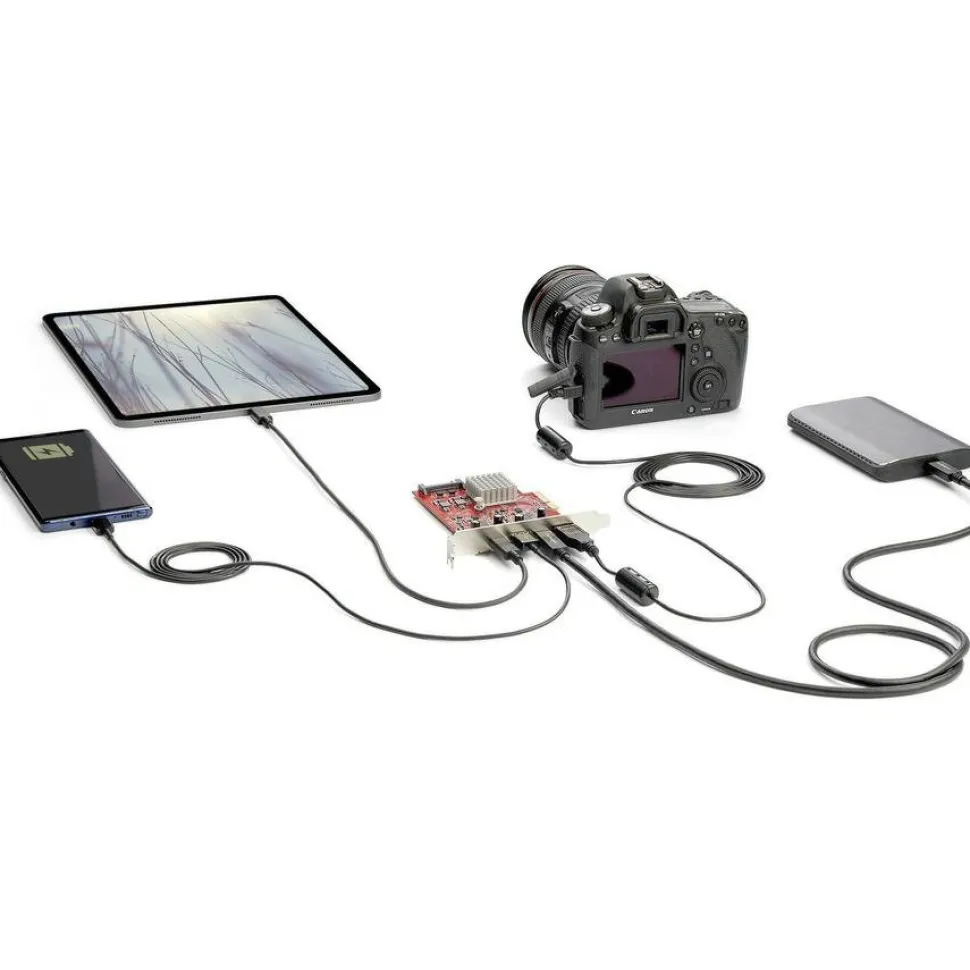

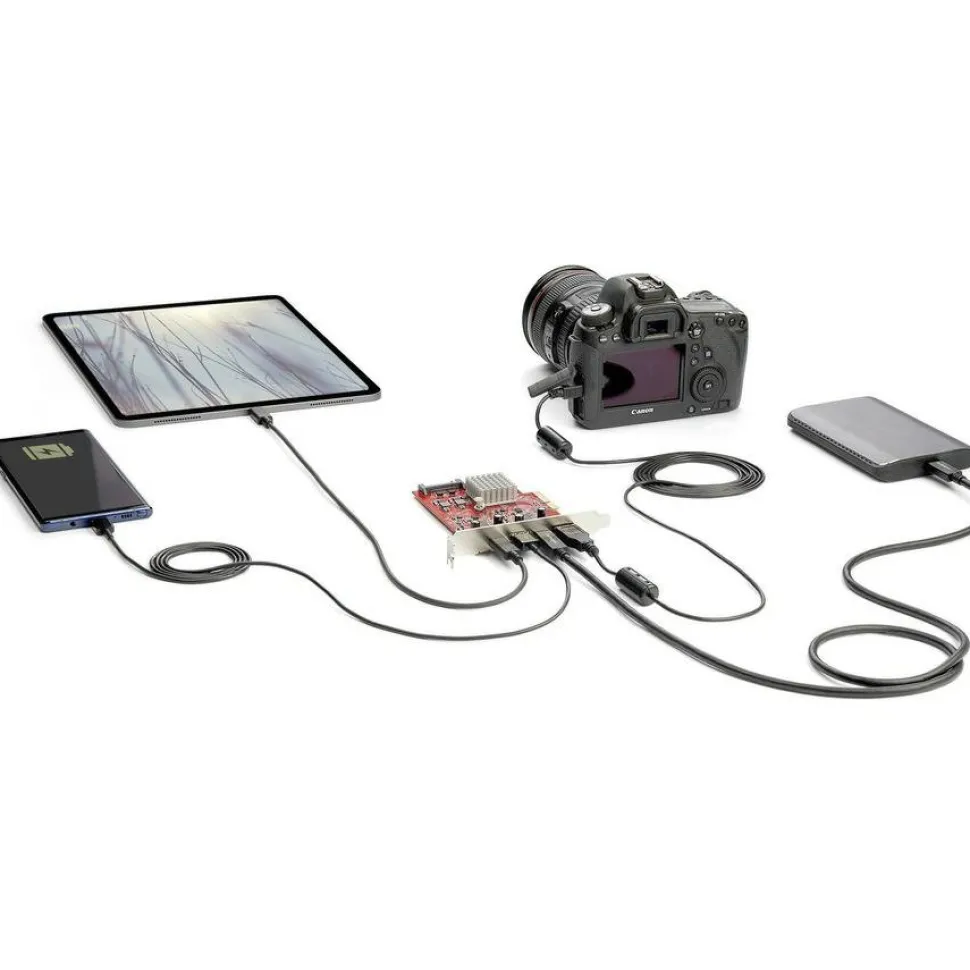

With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Connect your older USB devices
Connecting your older peripherals isn’t a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.0, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
USB 3.0 is also known as USB 3.2 Gen 1×1 (5Gbps) and USB 3.1 Gen 1 (5Gbps).
The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
More from the Manufacturer
More from the Manufacturer

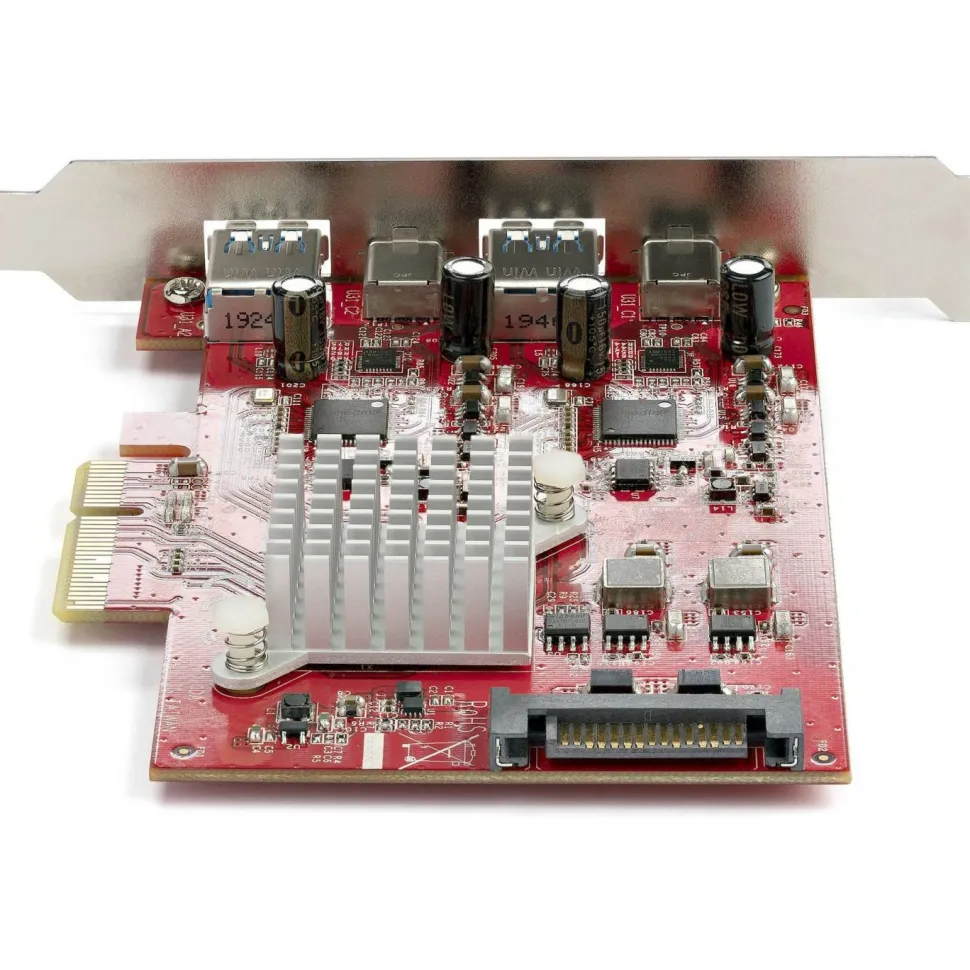

HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.1 Gen 2/USB 3.2 Gen 2×1
TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0

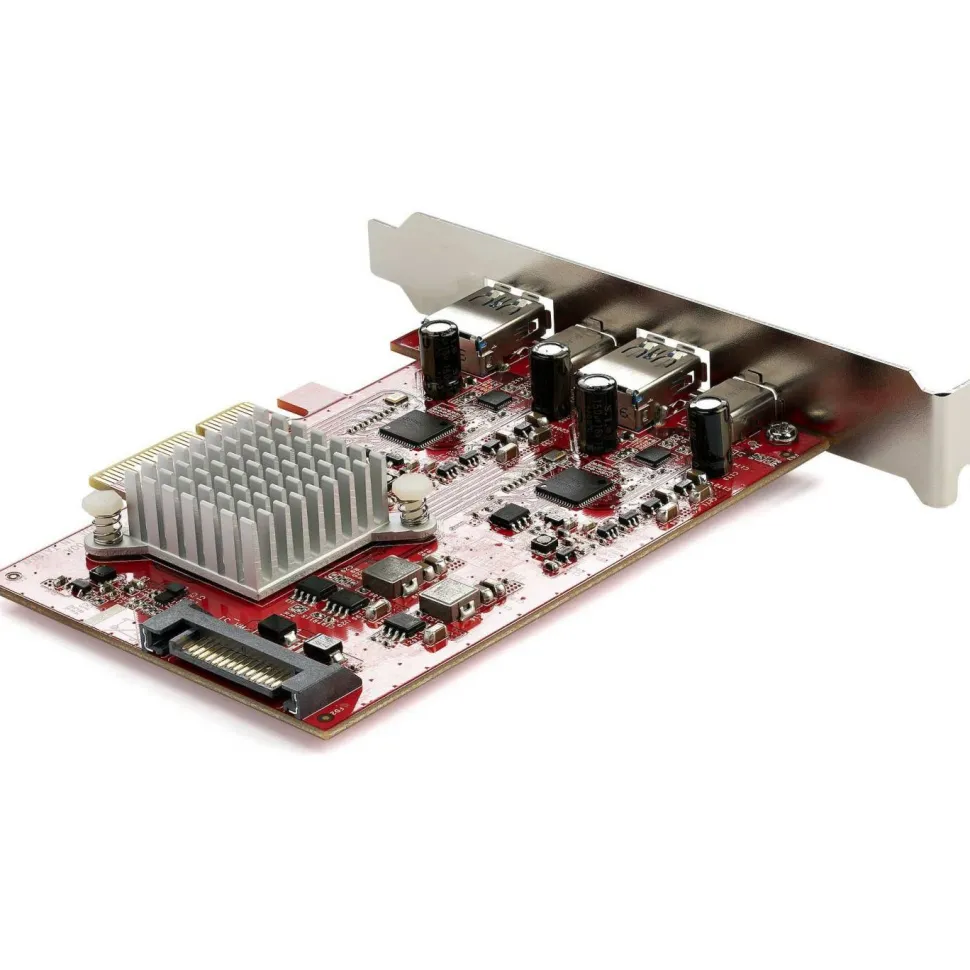

OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
USB Adapter plug-in with PCI Express x4 host interface
Provides 4 USB ports for responsive and expanded device connections
USB Adapter has a non-volatile memory which is beneficial for your PC firewall needs

Product Specifications

Additional Information

OS Compatibility: Windows 7, 8, 8.1, 10, 11 Windows Server 2008 R2, 2012 R2, 2016, 2019 Linux 3.5 and up – LTS Versions only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13) macOS Big Sur (11.0) macOS Monterey (12.0) macOS Ventura (13.0)
Brand Name

StarTech.com
Country of Origin

Taiwan
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/pexusb312a2c2v_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly

Yes
Form Factor

Plug-in Card
Height

0.9″
Host Interface

PCI Express x4
Length

4.4″
Limited Warranty

2 Year
Manufacturer Part Number

PEXUSB312A2C2V
Number of USB 3.2 Ports

4
Operating System Supported

Windows 7 Windows 8 Windows 8.1 Windows 10 Windows 11 Windows Server 2008 R2 Windows Server 2012 Windows Server 2016 Windows Server 2019 Windows Server 2022 Linux 3.5 Mac OS X 10.13 High Sierra Mac OS X 10.14 Mojave Mac OS X 10.15 Catalina Mac OS X 11.0 Big Sur Mac OS X 12.0 Monterey Mac OS X 13.0 Ventura
Package Contents

PCI Express USB Card Full Profile Bracket (Installed) Quick-Start Guide
Platform Supported

Linux Mac PC
Product Color

Red
Product Name

PCI Express USB Card
Product Type

USB Adapter
REACH Declaration URL

https://media.startech.com/cms/pdfs/pexusb312a2c2v_rohs.pdf
REACH free of SVHC

Yes
Total Number of USB Ports

4
WEEE Statement

https://media.startech.com/cms/pdfs/pexusb312a2c2v_weee.pdf
Width

3.3″
