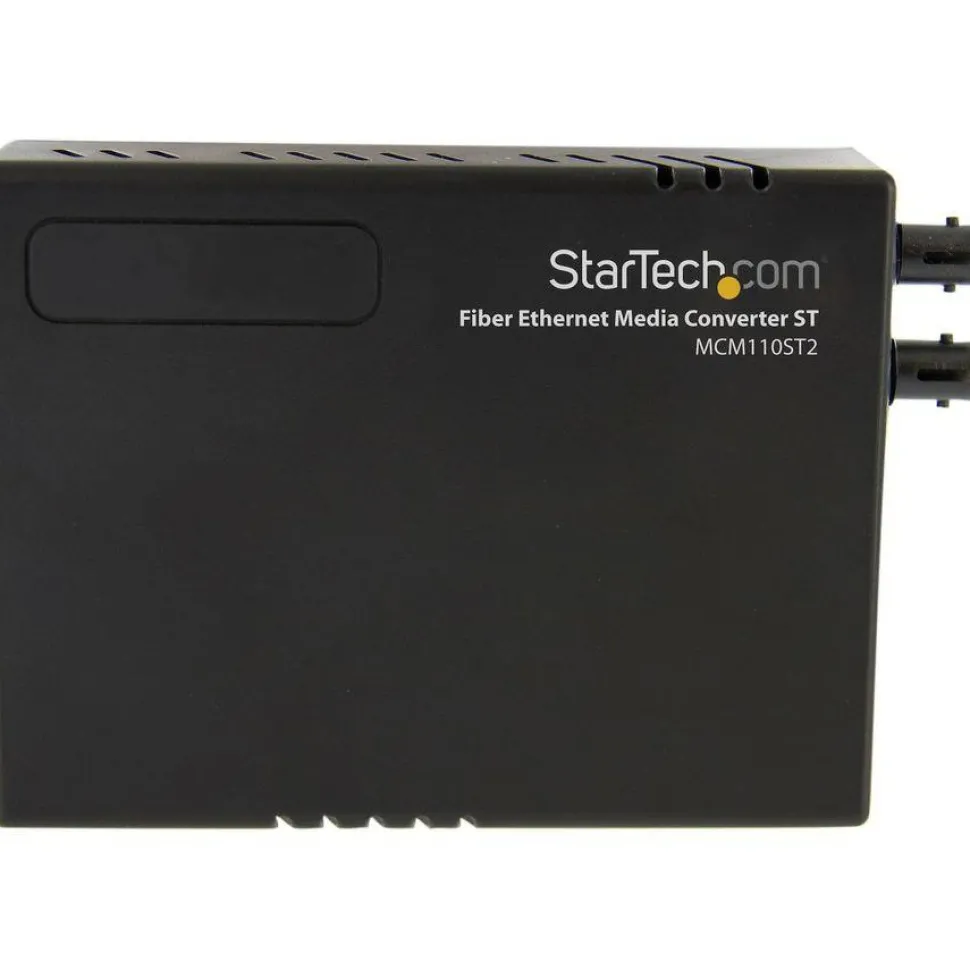

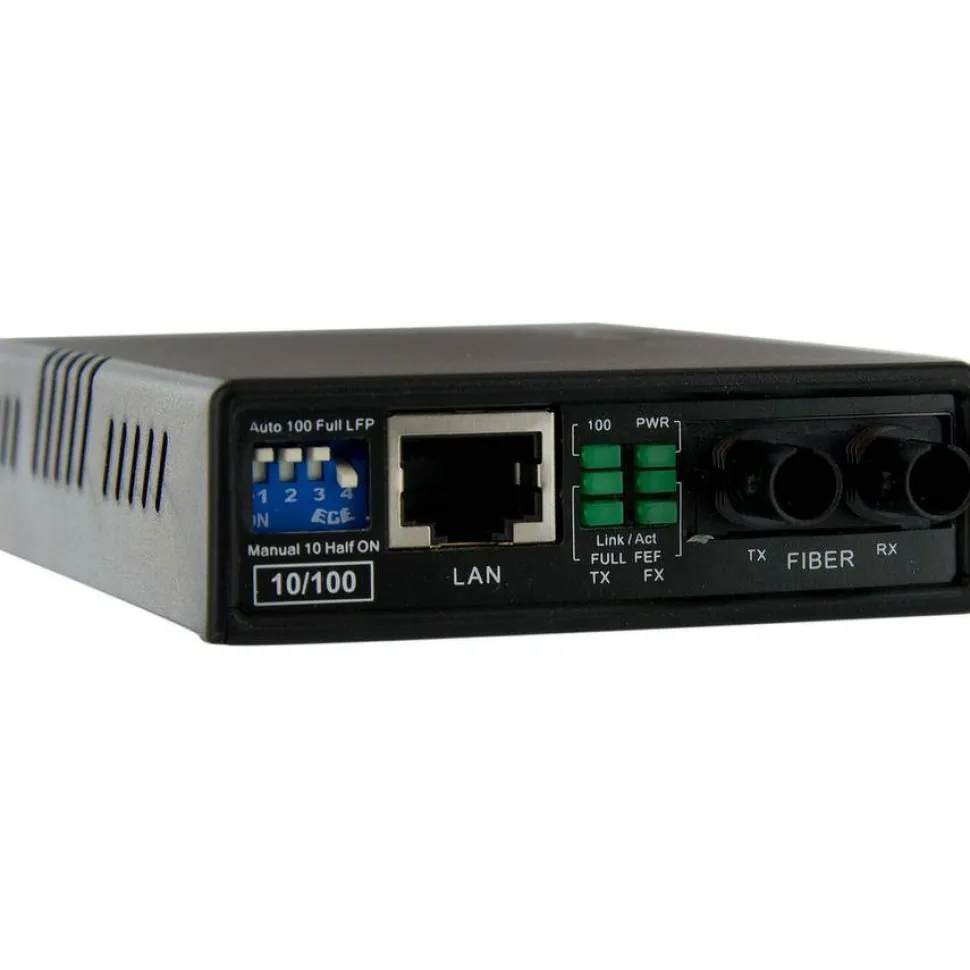

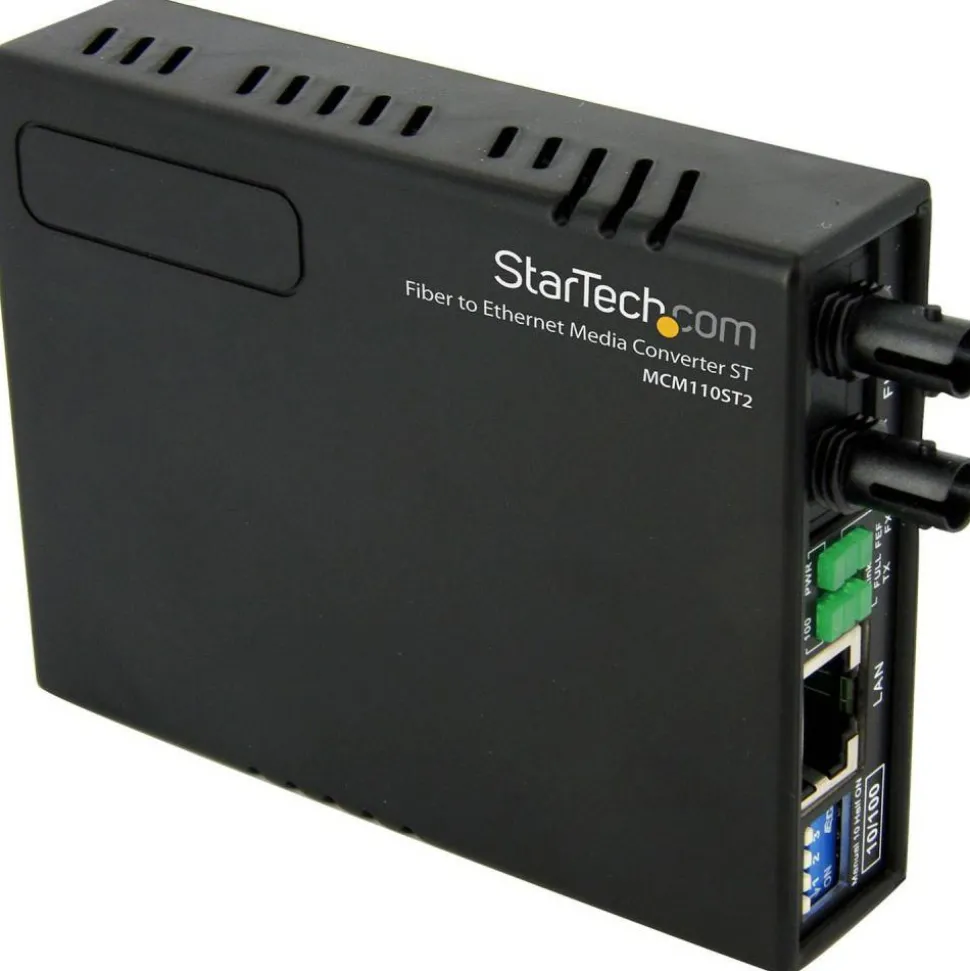

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode ST 2 km

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode ST 2 km

$60.89

SKU: SKU18PhxxK5SS Categories: Networking & Cables, Technology, Wired Networking Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech.com 10/100 Fiber to Ethernet Media Converter Multi Mode ST 2 km

Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber – fiber converter – ethernet media converter – fibre converter – 10/100 media converter – utp to fiber

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone.
The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability.
Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer

Supports IEEE 802.1q Tag VLAN pass thru
LED Indicators for simple Ethernet/Fiber network link monitoring
Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
Supports full or half-duplex operation
Support flow control (Pause)
Compatible with 3com, Cisco, Lucent and Nortel networks
Supports Link Fault Pass through (LFP)
Supports Q in Q double tagged frame transparent
Supports a maximum multi mode fiber optic cable distance of 2 km

Product Specifications

Additional Information

Plug Type: M Fiber Operating Mode: Half/Full-Duplex
Brand Name

StarTech.com
Country of Origin

CN
Depth

3.7″
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly

Yes
Ethernet Technology

Fast Ethernet
Fiber Mode Supported

Multi-mode
Fiber Optic Cable Wavelength

1310 nm
Form Factor

External
Height

0.8″
Limited Warranty

2 Year
Manufacturer

STARTECH.COM
Manufacturer Part Number

MCM110ST2
Maximum Distance Supported

2 km
Media Type Supported

Optical Fiber Twisted Pair
Model

10/100 Mbps Ethernet to Fiber Optic Media Converter – ST Multimode – 1310nm – 2km – Full/Half Duplex (MCM110ST2)
Network (RJ-45)

Yes
Network Technology

10Base-T 100Base-FX
Number of Network (RJ-45) Ports

1
Number of ST Ports

1
Package Contents

10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km 1 x Power Adapter 1 x Instruction Manual
Packaging

1
Plug/Connector Type

Type M
Power Consumption

2.40 W
Power Source

AC Adapter
Product Name

10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Product Type

Network Transceiver
Quantity

1
REACH Declaration URL

https://media.startech.com/cms/pdfs/mcm110st2_rohs.pdf
REACH free of SVHC

Yes
Refurbished

N
ST Port Type

Duplex
TAA Compliant

Yes
Total Number of Ports

2
WEEE Statement

https://media.startech.com/cms/pdfs/mcm110st2_weee.pdf
Width

3″
