StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PEX8S1050

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PEX8S1050

$136.89

SKU: SKUpcd4C0fMeA Categories: Networking & Cables, Technology, Wired Networking Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PEX8S1050

8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD – Bi-directional speed 921.6Kbps/port; 256byte FIFO – Expansion controller card; Pin 9 power 5v/12v/none, 3A max – DB62 to DB9 cable w/Hex nuts – Windows only; Systembase SB16C1058PCI

Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports

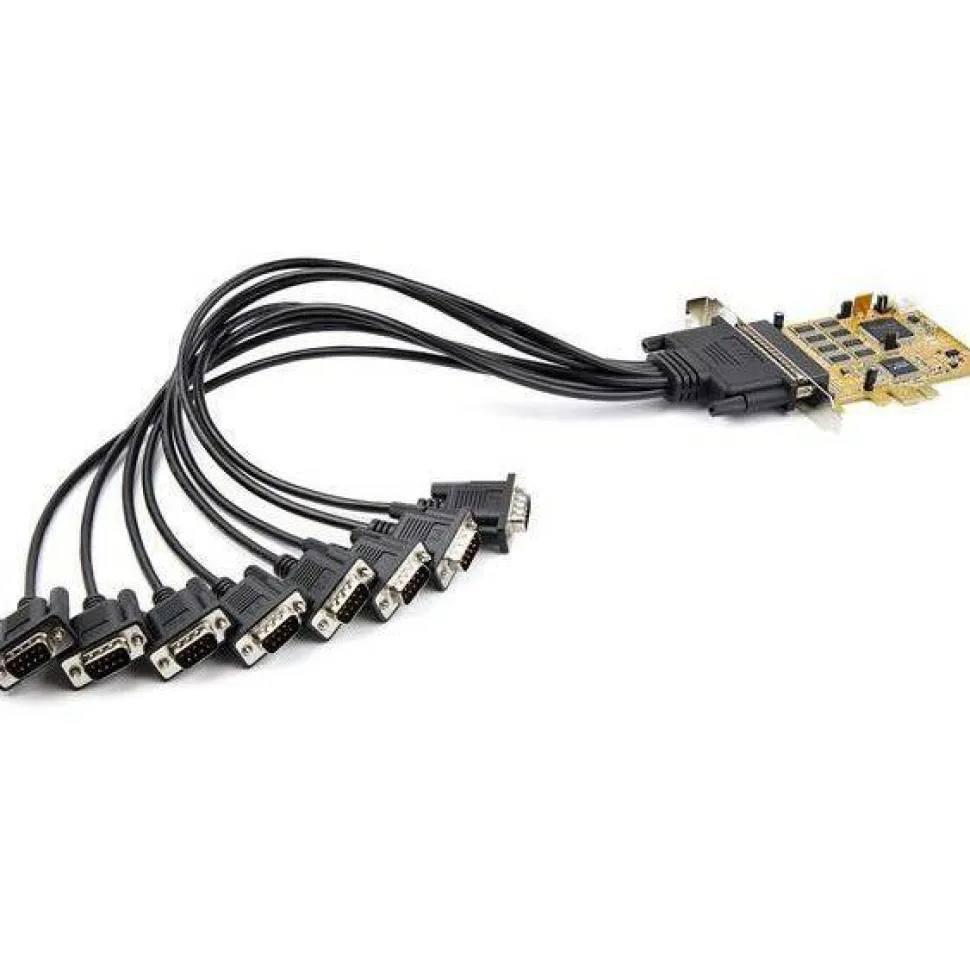

The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable – with 8 DB9 connectors.
Windows Only
This PCI Express card is only compatible with Windows and Windows server.
More from the Manufacturer

Maximum compatibility. With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
Connect your peripherals with 8 serial ports. The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable – with 8 DB9 connectors.

Product Specifications

Brand Name

StarTech.com
Country of Origin

TW
Environmental Compliance

Restriction of Hazardous Substances (RoHS)
Environmentally Friendly

Yes
Form Factor

Plug-in Card
Height

4.7″
Host Interface

PCI Express 1.0a x1
Limited Warranty

Lifetime
Manufacturer

STARTECH.COM
Manufacturer Part Number

PEX8S1050
Maximum Data Transfer Rate

921.40 kbit/s
Model

8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux – Up to 921.6 Kbps Baud
Number of Serial Ports

1
Package Contents

PCIe Serial Card 1 x DB62 to 8 Port DB9 Breakout Cable 1 x Quick Start Guide 8 x Optional DB9 Connector Hex Nut Pairs
Packaging

1
Platform Supported

Linux PC
Ports Expandability

8 x DB-9 RS-232 – Serial, Via Cable
Product Name

PCIe Serial Card
Product Type

Wired Networking Adapter
Quantity

1
Refurbished

N
UART Type

16C1050
Width

0.6″
