Sale!

StarTech Industrial Gigabit PoE Splitter, 90W Power over Ethernet PoE++ Splitter, 12-48VDC Splitter 802.3bt Ultra PoE -40 to +75C, TAA

StarTech Industrial Gigabit PoE Splitter, 90W Power over Ethernet PoE++ Splitter, 12-48VDC Splitter 802.3bt Ultra PoE -40 to +75C, TAA

Original price was: $153.00.Current price is: $100.89.

SKU: SKUYiBWs1Ytvi Categories: Networking & Cables, Technology, Wireless Networking Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

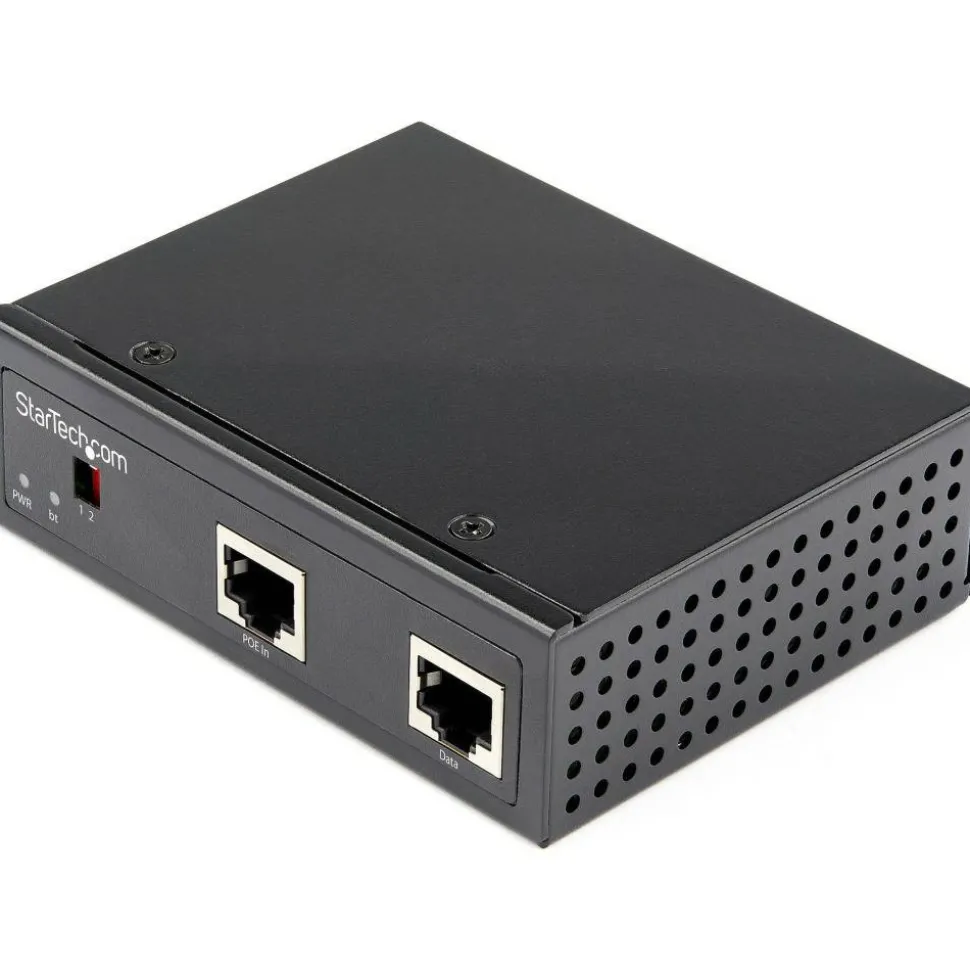

StarTech Industrial Gigabit PoE Splitter, 90W Power over Ethernet PoE++ Splitter, 12-48VDC Splitter 802.3bt Ultra PoE -40 to +75C, TAA

Industrial gigabit PoE Splitter Power over Ethernet splitter up to 90W power with IEEE 802.3af/at/bt for PoE/PoE+/PoE++ MTBF 600k +hrs IP-30 housing -40C to +75C DIN/Wall mountable 12/16/24/48V DC (1.5A) termnial block power out 2-year warranty

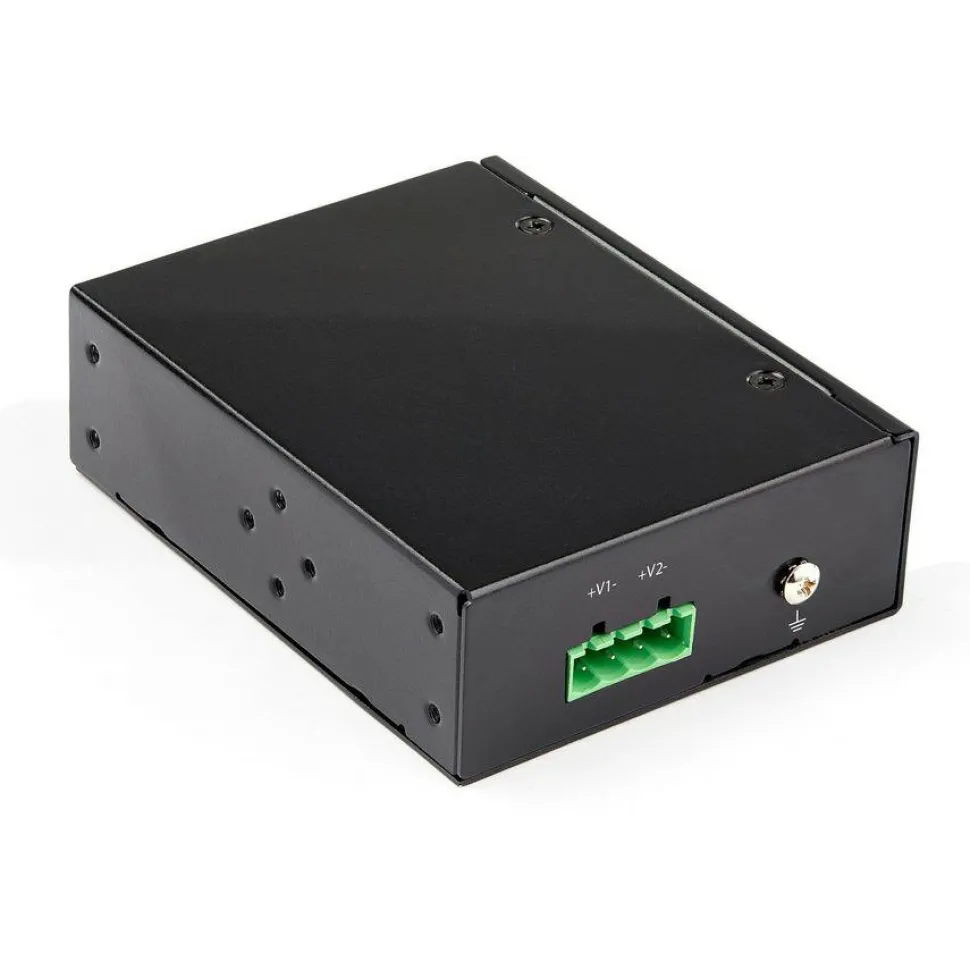

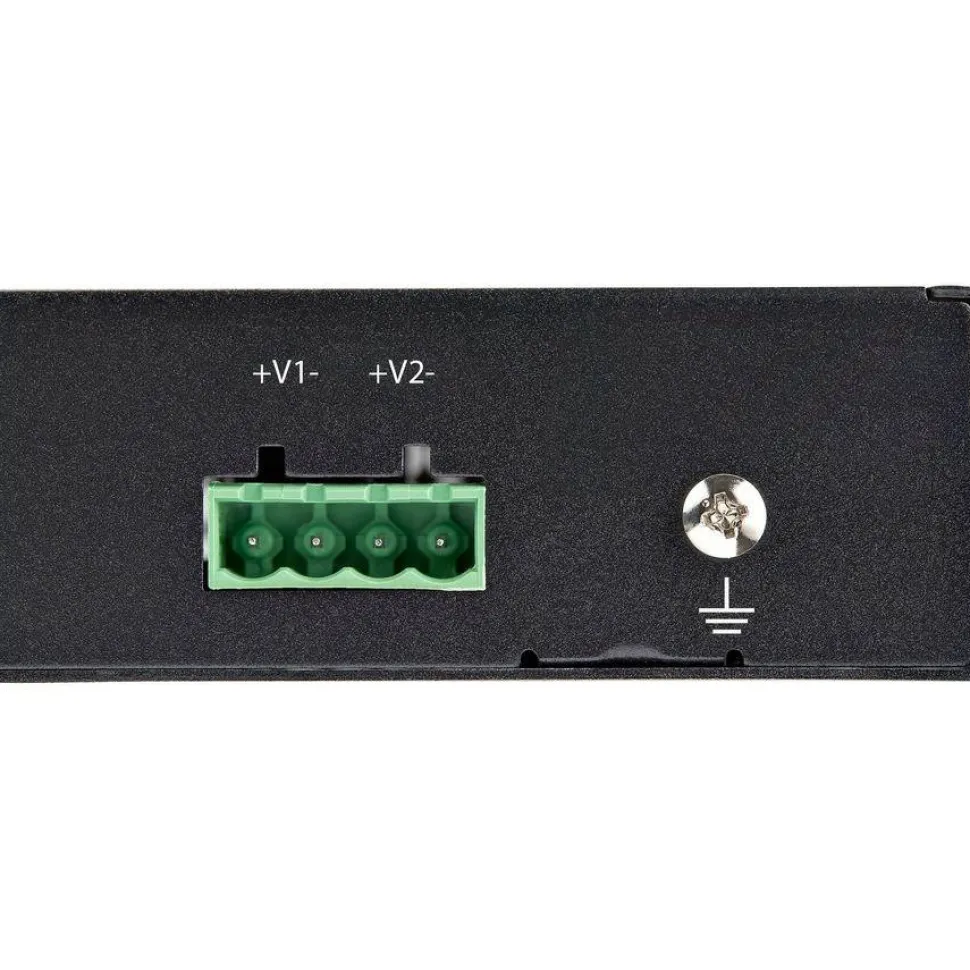

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices
Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:
Security (card swipe or proximity boxes)
Environmental monitoring (temperature/moisture sensors)
Telco (analog interface systems/conversion)
Straightforward Deployment
Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

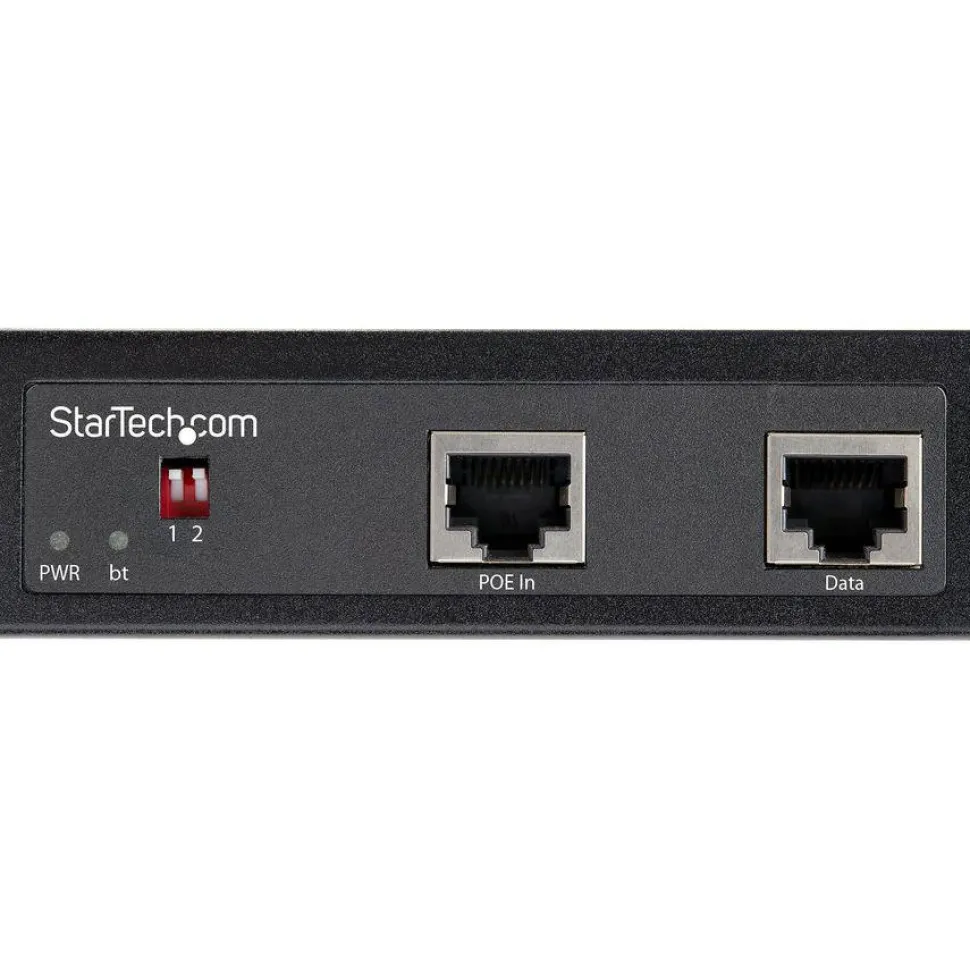

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32
600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer

Designed for harsh environments. Industrial features include -40°C to 75°C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Power non-PoE devices. Perfect for using PoE to power older devices while also providing network access for monitoring and control applications.

Product Specifications

Brand Name

StarTech.com
Certifications & Standards

IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3at IEEE 802.3af IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-27 EN 60068-2-32 EN60950-1
Country of Origin

TW
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/poeslt1g48v_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally Friendly

Yes
Form Factor

DIN Rail/Wall Mountable
Height

1.3″
Input Ports

1 x PoE+
Length

4.1″
Limited Warranty

2 Year
Manufacturer

STARTECH.COM
Manufacturer Part Number

POESLT1G48V
Maximum Output Voltage

48 V DC
Minimum Output Voltage

12 V DC
Output Ports

1 x Ethernet 1 x Terminal Block
Package Contents

POESLT1G48V PoE Splitter Quick-Start Guide Hardware Mounting Kit Terminal Block
Packaging

1
Product Model

POESLT1G48V
Product Name

POESLT1G48V PoE Splitter
Product Type

Power Splitter
Quantity

1
REACH Declaration URL

https://media.startech.com/cms/pdfs/poeslt1g48v_rohs.pdf
REACH free of SVHC

Yes
Refurbished

N
WEEE Statement

https://media.startech.com/cms/pdfs/poeslt1g48v_weee.pdf
Width

3.2″
