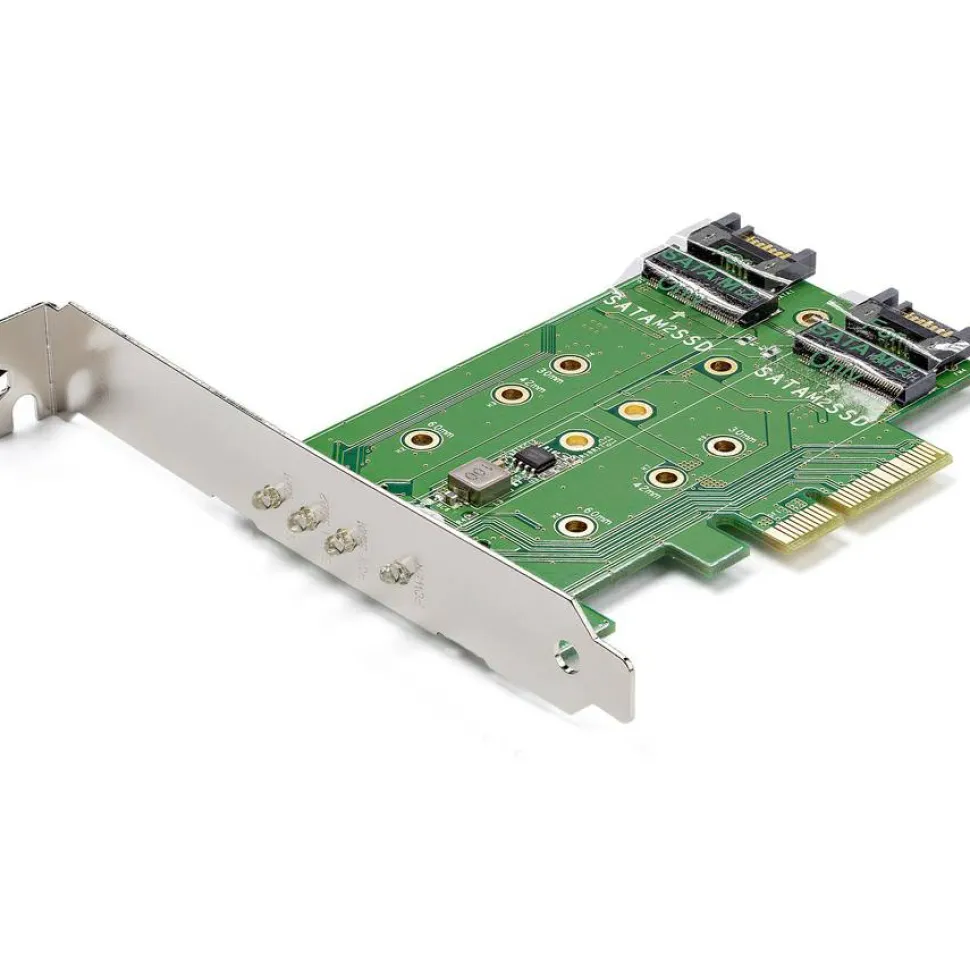

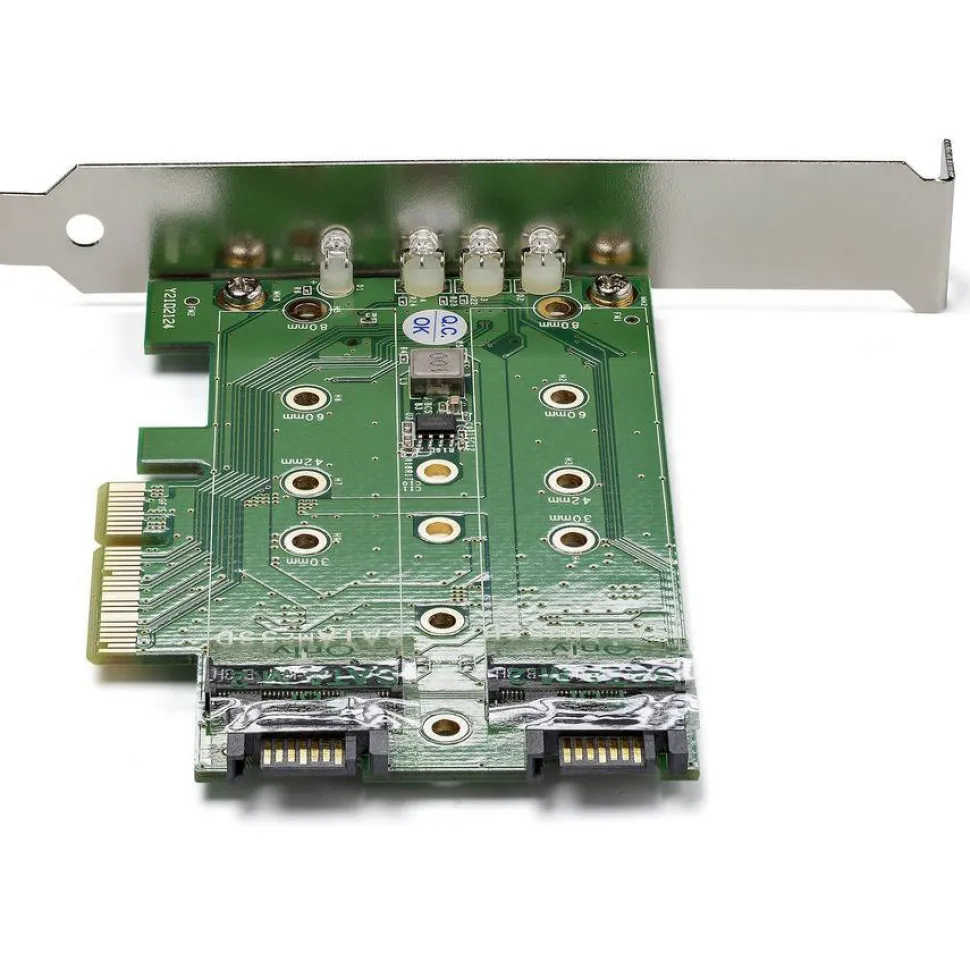

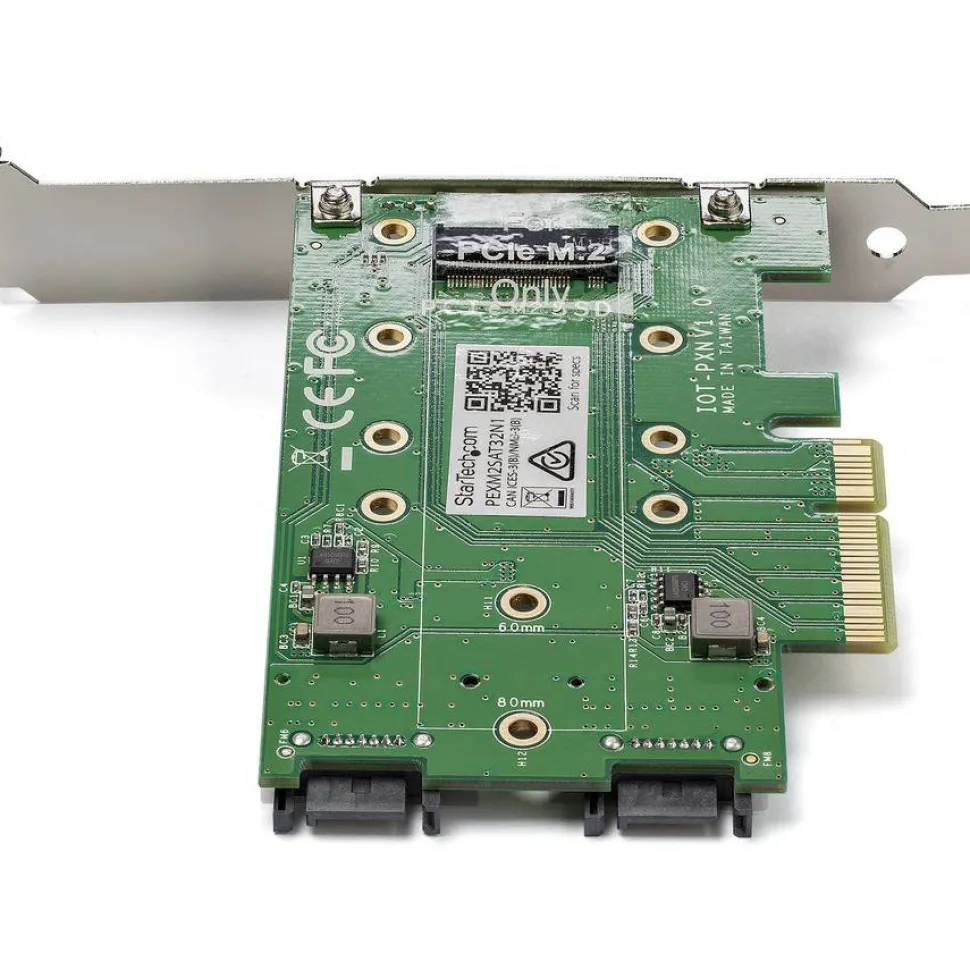

StarTech M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2 - SSD PCIE M.2 Adapter - M2 SSD - PCI Express SSD, TAA

StarTech M.2 Adapter – 3 Port – 1 x PCIe (NVMe) M.2 – 2 x SATA III M.2 – SSD PCIE M.2 Adapter – M2 SSD – PCI Express SSD, TAA

Original price was: $50.00.Current price is: $37.89.

SKU: SKUozBCrBBci9 Categories: Computer Memory & Upgrades, Storage Controllers, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech M.2 Adapter – 3 Port – 1 x PCIe (NVMe) M.2 – 2 x SATA III M.2 – SSD PCIE M.2 Adapter – M2 SSD – PCI Express SSD, TAA

Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card – 3-Port M.2 SSD (NGFF) Adapter Card – 1 x PCIe (NVMe) 2 x SATA III M.2 – PCIe 3.0 – PCI Express 3.0 M.2 NGFF card expands your computer’s storage

This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.
Increase the storage of your desktop PC
If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.
Optimize your computer’s performance
When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.
Peace of mind, with simple and cost-effective data recovery
Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.
Leverage the size and speed of M.2 drives
This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.
Supports a wide range of drives
You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.
The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
More from the Manufacturer

INCREASED PRODUCTIVITY: The M.2 NVME card provides a platform for up to 3x M.2 SSDs (solid-state drives) to any computer that has a PCIe slot. It supports common M.2 SATA SSDs and newer high-performance M.2 PCIe drives
BETTER PERFORMANCE: This 3-port PCIe M.2 adapter card works two M.2 SATA drives and a single NVMe M.2 drive with support for PCIe 3.0 x4 (40Gbps); Includes standard and low-profile brackets; Power and Activity LED Indicators
MAXIMUM COMPATIBILITY: This PCI express card lets you take advantage of NGFF M.2 SSDs. M.2 drives that are smaller than typical platter drives; Supports most drive sizes: 2280, 2260, 2242 and 2230; Compatible with PCIe x4 slot or greater
HELPS WITH DATA RECOVERY: For your failed laptop with functioning M.2 drive, plug this M.2 SATA card to your desktop/workstation to recover your data; A pass-through SATA port connects to an additional drive for convenient data transfer or drive recovery
THE IT PRO’S CHOICE: Designed and built for IT professionals, this TAA compliant 3-port PCIe M.2 adapter card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD
Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)
SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC
Full bandwidth is available for each M.2 drive simultaneously (up to approximately 40Gbps for M.2 PCIe drives, and up to 6Gbps for M.2 SATA III drives)
Wide installation compatibility, with support for a range of M.2 drives (2280, 2260, 2242, 2230)
Adjustable stand-offs and multiple mounting holes support 80 mm, 60 mm, 42 mm, and 30 mm SSDs
OS independent with no drivers required, for a fast, hassle-free setup
Equipped with a full-profile bracket, includes a low-profile (half-height bracket) for installation in small form-factor computers
Installs into x4, x8, or x16 PCIe slots

Product Specifications

Additional Information

Connector(s) Connector Type(s): 1 – PCI Express x4 Internal Ports: 2 – M.2 (SATA, B-Key, NGFF); 1 – M.2 (PCIe, M-Key, AHCI/NVMe, NGFF); 2 – SATA (7 pin, Data) Environmental Operating Temperature: 5°C to 50°C (41°F to 122°F) Storage Temperature: -25°C to 70°C (-13°F to 158°F) Humidity: 20%~80% RH (Non-condensing) Hardware Ports: 3 Interface: M.2 SATA; SATA; M.2 PCIe; Bus Type: PCI Express Card Type: Standard Profile (LP bracket incl.) Port Style: Integrated on Card Industry Standards: Serial ATA 3.0 specification – SATA I/II/III (1.5/3/6Gbps); PCI Express 3.0 Indicators LED Indicators: 3 – M.2 drive status/activity; 1 – Power
Brand Name

StarTech.com
Certifications & Standards

CE FCC
Country of Origin

Taiwan
Environmentally Friendly

Yes
Height

4.7″
Length

4.7″
Limited Warranty

2 Year
Manufacturer Part Number

PEXM2SAT32N1
Package Contents

3-port M.2 NGFF SSD Adapter Card 1 x Low-Profile Bracket 3 x M.2 Mounting Screws 3 x M.2 Mounting Standoffs 3 x M.2 Mounting Nuts 1 X Screw Driver 1 X Quick Start Guide
Product Color

Green
Product Material

Steel
Product Name

3-port M.2 NGFF SSD Adapter Card
Product Type

M.2 NVMe to PCIe Adapter
Width

0.8″
