StarTech USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)

StarTech USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)

Original price was: $163.00.Current price is: $109.99.

SKU: SKUigCIPma77b Categories: Computer Accessories, Laptop Accessories, Technology Tag: StarTech.com Brand: StarTech.com

Description
Reviews (0)

Product Description

StarTech USB C Dock, Triple 4K Monitor USB-C Docking Station with DP 1.4 & DSC, 2x DisplayPort & 1x HDMI, 100W PD, 6x USB (2x 10Gbps)

USB-C docking station 10Gbps – Dual or Triple Monitor MST USB C Dock 4K 60Hz (2x DisplayPort and 1x HDMI) DP 1.4 Alt-Mode w/ DSC/HBR3 – 100W Power Delivery, SD slot, Ethernet – Windows-based laptops – 2xA 5Gbps, 2xA (USB 2.0), 2xC 10Gbps – Driverless

This USB-C Gen 2 10Gbps docking station turns your USB-C or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

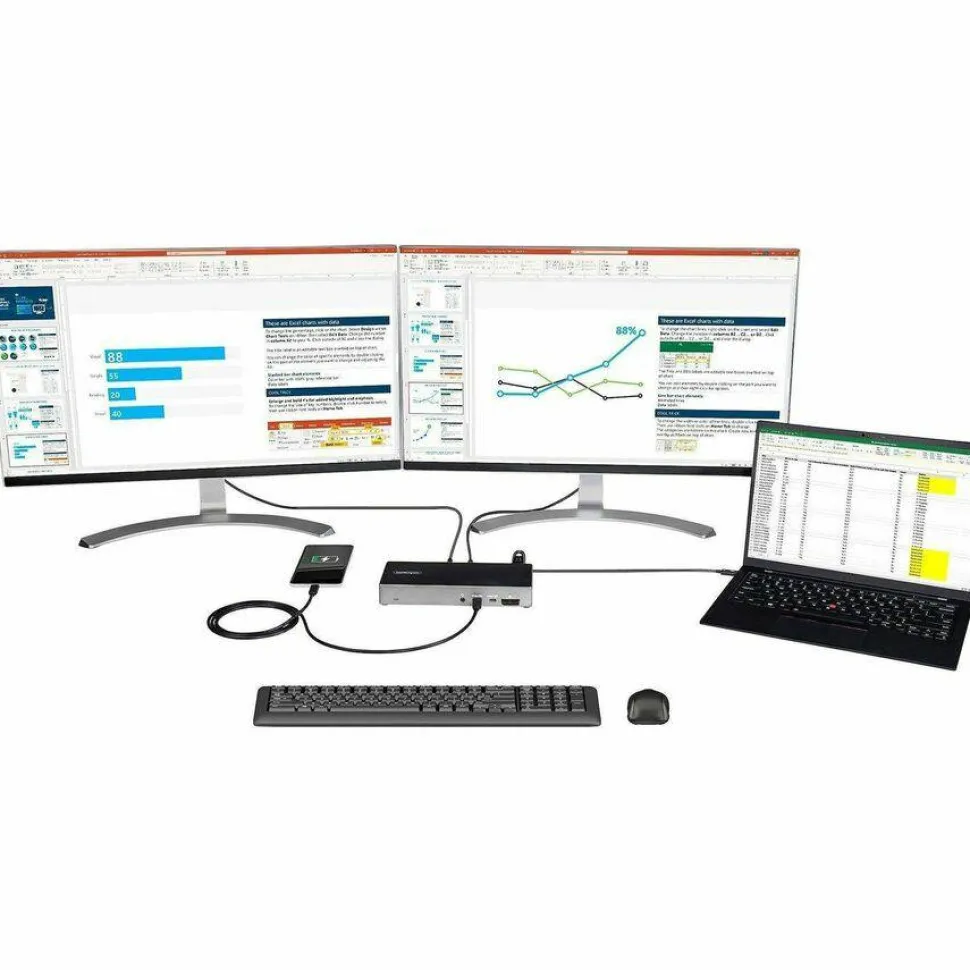

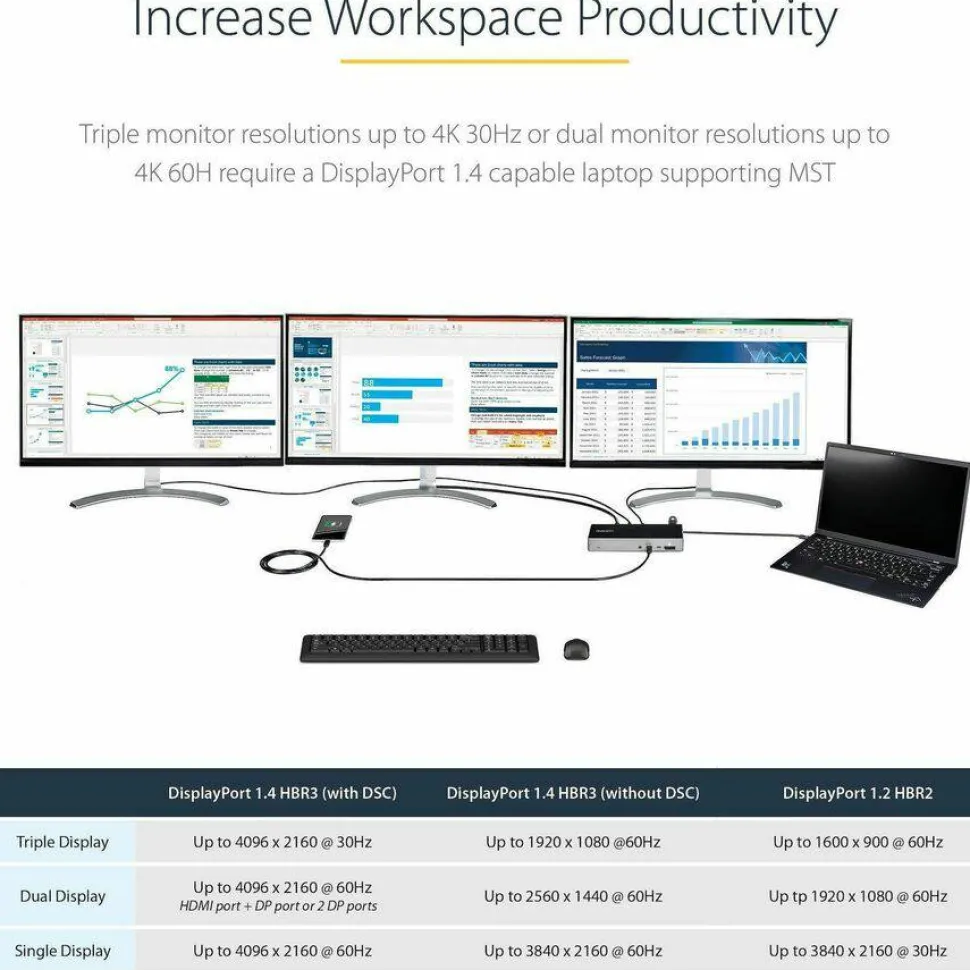

HDMI & DisplayPort for Multiple Monitor Outputs
This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunderbolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements. DP 1.4 HBR3 with DSC Enabled DP 1.4 HBR3 (without DSC) DP 1.2 HBR2
Triple Display Up to 4096 x 2160 @ 30Hz Up to 1920 x 1080 @ 60Hz Up to 1600 x 900 @ 60Hz Dual Display
Up to 4096 x 2160 @ 60Hz* *HDMI port + DP port or 2 DP ports Up to 2560 x 1440 @ 60Hz Up to 1920 x 1080 @ 60Hz Single Display Up to 4096 x 2160 @ 60Hz Up to 3840 x 2160 @ 60Hz Up to 3840 x 2160 @ 30Hz
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.
Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

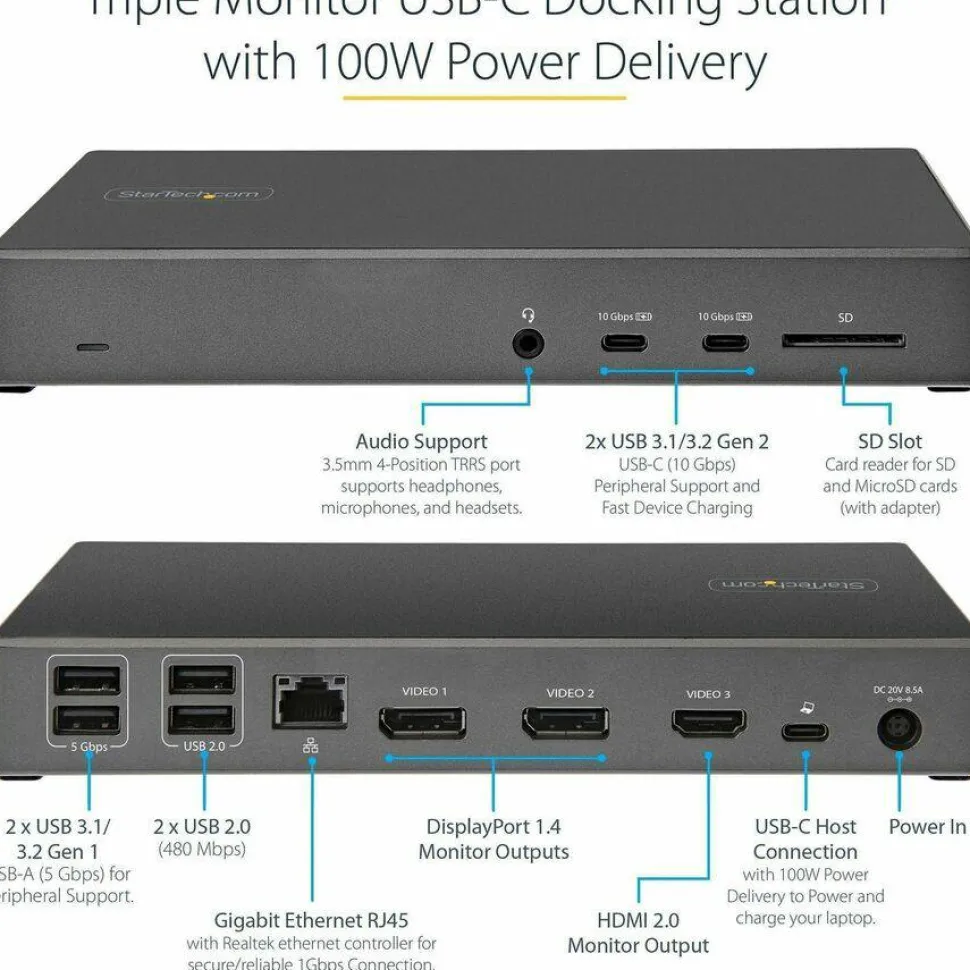

Integrated 6-Port USB Hub & SD Card Reader
This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.
2x USB-C 3.2 Gen 2 – 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
2x USB-A 3.2 Gen 1 – 5 Gbps
2x USB-A 2.0 – 480 Mbps
SD 4.0 Card Reader
Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

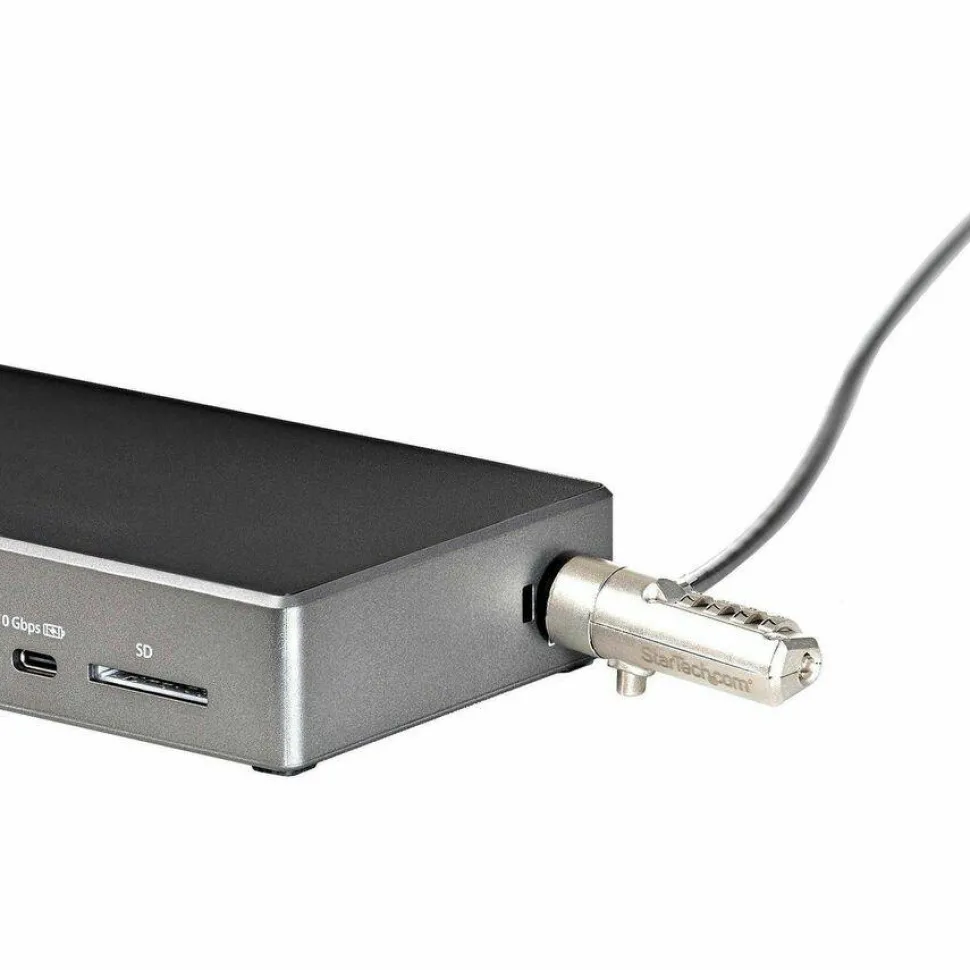

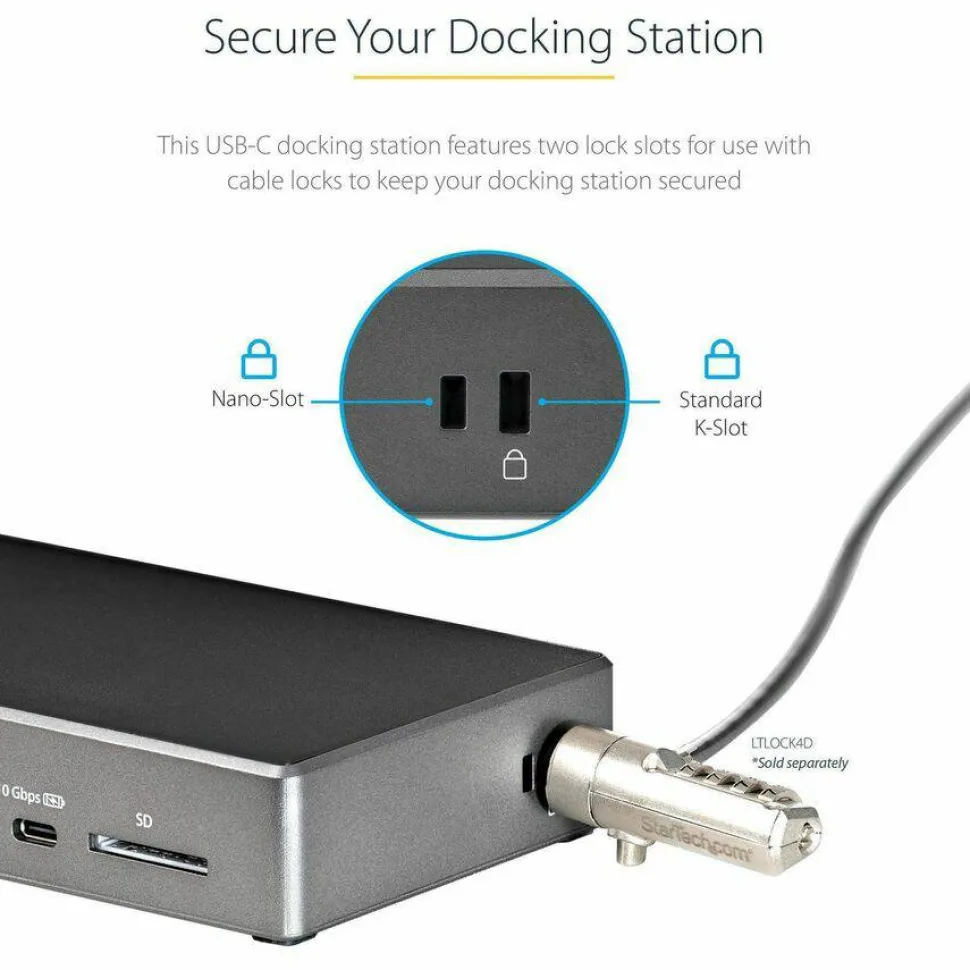

Additional Security Features

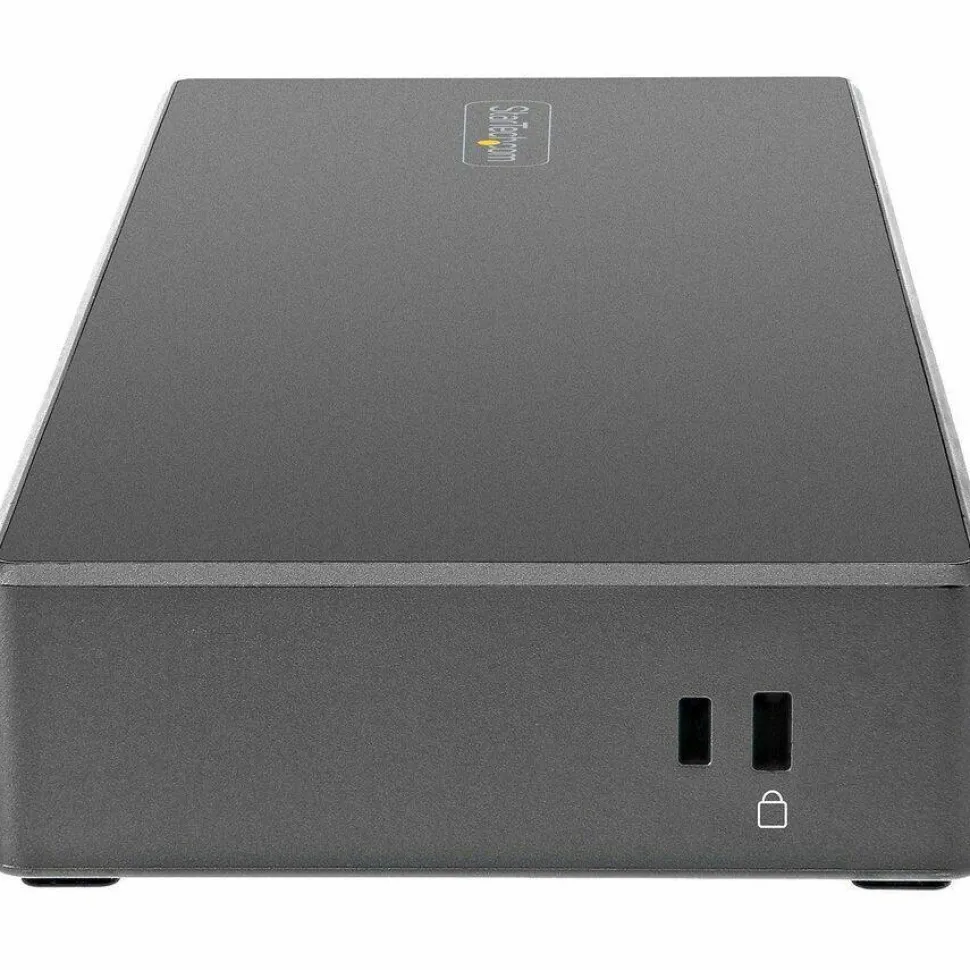

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.

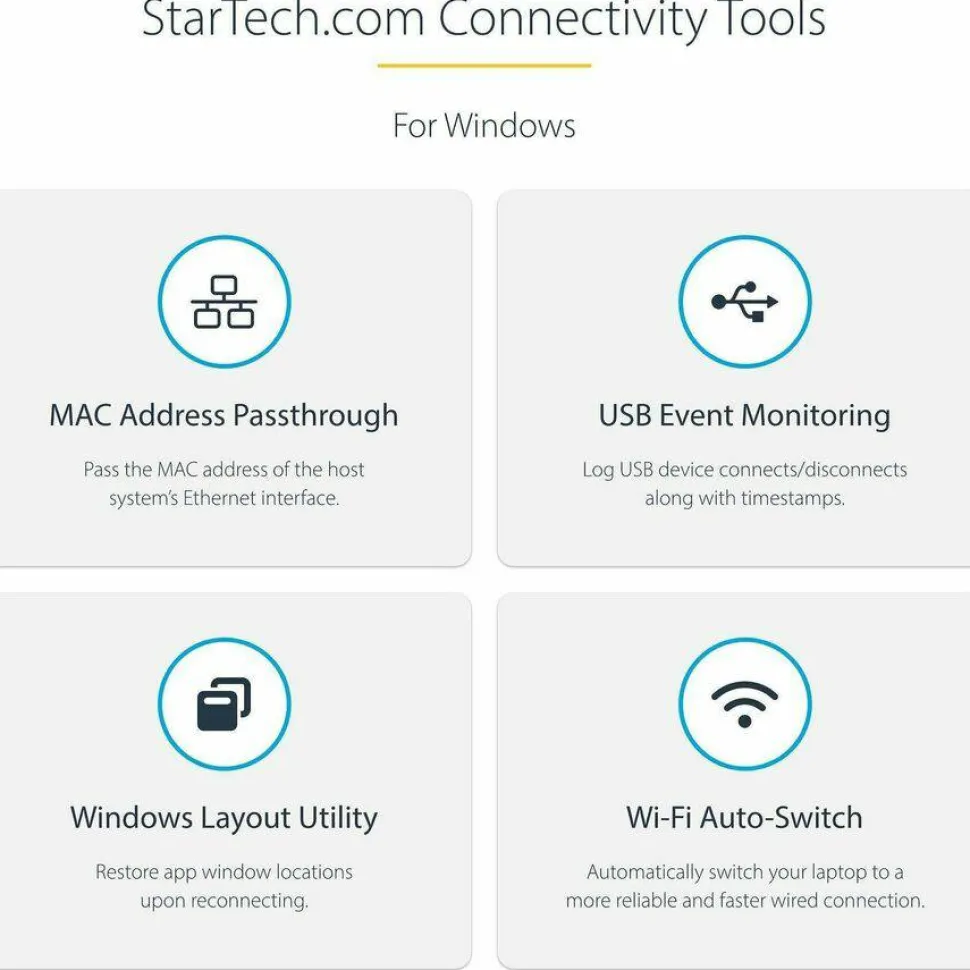

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

Advanced Windows Layout Utility: To setup and save custom windows layouts.

Mac Address Pass-Through Utility: To improve network security.

USB Event Monitoring Utility: To track and log connected USB devices

Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
More from the Manufacturer
More from the Manufacturer

HIGH PERFORMANCE USB-C DOCK: USB-C docking station for Windows/Chrome OS, featuring up to three 4K video outputs (2x DisplayPort 1.4 & 1x HDMI 2.0), 100W PD, 6 port USB Hub (10Gbps), SD 4.0 Card Reader, Gigabit Ethernet, and headset port
DISPLAYPORT 1.4 WITH DSC: Triple monitor USB-C docking station (MST) supports dual 4K 60Hz or triple 4K 30Hz on DP 1.4 Alt-Mode HBR3 w/ DSC enabled laptop – works with DP 1.2 supporting dual monitor 1080p @ 60Hz (see image gallery)
100W POWER DELIVERY CHARGING: Power & charge Windows-based USB-C/Thunderbolt 3 workstation laptops, Chromebooks, ultrabooks including Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, and ZBook
6-PORT USB HUB: 2x 10Gbps USB-C (USB 3.2/3.1 Gen 2), both BC 1.2 fast charge always-on ports), 2x USB 3.0 5Gbps, and 2x USB 2.0; a variety of USB ports to connect many peripherals incl. two 10Gbps high speed USB-C ports for external drives

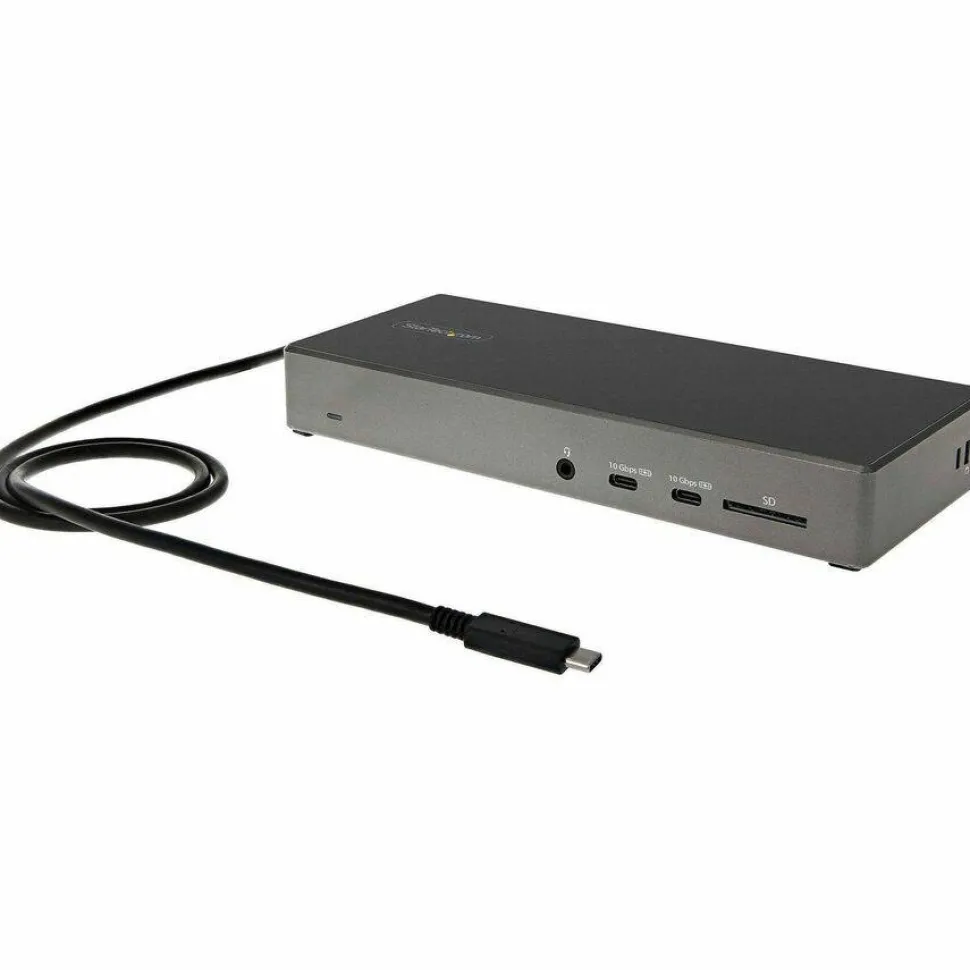

DEPLOYMENT READY: Universal multi monitor USB Type-C docking station with no driver setup, features 2x security lock k-slots, On/Off button, 3.3ft (1m) USB-C host cable; Windows/Chrome OS support
CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
USB 3.1 Type C host interface Offers a more refined structure and safer to use connectivity
Tablet device supported for better reliance and optimal performance
Lets you conveniently connect to the gigabit ethernet Ethernet technology to offer maximum productivity
HDMI effectively and conveniently transmits both audio and video signals with one single cable to ensure hassle-free connectivity
6 USB ports allows quick transmission of data at a higher rate for your convenience
Wired connectivity technology provides a high-powered and dependable connection
Tablet device supported according to your requirements with maximum productivity
Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
The HDMI supports digital audio/video output to a wide assortment of HD gadgets
6 USB ports allows powerful and efficient transfer of data with maximum productivity

Product Specifications

Brand Name

StarTech.com
Compatibility

Compatible Notebook/Tablet PC: Lenovo X1 Carbon Lenovo ThinkPad P Series Dell Latitudes Series Dell Precision Series Dell XPS 15 HP Spectre HP ZBook Google Chromebook
Connectivity Technology

Wired
Country of Origin

Thailand
Device Supported

Tablet Workstation Monitor Notebook
DisplayPort

Yes
EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/dk31c2dhspd_rohs.pdf
End of Life Manual Availability

Yes
Environmental Certification

EU RoHS
Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) 2
Environmentally Friendly

Yes
Ethernet Technology

Gigabit Ethernet
HDMI

Yes
Height

1.20″
Host Interface

USB 3.1 Type C
Kensington Security Slot

Yes
Limited Warranty

3 Year
Manufacturer Part Number

DK31C2DHSPD
Maximum Power Supply Wattage

100 W
Memory Card Reader

Yes
Memory Card Supported

SD
Network (RJ-45)

Yes
Number of DisplayPorts

2
Number of Displays Supported

3
Number of HDMI Ports

1
Number of USB 3.1 Gen 1 Type-A Ports

2
Number of USB 3.1 Type-C Ports

1
Number of USB Type-A Ports

4
Number of USB Type-C Ports

2

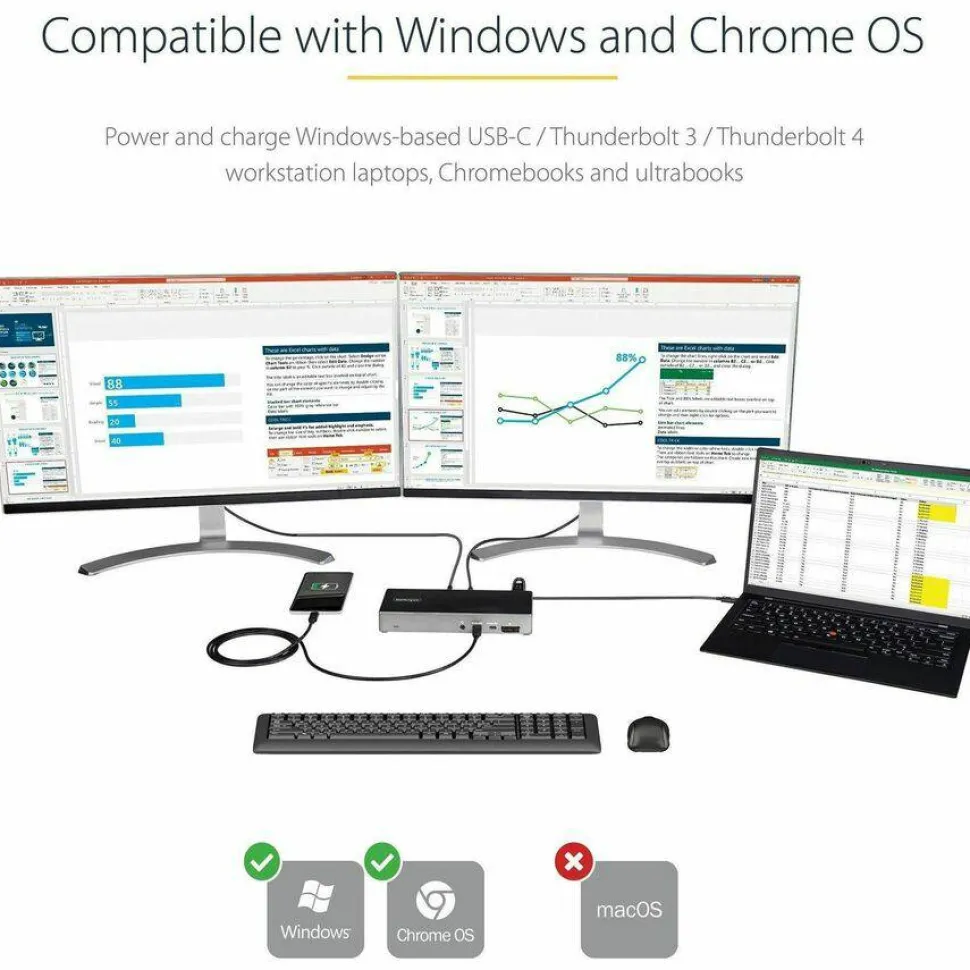

Operating System Supported

Windows 10 Windows 11 Windows 8.1 ChromeOS 78.x

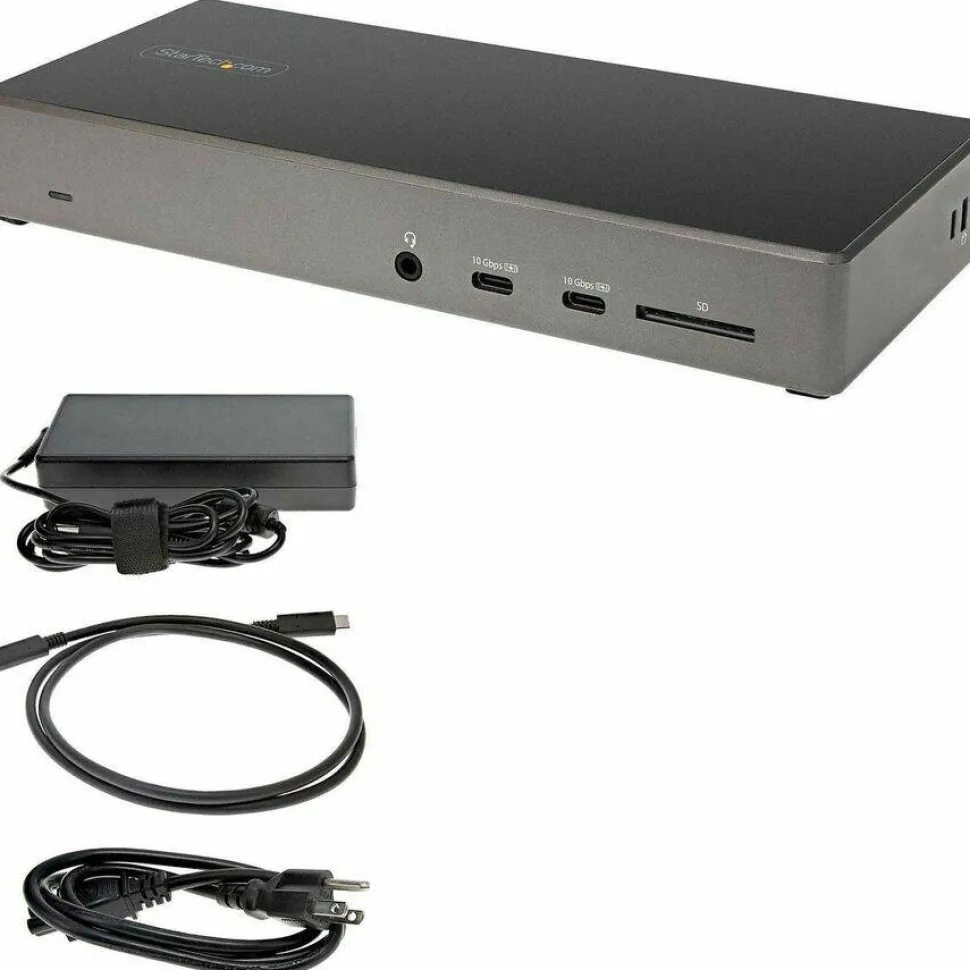

Package Contents

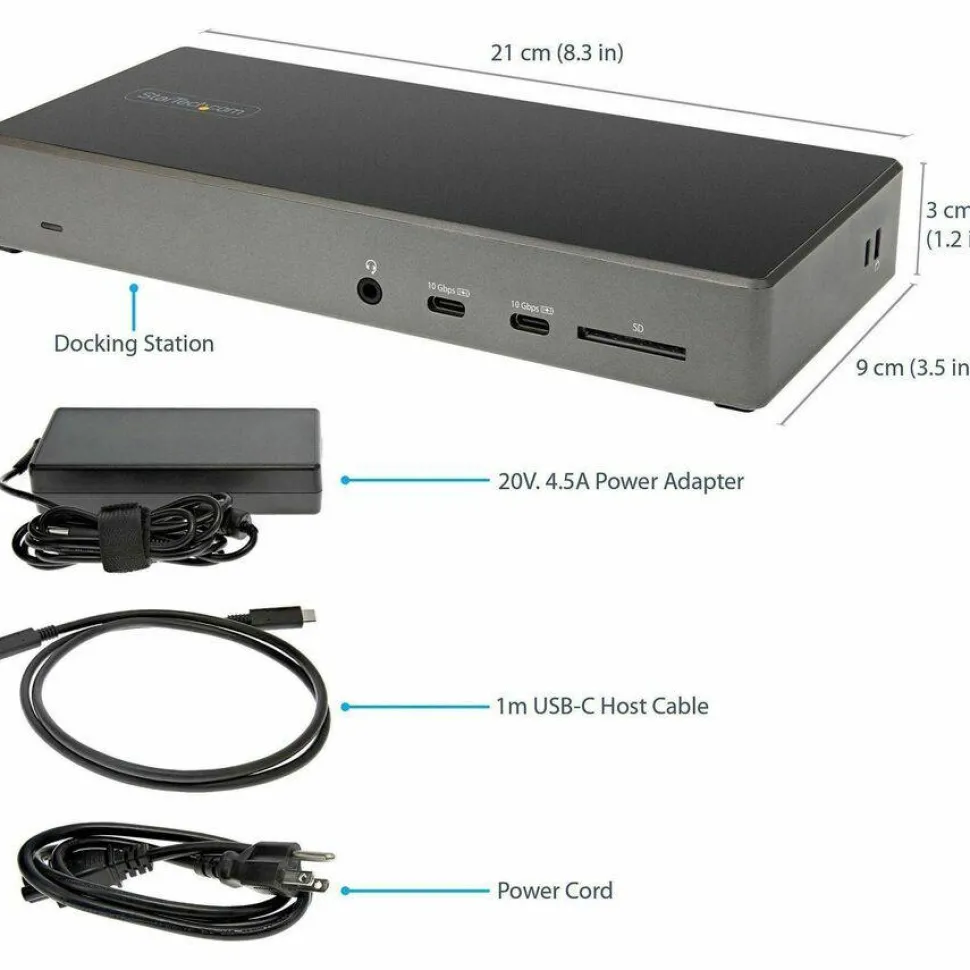

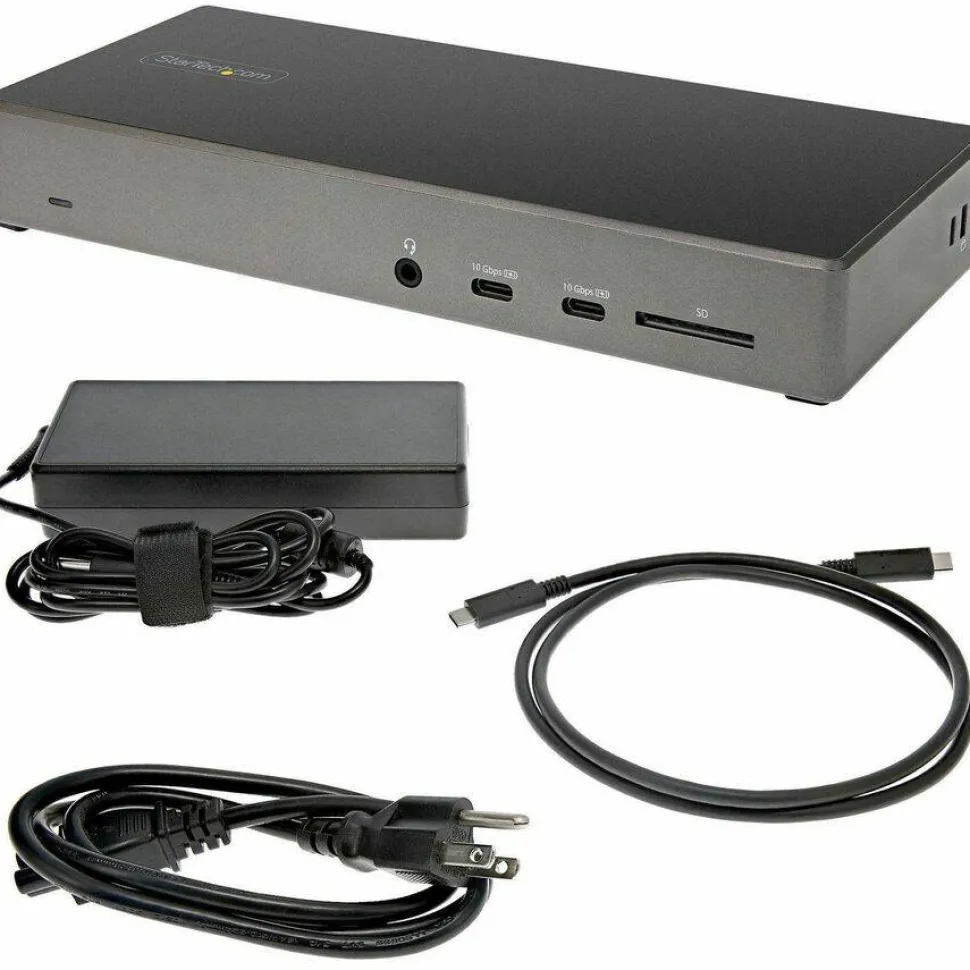

Docking Station AC Adapter 1 x USB-C Cable (1 m) Quick-Start Guide 2 x Power Cable NA/JP & ANZ
Product Color

Black Space Gray
Product Name

Docking Station
Product Type

Docking Station
REACH Declaration URL

https://media.startech.com/cms/pdfs/dk31c2dhspd_rohs.pdf
REACH free of SVHC

Yes
Screen Mode Supported

4K
Supported Resolutions

1600 x 900 1920 x 1080 2560 x 1440 3840 x 2160 4096 x 2160
Total Number of USB Ports

6
USB Type-A

Yes
WEEE Statement

https://media.startech.com/cms/pdfs/dk31c2dhspd_weee.pdf
Width

3.50″
