Tripp Lite by Eaton UPS 500VA 300W 120V Line-Interactive UPS 6 NEMA 5-15R Outlets USB DB9 Network Card Option 1U Rack/Tower Battery Backup

Tripp Lite by Eaton UPS 500VA 300W 120V Line-Interactive UPS 6 NEMA 5-15R Outlets USB DB9 Network Card Option 1U Rack/Tower Battery Backup

Original price was: $297.00.Current price is: $124.99.

SKU: SKUXQRtvLp2uw Categories: Batteries, Power & Backup, Power Backup & Safety, Technology Tag: Tripp Lite Series Brand: Tripp Lite Series

Description
Reviews (0)

Product Description

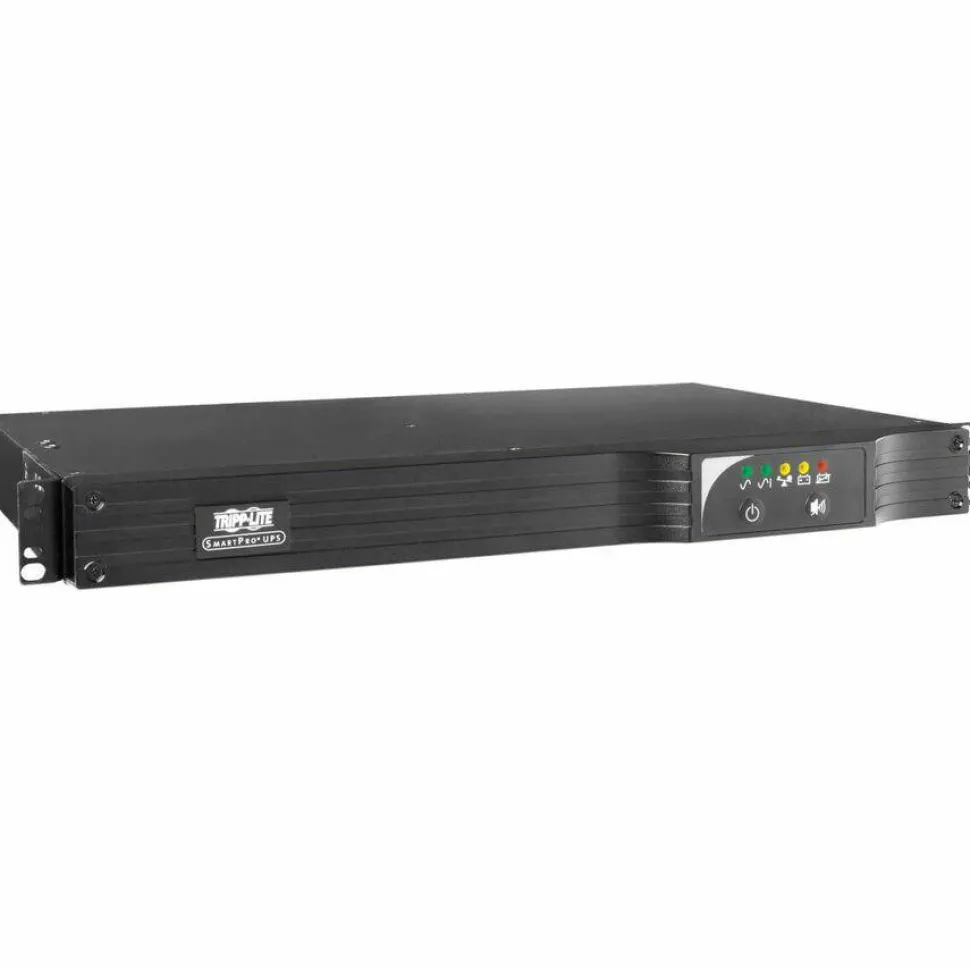

Tripp Lite by Eaton UPS 500VA 300W 120V Line-Interactive UPS 6 NEMA 5-15R Outlets USB DB9 Network Card Option 1U Rack/Tower Battery Backup

1U Rack/Tower – 4 Hour Recharge – 3.20 Minute Stand-by – 120 V AC Input – 120 V AC Output – 6 x NEMA 5-15R

500VA/300W/120V Battery Backup for PC Networks, Security Systems or Digital Signage
The SmartPro line-interactive SMART500RT1U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The 120V battery backup is ideal protection for point-of-sale and kiosk applications, a small business VoIP network, or rack-mount equipment in your server room or network closet.

Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (150W) powered as long as 14 minutes and a full load (300W) up to three minutes.

6 NEMA Outlets Protect Your Connected Components
Six 5-15R outlets provide battery backup, 567 joules of network-grade surge protection and voltage regulation for your crucial components. Five outlets are UPS-supported, and one is surge-only to connect peripherals not requiring battery backup. One UPS-supported outlet is switchable, allowing you to power its connected device on and off remotely to reset or reboot it or to shed a less significant load to extend battery runtime for more critical equipment.

Automatic Voltage Regulation (AVR) Corrects Low-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART500RT1U maintains regulated 120V nominal output during brownouts as low as 90V, while keeping the battery fully charged and ready to take over in case of power failure. The fast-to-recharge internal batteries are field-replaceable and hot-swappable.

Optional WEBCARDLXE Network Interface Offers 24/7 Access
An accessory slot accommodates the optional Java-free HTML5-based WEBCARDLXE interface (sold separately), which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimal communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.

Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

Designed for High Efficiency to Help You Save Money and Protect the Environment
A 97% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
LED Indicators and Audible Alarms Keep You Informed

Five front-panel LEDs keep you apprised of line power, battery power, overload, voltage regulation and battery low/replace status at a glance. A multi-function alarm sounds to warn you of power failure, overload and low-battery conditions.
More from the Manufacturer

1U rack-mount UPS offers complete power protection for small network applications, including telecom, security and digital signage
Protects equipment against blackouts, brownouts, transient surges and line noise
Keeps AC power running during blackouts to allow time for file saves and safe shutdown
Maintains continuous 120V nominal output during brownouts as low as 90V
6 NEMA 5-15R outlets power and protect networking, telecom and other sensitive equipment
Optional WEBCARDLXE network interface allows you 24/7 remote access from anywhere
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance
Works adequately in situations where the supply is prone to sags and surges
Up to 3.20 minute runtime on full load to preserve critical data from power shortage interruptions
300 W load capacity – backup power for your valuable electronics
500 VA load capacity – work without any interruption during power outages
4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
Lead Acid battery chemistry to better suit your requirements with maximum productivity
NEMA 5-15P plug/connector type for maximum usability with added reliability
NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
120 V AC input voltage for optimal performance with maximum usability
120 V AC output voltage for better reliance and maximum usability
Experience higher efficiency with lower energy cost
Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
NEMA 5-15R receptacle type offers ease of operation with maximum efficiency
120 V AC input voltage for maximum feasibility and added productivity
120 V AC output voltage for maximum dependability and added productivity

Product Specifications

Additional Information

500VA / 300 watt power handling capability compatibile with networking, telecom and other sensitive electronic devices SMART500RT1U line interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts, plus network-grade AC surge suppression Supports 1U rackmount installation in 2 or 4 post rack enclosures, upright tower placement also supported – mounting accessories included Large internal batteries offer runtimes of 17 minutes at half load (250VA / 150 watts) and 5 minutes at full load (500VA / 300 watts) Maintains regulated 120V nominal output during brownouts as low as 90V Includes 6 UPS-supported outlets, with one single outlet load bank that can be powered off and back on again via software interface. One additional surge-only outlet powers accessories not requiring battery support PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected devices Supports Tripp Lite’s WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW) Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter Emergency Power Off (EPO) interface with cable Multi-function audible alarms and set of 5 front panel LEDs Network-grade AC surge suppression Attractive all-black color scheme UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary Two year warranty with $250,000 connected equipment insurance (USA & Canada only)
Alarm

On Battery Overload UPS Fault Low Battery
Backup/Run Time

0.08 Hour 353.55 W Full Load 0.28 Hour 176.78 W Half Load
Battery Chemistry

Lead Acid
Brand Name

Tripp Lite series
Cord Length

10 ft
Country of Origin

China
Depth

11.75″
Emergency Power OFF

Yes
Form Factor

Rack/Tower
Hot Swappable

Yes
Input Voltage

120 V AC
Limited Warranty

3 Year
Load Capacity (VA)

500 VA
Load Capacity (Watt)

300 W
Manufacturer

Tripp Lite
Manufacturer Part Number

SMART500RT1U
Manufacturer Website Address

www.tripplite.com
Marketing Information

SmartPro 500VA Rack/Tower UPS System with seven outlets protects network servers against damage and downtime due to blackouts, brownouts, overvoltages and surges. Advanced automatic voltage regulation keeps servers productive through brownouts and overvoltages without using battery power. Up to four built-in communication ports and intelligent operation provide advanced power monitoring and control when used with included PowerAlert Software. Adapts to 1U rackmount or tower applications.
Maximum Operating Temperature

122°F (50°C)
Network Management

SNMP Manageable
Output Voltage

120 V AC
Package Contents

Mounting hardware Cabling for USB & DB9 monitoring and EPO switching PowerAlert unattended shutdown and UPS/Power monitoring software Warranty information and instruction manual SMART500RT1U UPS System

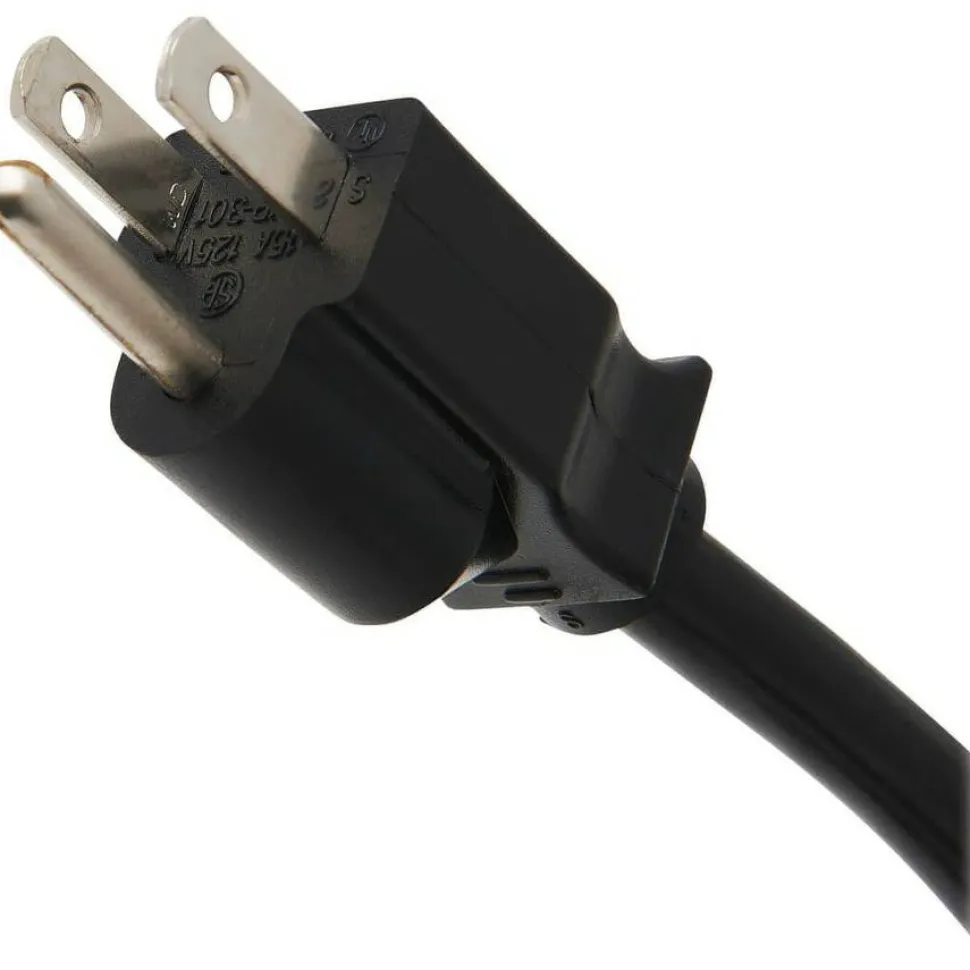

Plug/Connector Type

NEMA 5-15P
Product Color

Black
Product Line

SmartPro
Product Model

SMART500RT1U
Product Name

SmartPro 500VA Rack/Tower UPS
Product Type

Line-interactive UPS
Rack Height

1U
Receptacle Detail

6 x NEMA 5-15R
Receptacle Type

NEMA 5-15R
Serial Port

Yes
Shipping Dimensions

5″ Height x 22.50″ Width x 16″ Depth
Software Included

PowerAlert Software
Status Indicators

5 front panel LEDs – Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.
Surge Energy Rating

480 J
System Requirements

TYPICAL APPLCIATIONS: Ideal for protection of fileservers, network accessories and telecommunications equipment in server rooms, internetworking closets, co-location racks, kiosks and a variety of other locations. Common applications include any mix of servers, workstations, hubs, routers, concentrators, IP telephony and traditional PBX switching systems.
Temperature

32?F (0?C) to 104?F (40?C) Operating 5?F (-15?C) to 122?F (50?C)
Transfer Time

4 ms
Typical Battery Recharge Time

4 Hour
USB

Yes
Waveform Type

Pulse-width Modulated Sine Wave
Weight (Approximate)

18.80 lb
Width

17.50″
